KSP210-AHXGK (2020)
Toyota Yaris
Production
Feb 2020
-
Sep 9999
Engine
1KRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(2002- )1KRFE

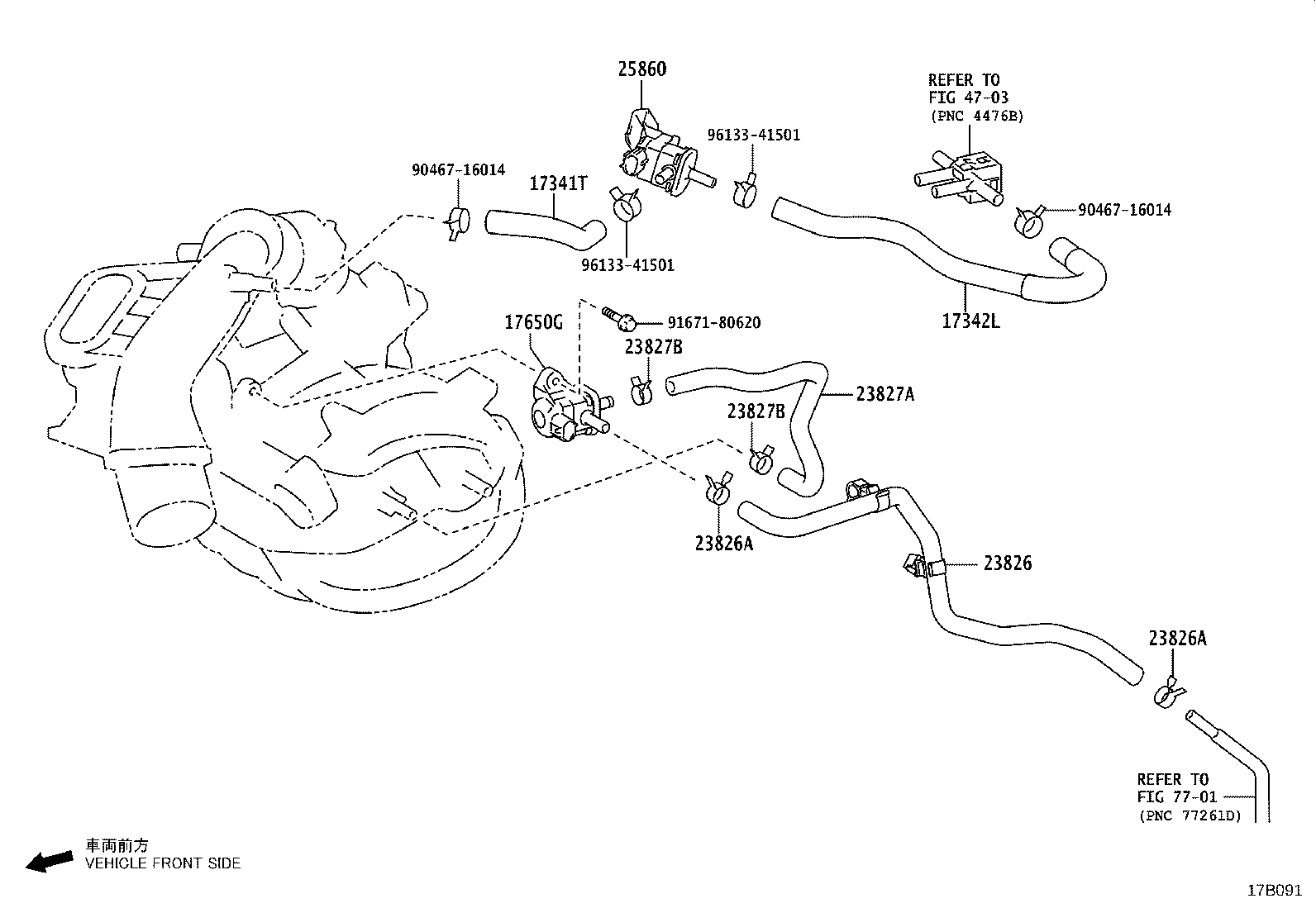

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17341T - HOSE, AIR, NO.1 | ||||
| 17341-40040 |
1KRFE..KSP210 |
1 | ||
| 17342L - HOSE, AIR, NO.2 | ||||
| 17342-40030 |
1KRFE..KSP210 |
1 | ||
| 17650G - VALVE, DUTY VACUUM SWITCHING | ||||
| 90910-12282 |
1KRFE..KSP210 |
1 | ||
| 23826 - HOSE, FUEL VAPOR FEED, NO.1 | ||||
| 23826-40060 |
1KRFE..KSP210 |
1 | ||
| 23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) | ||||
| 90466-13005 |
1KRFE..KSP210 |
2 | ||
| 23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) | ||||
| 90466-13005 |
1KRFE..KSP210 |
2 | ||
| 23827A - HOSE, FUEL VAPOR FEED, NO.2 | ||||
| 23827-40070 |
1KRFE..KSP210 |
1 | ||
| 23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2) | ||||
| 96138-41501 |
1KRFE..KSP210 |
2 | ||
| 23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2) | ||||
| 96138-41501 |
1KRFE..KSP210 |
2 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-40020 |
1KRFE..KSP210 |
1 | ||
| Common parts | ||||
| 90467-16014 | ||||
| 91671-80620 | ||||
| 96133-41501 | ||||
| Linked diagrams | ||||
| 4703 | ||||
| 7701 | ||||
