KSP210-AHXGK (2020)
Toyota Yaris
Production
Feb 2020
-
Sep 9999
Engine
1KRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

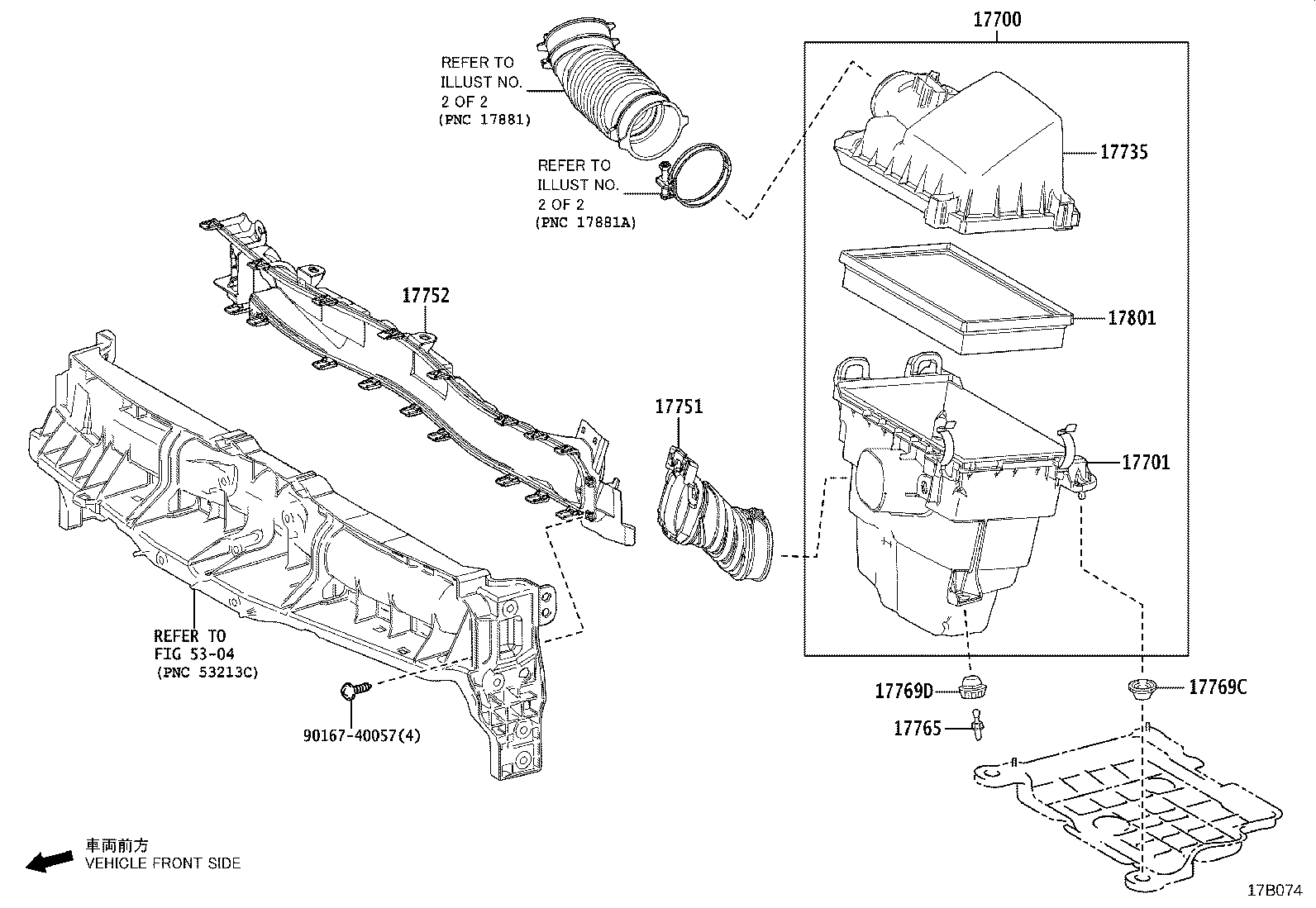

ILLUST NO. 1 OF 2(2002- )1KRFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-40290 |
1KRFE..KSP210 |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-15290 |
1KRFE..KSP210 |
1 | ||
| 17735 - CAP, AIR CLEANER | ||||
| 17735-40020 |
1KRFE..KSP210 |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-15090 |
1KRFE..KSP210 |
1 | ||
| 17752 - INLET, AIR CLEANER, NO.2 | ||||
| 17752-15070 |
1KRFE..KSP210 |
1 | ||
| 17765 - STAY, AIR CLEANER, NO.1 | ||||
| 17765-25010 |
1KRFE..KSP210 |
1 | ||
| 17769C - SUPPORT, AIR CLEANER, NO.1 | ||||
| 17769-25020 |
1KRFE..KSP210 |
2 | ||
| 17769D - SUPPORT, AIR CLEANER, NO.2 | ||||
| 17769-25030 |
1KRFE..KSP210 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-15090 |
1KRFE..KSP210 |
1 | ||
| Common parts | ||||
| 90167-40057 | ||||
| Linked diagrams | ||||
| 5304 | ||||

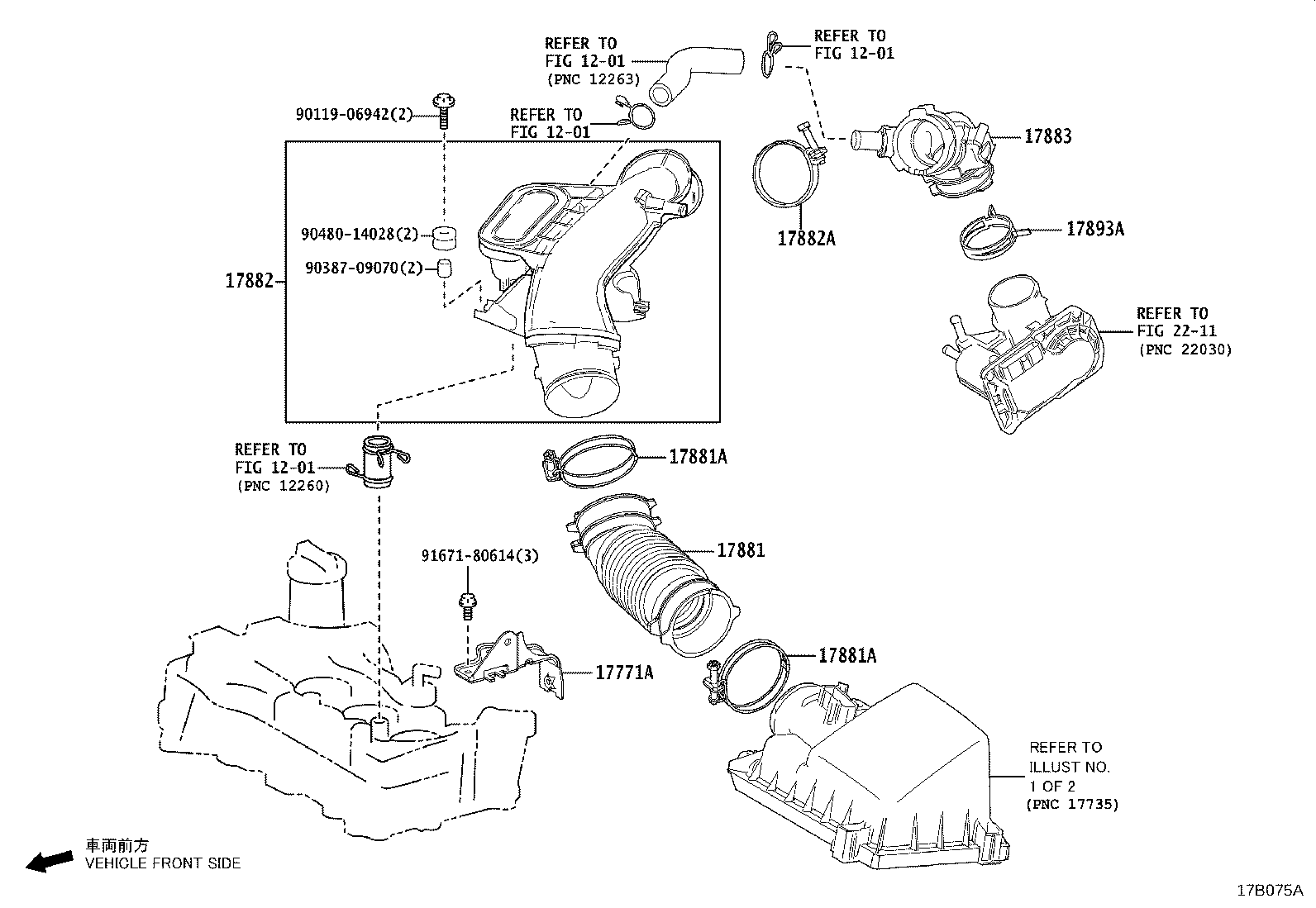

ILLUST NO. 2 OF 2(2002- )1KRFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17771A - BRACKET, AIR CLEANER | ||||
| 17771-40010 |
1KRFE..KSP210 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-40060 |
1KRFE..KSP210 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10710 |
1KRFE..KSP210 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10710 |
1KRFE..KSP210 |
2 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-40020 |
1KRFE..KSP210 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10550 |
1KRFE..KSP210 |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-40010 |
1KRFE..KSP210 |
1 | ||
| 17893A - CLAMP, HOSE | ||||
| 90466-46001 |
1KRFE..KSP210 |
1 | ||
| Common parts | ||||
| 90119-06942 | ||||
| 90387-09070 | ||||
| 90480-14028 | ||||
| 91671-80614 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 2211 | ||||
