KSP210-AHXGK (2020)
Toyota Yaris
Production
Feb 2020
-
Sep 9999
Engine
1KRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(2002- )1KRFE

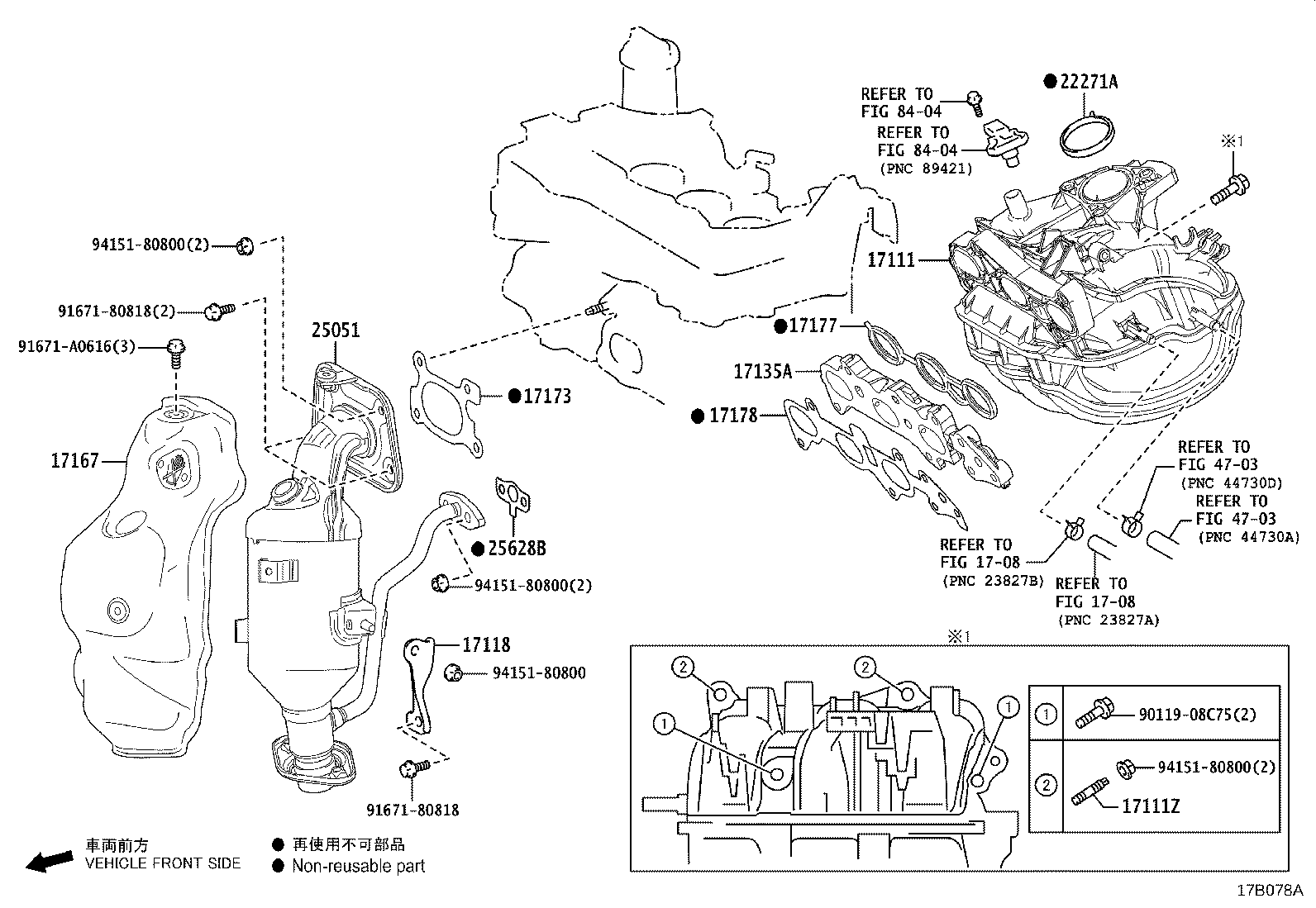

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-40020 |
1KRFE..KSP210 |
1 | ||
| 17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD) | ||||
| 92122-80845 |
1KRFE..KSP210 |
2 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-40040 |
1KRFE..KSP210 |
1 | ||
| 17135A - INSULATOR, INTAKE MANIFOLD, NO.1 | ||||
| 17135-40030 |
1KRFE..KSP210 |
1 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-40060 |
1KRFE..KSP210 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-40040 |
1KRFE..KSP210 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-40030 |
1KRFE..KSP210 |
1 | ||
| 17178 - GASKET, INTAKE MANIFOLD TO HEAD, NO.2 | ||||
| 17178-40030 |
1KRFE..KSP210 |
1 | ||
| 22271A - GASKET, THROTTLE BODY | ||||
| 22271-40030 |
1KRFE..KSP210 |
1 | ||
| 25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD | ||||
| 25051-40130 |
1KRFE..KSP210 |
1 | ||
| 25628B - GASKET, EGR INLET | ||||
| 25628-40020 |
1KRFE..KSP210 |
1 | ||
| Common parts | ||||
| 90119-08C75 | ||||
| 91671-80818 | ||||
| 91671-A0616 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 4703 | ||||
| 8404 | ||||
