KSP210-AHXGK (2020)
Toyota Yaris

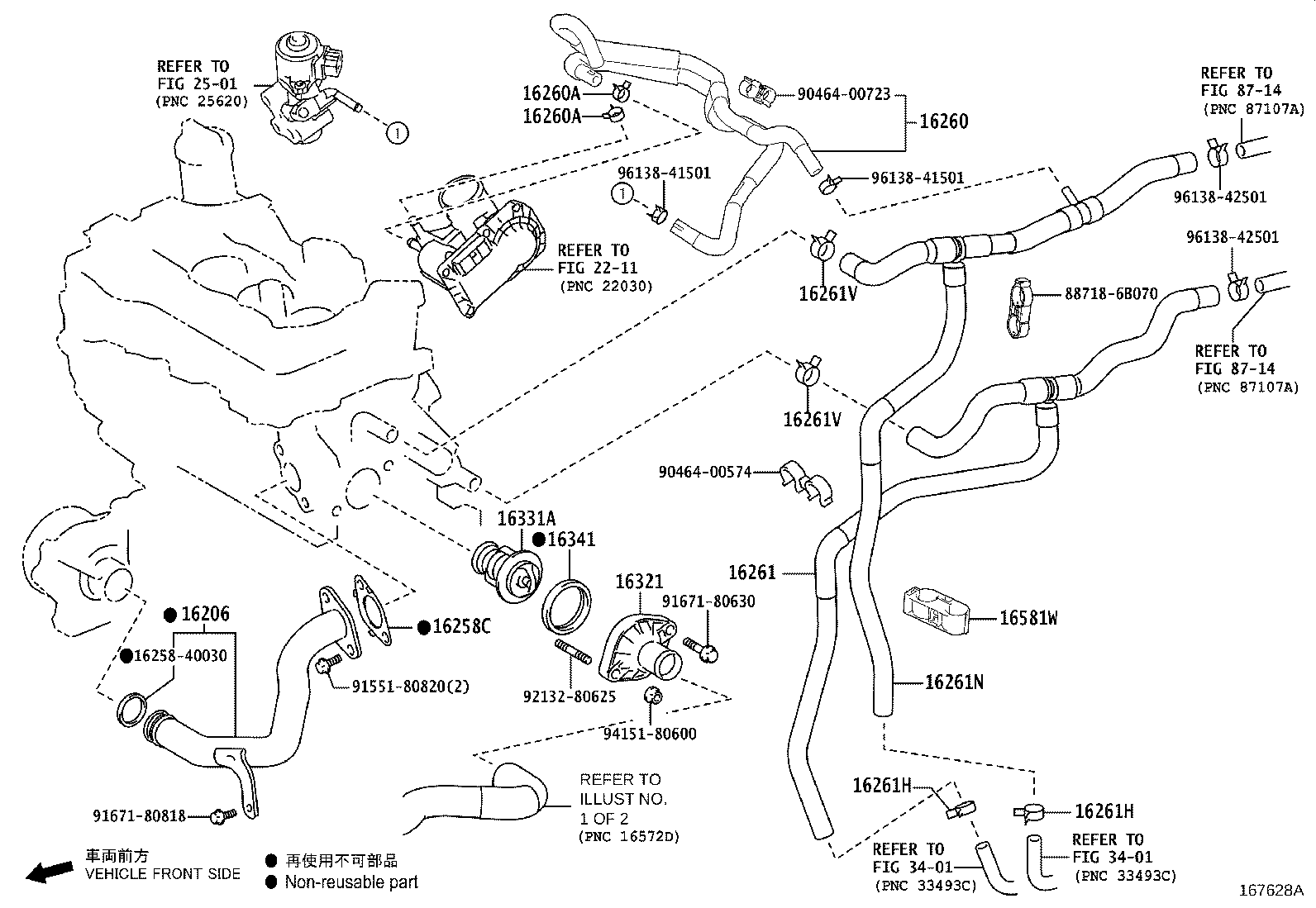

ILLUST NO. 2 OF 2(2002- )1KRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-40010 |
1KRFE..KSP210 |
1 | ||
| 16258C - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-40021 |
1KRFE..KSP210 |
1 | ||
| 16260 - HOSE ASSY, WATER BY-PASS | ||||
| 16260-40220 |
1KRFE..KSP210 |
1 | ||
| 16260A - CLIP(FOR WATER BY-PASS HOSE ASSY) | ||||
| 96137-41501 |
1KRFE..KSP210 |
2 | ||
| 16260A - CLIP(FOR WATER BY-PASS HOSE ASSY) | ||||
| 96137-41501 |
1KRFE..KSP210 |
2 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16260-40190 |
1KRFE..KSP210 |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96138-42101 |
1KRFE..KSP210 |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96138-42101 |
1KRFE..KSP210 |
2 | ||
| 16261N - HOSE, WATER BY-PASS, NO.2 | ||||
| 16280-40020 |
1KRFE..KSP210 |
1 | ||
| 16261V - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96138-42501 |
1KRFE..KSP210 |
2 | ||
| 16261V - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96138-42501 |
1KRFE..KSP210 |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-40010 |
1KRFE..KSP210 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03150 |
1KRFE..KSP210 *WAX 80−93 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-35010 |
1KRFE..KSP210 |
1 | ||
| 16581W - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-40100 |
1KRFE..KSP210 |
1 | ||
| Common parts | ||||
| 16258-40030 | ||||
| 88718-6B070 | ||||
| 90464-00574 | ||||
| 90464-00723 | ||||
| 91551-80820 | ||||
| 91671-80630 | ||||
| 91671-80818 | ||||
| 92132-80625 | ||||
| 94151-80600 | ||||
| 96138-41501 | ||||
| 96138-42501 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 2501 | ||||
| 3401 | ||||
| 8714 | ||||

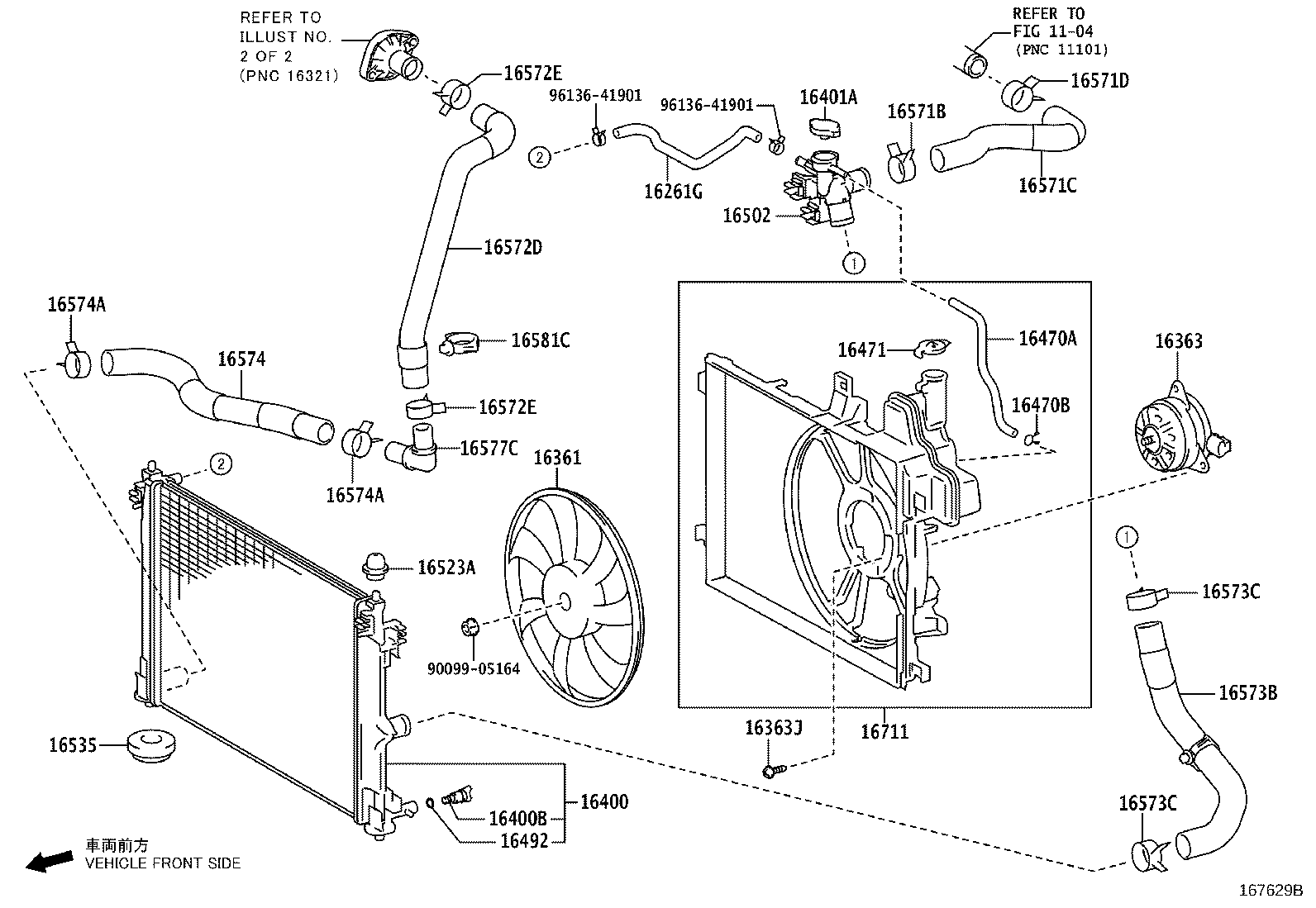

ILLUST NO. 1 OF 2(2002- )1KRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-15040 |
1KRFE..KSP210 |
1 | ||
| 16361 - FAN | ||||
| 16361-28270 |
1KRFE..KSP210 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-28200 |
1KRFE..KSP210 |
1 | ||
| 16363J - BOLT(FOR COOLING FAN MOTOR) | ||||
| 90099-04119 |
1KRFE..KSP210 |
3 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-40230 |
1KRFE..KSP210 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-21280 |
1KRFE..KSP210 |
1 | ||
| 16401A - CAP SUB-ASSY, RADIATOR RESERVE TANK | ||||
| 16401-36020 |
1KRFE..KSP210 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16377-K0040 |
1KRFE..KSP210 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1KRFE..KSP210 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-23010 |
1KRFE..KSP210 |
1 | ||
| 16492 - RING, O(FOR RADIATOR RESERVE TANK COCK) | ||||
| 16492-21050 |
1KRFE..KSP210 |
1 | ||
| 16502 - FILLER SUB-ASSY, WATER | ||||
| 16502-15020 |
1KRFE..KSP210 |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-37010 |
1KRFE..KSP210 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-40021 |
1KRFE..KSP210 |
2 | ||
| 16571B - HOSE, SLIT(FOR RADIATOR HOSE) | ||||
| 96136-43901 |
1KRFE..KSP210 |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-40070 |
1KRFE..KSP210 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-43601 |
1KRFE..KSP210 |
1 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-40060 |
1KRFE..KSP210 |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-43601 |
1KRFE..KSP210 |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-43601 |
1KRFE..KSP210 |
2 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-40030 |
1KRFE..KSP210 |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-43002 |
1KRFE..KSP210 |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-43002 |
1KRFE..KSP210 |
2 | ||
| 16574 - HOSE, RADIATOR, NO.4 | ||||
| 16574-40020 |
1KRFE..KSP210 |
1 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90466-40001 |
1KRFE..KSP210 |
2 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90466-40001 |
1KRFE..KSP210 |
2 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-21050 |
1KRFE..KSP210 |
1 | ||
| 16581C - CLAMP, HOSE(FOR RADIATOR HOSE NO.2) | ||||
| 16581-25030 |
1KRFE..KSP210 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-40060 |
1KRFE..KSP210 |
1 | ||
| Common parts | ||||
| 90099-05164 | ||||
| 96136-41901 | ||||
| Linked diagrams | ||||
| 1104 | ||||
