KSP210-AHXGK (2020)
Toyota Yaris
Production
Feb 2020
-
Sep 9999
Engine
1KRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(2002- )1KRFE

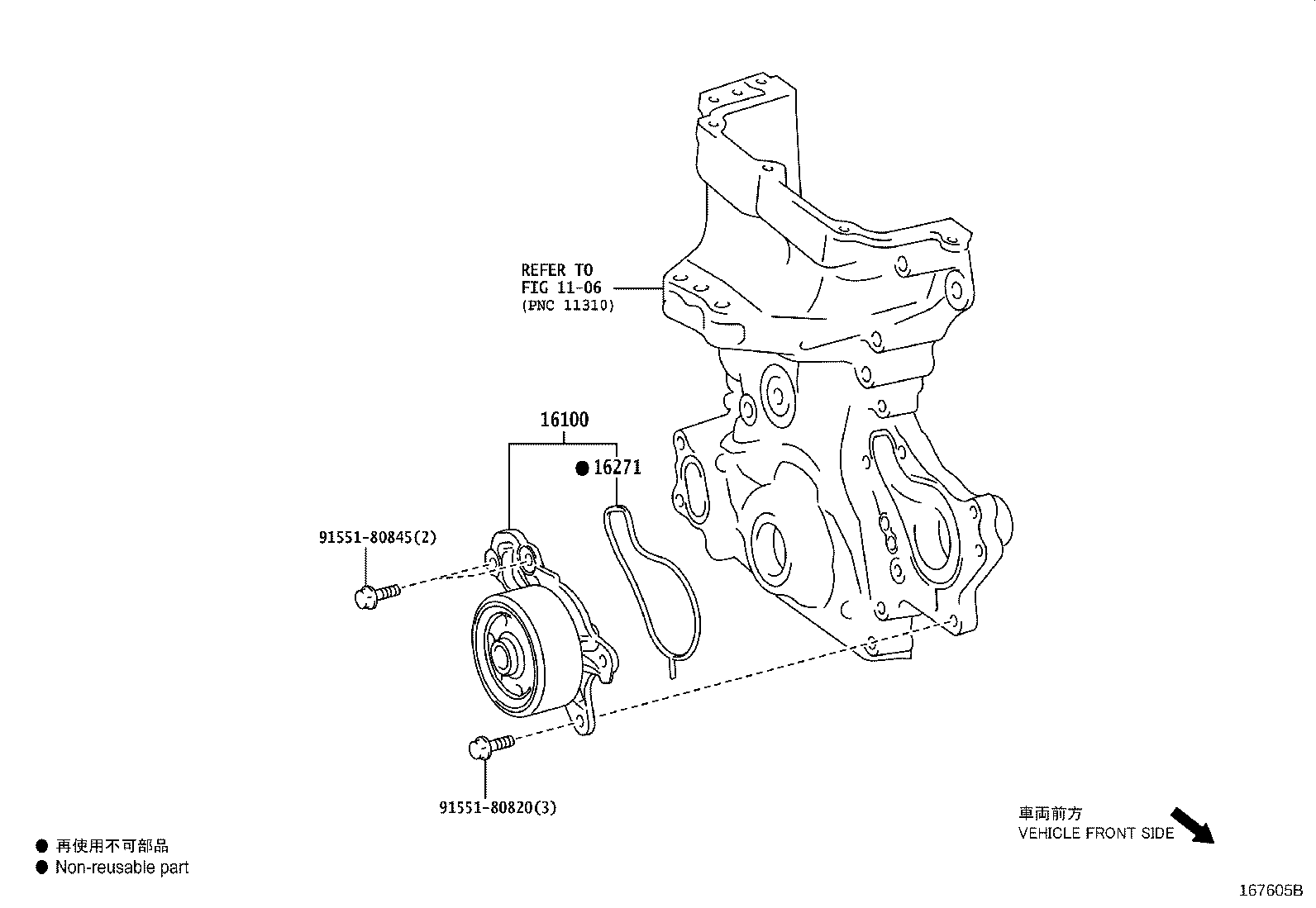

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-80017 |
1KRFE..KSP210 |
1 | ||
| 16100-80015 |
1KRFE..KSP210 |
1 | ||
| 16271 - GASKET, WATER PUMP | ||||
| 16271-40030 |
1KRFE..KSP210 |
1 | ||
| Common parts | ||||
| 91551-80820 | ||||
| 91551-80845 | ||||
| Linked diagrams | ||||
| 1106 | ||||
