KSP210-AHXGK (2020)
Toyota Yaris
(2002- )1KRFE

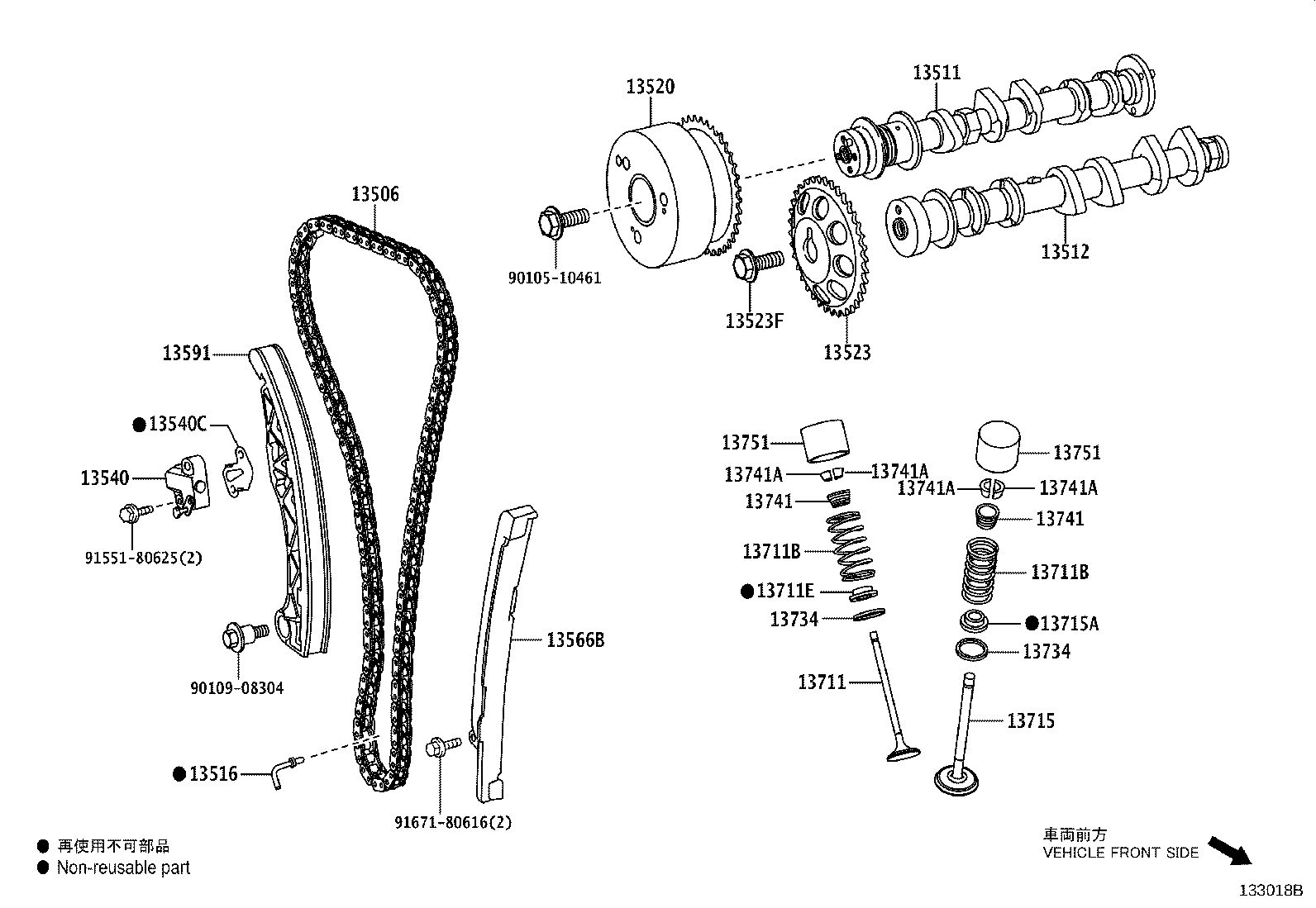

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13506 - CHAIN SUB-ASSY | ||||
| 13506-40020 |
1KRFE..KSP210 |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-40070 |
1KRFE..KSP210 |
1 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-40040 |
1KRFE..KSP210 |
1 | ||
| 13516 - JET, OIL | ||||
| 13516-40010 |
1KRFE..KSP210 |
1 | ||
| 13520 - SPROCKET ASSY, CAMSHAFT TIMING | ||||
| 13520-40021 |
1KRFE..KSP210 |
1 | ||
| 13523 - GEAR OR SPROCKET, CAMSHAFT TIMING | ||||
| 13523-22020 |
1KRFE..KSP210 |
1 | ||
| 13523F - BOLT(FOR CAMSHAFT TIMING GEAR) | ||||
| 90119-10889 |
1KRFE..KSP210 |
1 | ||
| 13540 - TENSIONER ASSY, CHAIN, NO.1 | ||||
| 13540-21020 |
1KRFE..KSP210 |
1 | ||
| 13540C - GASKET(FOR CHAIN TENSIONER) | ||||
| 13552-40010 |
1KRFE..KSP210 |
1 | ||
| 13566B - GUIDE, TIMING CHAIN | ||||
| 13566-40031 |
1KRFE..KSP210 |
1 | ||
| 13591 - ARM, TIMING CHAIN TENSION | ||||
| 13591-40041 |
1KRFE..KSP210 |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-40050 |
1KRFE..KSP210 |
6 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-25069 |
1KRFE..KSP210 |
12 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-25069 |
1KRFE..KSP210 |
12 | ||
| 13711E - SEAL, INTAKE VALVE STEM OIL | ||||
| 90913-02093 |
1KRFE..KSP210 |
6 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-40050 |
1KRFE..KSP210 |
6 | ||
| 13715A - SEAL, EXHAUST VALVE STEM OIL | ||||
| 90913-02128 |
1KRFE..KSP210 |
6 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-40010 |
1KRFE..KSP210 |
12 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-40010 |
1KRFE..KSP210 |
12 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-22021 |
1KRFE..KSP210 |
12 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-22021 |
1KRFE..KSP210 |
12 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03031 |
1KRFE..KSP210 |
24 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03031 |
1KRFE..KSP210 |
24 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03031 |
1KRFE..KSP210 |
24 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03031 |
1KRFE..KSP210 |
24 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-40650 |
1KRFE..KSP210 厚さ=5.16 |
12 | ||
| 13751-40670 |
1KRFE..KSP210 厚さ=5.20 |
12 | ||
| 13751-40660 |
1KRFE..KSP210 厚さ=5.18 |
12 | ||
| 13751-40700 |
1KRFE..KSP210 厚さ=5.26 |
12 | ||
| 13751-40630 |
1KRFE..KSP210 厚さ=5.12 |
12 | ||
| 13751-40680 |
1KRFE..KSP210 厚さ=5.22 |
12 | ||
| 13751-40740 |
1KRFE..KSP210 厚さ=5.34 |
12 | ||
| 13751-40710 |
1KRFE..KSP210 厚さ=5.28 |
12 | ||
| 13751-40810 |
1KRFE..KSP210 厚さ=5.48 |
12 | ||
| 13751-40770 |
1KRFE..KSP210 厚さ=5.40 |
12 | ||
| 13751-40640 |
1KRFE..KSP210 厚さ=5.14 |
12 | ||
| 13751-40720 |
1KRFE..KSP210 厚さ=5.30 |
12 | ||
| 13751-40860 |
1KRFE..KSP210 厚さ=5.58 |
12 | ||
| 13751-40730 |
1KRFE..KSP210 厚さ=5.32 |
12 | ||
| 13751-40690 |
1KRFE..KSP210 厚さ=5.24 |
12 | ||
| 13751-40840 |
1KRFE..KSP210 厚さ=5.54 |
12 | ||
| 13751-40800 |
1KRFE..KSP210 厚さ=5.46 |
12 | ||
| 13751-40790 |
1KRFE..KSP210 厚さ=5.44 |
12 | ||
| 13751-40750 |
1KRFE..KSP210 厚さ=5.36 |
12 | ||
| 13751-40780 |
1KRFE..KSP210 厚さ=5.42 |
12 | ||
| 13751-40760 |
1KRFE..KSP210 厚さ=5.38 |
12 | ||
| 13751-40820 |
1KRFE..KSP210 厚さ=5.50 |
12 | ||
| 13751-40830 |
1KRFE..KSP210 厚さ=5.52 |
12 | ||
| 13751-40850 |
1KRFE..KSP210 厚さ=5.56 |
12 | ||
| 13751-40890 |
1KRFE..KSP210 厚さ=5.64 |
12 | ||
| 13751-40A20 |
1KRFE..KSP210 厚さ=5.68 |
12 | ||
| 13751-40880 |
1KRFE..KSP210 厚さ=5.62 |
12 | ||
| 13751-40870 |
1KRFE..KSP210 厚さ=5.60 |
12 | ||
| 13751-40A10 |
1KRFE..KSP210 厚さ=5.66 |
12 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-40650 |
1KRFE..KSP210 厚さ=5.16 |
12 | ||
| 13751-40670 |
1KRFE..KSP210 厚さ=5.20 |
12 | ||
| 13751-40660 |
1KRFE..KSP210 厚さ=5.18 |
12 | ||
| 13751-40700 |
1KRFE..KSP210 厚さ=5.26 |
12 | ||
| 13751-40630 |
1KRFE..KSP210 厚さ=5.12 |
12 | ||
| 13751-40680 |
1KRFE..KSP210 厚さ=5.22 |
12 | ||
| 13751-40740 |
1KRFE..KSP210 厚さ=5.34 |
12 | ||
| 13751-40710 |
1KRFE..KSP210 厚さ=5.28 |
12 | ||
| 13751-40810 |
1KRFE..KSP210 厚さ=5.48 |
12 | ||
| 13751-40770 |
1KRFE..KSP210 厚さ=5.40 |
12 | ||
| 13751-40640 |
1KRFE..KSP210 厚さ=5.14 |
12 | ||
| 13751-40720 |
1KRFE..KSP210 厚さ=5.30 |
12 | ||
| 13751-40860 |
1KRFE..KSP210 厚さ=5.58 |
12 | ||
| 13751-40730 |
1KRFE..KSP210 厚さ=5.32 |
12 | ||
| 13751-40690 |
1KRFE..KSP210 厚さ=5.24 |
12 | ||
| 13751-40840 |
1KRFE..KSP210 厚さ=5.54 |
12 | ||
| 13751-40800 |
1KRFE..KSP210 厚さ=5.46 |
12 | ||
| 13751-40790 |
1KRFE..KSP210 厚さ=5.44 |
12 | ||
| 13751-40750 |
1KRFE..KSP210 厚さ=5.36 |
12 | ||
| 13751-40780 |
1KRFE..KSP210 厚さ=5.42 |
12 | ||
| 13751-40760 |
1KRFE..KSP210 厚さ=5.38 |
12 | ||
| 13751-40820 |
1KRFE..KSP210 厚さ=5.50 |
12 | ||
| 13751-40830 |
1KRFE..KSP210 厚さ=5.52 |
12 | ||
| 13751-40850 |
1KRFE..KSP210 厚さ=5.56 |
12 | ||
| 13751-40890 |
1KRFE..KSP210 厚さ=5.64 |
12 | ||
| 13751-40A20 |
1KRFE..KSP210 厚さ=5.68 |
12 | ||
| 13751-40880 |
1KRFE..KSP210 厚さ=5.62 |
12 | ||
| 13751-40870 |
1KRFE..KSP210 厚さ=5.60 |
12 | ||
| 13751-40A10 |
1KRFE..KSP210 厚さ=5.66 |
12 | ||
| Common parts | ||||
| 90105-10461 | ||||
| 90109-08304 | ||||
| 91551-80625 | ||||
| 91671-80616 | ||||
