KSP210-AHXGK (2020)

Toyota Yaris

Production Feb 2020 - Sep 9999
Engine 1KRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2002- )1KRFE

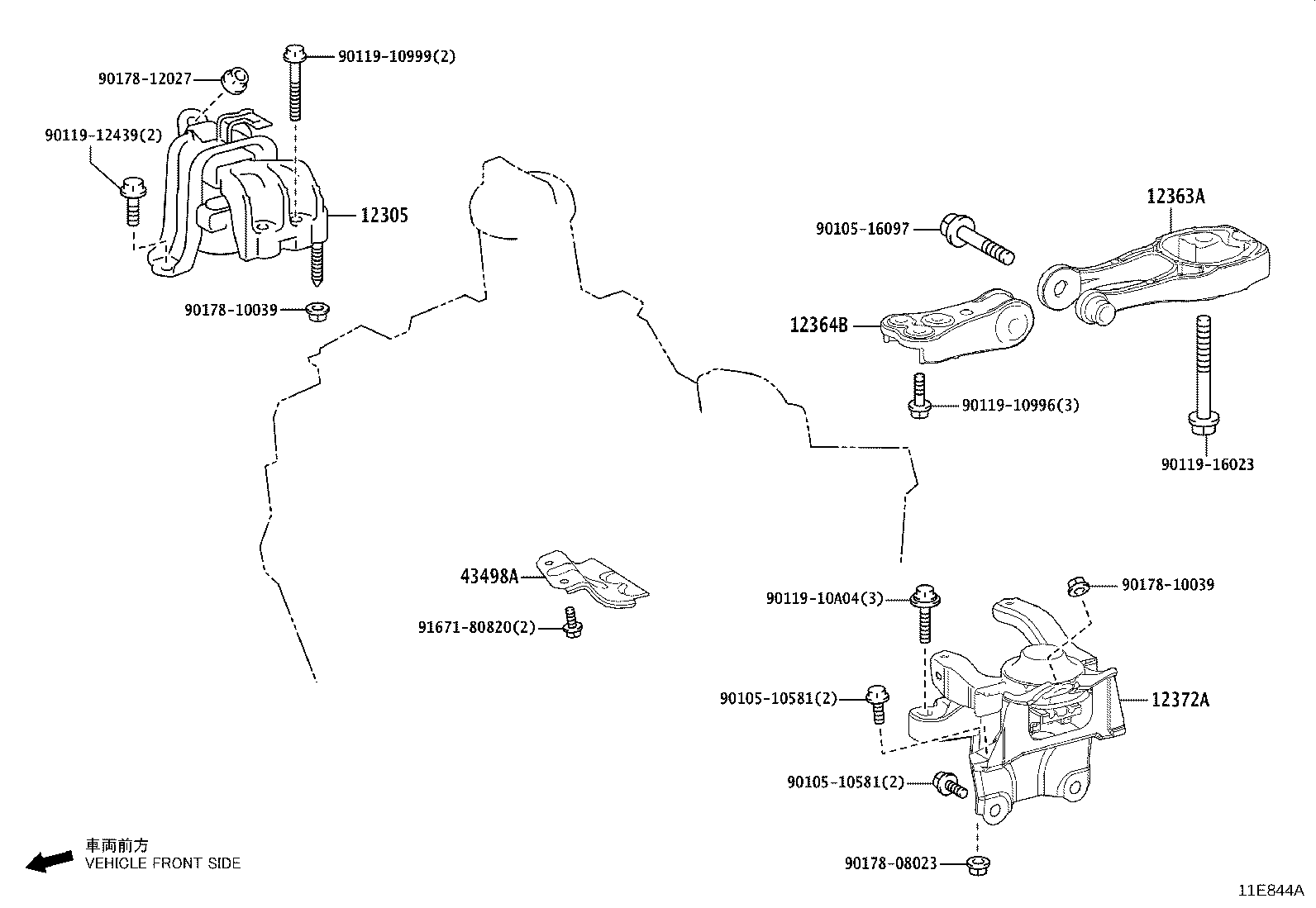

Click highlighted areas on diagram

diagram 12305 12363A 12364B 12372A 43498A 9010510581 9010510581 9010516097 9011910996 9011910999 9011910A04 9011912439 9011916023 9017808023 9017810039 9017810039 9017812027 9167180820
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-40131

1KRFE..KSP210

 1
12363A - ROD, ENGINE MOVING CONTROL
12363-15030

1KRFE..KSP210

 1
12364B - ROD, ENGINE MOVING CONTROL, NO.2
12364-40060

1KRFE..KSP210

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-40110

1KRFE..KSP210

 1
43498A - INSULATOR, DRIVE SHAFT HEAT, NO.1
43498-52120

KSP210

 1
Common parts
90105-10581
90105-16097
90119-10996
90119-10999
90119-10A04
90119-12439
90119-16023
90178-08023
90178-10039
90178-12027
91671-80820
