KSP210-AHXGK (2020)
Toyota Yaris
Production
Feb 2020
-
Sep 9999
Engine
1KRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

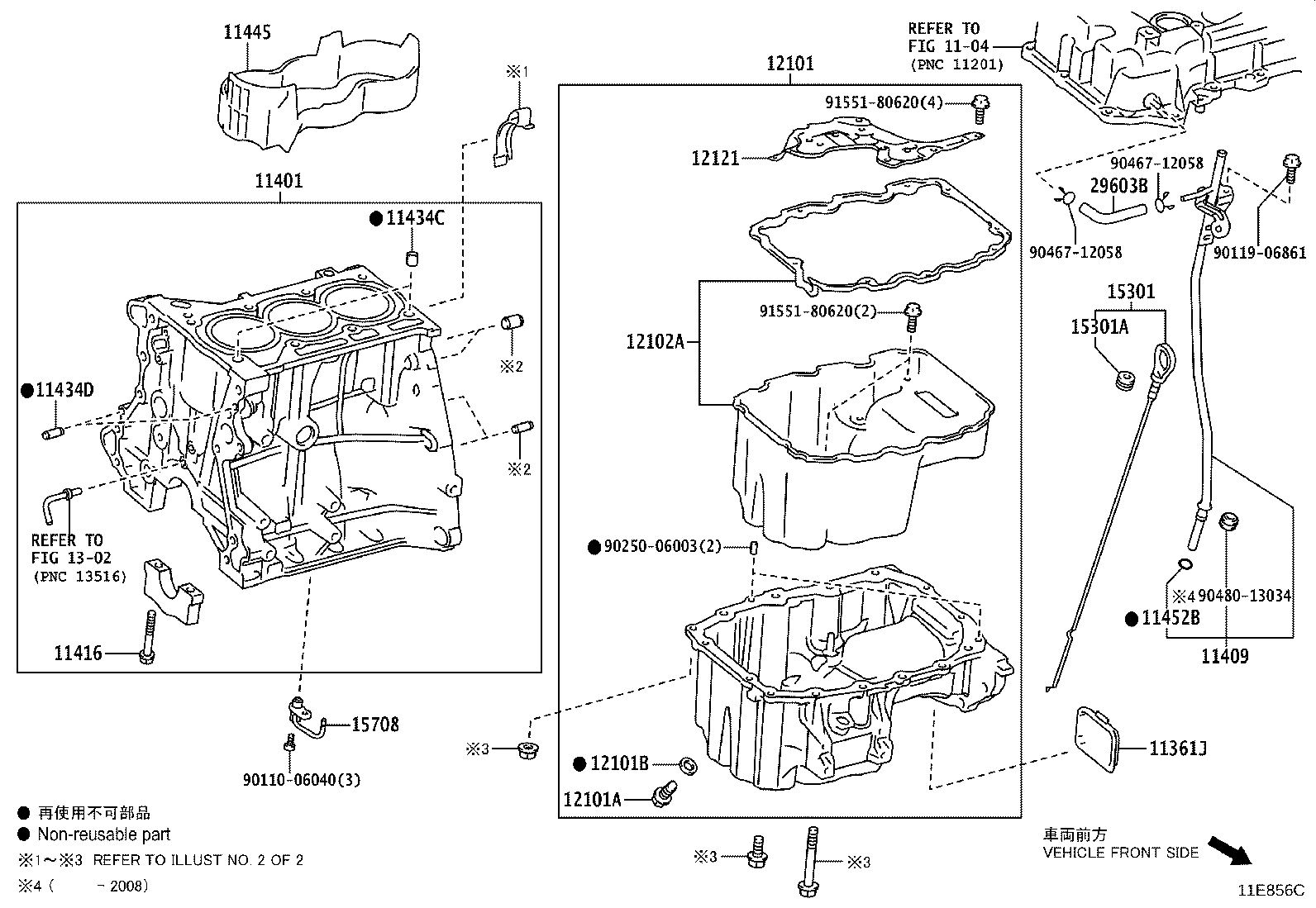

ILLUST NO. 1 OF 2(2002- )1KRFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11361J - COVER, FLYWHEEL HOUSING UNDER | ||||
| 11361-23020 |
1KRFE..KSP210 |
1 | ||
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-40080 |
1KRFE..KSP210 |
1 | ||
| 11409 - GUIDE SUB-ASSY, OIL LEVEL GAGE | ||||
| 11409-40090 |
1KRFE..KSP210 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90105-10531 |
1KRFE..KSP210 |
8 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90253-12002 |
1KRFE..KSP210 長さ=12,外径=12 |
2 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-06003 |
1KRFE..KSP210 長さ=14,外径=6 |
4 | ||
| 11445 - SPACER, CYLINDER BLOCK WATER JACKET | ||||
| 11445-40021 |
1KRFE..KSP210 |
1 | ||
| 11452B - RING, O(FOR OIL LEVEL GAGE GUIDE) | ||||
| 96721-19010 |
1KRFE..KSP210 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-40140 |
1KRFE..KSP210 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-12032 |
1KRFE..KSP210 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12031 |
1KRFE..KSP210 |
1 | ||
| 12102A - PAN SUB-ASSY, OIL, NO.2 | ||||
| 12102-40010 |
1KRFE..KSP210 |
1 | ||
| 12112-40011 |
1KRFE..KSP210 |
1 | ||
| 12121 - PLATE, OIL PAN BAFFLE, NO.1 | ||||
| 12121-40070 |
1KRFE..KSP210 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-40110 |
1KRFE..KSP210 |
1 | ||
| 15301A - RING, O(FOR OIL LEVEL GAGE) | ||||
| 96741-19005 |
1KRFE..KSP210 |
1 | ||
| 15708 - NOZZLE SUB-ASSY, OIL, NO.1 | ||||
| 15708-40010 |
1KRFE..KSP210 |
3 | ||
| 29603B - HOSE, OIL(FOR OIL LEVEL GAUGE GUIDE) | ||||
| 29603-40010 |
1KRFE..KSP210 |
1 | ||
| Common parts | ||||
| 90110-06040 | ||||
| 90119-06861 | ||||
| 90250-06003 | ||||
| 90467-12058 | ||||
| 90480-13034 | ||||
| 91551-80620 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1302 | ||||

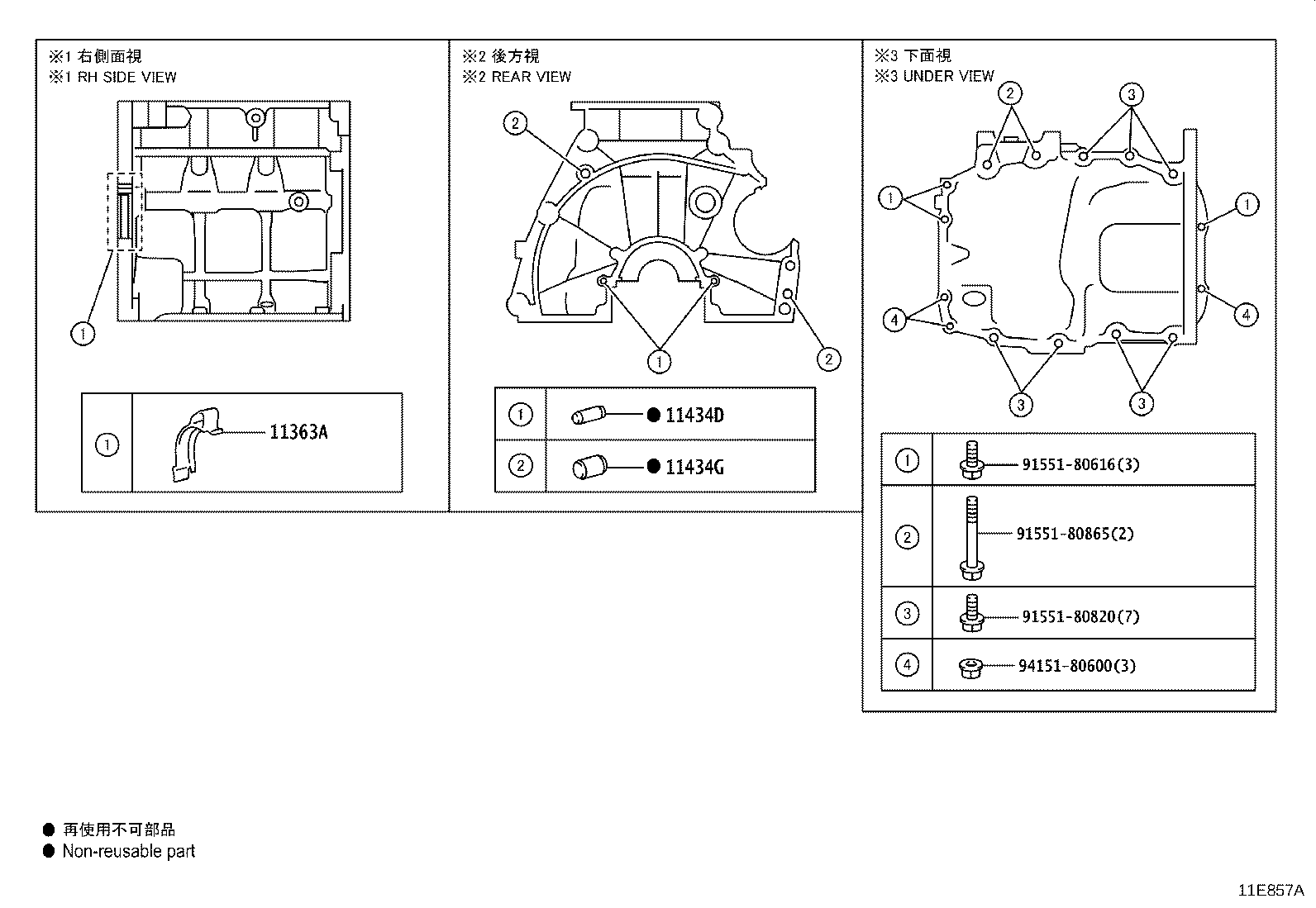

ILLUST NO. 2 OF 2(2002- )1KRFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11363A - COVER, FLYWHEEL HOUSING SIDE | ||||
| 11363-40010 |
1KRFE..KSP210 |
1 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-06003 |
1KRFE..KSP210 長さ=14,外径=6 |
4 | ||
| 11434G - PIN, STRAIGHT(FOR END PLATE) | ||||
| 90250-10232 |
1KRFE..KSP210 |
2 | ||
| Common parts | ||||
| 91551-80616 | ||||
| 91551-80820 | ||||
| 91551-80865 | ||||
| 94151-80600 | ||||
