ZNE14G-HPPNK (2003)

Toyota Wish

Production Jan 2003 - Aug 2005
Engine 1ZZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0301- )

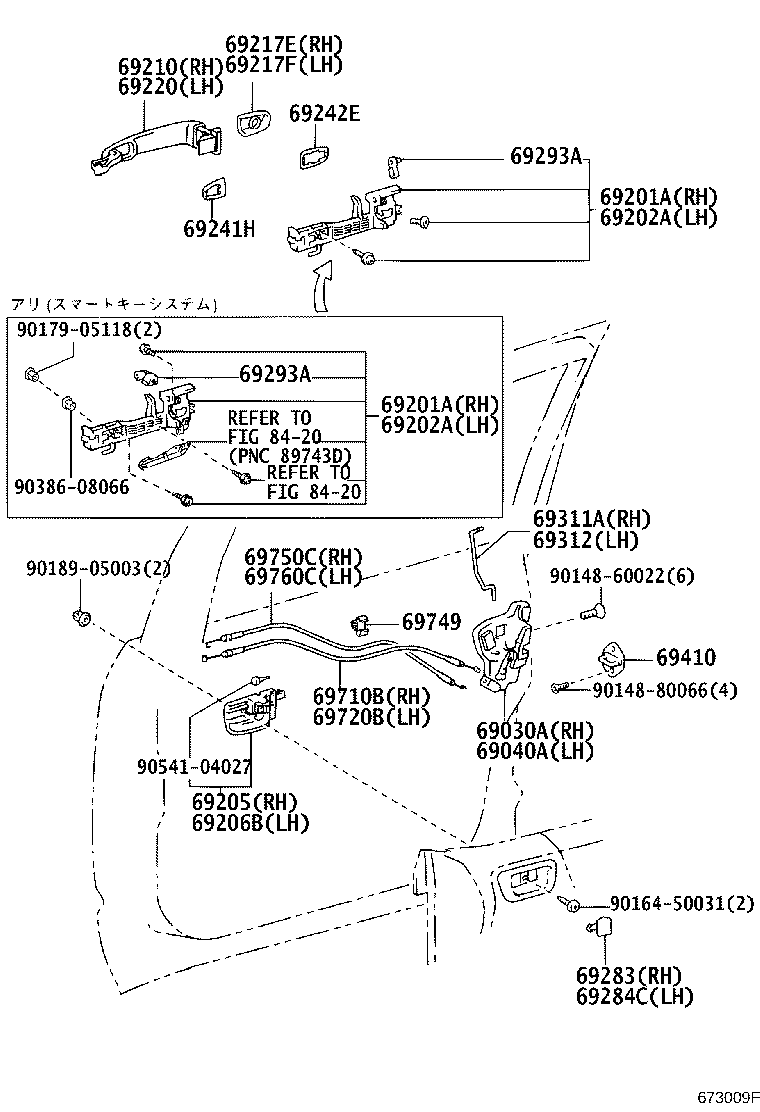

Click highlighted areas on diagram

diagram 69030A 69040A 69201A 69201A 69202A 69202A 69205 69206B 69210 69217E 69217F 69220 69241H 69242E 69283 69284C 69293A 69293A 69311A 69312 69410 69710B 69720B 69749 69750C 69760C 8420 8420 9014860022 9014880066 9016450031 9017905118 9018905003 9038608066 9054104027
Part # Description Qty Price
69030A - LOCK ASSY, FRONT DOOR W/MOTOR, RH
69030-33241

ANE1#,ZNE1#

 1
69040A - LOCK ASSY, FRONT DOOR W/MOTOR, LH
69040-13061

ANE1#,ZNE1#

 1
69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69201-68010

ANE1#,ZNE1#

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄﾄﾞｱﾛｯｸｼｽﾃﾑ付

 1
69201-28010

ANE1#,ZNE1#

 1
69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69201-68010

ANE1#,ZNE1#

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄﾄﾞｱﾛｯｸｼｽﾃﾑ付

 1
69201-28010

ANE1#,ZNE1#

 1
69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69202-28010

ANE1#,ZNE1#

 1
69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69202-28010

ANE1#,ZNE1#

 1
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-12190B1

ANE1#,ZNE1#

DK.GRAY,TRIM1#,ｸﾛﾑ ﾒｯｷ

 1
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-12190B1

ANE1#,ZNE1#

DK.GRAY,TRIM1#,ｸﾛﾑ ﾒｯｷ

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-68010A0

ANE10,ZNE1#

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄﾄﾞｱﾛｯｸｼｽﾃﾑ付,SUPER WHITE 2,040

 1
69210-68010B0

ANE1#,ZNE1#

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄﾄﾞｱﾛｯｸｼｽﾃﾑ付,SILVER M.M.,1E7

 1
69210-68010A1

ANE1#,ZNE1#

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄﾄﾞｱﾛｯｸｼｽﾃﾑ付,WHITE PEARL CS.,070

 1
69210-68010R0

ANE11,ZNE1#

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄﾄﾞｱﾛｯｸｼｽﾃﾑ付,BLUE M.M.,8Q1

 1
69210-68010D0

ANE11,ZNE1#

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄﾄﾞｱﾛｯｸｼｽﾃﾑ付,SUPER RED 5,3P0

 1
69210-68010C0

ANE1#,ZNE1#

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄﾄﾞｱﾛｯｸｼｽﾃﾑ付,BLACK MC.,209

 1
69210-68010F0

ANE10,ZNE1#

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄﾄﾞｱﾛｯｸｼｽﾃﾑ付,GOLD ME.,585

 1
69210-68010B1

ANE1#,ZNE1#

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄﾄﾞｱﾛｯｸｼｽﾃﾑ付,DK.GRAY M.M.,1E9

 1
69211-28906

ANE1#,ZNE1#

要塗装,BLACK(塗装なし)

 1
69211-28070B4

ANE1#,ZNE1#

DK.GRAY M.M.,1E9

 1
69211-28070A3

ANE1#,ZNE1#

WHITE PEARL CS.,070

 1
69210-44030A3

ANE10,ZNE1#

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄﾄﾞｱﾛｯｸｼｽﾃﾑ付,SUPER WHITE 2,040

 1
69210-44030B2

ANE1#,ZNE1#

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄﾄﾞｱﾛｯｸｼｽﾃﾑ付,SILVER M.M.,1E7

 1
69211-28070A0

ANE10,ZNE1#

SUPER WHITE 2,040

 1
69210-68010J0

ANE1#,ZNE1#

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄﾄﾞｱﾛｯｸｼｽﾃﾑ付,DK.BLUE M.M.,8P4

 1
69211-28070B6

ANE1#,ZNE1#

SILVER M.M.,1E7

 1
69211-28070J5

ANE10,ZNE1#

LT.BLUE ME.,8Q6

 1
69211-28070V0

ANE11,ZNE1#

BLUE M.M.,8Q1

 1
69211-28070J4

ANE1#,ZNE1#

DK.BLUE M.M.,8P4

 1
69210-44030J7

ANE1#,ZNE1#

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄﾄﾞｱﾛｯｸｼｽﾃﾑ付,DK.BLUE M.M.,8P4

 1
69211-28070F3

ANE10,ZNE1#

GOLD ME.,585

 1
69210-44030C2

ANE1#,ZNE1#

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄﾄﾞｱﾛｯｸｼｽﾃﾑ付,BLACK MC.,209

 1
69210-44030J8

ANE11,ZNE1#

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄﾄﾞｱﾛｯｸｼｽﾃﾑ付,BLUE M.M.,8Q1

 1
69211-28070C0

ANE1#,ZNE1#

BLACK MC.,209

 1
69211-28070D4

ANE11,ZNE1#

SUPER RED 5,3P0

 1
69210-68010J1

ANE10,ZNE1#

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄﾄﾞｱﾛｯｸｼｽﾃﾑ付,LT.BLUE ME.,8Q6

 1
69210-44030D1

ANE11,ZNE1#

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄﾄﾞｱﾛｯｸｼｽﾃﾑ付,SUPER RED 5,3P0

 1
69210-44030B7

ANE1#,ZNE1#

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄﾄﾞｱﾛｯｸｼｽﾃﾑ付,DK.GRAY M.M.,1E9

 1
69210-44030J9

ANE10,ZNE1#

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄﾄﾞｱﾛｯｸｼｽﾃﾑ付,LT.BLUE ME.,8Q6

 1
69210-44030A6

ANE1#,ZNE1#

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄﾄﾞｱﾛｯｸｼｽﾃﾑ付,WHITE PEARL CS.,070

 1
69217E - COVER, FRONT DOOR OUTSIDE HANDLE, RH
69217-28010F3

ANE10,ZNE1#

GOLD ME.,585

 1
69217-28010B4

ANE1#,ZNE1#

DK.GRAY M.M.,1E9

 1
69217-28010B6

ANE1#,ZNE1#

SILVER M.M.,1E7

 1
69217-28010D4

ANE11,ZNE1#

SUPER RED 5,3P0

 1
69217-28010V0

ANE11,ZNE1#

BLUE M.M.,8Q1

 1
69217-28010C0

ANE1#,ZNE1#

BLACK MC.,209

 1
69217-28010A0

ANE10,ZNE1#

SUPER WHITE 2,040

 1
69217-28010A3

ANE1#,ZNE1#

WHITE PEARL CS.,070

 1
69217-28010J4

ANE1#,ZNE1#

DK.BLUE M.M.,8P4

 1
69217-28010J5

ANE10,ZNE1#

LT.BLUE ME.,8Q6

 1
69217F - COVER, FRONT DOOR OUTSIDE HANDLE, LH
69217-60020F1

ANE10,ZNE1#

GOLD ME.,585

 1
69217-60020B4

ANE1#,ZNE1#

SILVER M.M.,1E7

 1
69217-60020D2

ANE11,ZNE1#

SUPER RED 5,3P0

 1
69217-60020B1

ANE1#,ZNE1#

DK.GRAY M.M.,1E9

 1
69217-60020A1

ANE1#,ZNE1#

WHITE PEARL CS.,070

 1
69217-60020J3

ANE1#,ZNE1#

DK.BLUE M.M.,8P4

 1
69217-60020A2

ANE10,ZNE1#

SUPER WHITE 2,040

 1
69217-60020C1

ANE1#,ZNE1#

BLACK MC.,209

 1
69217-60020R6

ANE11,ZNE1#

BLUE M.M.,8Q1

 1
69217-60020J4

ANE10,ZNE1#

LT.BLUE ME.,8Q6

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69211-28906

ANE1#,ZNE1#

要塗装,BLACK(塗装なし)

 1
69211-28070F3

ANE10,ZNE1#

GOLD ME.,585

 1
69211-28070A3

ANE1#,ZNE1#

WHITE PEARL CS.,070

 1
69211-28070J4

ANE1#,ZNE1#

DK.BLUE M.M.,8P4

 1
69211-28070B4

ANE1#,ZNE1#

DK.GRAY M.M.,1E9

 1
69211-28070B6

ANE1#,ZNE1#

SILVER M.M.,1E7

 1
69211-28070J5

ANE10,ZNE1#

LT.BLUE ME.,8Q6

 1
69211-28070C0

ANE1#,ZNE1#

BLACK MC.,209

 1
69211-28070V0

ANE11,ZNE1#

BLUE M.M.,8Q1

 1
69211-28070A0

ANE10,ZNE1#

SUPER WHITE 2,040

 1
69211-28070D4

ANE11,ZNE1#

SUPER RED 5,3P0

 1
69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69241-28060

ANE1#,ZNE1#

 2
69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR
69242-28020

ANE1#,ZNE1#

 2
69242-60030

ANE1#,ZNE1#

 2
69283 - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
69283-13010B0

ANE1#,ZNE1#

DK.GRAY,TRIM1#

 1
69284C - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
69283-13010B0

ANE1#,ZNE1#

DK.GRAY,TRIM1#

 1
69293A - SNAP, FRONT DOOR OUTSIDE HANDLE
69293-12030

ANE1#,ZNE1#

右側

 1
69293-12040

ANE1#,ZNE1#

左側

 1
69293A - SNAP, FRONT DOOR OUTSIDE HANDLE
69293-12030

ANE1#,ZNE1#

右側

 1
69293-12040

ANE1#,ZNE1#

左側

 1
69311A - ROD, FRONT DOOR LOCK OPEN, RH
69311-68010

ANE1#,ZNE1#

 1
69312 - ROD, FRONT DOOR LOCK OPEN, LH
69312-68010

ANE1#,ZNE1#

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-33010

ANE1#,ZNE1#

 2
69410-33010

ANE1#,ZNE1#

 2
69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69710-68010

ANE1#,ZNE1#

ｸﾞﾘｰﾝ X ｲｴﾛｰ

 1
69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69710-68010

ANE1#,ZNE1#

ｸﾞﾘｰﾝ X ｲｴﾛｰ

 1
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-32040

ANE1#,ZNE1#

 2
69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69750-68010

ANE1#,ZNE1#

ﾗｲﾄﾌﾞﾙｰ X ﾎﾜｲﾄ

 1
69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH
69760-68010

ANE1#,ZNE1#

ﾗｲﾄﾌﾞﾙｰ X ﾎﾜｲﾄ

 1
Common parts
90148-60022
90148-80066
90164-50031
90179-05118
90189-05003
90386-08066
90541-04027
Linked diagrams
8420
