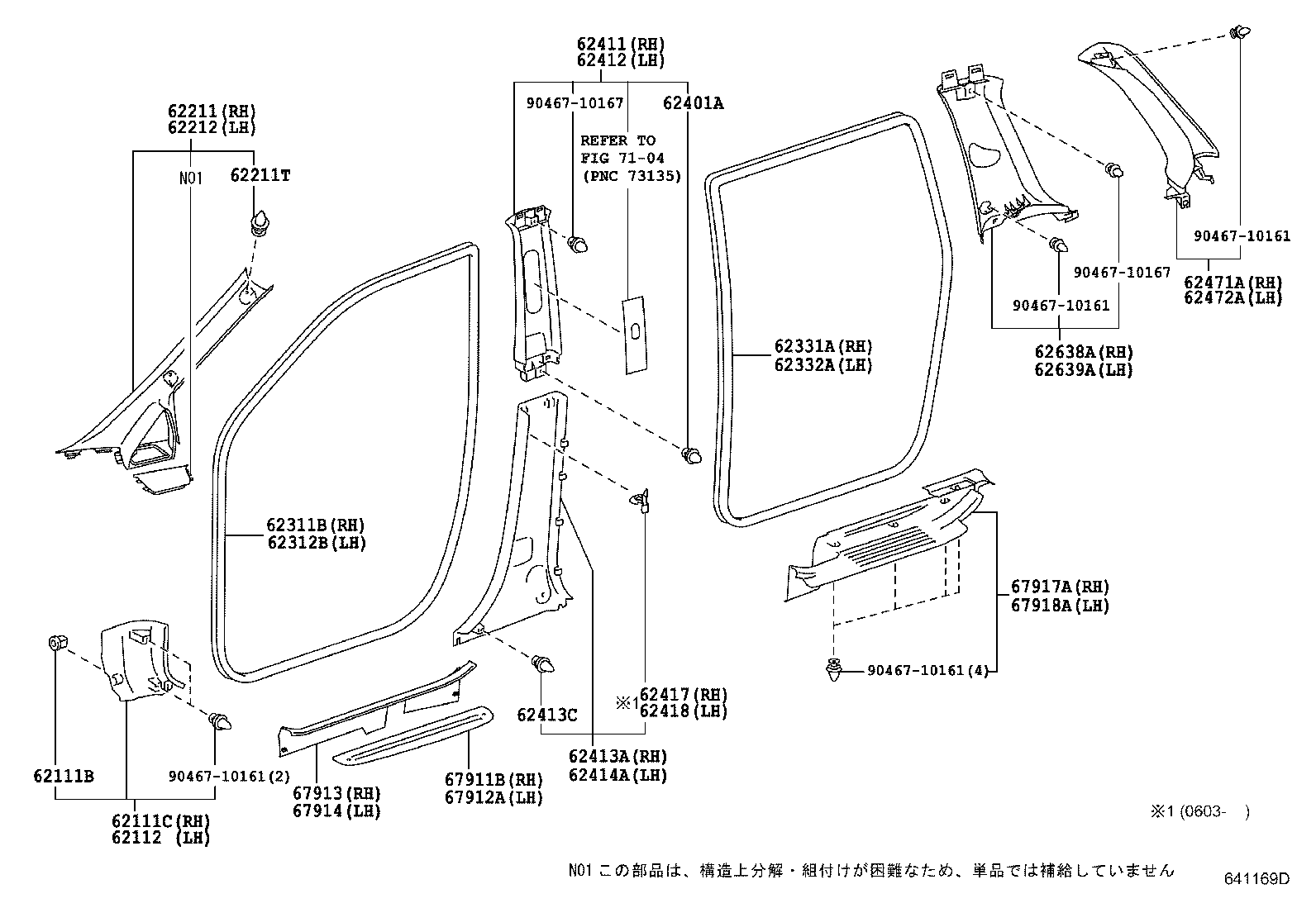

ZNE14G-HPPNK (2003)
Toyota Wish
(0301- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90467-06158C0 |
ANE1#,ZNE1# BLACK,TRIM1# |
2 | ||
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-68010B0 |
ANE1#,ZNE1# DK.GRAY,TRIM1# |
1 | ||
| 62112 - BOARD, COWL SIDE TRIM, LH | ||||
| 62112-68010B0 |
ANE1#,ZNE1# DK.GRAY,TRIM1# |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62210-68010B0 |
ANE1#,ZNE1# LT.GRAY,TRIM1# |
1 | ||
| 62210-68020B0 |
ANE1#,ZNE1# SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),LT.GRAY,TRIM1# |
1 | ||
| 62211T - CLIP(FOR FRONT PILLAR GARNISH) | ||||
| 90950-08003 |
ANE1#,ZNE1# SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),TYPE B:ｲﾗｽﾄQ照 |
2 | ||
| 90467-10161 |
ANE1#,ZNE1# SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),TYPE A:ｲﾗｽﾄQ照 |
2 | ||
| 90467-10161 |
ANE1#,ZNE1# |
4 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62220-68010B0 |
ANE1#,ZNE1# LT.GRAY,TRIM1# |
1 | ||
| 62220-68020B0 |
ANE1#,ZNE1# SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),LT.GRAY,TRIM1# |
1 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-68010B0 |
ANE1#,ZNE1# DK.GRAY,TRIM1# |
1 | ||
| 62311-68010B0 |
ANE1#,ZNE1# DK.GRAY,TRIM1# |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-68010B0 |
ANE1#,ZNE1# DK.GRAY,TRIM1# |
1 | ||
| 62312-68010B0 |
ANE1#,ZNE1# DK.GRAY,TRIM1# |
1 | ||
| 62331A - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH | ||||
| 62331-68010B0 |
ANE1#,ZNE1# DK.GRAY,TRIM1# |
1 | ||
| 62331-68010B0 |
ANE1#,ZNE1# DK.GRAY,TRIM1# |
1 | ||
| 62332A - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH | ||||
| 62332-68010B0 |
ANE1#,ZNE1# DK.GRAY,TRIM1# |
1 | ||
| 62332-68010B0 |
ANE1#,ZNE1# DK.GRAY,TRIM1# |
1 | ||
| 62401A - CLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER) | ||||
| 90467-10161 |
ANE1#,ZNE1# |
2 | ||
| 62411 - GARNISH, CENTER PILLAR, RH | ||||
| 62410-68020B0 |
ANE1#,ZNE1# SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),LT.GRAY,TRIM1# |
1 | ||
| 62410-68010B0 |
ANE1#,ZNE1# LT.GRAY,TRIM1# |
1 | ||
| 62412 - GARNISH, CENTER PILLAR, LH | ||||
| 62420-68020B0 |
ANE1#,ZNE1# SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),LT.GRAY,TRIM1# |
1 | ||
| 62420-68010B0 |
ANE1#,ZNE1# LT.GRAY,TRIM1# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-68010B0 |
ANE1#,ZNE1# DK.GRAY,TRIM1# |
1 | ||
| 62413C - CLIP (FOR CENTER LOWER GARNISH) | ||||
| 90467-10161 |
ANE1#,ZNE1# |
4 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-68010B0 |
ANE1#,ZNE1# DK.GRAY,TRIM1# |
1 | ||
| 62471A - GARNISH, ROOF SIDE, INNER RH | ||||
| 62471-68010B0 |
ANE1#,ZNE1# LT.GRAY,TRIM1# |
1 | ||
| 62472A - GARNISH, ROOF SIDE, INNER LH | ||||
| 62472-68010B0 |
ANE1#,ZNE1# LT.GRAY,TRIM1# |
1 | ||
| 62638A - GARNISH, QUARTER PILLAR, RH | ||||
| 62638-68010B0 |
ANE1#,ZNE1# LT.GRAY,TRIM1# |
1 | ||
| 62638-68020B0 |
ANE1#,ZNE1# SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),LT.GRAY,TRIM1# |
1 | ||
| 62639A - GARNISH, QUARTER PILLAR, LH | ||||
| 62639-68020B0 |
ANE1#,ZNE1# SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),LT.GRAY,TRIM1# |
1 | ||
| 62639-68010B0 |
ANE1#,ZNE1# LT.GRAY,TRIM1# |
1 | ||
| 67911B - PLATE, FRONT DOOR SCUFF, OUTSIDE, RH | ||||
| 67911-68010B0 |
ANE1#,ZNE1# DK.GRAY,TRIM1# |
1 | ||
| 67912A - PLATE, FRONT DOOR SCUFF, OUTSIDE LH | ||||
| 67911-68010B0 |
ANE1#,ZNE1# DK.GRAY,TRIM1# |
1 | ||
| 67913 - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-68010B0 |
ANE1#,ZNE1# DK.GRAY,TRIM1# |
1 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-68010B0 |
ANE1#,ZNE1# DK.GRAY,TRIM1# |
1 | ||
| 67917A - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-68010B0 |
ANE1#,ZNE1# DK.GRAY,TRIM1# |
1 | ||
| 67918A - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-68010B0 |
ANE1#,ZNE1# DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90467-10161 | ||||
| 90467-10167 | ||||
| Linked diagrams | ||||
| 7104 | ||||

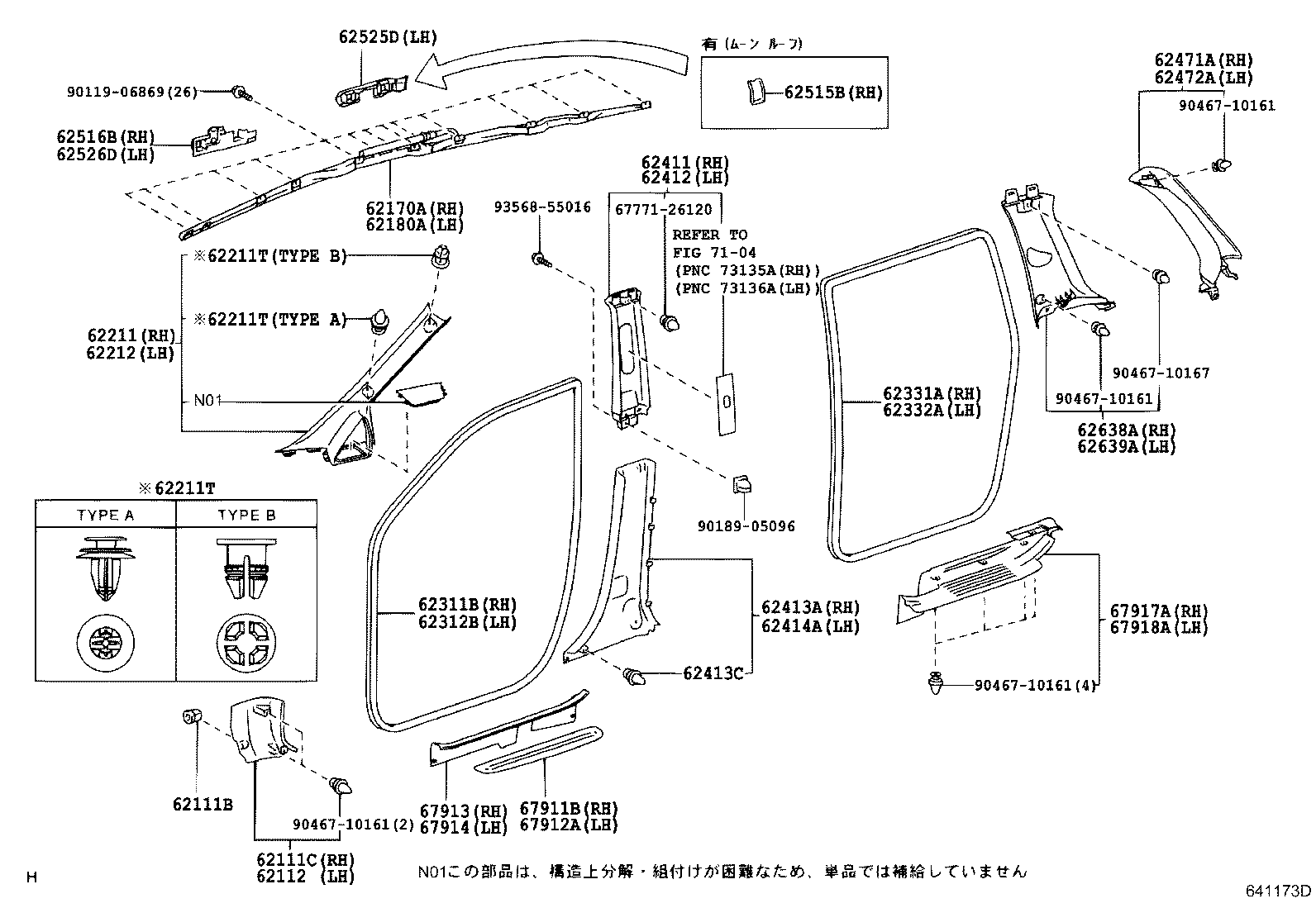

(0301- )
ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞ ｴｱﾊﾞﾂｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90467-06158C0 |
ANE1#,ZNE1# BLACK,TRIM1# |
2 | ||
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-68010B0 |
ANE1#,ZNE1# DK.GRAY,TRIM1# |
1 | ||
| 62112 - BOARD, COWL SIDE TRIM, LH | ||||
| 62112-68010B0 |
ANE1#,ZNE1# DK.GRAY,TRIM1# |
1 | ||
| 62170A - AIR BAG ASSY, CURTAIN SHIELD, RH | ||||
| 62170-68010 |
ANE1#,ZNE1# SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ) |
1 | ||
| 62180A - AIR BAG ASSY, CURTAIN SHIELD, LH | ||||
| 62180-68010 |
ANE1#,ZNE1# SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ) |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62210-68010B0 |
ANE1#,ZNE1# LT.GRAY,TRIM1# |
1 | ||
| 62210-68020B0 |
ANE1#,ZNE1# SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),LT.GRAY,TRIM1# |
1 | ||
| 62211T - CLIP(FOR FRONT PILLAR GARNISH) | ||||
| 90950-08003 |
ANE1#,ZNE1# SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),TYPE B:ｲﾗｽﾄQ照 |
2 | ||
| 90467-10161 |
ANE1#,ZNE1# SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),TYPE A:ｲﾗｽﾄQ照 |
2 | ||
| 90467-10161 |
ANE1#,ZNE1# |
4 | ||
| 62211T - CLIP(FOR FRONT PILLAR GARNISH) | ||||
| 90950-08003 |
ANE1#,ZNE1# SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),TYPE B:ｲﾗｽﾄQ照 |
2 | ||
| 90467-10161 |
ANE1#,ZNE1# SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),TYPE A:ｲﾗｽﾄQ照 |
2 | ||
| 90467-10161 |
ANE1#,ZNE1# |
4 | ||
| 62211T - CLIP(FOR FRONT PILLAR GARNISH) | ||||
| 90950-08003 |
ANE1#,ZNE1# SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),TYPE B:ｲﾗｽﾄQ照 |
2 | ||
| 90467-10161 |
ANE1#,ZNE1# SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),TYPE A:ｲﾗｽﾄQ照 |
2 | ||
| 90467-10161 |
ANE1#,ZNE1# |
4 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62220-68010B0 |
ANE1#,ZNE1# LT.GRAY,TRIM1# |
1 | ||
| 62220-68020B0 |
ANE1#,ZNE1# SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),LT.GRAY,TRIM1# |
1 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-68010B0 |
ANE1#,ZNE1# DK.GRAY,TRIM1# |
1 | ||
| 62311-68010B0 |
ANE1#,ZNE1# DK.GRAY,TRIM1# |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-68010B0 |
ANE1#,ZNE1# DK.GRAY,TRIM1# |
1 | ||
| 62312-68010B0 |
ANE1#,ZNE1# DK.GRAY,TRIM1# |
1 | ||
| 62331A - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH | ||||
| 62331-68010B0 |
ANE1#,ZNE1# DK.GRAY,TRIM1# |
1 | ||
| 62331-68010B0 |
ANE1#,ZNE1# DK.GRAY,TRIM1# |
1 | ||
| 62332A - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH | ||||
| 62332-68010B0 |
ANE1#,ZNE1# DK.GRAY,TRIM1# |
1 | ||
| 62332-68010B0 |
ANE1#,ZNE1# DK.GRAY,TRIM1# |
1 | ||
| 62411 - GARNISH, CENTER PILLAR, RH | ||||
| 62410-68020B0 |
ANE1#,ZNE1# SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),LT.GRAY,TRIM1# |
1 | ||
| 62410-68010B0 |
ANE1#,ZNE1# LT.GRAY,TRIM1# |
1 | ||
| 62412 - GARNISH, CENTER PILLAR, LH | ||||
| 62420-68020B0 |
ANE1#,ZNE1# SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),LT.GRAY,TRIM1# |
1 | ||
| 62420-68010B0 |
ANE1#,ZNE1# LT.GRAY,TRIM1# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-68010B0 |
ANE1#,ZNE1# DK.GRAY,TRIM1# |
1 | ||
| 62413C - CLIP (FOR CENTER LOWER GARNISH) | ||||
| 90467-10161 |
ANE1#,ZNE1# |
4 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-68010B0 |
ANE1#,ZNE1# DK.GRAY,TRIM1# |
1 | ||
| 62471A - GARNISH, ROOF SIDE, INNER RH | ||||
| 62471-68010B0 |
ANE1#,ZNE1# LT.GRAY,TRIM1# |
1 | ||
| 62472A - GARNISH, ROOF SIDE, INNER LH | ||||
| 62472-68010B0 |
ANE1#,ZNE1# LT.GRAY,TRIM1# |
1 | ||
| 62515B - COVER, SIDE TRIM BASE, NO.1 RH | ||||
| 62515-68010 |
ANE1#,ZNE1# 有り(電動ﾁﾙﾄ&ｽﾗｲﾄﾞﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ) |
1 | ||
| 62516B - COVER, SIDE TRIM BASE, NO.2 RH | ||||
| 62516-68010 |
ANE1#,ZNE1# SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ) |
1 | ||
| 62516-68010 |
ANE1#,ZNE1# 有り(電動ﾁﾙﾄ&ｽﾗｲﾄﾞﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ) |
1 | ||
| 62525D - COVER, SIDE TRIM BASE, NO.1 LH | ||||
| 62525-68010 |
ANE1#,ZNE1# SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ) |
1 | ||
| 62525-68010 |
ANE1#,ZNE1# 有り(電動ﾁﾙﾄ&ｽﾗｲﾄﾞﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ) |
1 | ||
| 62526D - COVER, SIDE TRIM BASE, NO.2 LH | ||||
| 62526-68010 |
ANE1#,ZNE1# 有り(電動ﾁﾙﾄ&ｽﾗｲﾄﾞﾑｰﾝﾙｰﾌ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ) |
1 | ||
| 62526-68010 |
ANE1#,ZNE1# SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ) |
1 | ||
| 62638A - GARNISH, QUARTER PILLAR, RH | ||||
| 62638-68010B0 |
ANE1#,ZNE1# LT.GRAY,TRIM1# |
1 | ||
| 62638-68020B0 |
ANE1#,ZNE1# SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),LT.GRAY,TRIM1# |
1 | ||
| 62639A - GARNISH, QUARTER PILLAR, LH | ||||
| 62639-68020B0 |
ANE1#,ZNE1# SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),LT.GRAY,TRIM1# |
1 | ||
| 62639-68010B0 |
ANE1#,ZNE1# LT.GRAY,TRIM1# |
1 | ||
| 67911B - PLATE, FRONT DOOR SCUFF, OUTSIDE, RH | ||||
| 67911-68010B0 |
ANE1#,ZNE1# DK.GRAY,TRIM1# |
1 | ||
| 67912A - PLATE, FRONT DOOR SCUFF, OUTSIDE LH | ||||
| 67911-68010B0 |
ANE1#,ZNE1# DK.GRAY,TRIM1# |
1 | ||
| 67913 - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-68010B0 |
ANE1#,ZNE1# DK.GRAY,TRIM1# |
1 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-68010B0 |
ANE1#,ZNE1# DK.GRAY,TRIM1# |
1 | ||
| 67917A - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-68010B0 |
ANE1#,ZNE1# DK.GRAY,TRIM1# |
1 | ||
| 67918A - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-68010B0 |
ANE1#,ZNE1# DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 67771-26120 | ||||
| 90119-06869 | ||||
| 90189-05096 | ||||
| 90467-10161 | ||||
| 90467-10167 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 7104 | ||||
