ZNE10G-HPPNK (2005)
Toyota Wish

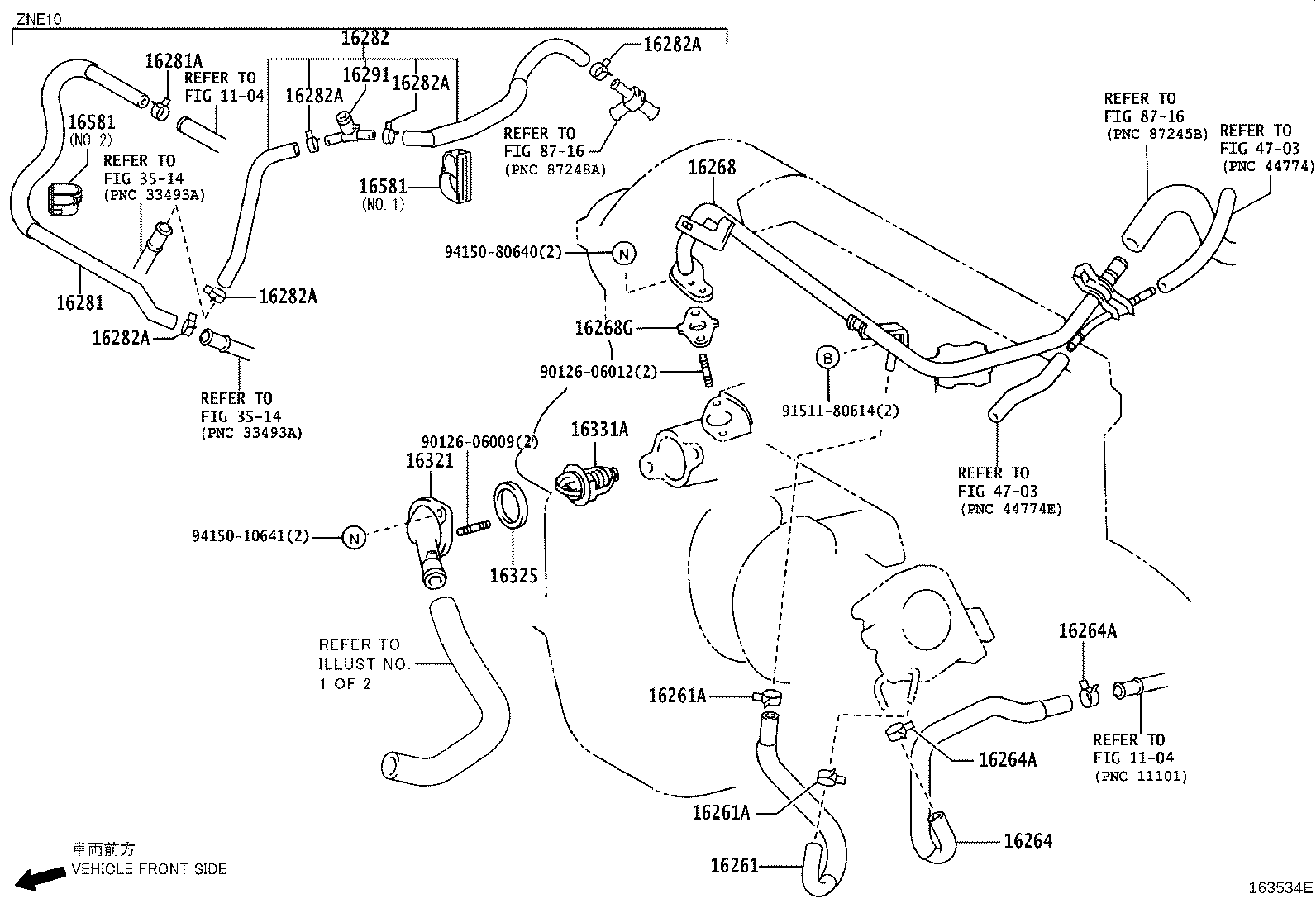

ILLUST NO. 2 OF 2(0508- )1ZZFE..ZNE10
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-22142 |
1ZZFE..ZNE10 (L) |
1 | ||
| 16261-22080 |
1ZZFE..ZNE1# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
1ZZFE..ZNE1# |
2 | ||
| 96135-51300 |
1ZZFE..ZNE1# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
1ZZFE..ZNE1# |
2 | ||
| 96135-51300 |
1ZZFE..ZNE1# |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-22123 |
1ZZFE..ZNE10 (L) |
1 | ||
| 16264-22090 |
1ZZFE..ZNE1# |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96135-51300 |
1ZZFE..ZNE1# |
2 | ||
| 96137-41501 |
1ZZFE..ZNE1# |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96135-51300 |
1ZZFE..ZNE1# |
2 | ||
| 96137-41501 |
1ZZFE..ZNE1# |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-22080 |
1ZZFE..ZNE1# |
1 | ||
| 16268-22160 |
1ZZFE..ZNE10 |
1 | ||
| 16268-22161 |
1ZZFE..ZNE10 |
1 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-28030 |
1ZZFE..ZNE1# |
1 | ||
| 16258-22010 |
1ZZFE..ZNE1# |
1 | ||
| 16258-22010 |
1ZZFE..ZNE1# |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-22050 |
1ZZFE..ZNE10 |
1 | ||
| 16281-22060 |
1ZZFE..ZNE10 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-52201 |
1ZZFE..ZNE10 |
1 | ||
| 96134-41900 |
1ZZFE..ZNE10 |
1 | ||
| 96134-41900 |
1ZZFE..ZNE10 |
1 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-22031 |
1ZZFE..ZNE10 |
1 | ||
| 16282-22080 |
1ZZFE..ZNE10 |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96134-41900 |
1ZZFE..ZNE10 |
5 | ||
| 96134-41900 |
1ZZFE..ZNE10 |
5 | ||
| 96134-41900 |
1ZZFE..ZNE10 |
5 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96134-41900 |
1ZZFE..ZNE10 |
5 | ||
| 96134-41900 |
1ZZFE..ZNE10 |
5 | ||
| 96134-41900 |
1ZZFE..ZNE10 |
5 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96134-41900 |
1ZZFE..ZNE10 |
5 | ||
| 96134-41900 |
1ZZFE..ZNE10 |
5 | ||
| 96134-41900 |
1ZZFE..ZNE10 |
5 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96134-41900 |
1ZZFE..ZNE10 |
5 | ||
| 96134-41900 |
1ZZFE..ZNE10 |
5 | ||
| 96134-41900 |
1ZZFE..ZNE10 |
5 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96134-41900 |
1ZZFE..ZNE10 |
5 | ||
| 96134-41900 |
1ZZFE..ZNE10 |
5 | ||
| 96134-41900 |
1ZZFE..ZNE10 |
5 | ||
| 16291 - JOINT, WATER HOSE | ||||
| 16291-22011 |
1ZZFE..ZNE10 |
1 | ||
| 16291-22011 |
1ZZFE..ZNE10 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-22070 |
1ZZFE..ZNE1# |
1 | ||
| 16321-22070 |
1ZZFE..ZNE1# |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
1ZZFE..ZNE1# |
1 | ||
| 16325-62010 |
1ZZFE..ZNE1# (J) |
1 | ||
| 16325-0H020 |
1ZZFE..ZNE1# (L) |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03129 |
1ZZFE..ZNE1# *WAX 82−95 |
1 | ||
| 90916-03129 |
1ZZFE..ZNE1# *WAX 82−95 |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-22060 |
1ZZFE..ZNE10 NO.1 |
2 | ||
| 16581-22060 |
1ZZFE..ZNE10 NO.1 |
2 | ||
| 16581-22070 |
1ZZFE..ZNE10 NO.2 |
1 | ||
| 16581-22070 |
1ZZFE..ZNE10 NO.2 |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-22060 |
1ZZFE..ZNE10 NO.1 |
2 | ||
| 16581-22060 |
1ZZFE..ZNE10 NO.1 |
2 | ||
| 16581-22070 |
1ZZFE..ZNE10 NO.2 |
1 | ||
| 16581-22070 |
1ZZFE..ZNE10 NO.2 |
1 | ||
| Common parts | ||||
| 90126-06009 | ||||
| 90126-06012 | ||||
| 91511-80614 | ||||
| 94150-10641 | ||||
| 94150-80640 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 3514 | ||||
| 4703 | ||||
| 8716 | ||||
