ZNE10G-HPPNK (2003)
Toyota Wish
Production
Jan 2003
-
Aug 2005
Engine
1ZZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

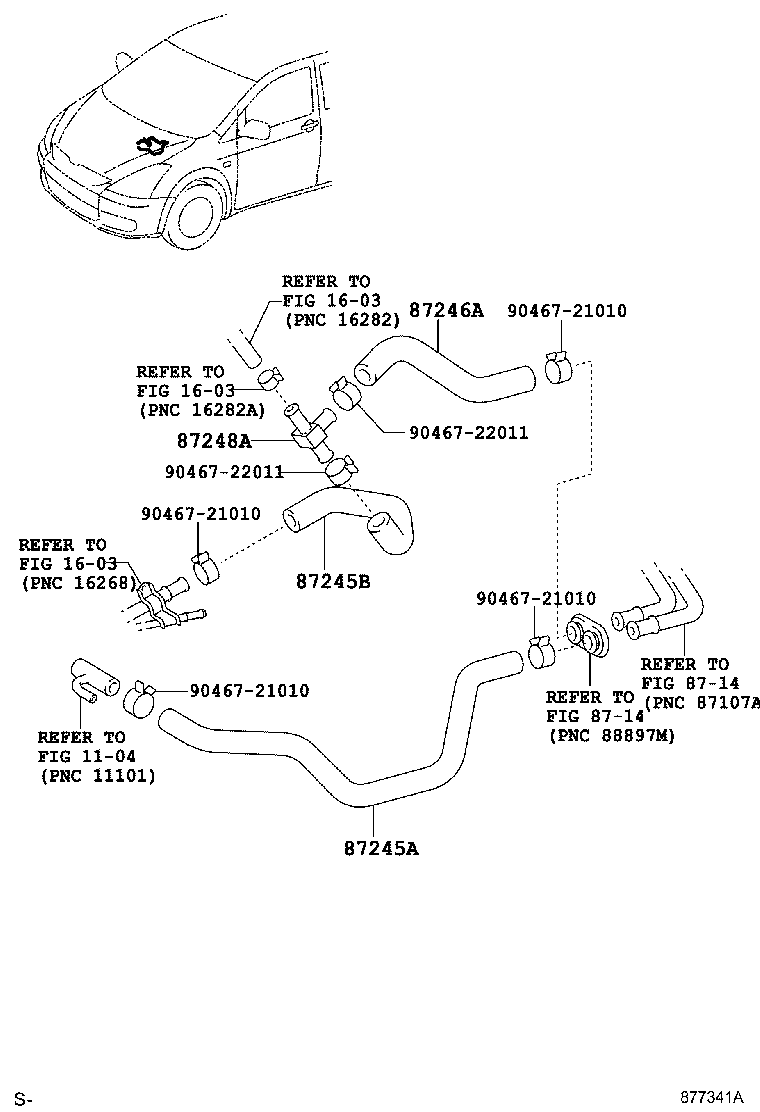

(0301-0411)ZNE10
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-2D620 |
ZNE10 |
1 | ||
| 87245-2D680 |
ZNE10 |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-2D670 |
ZNE10 |
1 | ||
| 87245-68060 |
ZNE10 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-2D630 |
ZNE10 |
1 | ||
| 87245-68050 |
ZNE10 |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87248-20380 |
ZNE10 |
1 | ||
| 87248-44180 |
ZNE10 |
1 | ||
| Common parts | ||||
| 90467-21010 | ||||
| 90467-22011 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1603 | ||||
| 8714 | ||||

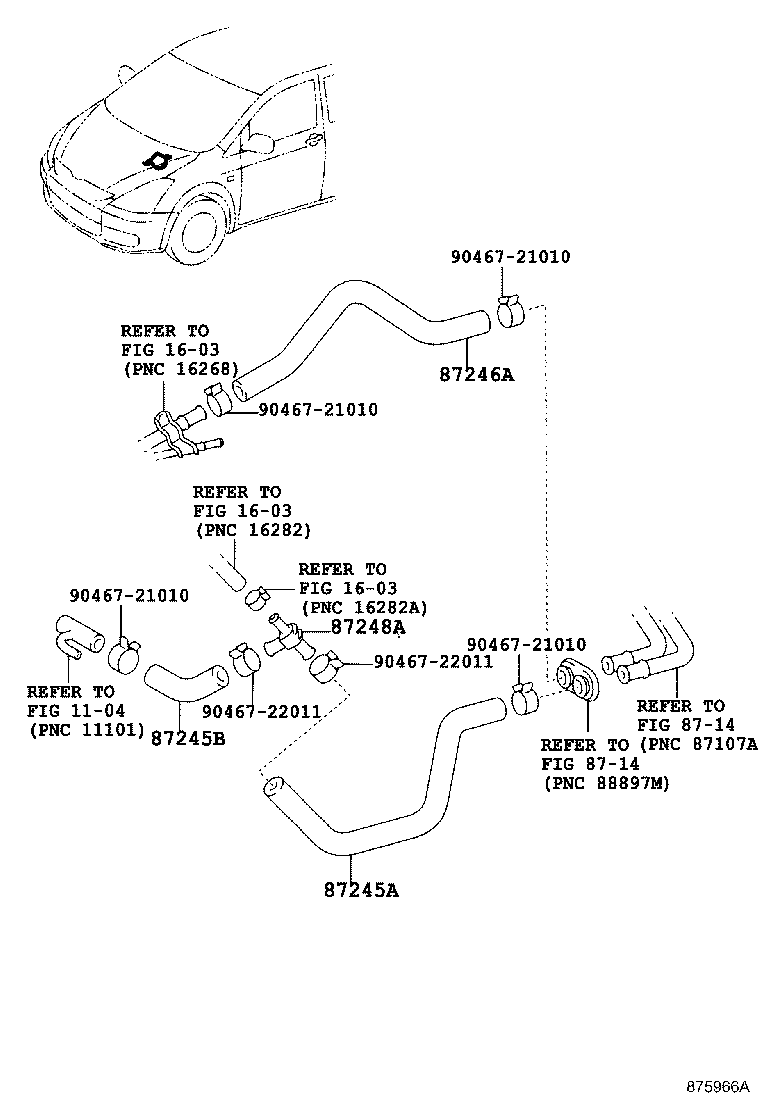

(0411- )ZNE10
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-2D620 |
ZNE10 |
1 | ||
| 87245-2D680 |
ZNE10 |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-2D670 |
ZNE10 |
1 | ||
| 87245-68060 |
ZNE10 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-68050 |
ZNE10 |
1 | ||
| 87245-2D630 |
ZNE10 |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87248-20380 |
ZNE10 |
1 | ||
| 87248-44180 |
ZNE10 |
1 | ||
| Common parts | ||||
| 90467-21010 | ||||
| 90467-22011 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1603 | ||||
| 8714 | ||||
