ZNE10G-HPPNK (2003)
Toyota Wish
Production
Jan 2003
-
Aug 2005
Engine
1ZZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

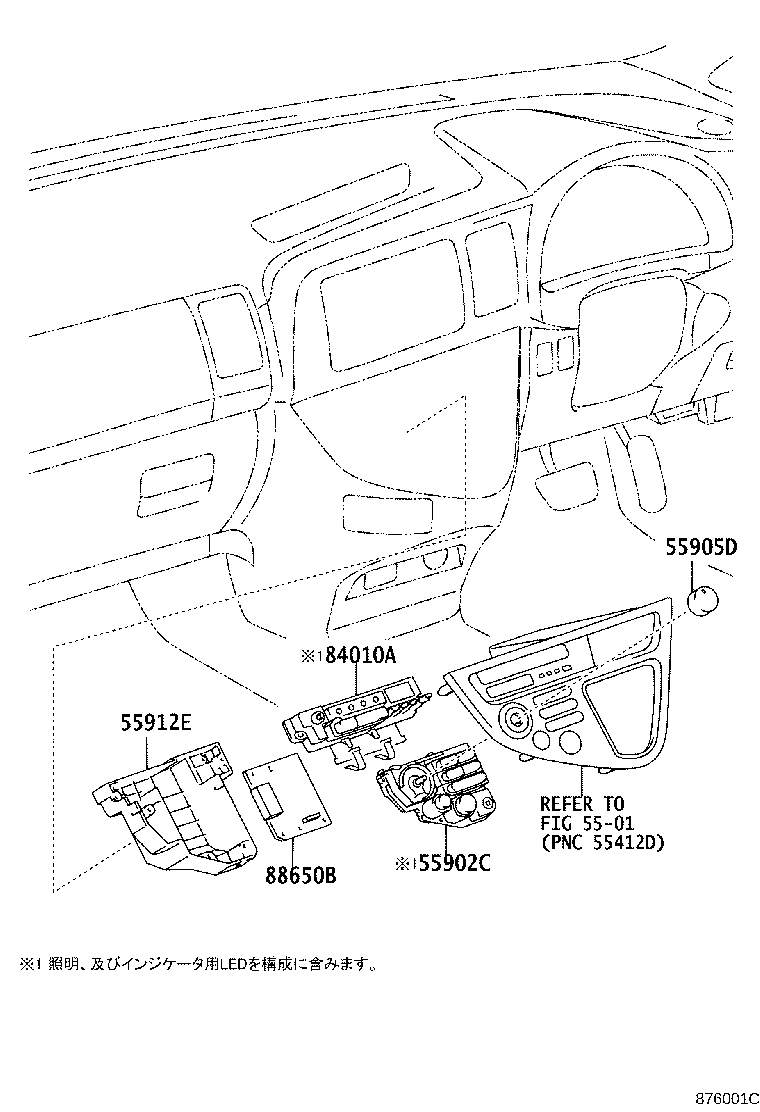

ILLUST NO. 1 OF 3(0301-0508)
Click highlighted areas on diagram
ｺﾝﾄﾛ-ﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55902C - PANEL SUB-ASSY, AIR CONDITIONER | ||||
| 55902-68010 |
ANE1#,ZNE1# |
1 | ||
| 55905D - KNOB SUB-ASSY, CONTROL | ||||
| 55905-68010 |
ANE1#,ZNE1# |
1 | ||
| 55912E - BASE, HEATER CONTROL, LOWER | ||||
| 55912-68010 |
ANE1#,ZNE1# |
1 | ||
| 84010A - CONTROL & PANEL ASSY, INTEGRATION | ||||
| 84012-68010 |
ANE1#,ZNE1# |
1 | ||
| 88650B - AMPLIFIER ASSY, AIRCONDITIONER | ||||
| 88650-68010 |
ANE1#,ZNE1# |
1 | ||
| Linked diagrams | ||||
| 5501 | ||||

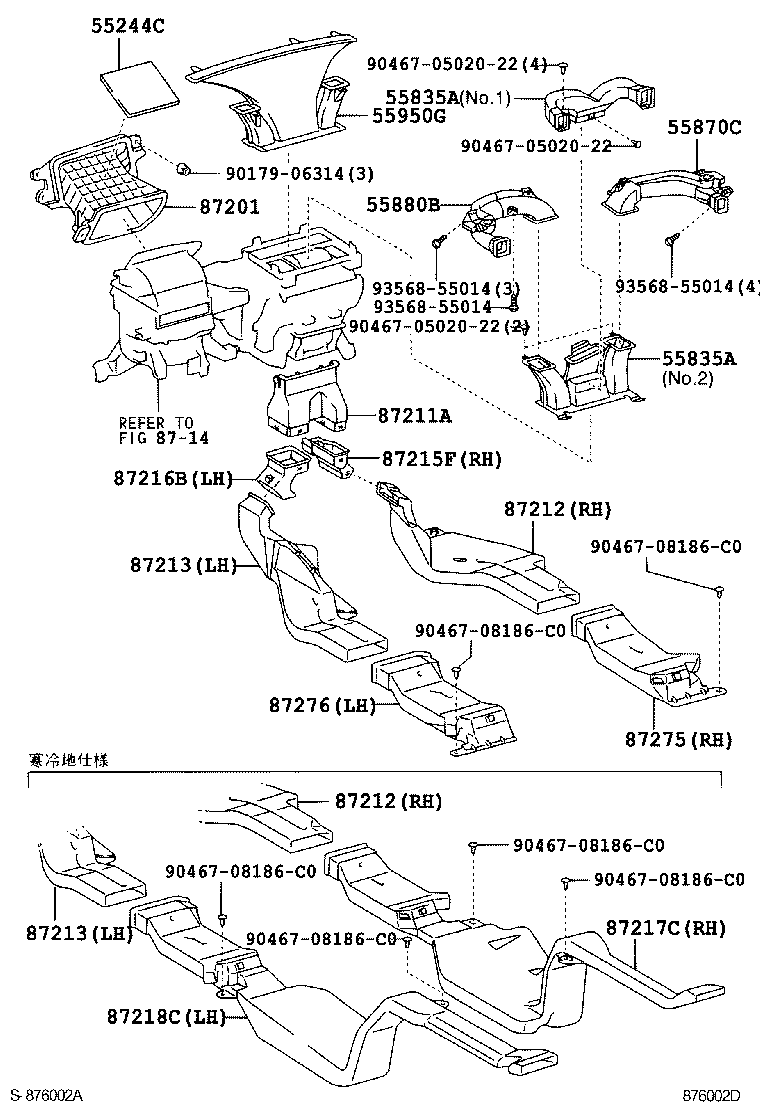

ILLUST NO. 2 OF 3(0301- )ANE1#,ZNE10
Click highlighted areas on diagram
ｴｱﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55244C - SILENCER, FRONT PANEL SIDE, NO.2 LH | ||||
| 55244-68010 |
ANE1#,ZNE1# |
1 | ||
| 55835A - DUCT, HEATER TO REGISTER, CENTER | ||||
| 55850-68010 |
ANE1#,ZNE1# NO.2 |
1 | ||
| 55835-68010 |
ANE1#,ZNE1# NO.1 |
1 | ||
| 55835A - DUCT, HEATER TO REGISTER, CENTER | ||||
| 55850-68010 |
ANE1#,ZNE1# NO.2 |
1 | ||
| 55835-68010 |
ANE1#,ZNE1# NO.1 |
1 | ||
| 55870C - DUCT ASSY, BOOT TO REGISTER, RH | ||||
| 55870-68010 |
ANE1#,ZNE1# |
1 | ||
| 55880B - DUCT ASSY, BOOT TO REGISTER LH | ||||
| 55880-68010 |
ANE1#,ZNE1# |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-68010 |
ANE1#,ZNE1# |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87201-68020 |
ANE1#,ZNE1# |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87211-68010 |
ANE1#,ZNE1# |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-68010 |
ANE1#,ZNE10 |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-68010 |
ANE1#,ZNE10 |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-68010 |
ANE1#,ZNE1# |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-68010 |
ANE1#,ZNE1# |
1 | ||
| 87215F - DUCT, AIR, REAR NO.3 | ||||
| 87215-68010 |
ANE1#,ZNE1# |
1 | ||
| 87216B - DUCT, AIR, REAR NO.4 | ||||
| 87216-68010 |
ANE1#,ZNE1# |
1 | ||
| 87217C - DUCT, AIR, REAR NO.5 | ||||
| 87217-68010 |
ANE1#,ZNE10 寒冷地仕様 |
1 | ||
| 87218C - DUCT, AIR, REAR NO.6 | ||||
| 87218-68010 |
ANE1#,ZNE10 寒冷地仕様 |
1 | ||
| 87275 - DUCT, FLOOR HEATER AIR, NO.1 RH | ||||
| 87275-68010 |
ANE1#,ZNE10 |
1 | ||
| 87276 - DUCT, FLOOR HEATER AIR, NO.1 LH | ||||
| 87276-68010 |
ANE1#,ZNE10 |
1 | ||
| Common parts | ||||
| 90179-06314 | ||||
| 90467-0502022 | ||||
| 90467-08186C0 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8714 | ||||

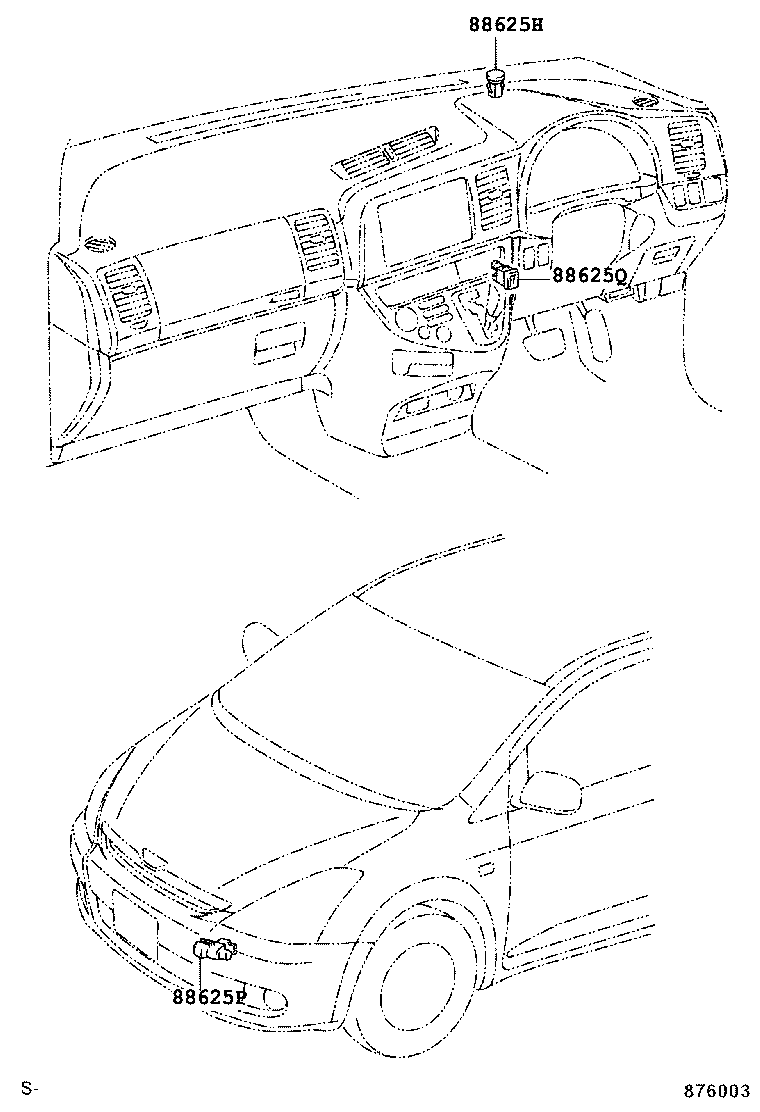

ILLUST NO. 3 OF 3(0301- )
Click highlighted areas on diagram
ｾﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625H - THERMISTOR, COOLER (SOLAR SENSOR) | ||||
| 88625-47031 |
ANE1#,ZNE1# |
1 | ||
| 88625P - THERMISTOR, COOLER (AMBIENT TEMP. SENSOR) | ||||
| 88625-32171 |
ANE1#,ZNE1# |
1 | ||
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88625-47021 |
ANE1#,ZNE1# |
1 | ||
