ZNE10G-HPPNK (2003)

Toyota Wish

Production Jan 2003 - Aug 2005
Engine 1ZZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0301-0508)

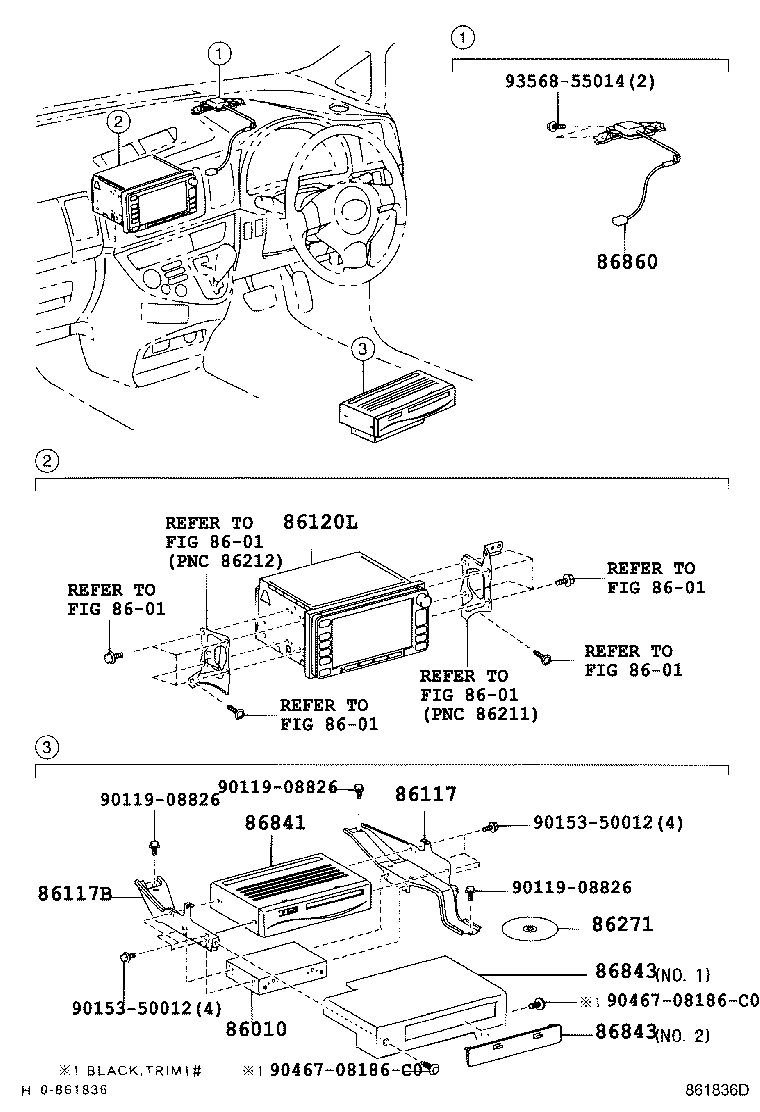

Click highlighted areas on diagram

diagram 8601 8601 8601 8601 8601 8601 86010 86117 86117B 86120L 86271 86841 86843 86843 86860 9011908826 9011908826 9011908826 9015350012 9015350012 9046708186C0 9046708186C0 9356855014
Part # Description Qty Price
86010 - TUNER ASSY, TELEVISION
86016-50010

ANE1#,ZNE1#

ｵｰﾃﾞｨｵ−ﾏﾙﾁAVｽﾃｰｼｮﾝ

 1
86117 - BRACKET, MULTI-DISPLAY CONTROLLER, A
86117-68010

ANE1#,ZNE1#

ｵｰﾃﾞｨｵ−ﾏﾙﾁAVｽﾃｰｼｮﾝ

 1
86117-68010

ANE1#,ZNE1#

ｵｰﾃﾞｨｵ−AVX 6ｽﾋﾟｰｶ

 1
86117B - BRACKET, TELEVISION DISPLAY, B
86117-68020

ANE1#,ZNE1#

ｵｰﾃﾞｨｵ−AVX 6ｽﾋﾟｰｶ

 1
86117-68020

ANE1#,ZNE1#

ｵｰﾃﾞｨｵ−ﾏﾙﾁAVｽﾃｰｼｮﾝ

 1
86120L - RECEIVER ASSY, NAVIGATION
86120-68050

ANE1#,ZNE1#

FUJITSU TEN,ｵｰﾃﾞｨｵ−AVX 6ｽﾋﾟｰｶ

 1
86120-68030

ANE1#,ZNE1#

FUJITSU TEN,ID=16041,ｵｰﾃﾞｨｵ−ﾏﾙﾁAVｽﾃｰｼｮﾝ

 1
86271 - DISC, DISC PLAYER
86271-13032

ANE1#,ZNE1#

ｵｰﾃﾞｨｵ−ﾏﾙﾁAVｽﾃｰｼｮﾝ

 1
86271-13030

ANE1#,ZNE1#

ｵｰﾃﾞｨｵ−ﾏﾙﾁAVｽﾃｰｼｮﾝ

 1
86271-52043

ANE1#,ZNE1#

ｵｰﾃﾞｨｵ−AVX 6ｽﾋﾟｰｶ

 1
86271-13031

ANE1#,ZNE1#

ｵｰﾃﾞｨｵ−ﾏﾙﾁAVｽﾃｰｼｮﾝ

 1
86271-52042

ANE1#,ZNE1#

ｵｰﾃﾞｨｵ−AVX 6ｽﾋﾟｰｶ

 1
86841 - COMPUTER, NAVIGATION
86841-52020

ANE1#,ZNE1#

ｵｰﾃﾞｨｵ−AVX 6ｽﾋﾟｰｶ

 1
86841-13010

ANE1#,ZNE1#

ｵｰﾃﾞｨｵ−ﾏﾙﾁAVｽﾃｰｼｮﾝ

 1
86843 - COVER, NAVIGATION COMPUTER
86804-68010

ANE1#,ZNE1#

ｵｰﾃﾞｨｵ−AVX 6ｽﾋﾟｰｶ,NO.1

 1
86843-13010

ANE1#,ZNE1#

ｵｰﾃﾞｨｵ−ﾏﾙﾁAVｽﾃｰｼｮﾝ,NO.2

 1
86804-68010

ANE1#,ZNE1#

ｵｰﾃﾞｨｵ−ﾏﾙﾁAVｽﾃｰｼｮﾝ,NO.1

 1
86843-13010

ANE1#,ZNE1#

ｵｰﾃﾞｨｵ−AVX 6ｽﾋﾟｰｶ,NO.2

 1
86843 - COVER, NAVIGATION COMPUTER
86804-68010

ANE1#,ZNE1#

ｵｰﾃﾞｨｵ−AVX 6ｽﾋﾟｰｶ,NO.1

 1
86843-13010

ANE1#,ZNE1#

ｵｰﾃﾞｨｵ−ﾏﾙﾁAVｽﾃｰｼｮﾝ,NO.2

 1
86804-68010

ANE1#,ZNE1#

ｵｰﾃﾞｨｵ−ﾏﾙﾁAVｽﾃｰｼｮﾝ,NO.1

 1
86843-13010

ANE1#,ZNE1#

ｵｰﾃﾞｨｵ−AVX 6ｽﾋﾟｰｶ,NO.2

 1
86860 - ANTENNA ASSY, NAVIGATION
86860-68010

ANE1#,ZNE1#

ｵｰﾃﾞｨｵ−ﾏﾙﾁAVｽﾃｰｼｮﾝ

 1
86860-68030

ANE1#,ZNE1#

ｵｰﾃﾞｨｵ−AVX 6ｽﾋﾟｰｶ

 1
Common parts
90119-08826
90153-50012
90467-08186C0
93568-55014
Linked diagrams
8601
