ZNE10G-HPPNK (2003)

Toyota Wish

Production Jan 2003 - Aug 2005
Engine 1ZZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0301-0508)

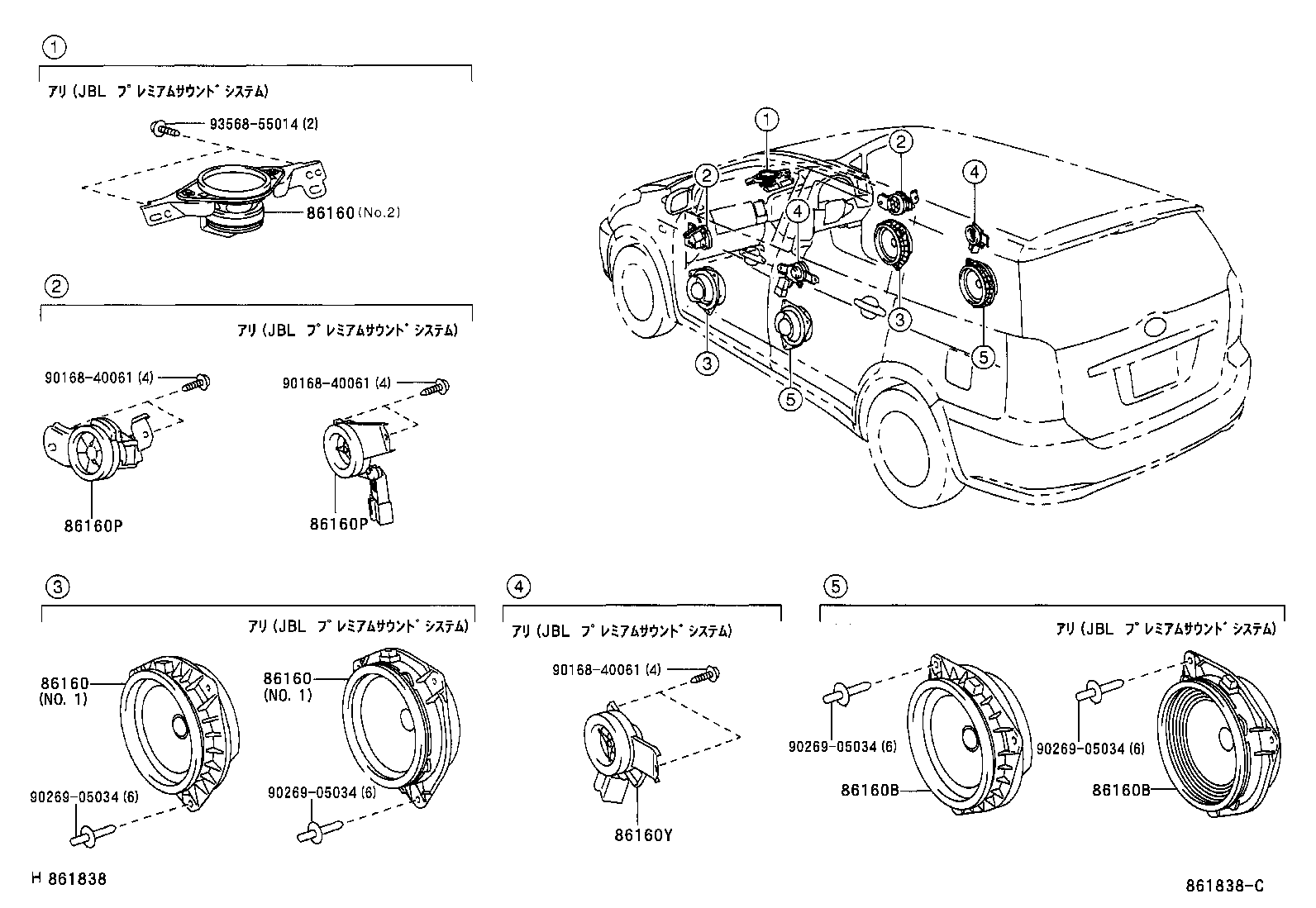

Click highlighted areas on diagram

diagram 86160 86160 86160 86160B 86160B 86160P 86160P 86160Y 9016840061 9016840061 9016840061 9026905034 9026905034 9026905034 9026905034 9356855014
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-0W340

ANE11,ZNE1#

ｵｰﾃﾞｨｵ−JBLﾌﾟﾚﾐｱﾑｻｳﾝﾄﾞｼｽﾃﾑ 9ｽﾋﾟｰｶ,NO.1

 2
86160-68090

ANE1#,ZNE1#

NO.1

 2
86160-0W530

ANE11,ZNE1#

ｵｰﾃﾞｨｵ−JBLﾌﾟﾚﾐｱﾑｻｳﾝﾄﾞｼｽﾃﾑ 9ｽﾋﾟｰｶ,NO.2

 1
86160 - SPEAKER ASSY, FRONT NO.1
86160-0W340

ANE11,ZNE1#

ｵｰﾃﾞｨｵ−JBLﾌﾟﾚﾐｱﾑｻｳﾝﾄﾞｼｽﾃﾑ 9ｽﾋﾟｰｶ,NO.1

 2
86160-68090

ANE1#,ZNE1#

NO.1

 2
86160-0W530

ANE11,ZNE1#

ｵｰﾃﾞｨｵ−JBLﾌﾟﾚﾐｱﾑｻｳﾝﾄﾞｼｽﾃﾑ 9ｽﾋﾟｰｶ,NO.2

 1
86160 - SPEAKER ASSY, FRONT NO.1
86160-0W340

ANE11,ZNE1#

ｵｰﾃﾞｨｵ−JBLﾌﾟﾚﾐｱﾑｻｳﾝﾄﾞｼｽﾃﾑ 9ｽﾋﾟｰｶ,NO.1

 2
86160-68090

ANE1#,ZNE1#

NO.1

 2
86160-0W530

ANE11,ZNE1#

ｵｰﾃﾞｨｵ−JBLﾌﾟﾚﾐｱﾑｻｳﾝﾄﾞｼｽﾃﾑ 9ｽﾋﾟｰｶ,NO.2

 1
86160B - SPEAKER ASSY, REAR
86160-0W620

ANE11,ZNE1#

ｵｰﾃﾞｨｵ−JBLﾌﾟﾚﾐｱﾑｻｳﾝﾄﾞｼｽﾃﾑ 9ｽﾋﾟｰｶ

 2
86160-68090

ANE1#,ZNE1#

 2
86160B - SPEAKER ASSY, REAR
86160-0W620

ANE11,ZNE1#

ｵｰﾃﾞｨｵ−JBLﾌﾟﾚﾐｱﾑｻｳﾝﾄﾞｼｽﾃﾑ 9ｽﾋﾟｰｶ

 2
86160-68090

ANE1#,ZNE1#

 2
86160P - SPEAKER ASSY, FRONT NO.2
86150-68010

ANE1#,ZNE1#

ｵｰﾃﾞｨｵ−ﾏﾙﾁAVｽﾃｰｼｮﾝ,右側

 1
86160-0W720

ANE11,ZNE1#

ｵｰﾃﾞｨｵ−JBLﾌﾟﾚﾐｱﾑｻｳﾝﾄﾞｼｽﾃﾑ 9ｽﾋﾟｰｶ,右側

 1
86160-68080

ANE1#,ZNE1#

ｵｰﾃﾞｨｵ−AVX 6ｽﾋﾟｰｶ,左側

 1
86160-68080

ANE1#,ZNE1#

ｵｰﾃﾞｨｵ−ﾏﾙﾁAVｽﾃｰｼｮﾝ,左側

 1
86160-0W770

ANE11,ZNE1#

ｵｰﾃﾞｨｵ−JBLﾌﾟﾚﾐｱﾑｻｳﾝﾄﾞｼｽﾃﾑ 9ｽﾋﾟｰｶ,左側

 1
86150-68010

ANE1#,ZNE1#

ｵｰﾃﾞｨｵ−AVX 6ｽﾋﾟｰｶ,右側

 1
86160P - SPEAKER ASSY, FRONT NO.2
86150-68010

ANE1#,ZNE1#

ｵｰﾃﾞｨｵ−ﾏﾙﾁAVｽﾃｰｼｮﾝ,右側

 1
86160-0W720

ANE11,ZNE1#

ｵｰﾃﾞｨｵ−JBLﾌﾟﾚﾐｱﾑｻｳﾝﾄﾞｼｽﾃﾑ 9ｽﾋﾟｰｶ,右側

 1
86160-68080

ANE1#,ZNE1#

ｵｰﾃﾞｨｵ−AVX 6ｽﾋﾟｰｶ,左側

 1
86160-68080

ANE1#,ZNE1#

ｵｰﾃﾞｨｵ−ﾏﾙﾁAVｽﾃｰｼｮﾝ,左側

 1
86160-0W770

ANE11,ZNE1#

ｵｰﾃﾞｨｵ−JBLﾌﾟﾚﾐｱﾑｻｳﾝﾄﾞｼｽﾃﾑ 9ｽﾋﾟｰｶ,左側

 1
86150-68010

ANE1#,ZNE1#

ｵｰﾃﾞｨｵ−AVX 6ｽﾋﾟｰｶ,右側

 1
86160Y - SPEAKER ASSY, REAR NO.2
86160-0W790

ANE11,ZNE1#

ｵｰﾃﾞｨｵ−JBLﾌﾟﾚﾐｱﾑｻｳﾝﾄﾞｼｽﾃﾑ 9ｽﾋﾟｰｶ,左側

 1
86160-0W780

ANE11,ZNE1#

ｵｰﾃﾞｨｵ−JBLﾌﾟﾚﾐｱﾑｻｳﾝﾄﾞｼｽﾃﾑ 9ｽﾋﾟｰｶ,右側

 1
Common parts
90168-40061
90269-05034
93568-55014
