ZNE10G-HPPNK (2003)

Toyota Wish

Production Jan 2003 - Aug 2005
Engine 1ZZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

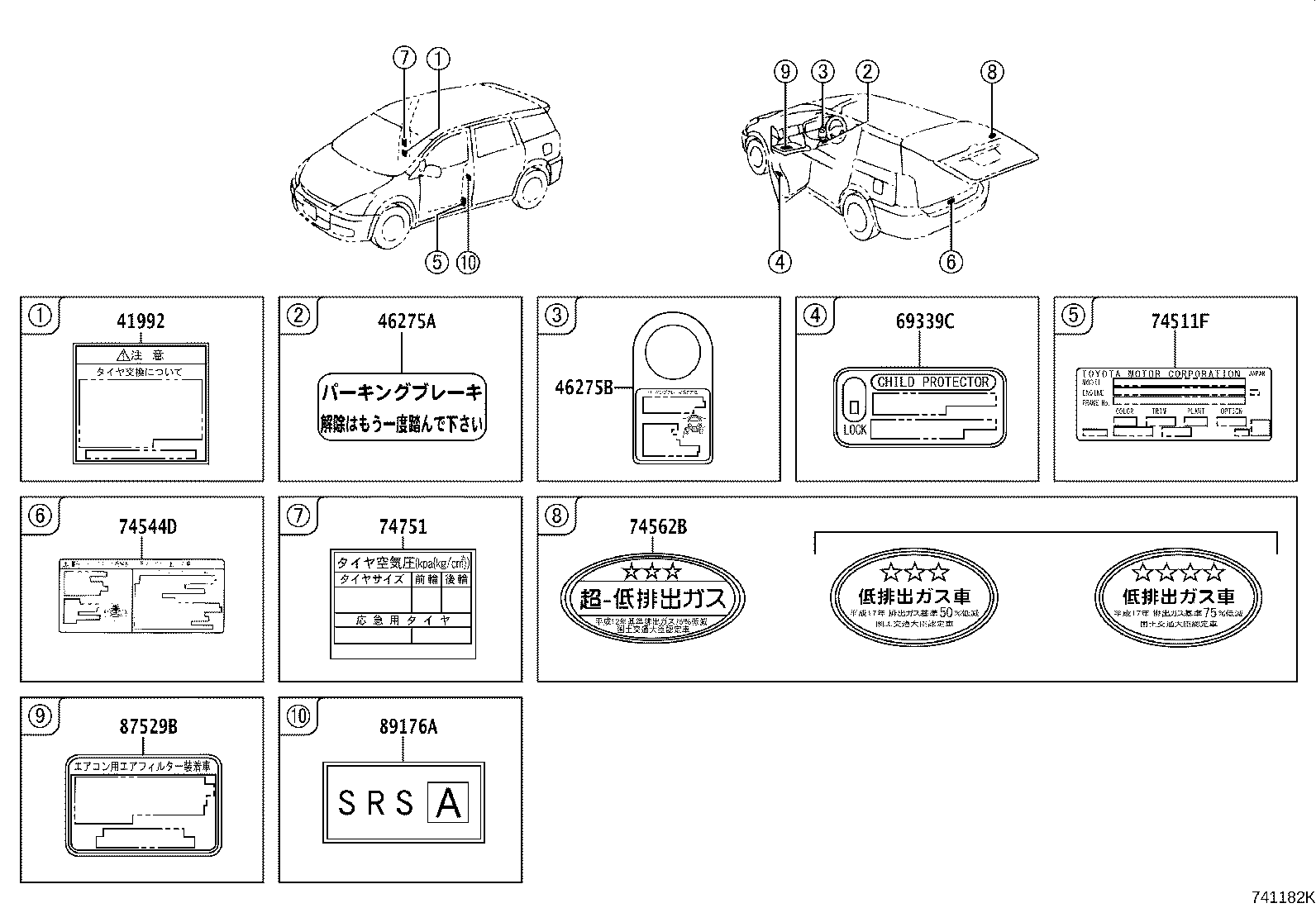

ILLUST NO. 2 OF 3(0301- )

Click highlighted areas on diagram

ｶﾞｲｿｳﾊﾟﾈﾙ&ﾅｲｿｳ (1/2)

diagram 41992 46275A 46275B 69339C 74511F 74544D 74562B 74751 87529B 89176A
Part # Description Qty Price
46275A - LABEL, PARKING BRAKE RELEASE INFORMATION, NO.1
46275-22010B0

ANE1#,ZNE1#

GRAY,TRIM1#

 1
46275B - LABEL, PARKING BRAKE RELEASE INFORMATION, NO.2
46275-47010

ANE1#,ZNE1#

 1
69339C - LABEL, CHILD PROTECTOR INFORMATION
69339-12010

ANE1#,ZNE1#

 2
74511F - LABEL, NAME (IDENTIFICATION LASER LABEL)
74511-2B300

ANE1#,ZNE1#

*111

 1
74544D - PLATE, TIRE CARRIER CAUTION
74544-68010

ANE1#,ZNE1#

 1
74562B - LABEL, EMISSION INFORMATION
74562-12610

ANE1#,ZNE1#

 1
74562-40050

ANE1#,ZNE1#

 1
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-68010

ANE10,ZNE10

 1
87529B - LABEL, A/C FILTER INFORMATION
87529-50020

ANE1#,ZNE1#

 1
89176A - LABEL, AIR BAG DEPLOYMENT INFORMATION
89176-32010

ANE1#,ZNE1#

 1

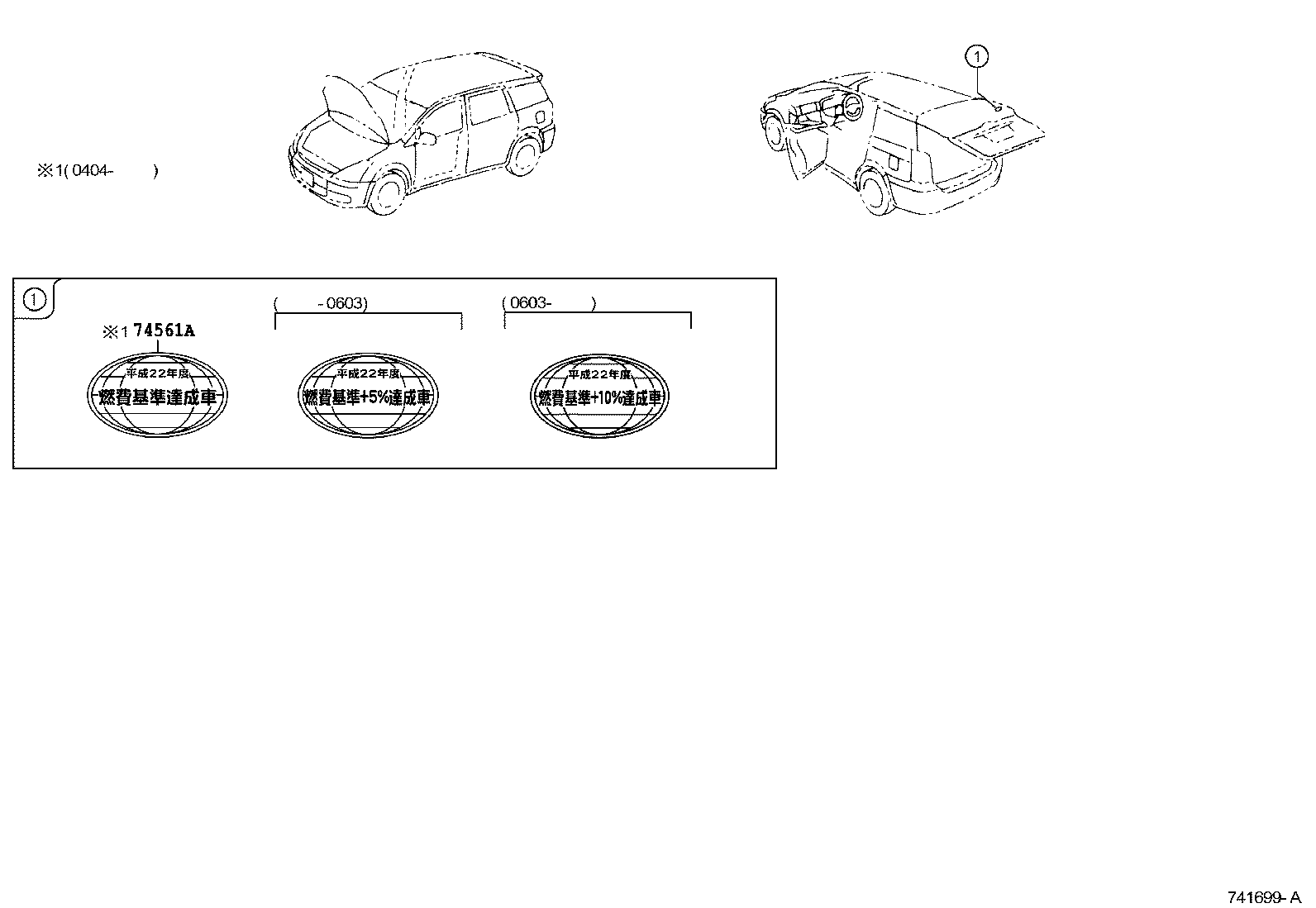

ILLUST NO. 3 OF 3(0301- )

Click highlighted areas on diagram

ｶﾞｲｿｳﾊﾟﾈﾙ&ﾅｲｿｳ (2/2)

diagram 74561A
Part # Description Qty Price
74561A - LABEL, FUEL CONSUMPTION INFORMATION
74561-52020

ANE10,ZNE10

 1

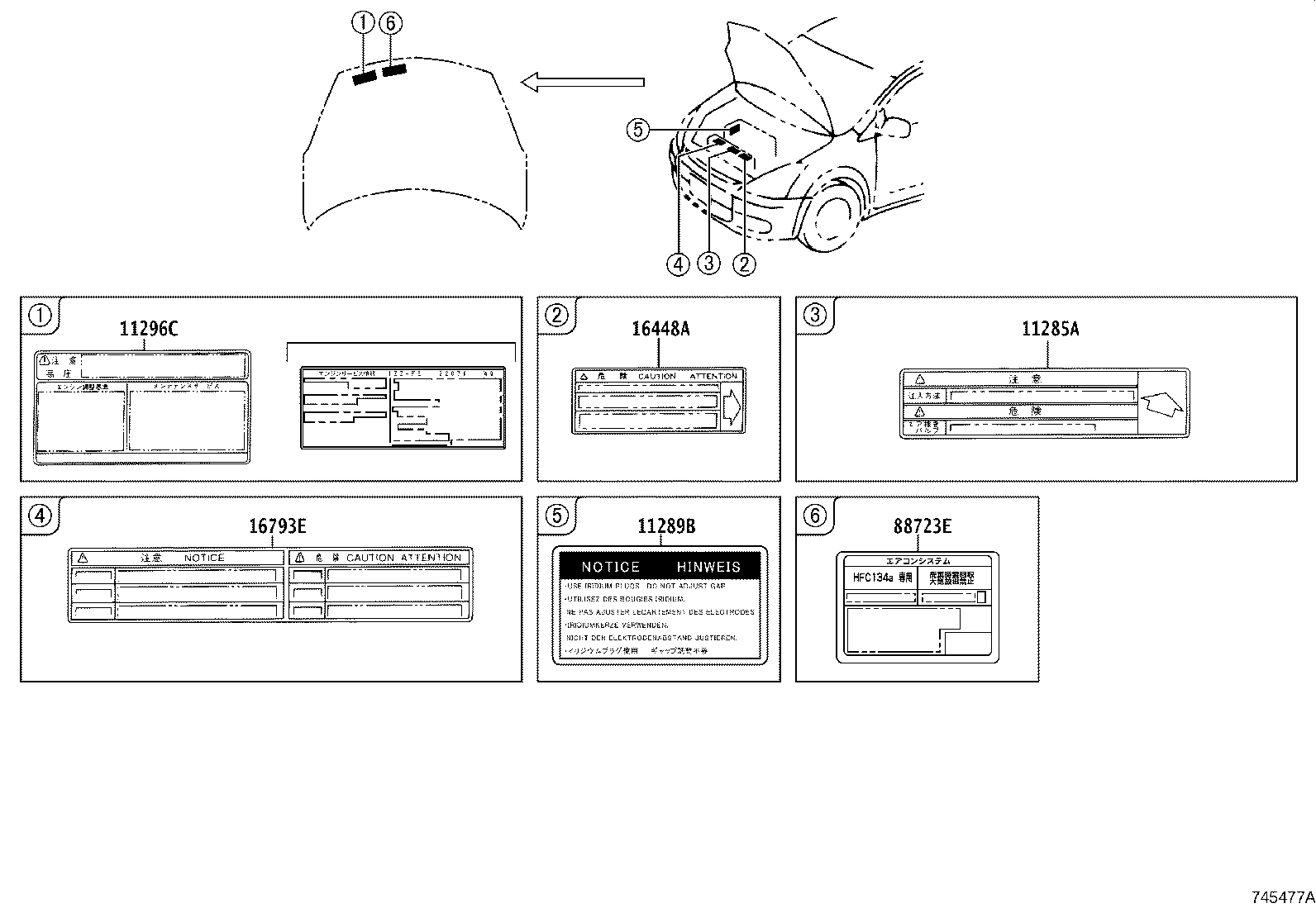

ILLUST NO. 1 OF 3(0301- )

Click highlighted areas on diagram

ｴﾝｼﾞﾝﾙｰﾑ

diagram 11285A 11289B 11296C 16448A 16793E 88723E
Part # Description Qty Price
11285A - LABEL, COOLANT SYSTEM NOTICE
11285-22050

1ZZFE..ZNE10

 1
11296C - LABEL, ENGINE SERVICE INFORMATION
11296-22071

1ZZFE..ZNE1#

 1
16448A - PLATE, RADIATOR CAUTION
16448-22010

1AZFSE,1ZZFE..ANE1#,ZNE1#

 1
16793E - LABEL, COOLING FAN CAUTION
16793-22010

1ZZFE..ZNE1#

 2
88723E - LABEL, COOLER SERVICE CAUTION
88733-52010

ANE1#,ZNE1#

 1
