ZNE10G-HPPNK (2003)
Toyota Wish
Production
Jan 2003
-
Aug 2005
Engine
1ZZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0301- )ANE10,ZNE10

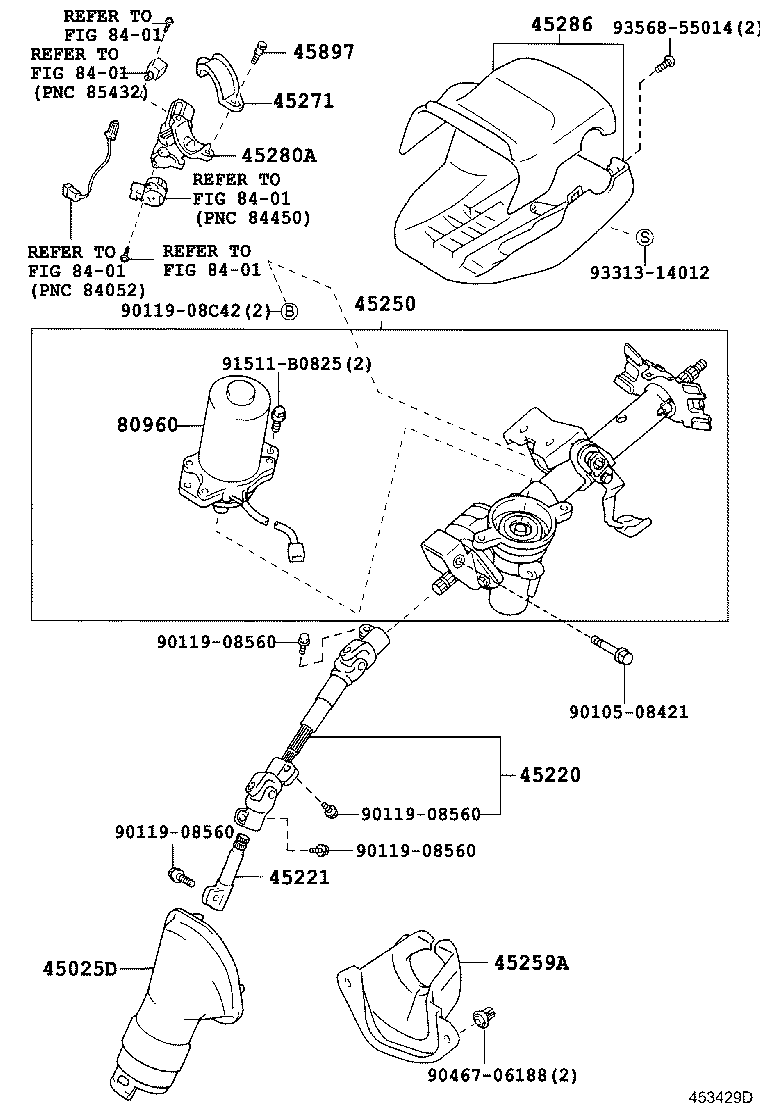

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-13050 |
ANE10,ZNE10 |
1 | ||
| 45220 - SHAFT ASSY, STEERING INTERMEDIATE | ||||
| 45220-68011 |
ANE10,ZNE10 |
1 | ||
| 45220-68010 |
ANE10,ZNE10 |
1 | ||
| 45220-68012 |
ANE10,ZNE10 |
1 | ||
| 45221 - SHAFT, STEERING INTERMEDIATE | ||||
| 45221-12281 |
ANE10,ZNE10 |
1 | ||
| 45221-12280 |
ANE10,ZNE10 |
1 | ||
| 45250 - COLUMN ASSY, STEERING | ||||
| 45250-68030 |
ZNE10 |
1 | ||
| 45250-68040 |
ZNE10 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ) |
1 | ||
| 45250-68080 |
ANE10,ZNE10 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ) |
1 | ||
| 45250-68081 |
ANE10,ZNE10 ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ) |
1 | ||
| 45250-68070 |
ANE10,ZNE10 |
1 | ||
| 45250-68071 |
ANE10,ZNE10 |
1 | ||
| 45259A - SHEET, COLUMN HOLE COVER SILENCER | ||||
| 45259-68010 |
ANE1#,ZNE1# |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-16020 |
ANE1#,ZNE1# |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-68010 |
ANE10,ZNE10 |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-12967B2 |
ZNE1# DK.GRAY,TRIM1# |
1 | ||
| 45286-12970B0 |
ZNE1# ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
ANE1#,ZNE1# |
2 | ||
| 80960 - MOTOR ASSY, POWER STEERING | ||||
| 80960-68010 |
ANE10,ZNE10 |
1 | ||
| 80960-44010 |
ANE10,ZNE10 |
1 | ||
| Common parts | ||||
| 90105-08421 | ||||
| 90119-08560 | ||||
| 90119-08C42 | ||||
| 90467-06188 | ||||
| 91511-B0825 | ||||
| 93313-14012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
