ZNE10G-HPPNK (2003)
Toyota Wish
Production
Jan 2003
-
Aug 2005
Engine
1ZZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0301- )ZNE1#

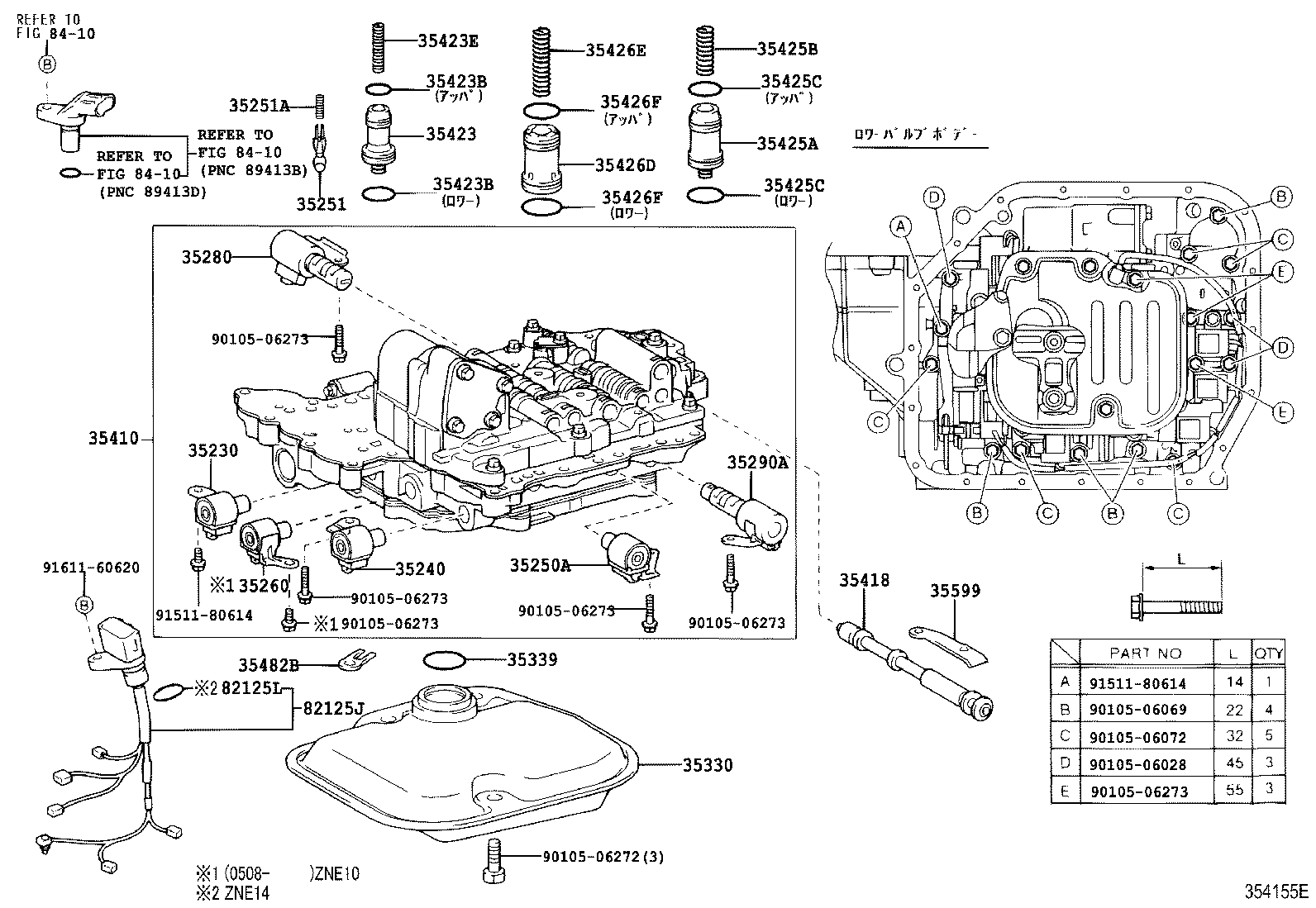

Click highlighted areas on diagram
U341E,U341F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35230 - SOLENOID ASSY, TRANSMISSION 3WAY, NO.2 | ||||
| 35230-52011 |
ZNE1# |
1 | ||
| 35240 - SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY | ||||
| 35240-52011 |
ZNE1# |
1 | ||
| 35250A - SOLENOID ASSY, TRANSMISSION, NO.3 | ||||
| 35250-52010 |
ZNE1# |
1 | ||
| 35251 - BODY, CHECK BALL | ||||
| 35251-30020 |
ZNE1# |
1 | ||
| 35251A - SPRING, COMPRESSION (FOR CHECK BALL BODY) | ||||
| 90501-03005 |
ZNE1# |
1 | ||
| 35280 - SOLENOID ASSY, LOCK UP CONTROL | ||||
| 35280-52020 |
ZNE1# |
1 | ||
| 35290A - SOLENOID ASSY, LINE PRESSURE CONTROL | ||||
| 35290-52020 |
ZNE1# |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-0W020 |
ZNE1# |
1 | ||
| 35339 - GASKET, OIL STRAINER | ||||
| 90301-32010 |
ZNE1# |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-42042 |
ZNE1# |
1 | ||
| 35410-42041 |
ZNE1# |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-52020 |
ZNE1# |
1 | ||
| 35423 - PISTON, B-2 ACCUMULATOR | ||||
| 35403-52020 |
ZNE1# |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-20010 |
ZNE1# 上側 |
1 | ||
| 90301-29011 |
ZNE1# 下側 |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-20010 |
ZNE1# 上側 |
1 | ||
| 90301-29011 |
ZNE1# 下側 |
1 | ||
| 35423E - SPRING, COMPRESSION (FOR B-2 ACCMULATOR PISTON) | ||||
| 90501-18119 |
ZNE1# |
1 | ||
| 35425A - PISTON, C-2 ACCUMULATOR | ||||
| 35405-52020 |
ZNE1# |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-24036 |
ZNE1# |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-35004 |
ZNE1# 上側 |
1 | ||
| 90301-22010 |
ZNE1# 下側 |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-35004 |
ZNE1# 上側 |
1 | ||
| 90301-22010 |
ZNE1# 下側 |
1 | ||
| 35426D - PISTON, C-3 ACCUMULATOR | ||||
| 35426-52020 |
ZNE1# |
1 | ||
| 35426E - SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90501-23149 |
ZNE1# |
1 | ||
| 35426F - RING, O (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90301-24016 |
ZNE1# 下側 |
1 | ||
| 90301-29011 |
ZNE1# 上側 |
1 | ||
| 35426F - RING, O (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90301-24016 |
ZNE1# 下側 |
1 | ||
| 90301-29011 |
ZNE1# 上側 |
1 | ||
| 35482B - CLAMP, TEMPERATURE SENSOR | ||||
| 35482-52020 |
ZNE1# |
1 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-52010 |
ZNE1# |
1 | ||
| 82125J - WIRE, TRANSMISSION | ||||
| 82125-20260 |
ZNE1# |
1 | ||
| Common parts | ||||
| 90105-06028 | ||||
| 90105-06069 | ||||
| 90105-06072 | ||||
| 90105-06272 | ||||
| 90105-06273 | ||||
| 91511-80614 | ||||
| 91611-60620 | ||||
| Linked diagrams | ||||
| 8410 | ||||
