ZNE10G-HPPNK (2003)

Toyota Wish

Production Jan 2003 - Aug 2005
Engine 1ZZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0301- )1ZZFE

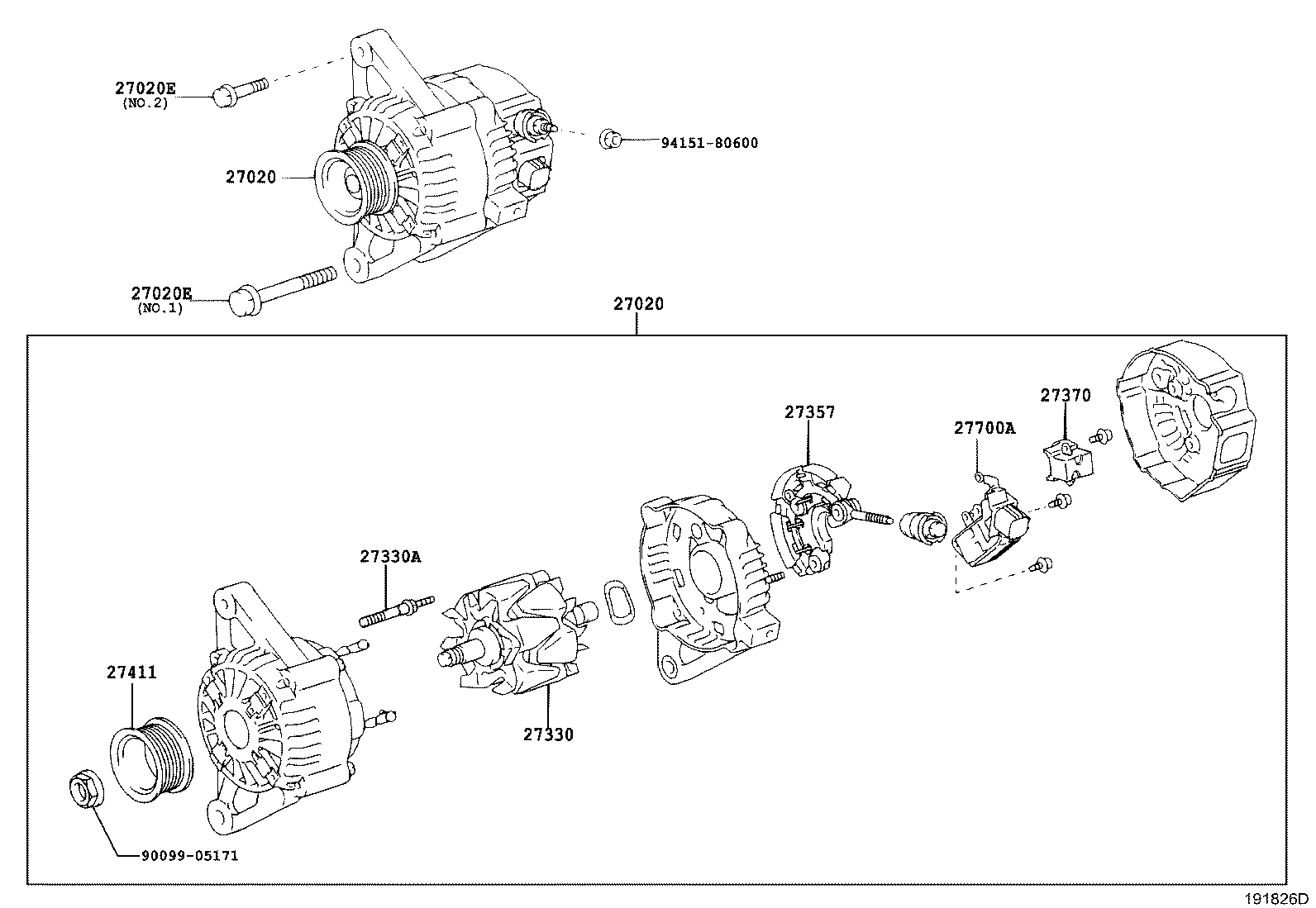

Click highlighted areas on diagram

12V 80A

diagram 27020 27020 27020E 27020E 27330 27330A 27357 27370 27411 27700A 9009905171 9415180600
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-22230

1ZZFE..ZNE1#

12V 80A

 1
27020 - ALTERNATOR ASSY
27060-22230

1ZZFE..ZNE1#

12V 80A

 1
27020E - BOLT(FOR ALTERNATOR)
90105-10075

1ZZFE..ZNE1#

NO.1

 1
91511-80830

1ZZFE..ZNE1#

NO.2

 1
27020E - BOLT(FOR ALTERNATOR)
90105-10075

1ZZFE..ZNE1#

NO.1

 1
91511-80830

1ZZFE..ZNE1#

NO.2

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-62220

1AZFSE,1ZZFE..ANE1#,ZNE1#

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-22200

1AZFSE,1ZZFE..ANE1#,ZNE1#

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060

1ZZFE..ZNE1#

 1
27411 - PULLEY, ALTERNATOR
27411-22210

1ZZFE..ZNE1#

 1
27700A - REGULATOR ASSY, GENERATOR
27700-22050

1ZZFE..ZNE1#

 1
Common parts
90099-05171
94151-80600
