ZGE25W-HPXSP (2009)
Toyota Wish
ILLUST NO. 1 OF 2(0903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61247F - REINFORCEMENT, ROOF SIDE RAIL, INNER | ||||
| 61247-68020 |
ZGE2#..CBU |
2 | ||
| 61247F - REINFORCEMENT, ROOF SIDE RAIL, INNER | ||||
| 61247-68020 |
ZGE2#..CBU |
2 | ||
| 63105D - FRAME SUB-ASSY, BACK WINDOW, UPPER | ||||
| 63105-68020 |
ZGE2#..CBU |
1 | ||
| 63105D - FRAME SUB-ASSY, BACK WINDOW, UPPER | ||||
| 63105-68020 |
ZGE2#..CBU |
1 | ||
| 63106 - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.4 | ||||
| 63106-68020 |
ZGE2#..CBU |
1 | ||
| 63106 - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.4 | ||||
| 63106-68020 |
ZGE2#..CBU |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-68040 |
ZGE2#..CBU ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63111-68030 |
ZGE2#..CBU |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-68040 |
ZGE2#..CBU ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63111-68030 |
ZGE2#..CBU |
1 | ||
| 63118 - SUPPORT, ROOF PANEL, RH | ||||
| 63118-68020 |
ZGE2#..CBU ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63119 - SUPPORT, ROOF PANEL, LH | ||||
| 63119-68010 |
ZGE2#..CBU ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63123C - REINFORCEMENT, ROOF PANEL | ||||
| 63123-68020 |
ZGE2#..CBU |
1 | ||
| 63127 - REINFORCEMENT, ROOF PANEL, NO.5 | ||||
| 63127-68020 |
ZGE2#..CBU |
1 | ||
| 63127 - REINFORCEMENT, ROOF PANEL, NO.5 | ||||
| 63127-68020 |
ZGE2#..CBU |
1 | ||
| 63128 - REINFORCEMENT, ROOF PANEL, NO.6 | ||||
| 63128-68020 |
ZGE2#..CBU |
1 | ||
| 63128 - REINFORCEMENT, ROOF PANEL, NO.6 | ||||
| 63128-68020 |
ZGE2#..CBU |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-68020 |
ZGE2#..CBU |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-68020 |
ZGE2#..CBU |
1 | ||
| 63137A - BRACKET, DOME LAMP, NO.1 | ||||
| 63137-68020 |
ZGE2#..CBU |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-68020 |
ZGE2#..CBU |
1 | ||
| 63142A - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-68901 |
ZGE2#..CBU ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-68040 |
ZGE2#..CBU ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63143-68030 |
ZGE2#..CBU |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-68040 |
ZGE2#..CBU ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63143-68030 |
ZGE2#..CBU |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 91621-G0816 | ||||

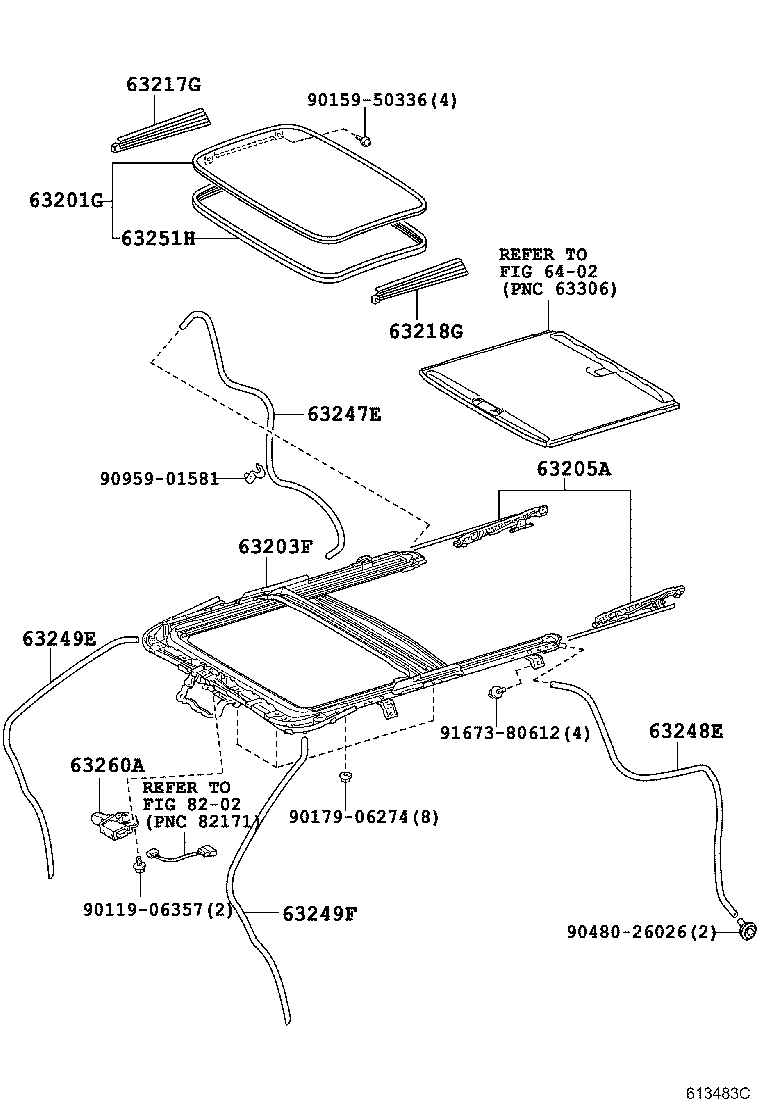

ILLUST NO. 2 OF 2(0903- )
ｱﾘ(ﾑｰﾝﾙｰﾌ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-68040 |
ZGE2#..CBU *TEM,厚さ=4.0,ｸﾞﾚｰ,ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-68040 |
ZGE2#..CBU ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63205A - CABLE SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63205-48010 |
ZGE2#..CBU ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-48030 |
ZGE2#..CBU ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-48030 |
ZGE2#..CBU ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63247E - HOSE, SLIDING ROOF DRAIN, REAR RH | ||||
| 63249-68120 |
ZGE2#..CBU ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63248E - HOSE, SLIDING ROOF DRAIN, REAR LH | ||||
| 63249-68130 |
ZGE2#..CBU ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63249E - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-68100 |
ZGE2#..CBU ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63249F - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-68110 |
ZGE2#..CBU ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63251H - WEATHERSTRIP, SLIDING ROOF | ||||
| 63251-63010 |
ZGE2#..CBU ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-68030 |
ZGE2#..CBU ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| Common parts | ||||
| 90119-06357 | ||||
| 90159-50336 | ||||
| 90179-06274 | ||||
| 90480-26026 | ||||
| 90959-01581 | ||||
| 91673-80612 | ||||
| Linked diagrams | ||||
| 6402 | ||||
| 8202 | ||||
