ZGE25G-HPXGP (2012)

Toyota Wish

Production Apr 2012 - Nov 2017
Engine 2ZRFAE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1204- )

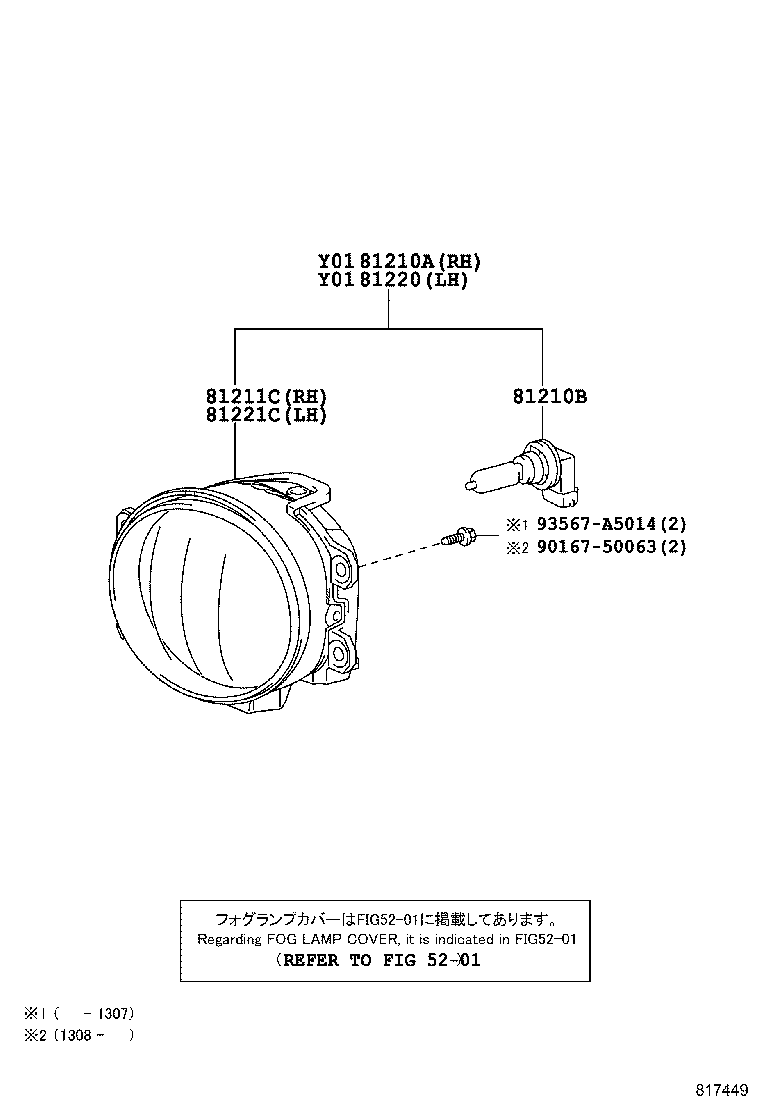

Click highlighted areas on diagram

diagram 5201 81210A 81210B 81211C 81220 81221C 9016750063 93567A5014
Part # Description Qty Price
81210A - LAMP ASSY, FOG, RH
81210-12230

ZGE2#..(18G,18S,20Z)..CBU

 1
81210-47010

ZGE2#..(18G,18S,20Z)..CBU

 1
81210B - BULB, FOG LAMP
90981-13090

ZGE2#..(18G,18S,20Z)..CBU

12V 19W,OSRAM

 2
81211C - LAMP UNIT, FOG LAMP, RH
81211-47010

ZGE2#..(18G,18S,20Z)..CBU

 1
81211-12230

ZGE2#..(18G,18S,20Z)..CBU

 1
81220 - LAMP ASSY, FOG, LH
81220-47010

ZGE2#..(18G,18S,20Z)..CBU

 1
81220-12230

ZGE2#..(18G,18S,20Z)..CBU

 1
81221C - LAMP UNIT, FOG LAMP, LH
81221-47010

ZGE2#..(18G,18S,20Z)..CBU

 1
81221-12230

ZGE2#..(18G,18S,20Z)..CBU

 1
Common parts
90167-50063
93567-A5014
Linked diagrams
5201
