ZGE22W-HWXQP (2012)
Toyota Wish

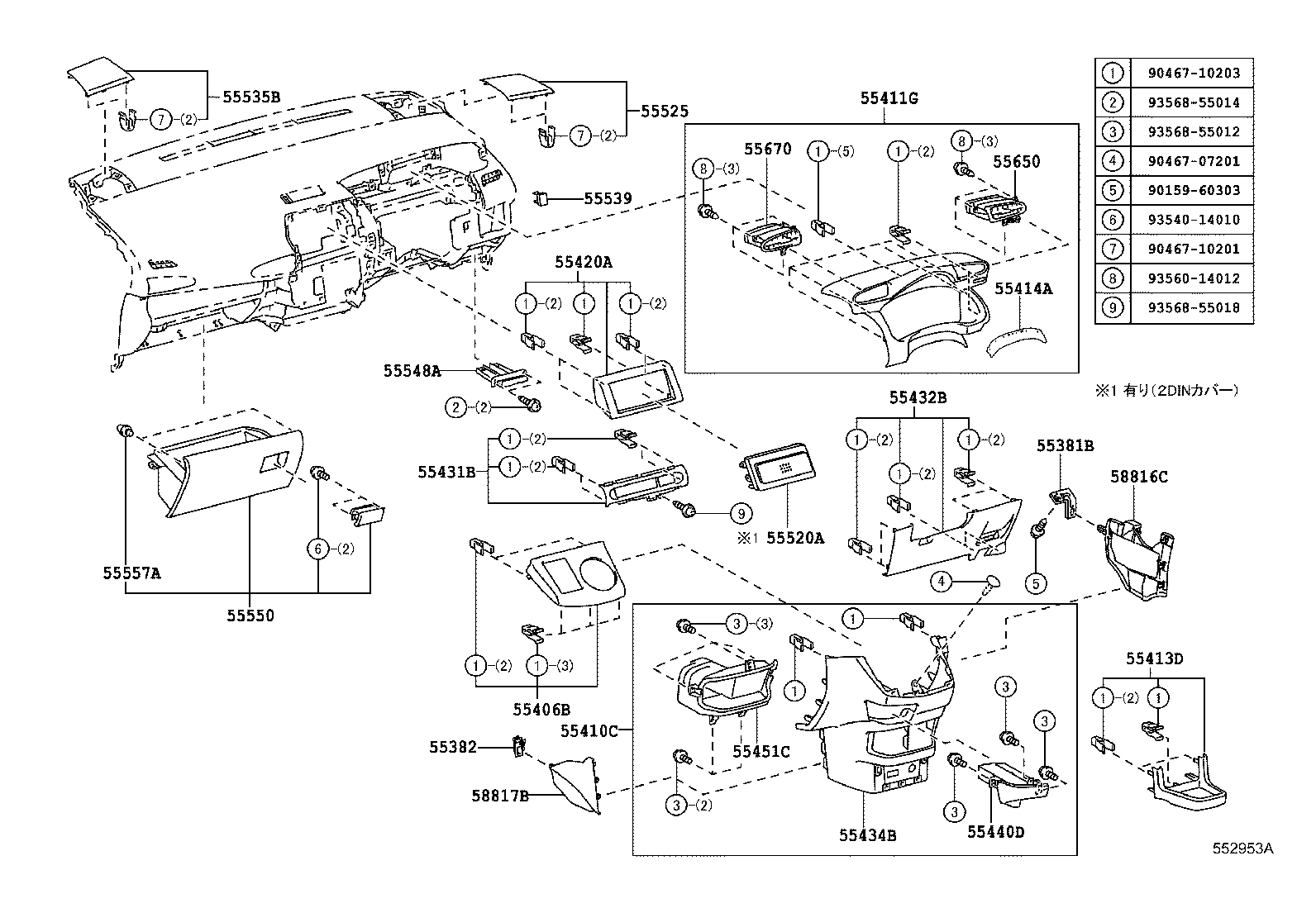

ILLUST NO. 2 OF 2(1204- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55381B - BRACKET, FINISH PANEL MOUNTING, NO.1 | ||||
| 55389-42020 |
ZGE2#..CBU |
1 | ||
| 55389-42020 |
ZGE2#..CBU |
1 | ||
| 55382 - BRACKET, FINISH PANEL MOUNTING, NO.2 | ||||
| 55388-42020 |
ZGE2#..CBU |
1 | ||
| 55388-42020 |
ZGE2#..CBU |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-68030 |
ZGE21,22..CBU |
1 | ||
| 55406-68040 |
ZGE2#..(18G,18S,20Z)..CBU |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-68030B0 |
ZGE22..CBU DK.GRAY,TRIM1# |
1 | ||
| 55410-68050B0 |
ZGE22 DK.GRAY,TRIM1# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-68010B0 |
ZGE22 DK.GRAY,TRIM1# |
1 | ||
| 55411-68010B0 |
ZGE22..CBU DK.GRAY,TRIM1# |
1 | ||
| 55413D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER | ||||
| 55413-68010B0 |
ZGE22 DK.GRAY,TRIM1# |
1 | ||
| 55414A - PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 55414-68020 |
ZGE2#..CBU |
1 | ||
| 55414-68020 |
ZGE20,22,25..CBU |
1 | ||
| 55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55420-68120 |
ZGE21,22..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 55420-68130 |
ZGE21,22..CBU |
1 | ||
| 55420-68140 |
ZGE2#..(18G,18S,20Z)..CBU |
1 | ||
| 55431B - PANEL, INSTRUMENT PANEL FINISH, UPPER | ||||
| 55431-68010 |
ZGE2#..CBU |
1 | ||
| 55431-68010 |
ZGE2#..CBU |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-68030B0 |
ZGE22 DK.GRAY,TRIM1# |
1 | ||
| 55432-68030B0 |
ZGE22..CBU DK.GRAY,TRIM1# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-68030B0 |
ZGE22..CBU DK.GRAY,TRIM1# |
1 | ||
| 55434-68040B0 |
ZGE22 DK.GRAY,TRIM1# |
1 | ||
| 55440D - BOX ASSY, INSTRUMENT PANEL | ||||
| 55440-68040B0 |
ZGE22 DK.GRAY,TRIM1# |
1 | ||
| 55440-68040B0 |
ZGE22..CBU DK.GRAY,TRIM1# |
1 | ||
| 55451C - BOX, INSTRUMENT PANEL, NO.1 | ||||
| 55451-68010B0 |
ZGE22..CBU DK.GRAY,TRIM1# |
1 | ||
| 55451-68020B0 |
ZGE22 DK.GRAY,TRIM1# |
1 | ||
| 55520A - COVER ASSY, STEREO OPENING | ||||
| 55520-47020 |
ZGE2#..CBU ｲﾝｽﾄﾙﾒﾝﾄ ﾊﾟﾈﾙ−有り(2DINｶﾊﾞｰ) |
1 | ||
| 55525 - COVER, SPEAKER HOLE, NO.1 | ||||
| 55525-68010B0 |
ZGE22 DK.GRAY,TRIM1# |
1 | ||
| 55525-68010B0 |
ZGE22..CBU DK.GRAY,TRIM1# |
1 | ||
| 55535B - COVER, SPEAKER HOLE, NO.2 | ||||
| 55535-68010B0 |
ZGE22..CBU DK.GRAY,TRIM1# |
1 | ||
| 55535-68010B0 |
ZGE22 DK.GRAY,TRIM1# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060B0 |
ZGE22..CBU DK.GRAY,TRIM1# |
1 | ||
| 55539-52070C0 |
ZGE22 BLACK,TRIM1# |
1 | ||
| 55539-52060B0 |
ZGE22 DK.GRAY,TRIM1# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-52030B0 |
ZGE22 DK.GRAY,TRIM1# |
1 | ||
| 55548-52030B0 |
ZGE22..CBU DK.GRAY,TRIM1# |
1 | ||
| 55548-52030B0 |
ZGE22..CBU ETC−有り(MOP),DK.GRAY,TRIM1# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-68020B0 |
ZGE22..CBU DK.GRAY,TRIM1# |
1 | ||
| 55550-68020B0 |
ZGE22 DK.GRAY,TRIM1# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-53030 |
ZGE2#..CBU |
2 | ||
| 55557-53030 |
ZGE2#..CBU |
2 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-68040 |
ZGE2#..CBU |
1 | ||
| 55650-68040 |
ZGE2#..CBU |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-68040 |
ZGE2#..CBU |
1 | ||
| 55670-68040 |
ZGE2#..CBU |
1 | ||
| 58816C - INSERT, CONSOLE BOX, FRONT NO.1 | ||||
| 58816-68010B0 |
ZGE22 DK.GRAY,TRIM1# |
1 | ||
| 58816-68010B0 |
ZGE22..CBU DK.GRAY,TRIM1# |
1 | ||
| 58817B - INSERT, CONSOLE BOX, FRONT NO.2 | ||||
| 58817-68010B0 |
ZGE22..CBU DK.GRAY,TRIM1# |
1 | ||
| 58817-68010B0 |
ZGE22 DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90159-60303 | ||||
| 90467-07201 | ||||
| 90467-10201 | ||||
| 90467-10203 | ||||
| 93540-14010 | ||||
| 93560-14012 | ||||
| 93568-55012 | ||||
| 93568-55014 | ||||
| 93568-55018 | ||||
