ZGE22W-HWXQP (2009)

Toyota Wish

Production Mar 2009 - Apr 2012
Engine 3ZRFAE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0903- )18S,18X,20G,20Z

Click highlighted areas on diagram

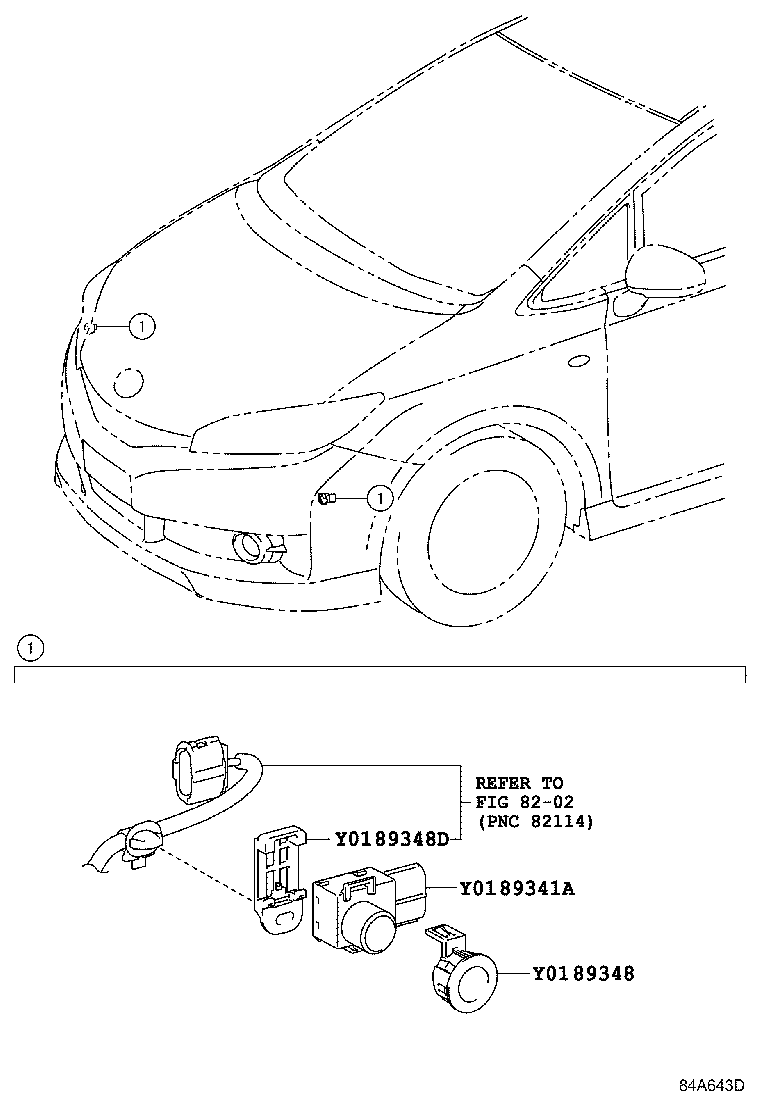

diagram 8202 89341A 89348 89348D
Part # Description Qty Price
89341A - SENSOR, ULTRASONIC, NO.1
89341-28480C0

ZGE2#..CBU

ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀ),BLACK,202

 2
89341-28480H0

ZGE2#..CBU

ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀ),GRAYISH TEAL ME.,784

 2
89341-28480A0

ZGE2#..CBU

ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀ),WHITE PEARL CS.,070

 2
89341-28480D1

ZGE2#..CBU

ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀ),RED M.M.,3R3

 2
89341-28480B1

ZGE2#..CBU

ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀ),SILVER ME.,1F7

 2
89341-28480J0

ZGE2#..CBU

ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀ),DK.BLUE MC.,8S6

 2
89341-28480B3

ZGE2#..CBU

ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀ),GRAY ME.,1G6

 2
89348 - RETAINER, ULTRASONIC SENSOR, NO.1
89348-12010C1

ZGE2#..CBU

ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀ),BLACK,202

 2
89348-12010A1

ZGE2#..CBU

ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀ),WHITE PEARL CS.,070

 2
89348-12010B0

ZGE2#..CBU

ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀ),SILVER ME.,1F7

 2
89348-12010B8

ZGE2#..CBU

ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀ),GRAY ME.,1G6

 2
89348-12010H4

ZGE2#..CBU

ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀ),GRAYISH TEAL ME.,784

 2
89348-12010D0

ZGE2#..CBU

ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀ),RED M.M.,3R3

 2
89348-12010J0

ZGE2#..CBU

ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀ),DK.BLUE MC.,8S6

 2
89348D - CLIP, ULTRASONIC SENSOR
89348-33090

ZGE2#..CBU

ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀ)

 2
Linked diagrams
8202
