ZGE22W-HWXQP (2009)

Toyota Wish

Production Mar 2009 - Apr 2012
Engine 3ZRFAE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0903-1204) ; (1204- )ZGE22

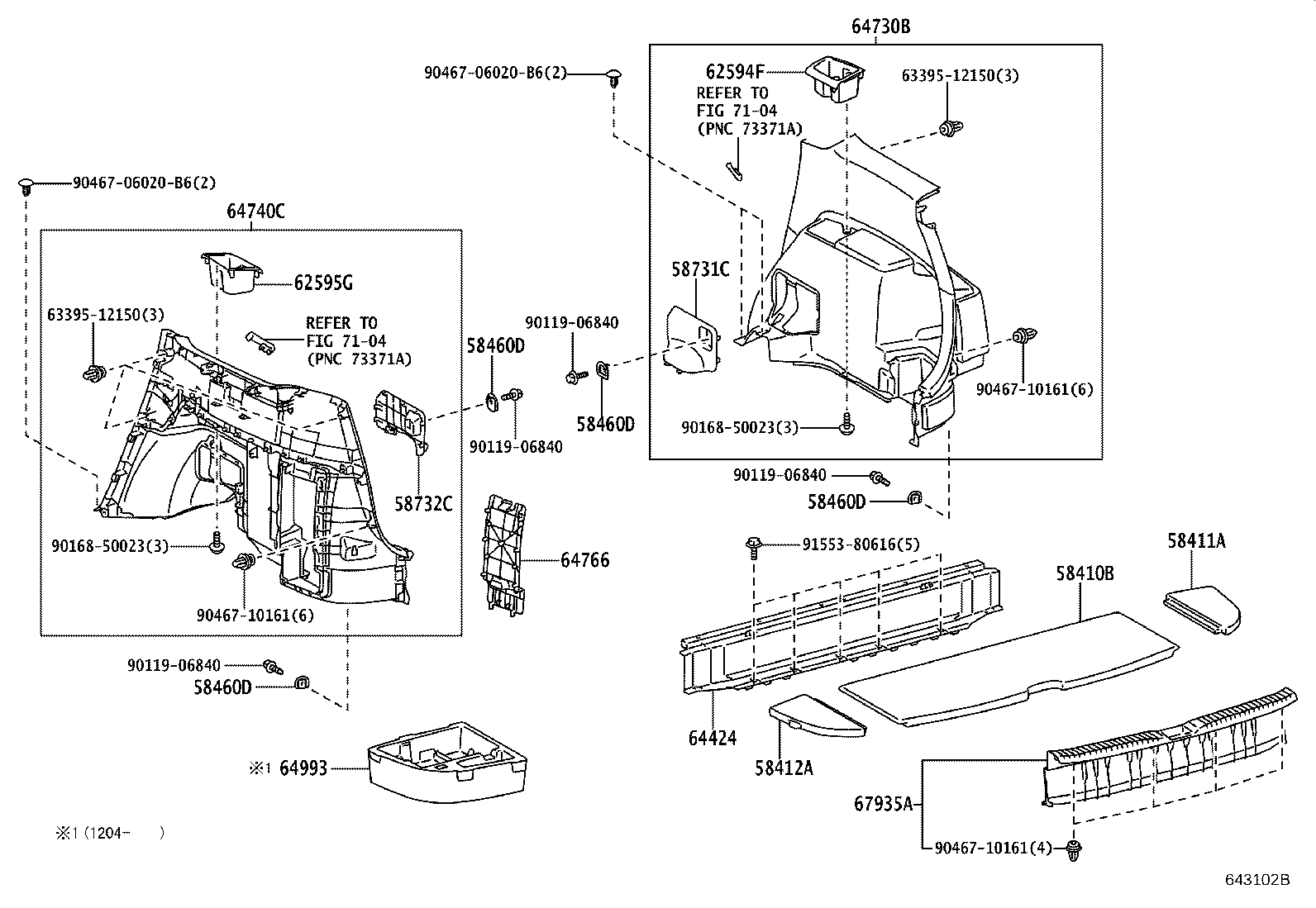

Click highlighted areas on diagram

diagram 58410B 58411A 58412A 58460D 58460D 58460D 58460D 58731C 58732C 62594F 62595G 6339512150 6339512150 64424 64730B 64740C 64766 64993 67935A 7104 7104 9011906840 9011906840 9011906840 9011906840 9016850023 9016850023 9046706020B6 9046706020B6 9046710161 9046710161 9046710161 9155380616
Part # Description Qty Price
58410B - BOARD ASSY, DECK
58410-68020B1

ZGE20,22,25..CBU

DARK GRAY,TRIM1#

 1
58411A - BOARD, DECK, NO.1
58411-68020B0

ZGE20,22,25..CBU

DARK GRAY,TRIM1#

 1
58412A - BOARD, DECK, NO.2
58412-68020B0

ZGE20,22,25..CBU

DARK GRAY,TRIM1#

 1
58460D - STRIKER ASSY, LUGGAGE HOLD BELT
58460-33020

ZGE2#..CBU

 4
58460D - STRIKER ASSY, LUGGAGE HOLD BELT
58460-33020

ZGE2#..CBU

 4
58460D - STRIKER ASSY, LUGGAGE HOLD BELT
58460-33020

ZGE2#..CBU

 4
58460D - STRIKER ASSY, LUGGAGE HOLD BELT
58460-33020

ZGE2#..CBU

 4
58731C - CAP, REAR ABSORBER
58731-68010B0

ZGE22..CBU

DK.GRAY,TRIM1#

 1
58732C - CAP, REAR ABSORBER
58732-68010B0

ZGE22..CBU

DK.GRAY,TRIM1#

 1
62594F - POCKET, QUARTER TRIM, RH
62594-68020B0

ZGE22..CBU

DK.GRAY,TRIM1#

 1
62595G - POCKET, QUARTER TRIM, LH
62595-68020B0

ZGE22..CBU

DK.GRAY,TRIM1#

 1
64424 - SEPARATOR, LUGGAGE ROOM BOX
64424-68010

ZGE2#..CBU

 1
64730B - PANEL ASSY, DECK TRIM SIDE, RH
64730-68030B2

ZGE20,22,25..CBU

DK.GRAY,TRIM1#

 1
64740C - PANEL ASSY, DECK TRIM SIDE, LH
64740-68030B2

ZGE20,22,25..CBU

DK.GRAY,TRIM1#

 1
64766 - COVER SUB-ASSY, QUARTER TRIM JACK
64766-68030B0

ZGE22..CBU

DK.GRAY,TRIM1#

 1
67935A - PLATE, BACK DOOR SCUFF
67935-68020B0

ZGE22..CBU

DK.GRAY,TRIM1#

 1
Common parts
63395-12150
90119-06840
90168-50023
90467-06020B6
90467-10161
91553-80616
Linked diagrams
7104
