ZGE22W-HWXQP (2009)
Toyota Wish
Production
Mar 2009
-
Apr 2012
Engine
3ZRFAE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0903- )ZGE22,25

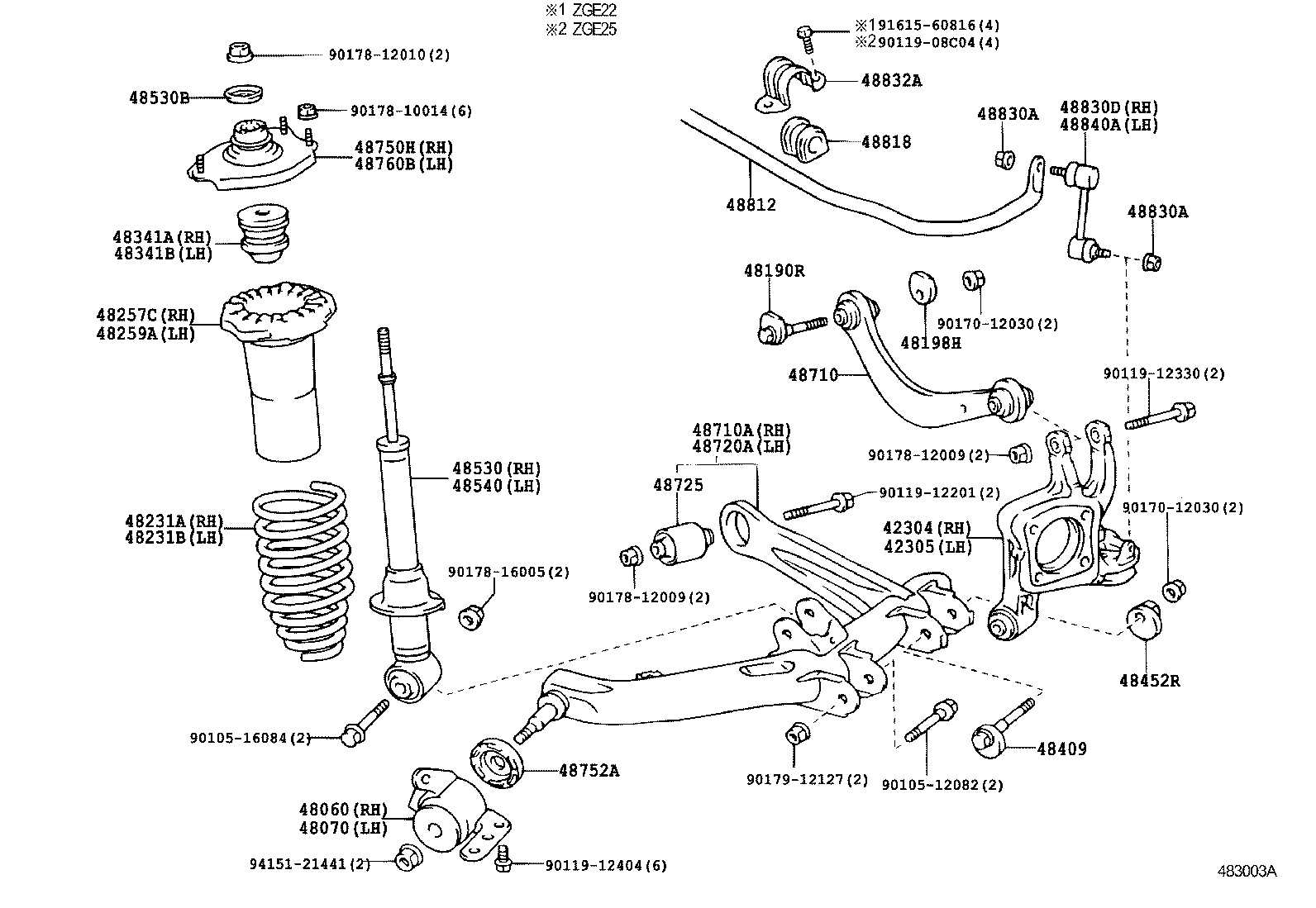

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42304 - CARRIER SUB-ASSY, REAR AXLE, RH | ||||
| 42304-68020 |
ZGE22..CBU |
1 | ||
| 42305 - CARRIER SUB-ASSY, REAR AXLE, LH | ||||
| 42305-68020 |
ZGE22..CBU |
1 | ||
| 48060 - BRACKET ASSY, REAR SUSPENSION ARM, RH | ||||
| 48060-68030 |
ZGE22,25..CBU |
1 | ||
| 48070 - BRACKET ASSY, REAR SUSPENSION ARM, LH | ||||
| 48070-68030 |
ZGE22,25..CBU |
1 | ||
| 48190R - CAM ASSY, CAMBER ADJUST | ||||
| 48190-32010 |
ZGE22,25..CBU |
2 | ||
| 48198H - CAM, CAMBER ADJUST, NO.2 | ||||
| 48198-32040 |
ZGE22,25..CBU |
2 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-68020 |
ZGE22..CBU |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-68020 |
ZGE22..CBU |
1 | ||
| 48257C - INSULATOR, REAR COIL SPRING, UPPER RH | ||||
| 48257-68020 |
ZGE22,25..CBU |
1 | ||
| 48259A - INSULATOR, REAR COIL SPRING, UPPER LH | ||||
| 48257-68020 |
ZGE22,25..CBU |
1 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-32100 |
ZGE2#..CBU |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-32100 |
ZGE2#..CBU |
1 | ||
| 48409 - CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST | ||||
| 48409-32040 |
ZGE22,25..CBU |
2 | ||
| 48452R - PLATE, REAR SUSPENSION TOE ADJUST, NO.2 | ||||
| 48452-32040 |
ZGE22,25..CBU |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-68070 |
ZGE22..CBU ﾏｰｸ 48530−68070 |
1 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03021 |
ZGE2#..CBU |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48530-68070 |
ZGE22..CBU ﾏｰｸ 48530−68070 |
1 | ||
| 48710 - ARM ASSY, UPPER CONTROL | ||||
| 48770-20020 |
ZGE22,25..CBU |
2 | ||
| 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH | ||||
| 48710-68010 |
ZGE22,25..CBU |
1 | ||
| 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH | ||||
| 48720-68010 |
ZGE22,25..CBU |
1 | ||
| 48725 - BUSH, LOWER CONTROL ARM | ||||
| 48725-32250 |
ZGE22,25..CBU |
2 | ||
| 48750H - SUPPORT ASSY, REAR SUSPENSION, RH | ||||
| 48750-68020 |
ZGE22,25..CBU |
1 | ||
| 48752A - STOPPER, REAR SUSPENSION SUPPORT | ||||
| 48752-68010 |
ZGE22,25..CBU |
2 | ||
| 48760B - SUPPORT ASSY REAR SUSPENSION, LH | ||||
| 48750-68020 |
ZGE22,25..CBU |
1 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-68011 |
ZGE22..CBU |
1 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48818-20350 |
ZGE22..CBU |
2 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 90179-10183 |
ZGE22,25..CBU |
4 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 90179-10183 |
ZGE22,25..CBU |
4 | ||
| 48830D - LINK ASSY, REAR STABILIZER, RH | ||||
| 48820-24010 |
ZGE22..CBU |
1 | ||
| 48832A - BRACKET, REAR STABILIZER BAR, NO.1 | ||||
| 48832-32120 |
ZGE22..CBU |
2 | ||
| 48840A - LINK ASSY, REAR STABILIZER, LH | ||||
| 48820-24010 |
ZGE22..CBU |
1 | ||
| Common parts | ||||
| 90105-12082 | ||||
| 90105-16084 | ||||
| 90119-08C04 | ||||
| 90119-12201 | ||||
| 90119-12330 | ||||
| 90119-12404 | ||||
| 90170-12030 | ||||
| 90178-10014 | ||||
| 90178-12009 | ||||
| 90178-12010 | ||||
| 90178-16005 | ||||
| 90179-12127 | ||||
| 91615-60816 | ||||
| 94151-21441 | ||||
