ZGE21G-HPXGP (2009)

Toyota Wish

Production Mar 2009 - Apr 2012
Engine 3ZRFAE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0903- )ZGE20,21

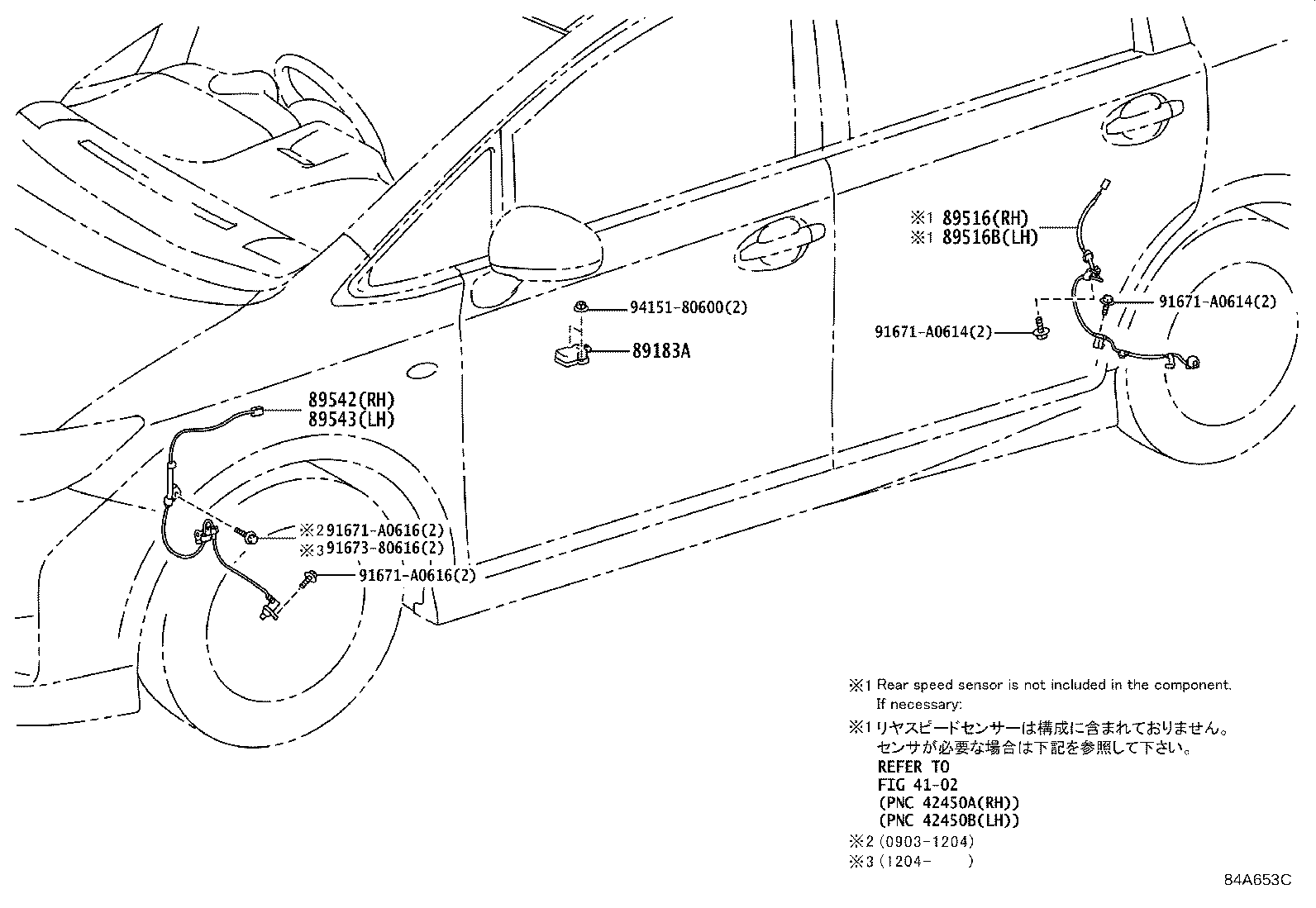

Click highlighted areas on diagram

ZGE20,21

diagram 4102 89183A 89516 89516B 89542 89543 91671A0614 91671A0614 91671A0616 91671A0616 9167380616 9415180600
Part # Description Qty Price
89183A - SENSOR, YAWRATE
89183-48030

ZGE2#..CBU

 1
89516 - WIRE, SKID CONTROL SENSOR
89516-68050

ZGE20,21..CBU

 1
89516B - WIRE, SKID CONTROL SENSOR
89516-68060

ZGE20,21..CBU

 1
89542 - SENSOR, SPEED, FRONT RH
89542-68020

ZGE2#..CBU

 1
89543 - SENSOR, SPEED, FRONT LH
89543-68020

ZGE2#..CBU

 1
Common parts
91671-A0614
91671-A0616
91673-80616
94151-80600
Linked diagrams
4102
