ZGE21G-HPXGP (2009)
Toyota Wish
Production
Mar 2009
-
Apr 2012
Engine
3ZRFAE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 2 OF 2(0903- )
Click highlighted areas on diagram
ﾄﾞｱﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-68170B1 |
ZGE21 DK.GRAY,TRIM4# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
ZGE2#..CBU |
20 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-68170B1 |
ZGE21 DK.GRAY,TRIM4# |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-68030 |
ZGE2#..CBU |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-68030 |
ZGE2#..CBU |
1 | ||
| Common parts | ||||
| 90159-60370 | ||||
| 90189-06130 | ||||
| Linked diagrams | ||||
| 7401 | ||||

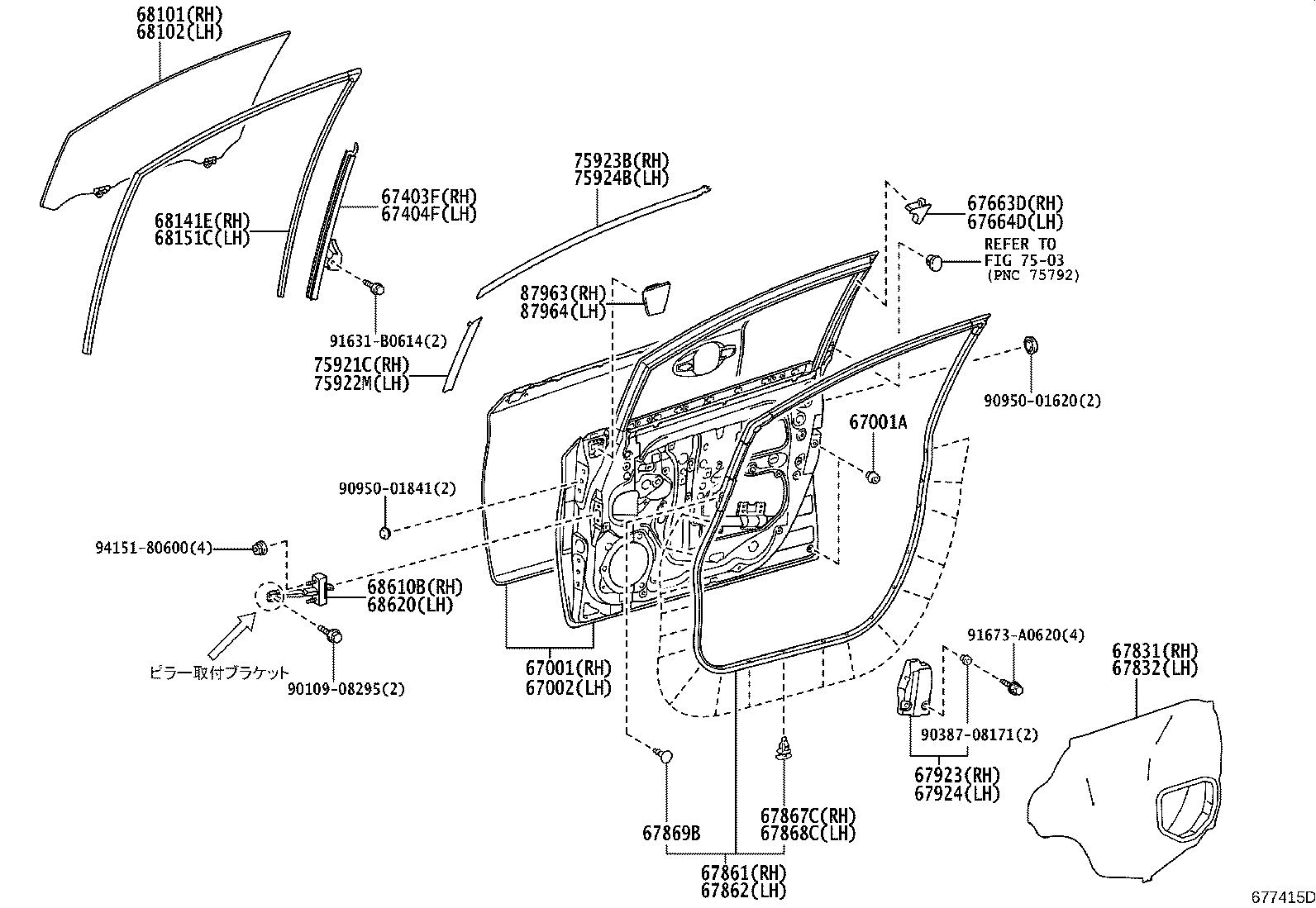

ILLUST NO. 1 OF 2(0903- )
Click highlighted areas on diagram
ﾄﾞｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-68030 |
ZGE20,21,25..CBU |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09137 |
ZGE2#..CBU |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-68030 |
ZGE20,21,25..CBU |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-68020 |
ZGE2#..CBU |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-68020 |
ZGE2#..CBU |
1 | ||
| 67663D - GARNISH, DOOR FRAME, RH | ||||
| 67663-42020 |
ZGE2#..CBU |
1 | ||
| 67664D - GARNISH, DOOR FRAME, LH | ||||
| 67664-42020 |
ZGE2#..CBU |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-68020 |
ZGE2#..CBU |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-68020 |
ZGE2#..CBU |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-68020 |
ZGE2#..CBU |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-68020 |
ZGE2#..CBU |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
ZGE2#..CBU |
19 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
ZGE2#..CBU |
19 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67868-30030 |
ZGE2#..CBU |
2 | ||
| 67923 - CUSHION, FRONT DOOR STIFFENER, NO.1 | ||||
| 67923-68030 |
ZGE2#..CBU |
1 | ||
| 67924 - CUSHION, FRONT DOOR STIFFENER, NO.2 | ||||
| 67924-68020 |
ZGE2#..CBU |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-68040 |
ZGE21,22..CBU *UVCT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-68040 |
ZGE21,22..CBU *UVCT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 68141E - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-68030 |
ZGE2#..CBU |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-68030 |
ZGE2#..CBU |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-68011 |
ZGE2#..CBU ﾋﾟﾗｰ取付ﾌﾞﾗｹｯﾄ:ｼﾙﾊﾞｰ |
1 | ||
| 68610-68010 |
ZGE2#..CBU ﾋﾟﾗｰ取付ﾌﾞﾗｹｯﾄ:ﾌﾞﾗｯｸ |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68620-68020 |
ZGE2#..CBU ﾋﾟﾗｰ取付ﾌﾞﾗｹｯﾄ:ﾌﾞﾗｯｸ |
1 | ||
| 68620-68021 |
ZGE2#..CBU ﾋﾟﾗｰ取付ﾌﾞﾗｹｯﾄ:ｼﾙﾊﾞｰ |
1 | ||
| 75921C - TAPE, BLACK OUT, NO.1 RH | ||||
| 75921-68010 |
ZGE2#..CBU |
1 | ||
| 75922M - TAPE, BLACK OUT, NO.1 LH | ||||
| 75922-68010 |
ZGE2#..CBU |
1 | ||
| 75923B - TAPE, BLACK OUT, NO.2 RH | ||||
| 75923-68010 |
ZGE2#..CBU |
1 | ||
| 75924B - TAPE, BLACK OUT, NO.2 LH | ||||
| 75924-68010 |
ZGE2#..CBU |
1 | ||
| 87963 - COVER, OUTER MIRROR INSTALL HOLE, RH | ||||
| 87963-68010 |
ZGE2#..CBU |
1 | ||
| 87964 - COVER, OUTER MIRROR INSTALL HOLE, LH | ||||
| 87964-68010 |
ZGE2#..CBU |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90387-08171 | ||||
| 90950-01620 | ||||
| 90950-01841 | ||||
| 91631-B0614 | ||||
| 91673-A0620 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 7503 | ||||
