ZGE20W-HPXSP (2009)
Toyota Wish
Production
Mar 2009
-
Apr 2012
Engine
2ZRFAE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

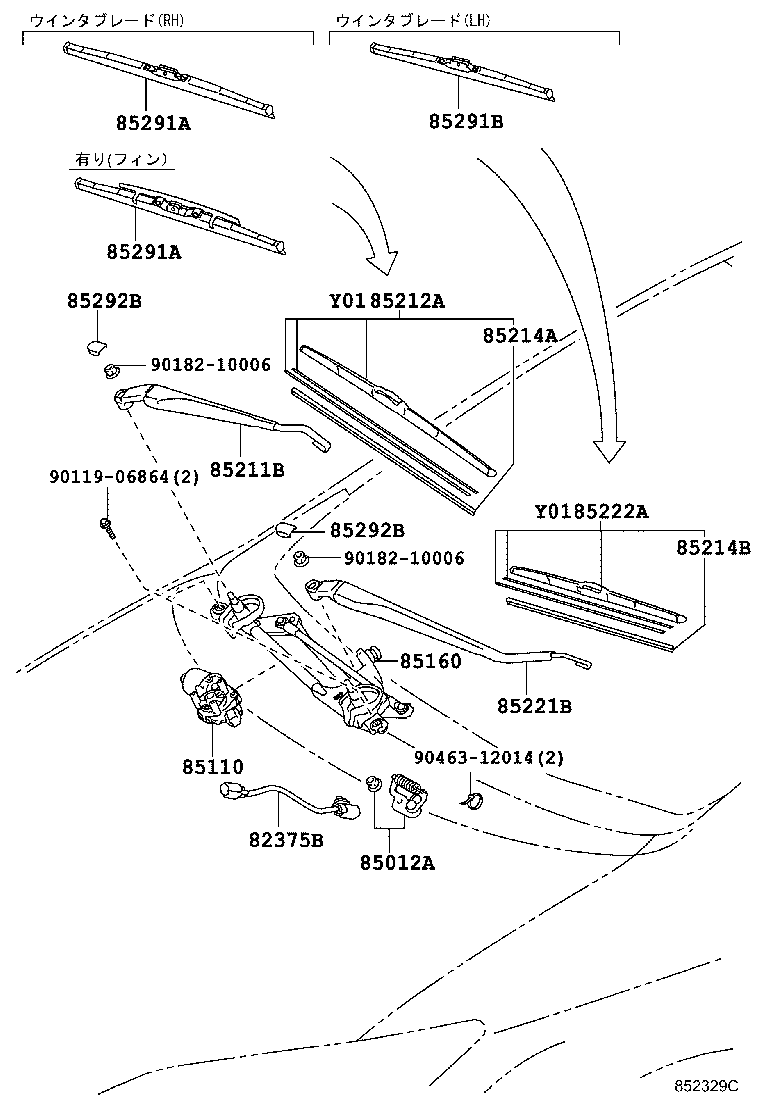

ILLUST NO. 2 OF 2(0903- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82375B - WIRE, WIPER MOTOR | ||||
| 82375-12320 |
ZGE2#..CBU |
1 | ||
| 85012A - CRANK SUB-ASSY, FRONT WIPER | ||||
| 85012-58030 |
ZGE2#..CBU |
1 | ||
| 85110 - MOTOR ASSY, WINDSHIELD WIPER | ||||
| 85110-1A080 |
ZGE2#..CBU |
1 | ||
| 85110-28301 |
ZGE2#..CBU 寒冷地仕様 |
1 | ||
| 85110-12A00 |
ZGE2#..CBU 寒冷地仕様 |
1 | ||
| 85110-68050 |
ZGE2#..CBU |
1 | ||
| 85160 - LINK ASSY, WINDSHIELD WIPER | ||||
| 85150-68030 |
ZGE2#..CBU |
1 | ||
| 85211B - ARM, FRONT WIPER, RH | ||||
| 85211-68030 |
ZGE2#..CBU |
1 | ||
| 85212A - BLADE, FR WIPER, RH | ||||
| 85212-68050 |
ZGE2#..CBU |
1 | ||
| 85214A - RUBBER, WIPER, RH | ||||
| 85214-68020 |
ZGE2#..CBU |
1 | ||
| 85214B - RUBBER, WIPER, LH | ||||
| 85214-68030 |
ZGE2#..CBU |
1 | ||
| 85221B - ARM, FRONT WIPER, LH | ||||
| 85221-68030 |
ZGE2#..CBU |
1 | ||
| 85222A - BLADE, FR WIPER, LH | ||||
| 85222-12860 |
ZGE2#..CBU |
1 | ||
| 85291A - BLADE, FRONT WIPER, WINTER, RH | ||||
| 85291-12090 |
ZGE2#..CBU ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP) |
1 | ||
| 85291-68010 |
ZGE2#..CBU ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),有り(ﾌｨﾝ) |
1 | ||
| 85291A - BLADE, FRONT WIPER, WINTER, RH | ||||
| 85291-12090 |
ZGE2#..CBU ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP) |
1 | ||
| 85291-68010 |
ZGE2#..CBU ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),有り(ﾌｨﾝ) |
1 | ||
| 85291B - BLADE, FRONT WIPER, WINTER, LH | ||||
| 85291-28120 |
ZGE2#..CBU ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP) |
1 | ||
| 85292B - CAP, FRONT WIPER ARM HEAD | ||||
| 85292-13010 |
ZGE2#..CBU |
2 | ||
| 85292B - CAP, FRONT WIPER ARM HEAD | ||||
| 85292-13010 |
ZGE2#..CBU |
2 | ||
| Common parts | ||||
| 90119-06864 | ||||
| 90182-10006 | ||||
| 90463-12014 | ||||
