ZGE20W-HPXSP (2009)

Toyota Wish

Production Mar 2009 - Apr 2012
Engine 2ZRFAE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0903- )

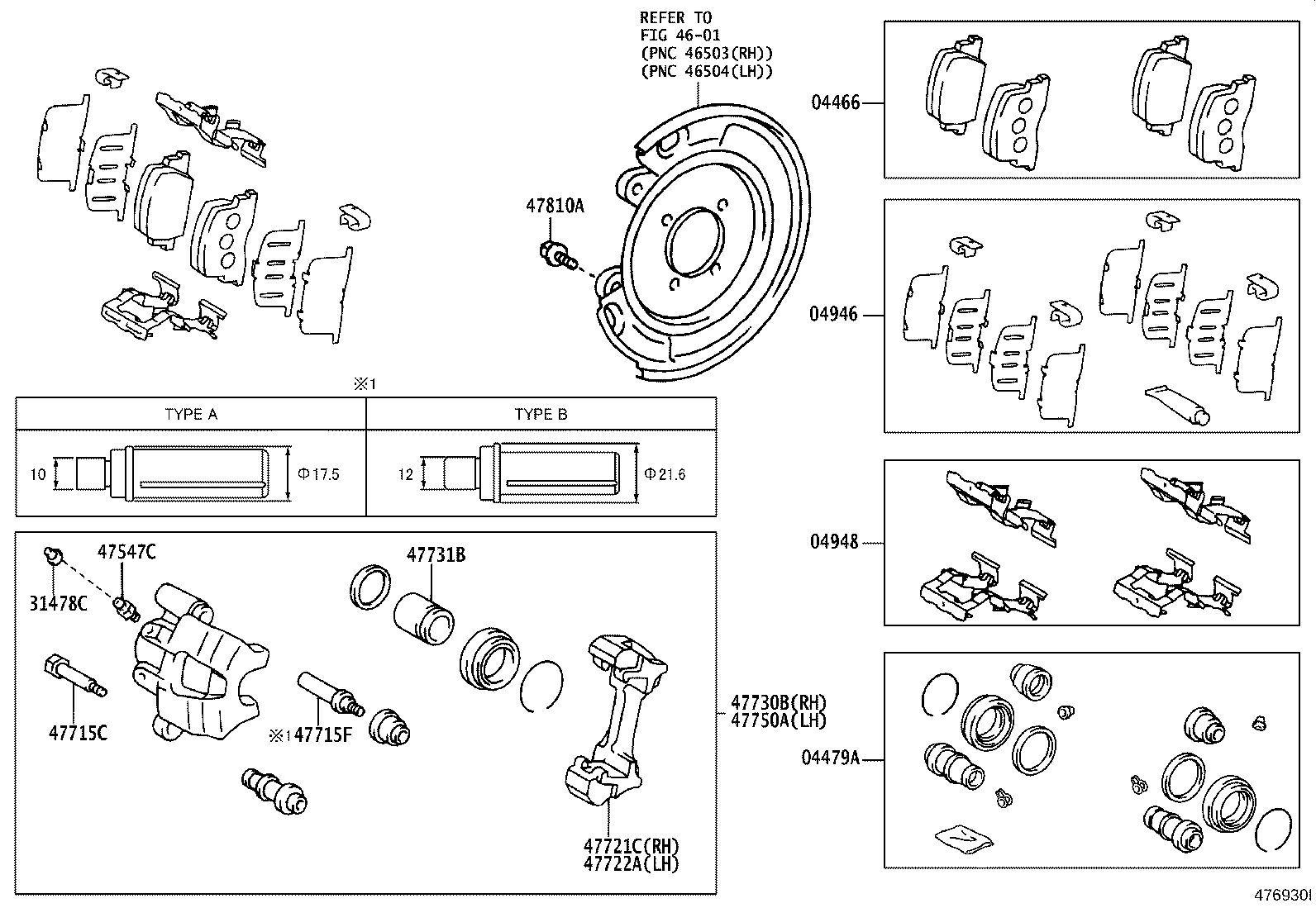

Click highlighted areas on diagram

diagram 04466 04479A 04946 04948 31478C 4601 47547C 47715C 47715F 47721C 47722A 47730B 47731B 47750A 47810A
Part # Description Qty Price
04466 - PAD KIT, DISC BRAKE, REAR
04466-48080

ZGE20..18S..CBU;ZGE21,22,25..CBU

ﾏｰｸ AK PA561

 1
04479A - CYLINDER KIT, DISC BRAKE, REAR
04479-48030

ZGE20..18S..CBU;ZGE21,22,25..CBU

PNC 47715F=TYPE A

 1
04479-68060

ZGE20..18S..CBU;ZGE21,22,25..CBU

PNC 47715F=TYPE B

 1
04479-68090

ZGE20..18S..CBU;ZGE21,22,25..CBU

PNC 47715F=TYPE B

 1
04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04946-33050

ZGE20..18S..CBU;ZGE21,22,25..CBU

PNC 47715F=TYPE B

 1
04946-33020

ZGE20..18S..CBU;ZGE21,22,25..CBU

PNC 47715F=TYPE A

 1
04948 - FITTING KIT, DISC BRAKE, REAR
04948-48010

ZGE20..18S..CBU;ZGE21,22,25..CBU

 1
31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
31478-30010

ZGE20..18S..CBU;ZGE21,22,25..CBU

 2
47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE)
47547-20010

ZGE20..18S..CBU;ZGE21,22,25..CBU

 2
47715C - PIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)
47715-32020

ZGE20..18S..CBU;ZGE21,22,25..CBU

 2
47715F - PIN, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)
47715-32030

ZGE20..18S..CBU;ZGE21,22,25..CBU

ﾀｲﾌﾟ A

 2
47715-32040

ZGE20..18S..CBU;ZGE21,22,25..CBU

ﾀｲﾌﾟ B

 2
47721C - MOUNTING, REAR DISC BRAKE CYLINDER, RH
47721-21030

ZGE20..18S..CBU;ZGE21,22,25..CBU

PNC 47715F=TYPE A

 1
47721-21031

ZGE20..18S..CBU;ZGE21,22,25..CBU

PNC 47715F=TYPE B

 1
47722A - MOUNTING, REAR DISC BRAKE CYLINDER, LH
47721-21030

ZGE20..18S..CBU;ZGE21,22,25..CBU

PNC 47715F=TYPE A

 1
47722-21031

ZGE20..18S..CBU;ZGE21,22,25..CBU

PNC 47715F=TYPE B

 1
47730B - CYLINDER ASSY, REAR DISC BRAKE, RH
47730-21040

ZGE20..18S..CBU;ZGE21,22,25..CBU

 1
47731B - PISTON, REAR DISC BRAKE
47731-48020

ZGE20..18S..CBU;ZGE21,22,25..CBU

 2
47750A - CYLINDER ASSY, DISC BRAKE, REAR LH
47750-21040

ZGE20..18S..CBU;ZGE21,22,25..CBU

 1
47810A - BOLT, HEXAGON(FOR REAR CALIPER)
90119-10379

ZGE20..18S..CBU;ZGE21,22,25..CBU

 4
Linked diagrams
4601
