ZGE20G-HPXNP (2009)

Toyota Wish

Production Mar 2009 - Apr 2012
Engine 2ZRFAE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0903- )18S,18X,20G,20Z

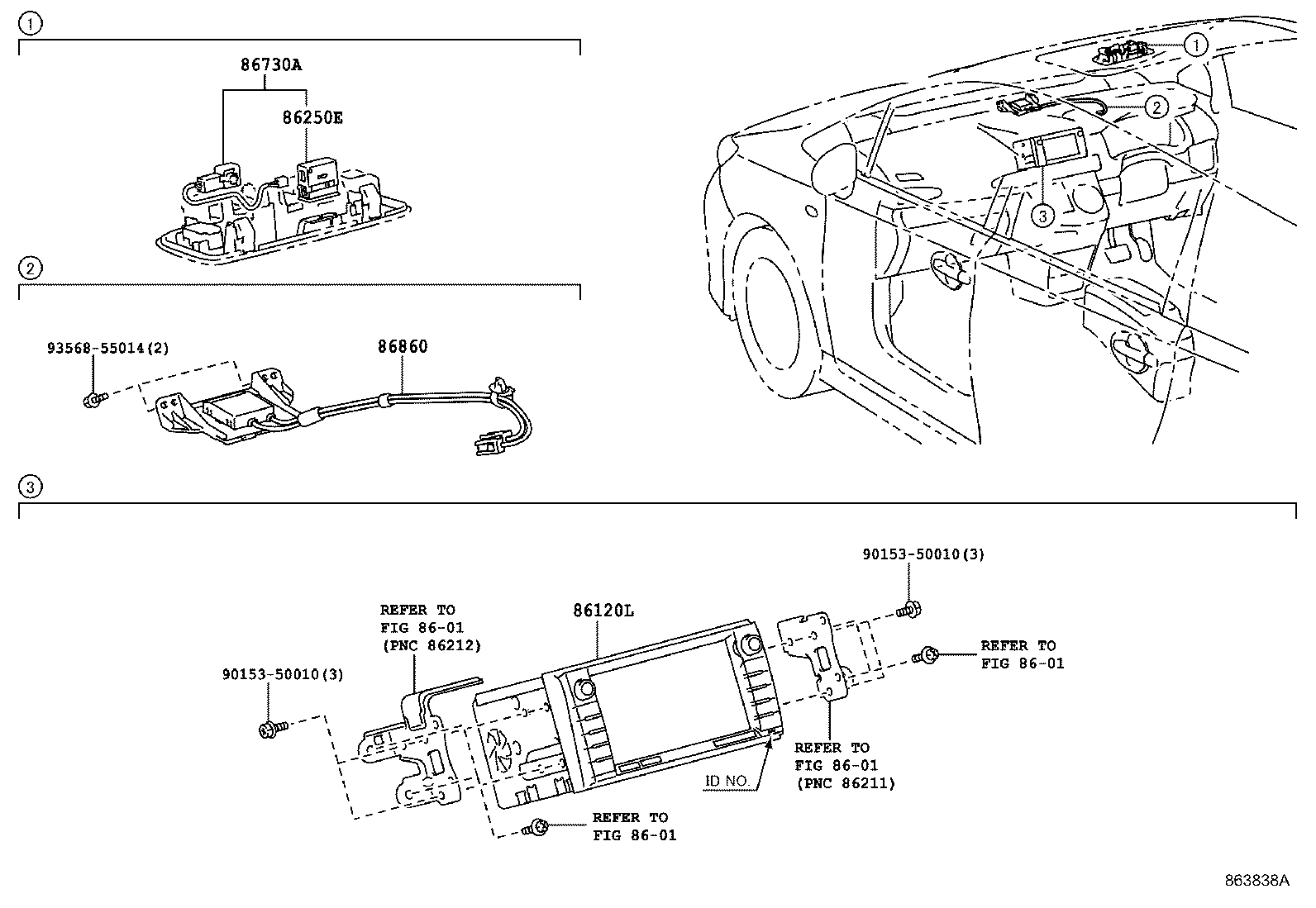

Click highlighted areas on diagram

diagram 8601 8601 8601 8601 86120L 86250E 86730A 86860 9015350010 9015350010 9356855014
Part # Description Qty Price
86120L - RECEIVER ASSY, NAVIGATION
86100-68051

ZGE20,21,25..CBU

PANASONIC,ID=56098,ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰJ

 1
86100-68050

ZGE20,21,25

MATSUSHITA,ID=56098,ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟ[ｶ

 1
86100-68053

ZGE20,21,25..CBU

PANASONIC,ID=56098,ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰJ

 1
86100-68056

ZGE20,21,25..CBU

PANASONIC,ID=56098,ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰJ

 1
86100-68054

ZGE20,21,25..CBU

PANASONIC,ID=56098,ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰJ

 1
86100-68052

ZGE20,21,25..CBU

PANASONIC,ID=56098,ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰJ

 1
86100-68055

ZGE20,21,25..CBU

PANASONIC,ID=56098,ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰJ

 1
86250E - MICROPHONE ASSY, AMPLIFIER
86250-52020

ZGE2#..(18S,18X,20G,20Z)..CBU

ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ

 1
86730A - MICROPHONE ASSY, TELEPHONE
86730-52010

ZGE2#..CBU

ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ

 1
86860 - ANTENNA ASSY, NAVIGATION
86870-68010

ZGE2#..CBU

ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ&ETC−有り(MOP)

 1
86860-68020

ZGE2#..CBU

ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ

 1
Common parts
90153-50010
93568-55014
Linked diagrams
8601
