ZGE20G-HPXNP (2009)
Toyota Wish

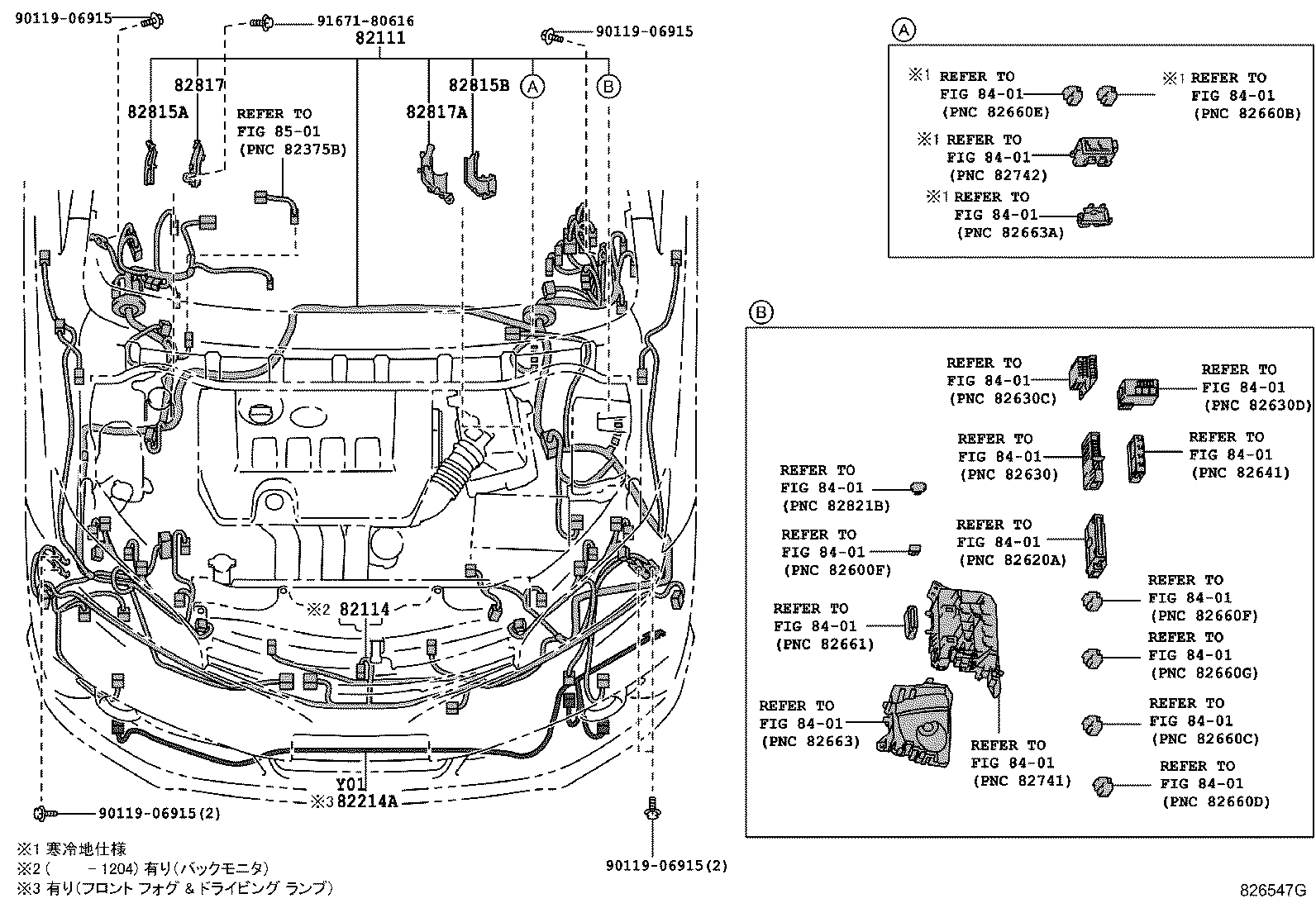

ILLUST NO. 1 OF11(0903- )
ｴﾝｼﾞﾝ ﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-68130 |
ZGE20,25..18X..CBU 寒冷地仕様 |
1 | ||
| 82111-68130 |
ZGE20,25..18X..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82111-68130 |
ZGE20,25..18X..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82111-68120 |
ZGE20,25..18X..CBU |
1 | ||
| 82111-68130 |
ZGE20,25..18X..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82111-68130 |
ZGE20,25..18X..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82111-68130 |
ZGE20,25..18X..CBU 寒冷地仕様&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82111-68130 |
ZGE20,25..18X..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82111-68171 |
ZGE20,25..18X..CBU HID Selection *(A)&寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀ) |
1 | ||
| 82111-68131 |
ZGE20,25..18X..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82111-68171 |
ZGE20,25..18X..CBU HID Selection *(A)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀ) |
1 | ||
| 82111-68131 |
ZGE20,25..18X..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀ) |
1 | ||
| 82111-68131 |
ZGE20,25..18X..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀ) |
1 | ||
| 82111-68161 |
ZGE20,25..18X..CBU HID Selection *(A)&寒冷地仕様 |
1 | ||
| 82111-68190 |
ZGE20,25..18X..CBU 寒冷地仕様 |
1 | ||
| 82111-68121 |
ZGE20,25..18X..CBU |
1 | ||
| 82111-68171 |
ZGE20,25..18X..CBU HID Selection *(A)&寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82111-68151 |
ZGE20,25..18X..CBU HID Selection *(A)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82111-68141 |
ZGE20,25..18X..CBU HID Selection *(A) |
1 | ||
| 82111-68200 |
ZGE20,25..18X..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-68010 |
ZGE2#..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀ) |
1 | ||
| 82214A - WIRE, LAMP | ||||
| 82214-68010 |
ZGE20,25..18X..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-12330 |
ZGE2#..CBU |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-12250 |
ZGE2#..CBU |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-12E91 |
ZGE2#..CBU |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-12D50 |
ZGE2#..CBU |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8501 | ||||
ILLUST NO. 2 OF11(0903- )ZGE20,25
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-68060 |
ZGE20,25..CBU |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-12440 |
ZGE2#..CBU |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-02090 |
ZGE2#..CBU |
1 | ||
| 82124-12160 |
ZGE2#..CBU |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-68020 |
ZGE20,25..CBU |
1 | ||
| 82712A - SUPPORT, WIRING HARNESS | ||||
| 82712-28440 |
ZGE2#..CBU |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-42070 |
ZGE2#..CBU |
1 | ||
| 82815H - COVER, WIRING HARNESS PROTECTOR NO.6 | ||||
| 82815-68050 |
ZGE20,25..CBU |
1 | ||
| 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 | ||||
| 82815-12230 |
ZGE2#..CBU |
1 | ||
| 82815L - COVER, WIRING HARNESS PROTECTOR, NO.9 | ||||
| 82815-12180 |
ZGE2#..CBU |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-12860 |
ZGE2#..CBU |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-42610 |
ZGE2#..CBU |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-68160 |
ZGE20,25..CBU |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-12D30 |
ZGE2#..CBU |
1 | ||
| 82817N - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-20A50 |
ZGE20,25..CBU |
1 | ||
| 82817P - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-68170 |
ZGE20,25..CBU |
1 | ||
| 82817T - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-12B60 |
ZGE2#..CBU |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-30120 |
ZGE2#..CBU |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
ZGE2#..CBU |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-34100 |
ZGE2#..CBU |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91551-80612 | ||||
| 91671-80612 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF11(0903- )
ｲﾝｽﾄﾙﾒﾝﾄ ﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82133 - WIRE, COWL, NO.3 | ||||
| 82133-68120 |
ZGE20..18X..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82133-68120 |
ZGE20..18X..CBU ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82133-68120 |
ZGE20..18X..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82133-68120 |
ZGE20..18X..CBU HID Selection *(A)&寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82133-68120 |
ZGE20..18X..CBU 寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82133-68130 |
ZGE20..18X..CBU ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82133-68120 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&運転席ﾊﾟﾜｰｼｰﾄ&HID Selection*(A)&寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82133-68120 |
ZGE20..18X..CBU HID Selection *(A)&寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82133-68130 |
ZGE20..18X..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82133-68120 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&HID Selection *(A)&寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82133-68120 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&HID Selection *(A)&寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82133-68120 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&運転席ﾊﾟﾜｰｼｰﾄ&HID Selection*(A)&寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82133-68120 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&運転席ﾊﾟﾜｰｼｰﾄ&HID Selection*(A)&ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82133-68120 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&HID Selection *(A)&ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82133-68130 |
ZGE20..18X..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82133-68120 |
ZGE2#..CBU 寒冷地仕様 |
1 | ||
| 82133-68120 |
ZGE2#..CBU ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 82133-68130 |
ZGE20,21,22..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82133-68120 |
ZGE20..18X..CBU HID Selection *(A)&ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82133-68130 |
ZGE20,21,22..CBU ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82133-68120 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82133-68130 |
ZGE20..18X..CBU 寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82133-68120 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82133-68130 |
ZGE20,21,22..CBU 寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82133-68120 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&運転席ﾊﾟﾜｰｼｰﾄ&寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82133-68120 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&運転席ﾊﾟﾜｰｼｰﾄ&寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82133-68130 |
ZGE20,21,22..CBU 寒冷地仕様&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82133-68120 |
ZGE2#..CBU 寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 82133-68120 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&運転席ﾊﾟﾜｰｼｰﾄ&ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82133-68120 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82133-68130 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82133-68120 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82133-68120 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&運転席ﾊﾟﾜｰｼｰﾄ&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82133-68130 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82133-68130 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82133-68130 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82133 - WIRE, COWL, NO.3 | ||||
| 82133-68120 |
ZGE20..18X..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82133-68120 |
ZGE20..18X..CBU ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82133-68120 |
ZGE20..18X..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82133-68120 |
ZGE20..18X..CBU HID Selection *(A)&寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82133-68120 |
ZGE20..18X..CBU 寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82133-68130 |
ZGE20..18X..CBU ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82133-68120 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&運転席ﾊﾟﾜｰｼｰﾄ&HID Selection*(A)&寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82133-68120 |
ZGE20..18X..CBU HID Selection *(A)&寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82133-68130 |
ZGE20..18X..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82133-68120 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&HID Selection *(A)&寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82133-68120 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&HID Selection *(A)&寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82133-68120 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&運転席ﾊﾟﾜｰｼｰﾄ&HID Selection*(A)&寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82133-68120 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&運転席ﾊﾟﾜｰｼｰﾄ&HID Selection*(A)&ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82133-68120 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&HID Selection *(A)&ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82133-68130 |
ZGE20..18X..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82133-68120 |
ZGE2#..CBU 寒冷地仕様 |
1 | ||
| 82133-68120 |
ZGE2#..CBU ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 82133-68130 |
ZGE20,21,22..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82133-68120 |
ZGE20..18X..CBU HID Selection *(A)&ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82133-68130 |
ZGE20,21,22..CBU ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82133-68120 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82133-68130 |
ZGE20..18X..CBU 寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82133-68120 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82133-68130 |
ZGE20,21,22..CBU 寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82133-68120 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&運転席ﾊﾟﾜｰｼｰﾄ&寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82133-68120 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&運転席ﾊﾟﾜｰｼｰﾄ&寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82133-68130 |
ZGE20,21,22..CBU 寒冷地仕様&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82133-68120 |
ZGE2#..CBU 寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 82133-68120 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&運転席ﾊﾟﾜｰｼｰﾄ&ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82133-68120 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82133-68130 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82133-68120 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82133-68120 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&運転席ﾊﾟﾜｰｼｰﾄ&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82133-68130 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82133-68130 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82133-68130 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-68321 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&HID Selection *(A)&寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82141-68230 |
ZGE20..18X..CBU |
1 | ||
| 82141-68260 |
ZGE20,25..18X..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82141-68250 |
ZGE20,25..18X..CBU ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 82141-68250 |
ZGE20,25..18X..CBU 寒冷地仕様&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82141-68260 |
ZGE20,25..18X..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82141-68260 |
ZGE20,25..18X..CBU 寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82141-68260 |
ZGE20,25..18X..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82141-68250 |
ZGE20,25..18X..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82141-68260 |
ZGE20,25..18X..CBU ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82141-68250 |
ZGE20,25..18X..CBU 寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 82141-68260 |
ZGE20,25..18X..CBU ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82141-68260 |
ZGE20,25..18X..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82141-68250 |
ZGE20,25..18X..CBU 寒冷地仕様 |
1 | ||
| 82141-68250 |
ZGE20,25..18X..CBU ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82141-68270 |
ZGE20,25..18X..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀ) |
1 | ||
| 82141-68270 |
ZGE20,25..18X..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀ) |
1 | ||
| 82141-68270 |
ZGE20,25..18X..CBU 寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀ) |
1 | ||
| 82141-68260 |
ZGE20,25..18X..CBU 寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82141-68250 |
ZGE20,25..18X..CBU 寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82141-68270 |
ZGE20,25..18X..CBU ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀ) |
1 | ||
| 82141-68311 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&運転席ﾊﾟﾜｰｼｰﾄ&HID Selection*(A)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82141-68321 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&運転席ﾊﾟﾜｰｼｰﾄ&HID Selection*(A)&寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82141-68321 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&運転席ﾊﾟﾜｰｼｰﾄ&HID Selection*(A)&寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82141-68321 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&HID Selection *(A)&寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82141-68321 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&HID Selection *(A)&ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82141-68311 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&HID Selection *(A)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82141-68261 |
ZGE20..18X..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82141-68251 |
ZGE20,25..18X..CBU ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 82141-68321 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&運転席ﾊﾟﾜｰｼｰﾄ&HID Selection*(A)&ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82141-68261 |
ZGE20,25..18X..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82141-68231 |
ZGE20..18X..CBU |
1 | ||
| 82141-68251 |
ZGE20,25..18X..CBU 寒冷地仕様 |
1 | ||
| 82141-68261 |
ZGE20,25..18X..CBU 寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82141-68251 |
ZGE20,25..18X..CBU 寒冷地仕様&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82141-68261 |
ZGE20,25..18X..CBU 寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82141-68251 |
ZGE20,25..18X..CBU 寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 82141-68251 |
ZGE20,25..18X..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82141-68251 |
ZGE20,25..18X..CBU 寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82141-68261 |
ZGE20,25..18X..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82141-68271 |
ZGE20,25..18X..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀ) |
1 | ||
| 82141-68261 |
ZGE20,25..18X..CBU ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82141-68271 |
ZGE20,25..18X..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀ) |
1 | ||
| 82141-68261 |
ZGE20,25..18X..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82141-68261 |
ZGE20,25..18X..CBU ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82141-68271 |
ZGE20,25..18X..CBU ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀ) |
1 | ||
| 82141-68271 |
ZGE20,25..18X..CBU 寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀ) |
1 | ||
| 82141-68251 |
ZGE20,25..18X..CBU ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82141-68281 |
ZGE20..18X..CBU HID Selection *(A) |
1 | ||
| 82141-68301 |
ZGE20,25..18X..CBU HID Selection *(A)&ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 82141-68321 |
ZGE20,25..18X..CBU HID Selection *(A)&寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82141-68261 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82141-68321 |
ZGE20,25..18X..CBU HID Selection *(A)&寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82141-68321 |
ZGE20,25..18X..CBU HID Selection *(A)&ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82141-68311 |
ZGE20..18X..CBU HID Selection *(A)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82141-68261 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82141-68261 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82141-68261 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82141-68261 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82141-68261 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82141-68261 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&運転席ﾊﾟﾜｰｼｰﾄ&寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82141-68301 |
ZGE20,25..18X..CBU HID Selection *(A)&寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 82141-68261 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&運転席ﾊﾟﾜｰｼｰﾄ&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82141-68261 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82141-68261 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82141-68271 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀ) |
1 | ||
| 82141-68271 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀ) |
1 | ||
| 82141-68301 |
ZGE20,25..18X..CBU HID Selection *(A)&寒冷地仕様 |
1 | ||
| 82141-68271 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀ) |
1 | ||
| 82141-68271 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀ) |
1 | ||
| 82141-68360 |
ZGE20..18X..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82141-68261 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&運転席ﾊﾟﾜｰｼｰﾄ&ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82141-68261 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&運転席ﾊﾟﾜｰｼｰﾄ&寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-68020 |
ZGE2#..CBU |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-12360 |
ZGE2#..CBU |
2 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-12360 |
ZGE2#..CBU |
2 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-12430 |
ZGE2#..CBU |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-58050 |
ZGE2#..CBU |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-12350 |
ZGE2#..CBU |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-12B40 |
ZGE2#..CBU |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-12220 |
ZGE2#..CBU |
1 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-42190 |
ZGE2#..CBU |
1 | ||
| 82824J - CONNECTOR, WIRING HARNESS | ||||
| 82824-42180 |
ZGE2#..CBU |
1 | ||
| 82824K - CONNECTOR, WIRING HARNESS | ||||
| 82824-47210 |
ZGE2#..CBU |
1 | ||
| 82824M - CONNECTOR, WIRING HARNESS | ||||
| 82824-30220 |
ZGE2#..CBU |
1 | ||
| 82824N - CONNECTOR, WIRING HARNESS | ||||
| 82824-12210 |
ZGE2#..CBU |
1 | ||
| 82824P - CONNECTOR, WIRING HARNESS | ||||
| 82824-48110 |
ZGE20,25..CBU ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀ) |
1 | ||
| 82824-48110 |
ZGE20,25..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀ) |
1 | ||
| 82824-48110 |
ZGE20,25..CBU 寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀ) |
1 | ||
| 82824-48110 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀ) |
1 | ||
| 82824-48110 |
ZGE20,25..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀ) |
1 | ||
| 82824-48110 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&ﾑｰﾝﾙｰﾌ−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀ) |
1 | ||
| 82824-48110 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀ) |
1 | ||
| 82824-48110 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−ﾌﾚﾝﾄﾞﾏﾁｯｸ車&寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀ) |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90159-50384 | ||||
| 90159-60613 | ||||
| Linked diagrams | ||||
| 8401 | ||||

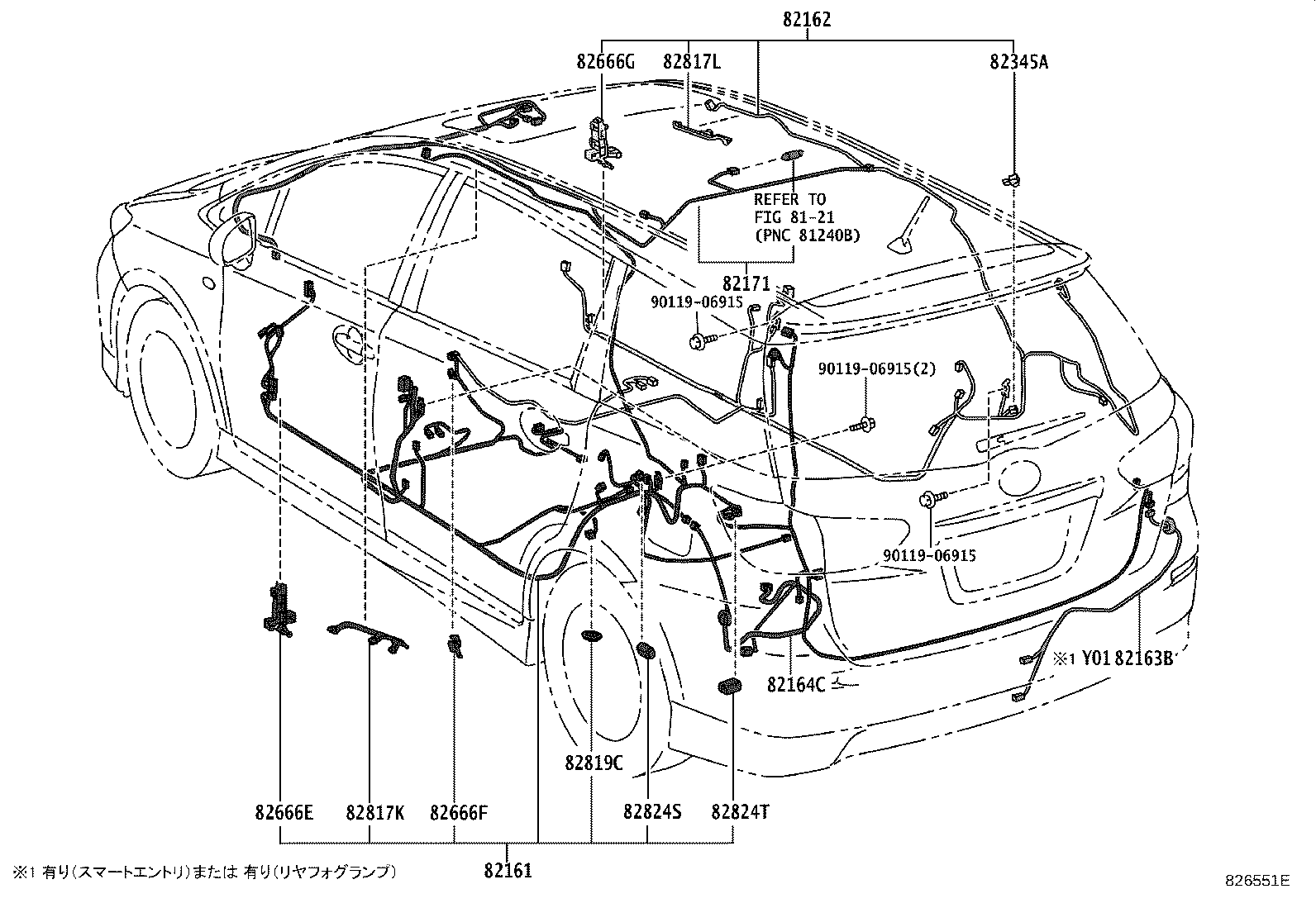

ILLUST NO. 4 OF11(0903- )
ﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-68100 |
ZGE20,25..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82151-68090 |
ZGE20,25..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82151-68110 |
ZGE20,25..CBU 寒冷地仕様 |
1 | ||
| 82151-68080 |
ZGE20,25..CBU |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-68090 |
ZGE20,25..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82152-68070 |
ZGE20,25..CBU |
1 | ||
| 82152-68100 |
ZGE20,25..CBU 寒冷地仕様 |
1 | ||
| 82152-68080 |
ZGE20,25..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-68070 |
ZGE20,25..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82153-68050 |
ZGE20,25..CBU |
1 | ||
| 82153-68070 |
ZGE2#..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82153-68060 |
ZGE20,25..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-68050 |
ZGE20,25..CBU |
1 | ||
| 82154-68060 |
ZGE20,25..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82154-68070 |
ZGE2#..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82154-68070 |
ZGE20,25..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-68040 |
ZGE20,25..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82184-68050 |
ZGE20,25..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82184-68050 |
ZGE20,25..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82184-68030 |
ZGE20,25..CBU |
1 | ||
| 82184-68031 |
ZGE20,25..CBU |
1 | ||
| 82184-68050 |
ZGE20,25..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-68020 |
ZGE20,25..CBU |
1 | ||
| 82185-68031 |
ZGE20,25..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82185-68021 |
ZGE20,25..CBU |
1 | ||
| 82185-68030 |
ZGE20,25..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82185-68040 |
ZGE2#..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82185-68040 |
ZGE20,25..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-68020 |
ZGE2#..CBU |
1 | ||
| 82186-68020 |
ZGE20,25..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82186-68020 |
ZGE2#..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82186-68020 |
ZGE20,25..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82186-68020 |
ZGE2#..CBU |
1 | ||
ILLUST NO. 5 OF11(0903- )
ﾌﾛｱ & ﾙｰﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-68240 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&手動車いす用収納装置&HID Selection *(A)&寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82161-68240 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&HID Selection *(A)&寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82161-68240 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&HID Selection *(A)&寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82161-68240 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&手動車いす用収納装置&HID Selection *(A)&寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82161-68210 |
ZGE20..18X..CBU HID Selection *(A)&寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82161-68240 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&HID Selection *(A)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82161-68240 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&手動車いす用収納装置&HID Selection *(A)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82161-68240 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&HID Selection *(A)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82161-68210 |
ZGE20..18X..CBU HID Selection *(A)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82161-68200 |
ZGE20..CBU 寒冷地仕様 |
1 | ||
| 82161-68180 |
ZGE20..18X..CBU |
1 | ||
| 82161-68200 |
ZGE20..18X..CBU HID Selection *(A)&寒冷地仕様&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82161-68200 |
ZGE20..CBU 寒冷地仕様&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82161-68200 |
ZGE20..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82161-68210 |
ZGE20..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82161-68240 |
ZGE20..CBU ｳｪﾙｷｬﾌﾞ−助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&手動車いす用収納装置&寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82161-68240 |
ZGE20..CBU ｳｪﾙｷｬﾌﾞ−助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82161-68240 |
ZGE20..18X..CBU ｳｪﾙｷｬﾌﾞ−助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&手動車いす用収納装置&HID Selection *(A)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82161-68240 |
ZGE20..CBU ｳｪﾙｷｬﾌﾞ−助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82161-68210 |
ZGE20..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82161-68200 |
ZGE20..18X..CBU HID Selection *(A)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82161-68210 |
ZGE20..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82161-68200 |
ZGE20..18X..CBU HID Selection *(A)&寒冷地仕様 |
1 | ||
| 82161-68210 |
ZGE20..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82161-68240 |
ZGE20..CBU ｳｪﾙｷｬﾌﾞ−助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82161-68240 |
ZGE20..CBU ｳｪﾙｷｬﾌﾞ−助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&手動車いす用収納装置&寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82161-68210 |
ZGE20..18X..CBU HID Selection *(A)&寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82161-68210 |
ZGE20..18X..CBU HID Selection *(A)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82161-68191 |
ZGE20..18X..CBU HID Selection *(A) |
1 | ||
| 82161-68240 |
ZGE20..CBU ｳｪﾙｷｬﾌﾞ−助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82161-68240 |
ZGE20..CBU ｳｪﾙｷｬﾌﾞ−助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&手動車いす用収納装置&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82161-68181 |
ZGE20..18X..CBU |
1 | ||
| 82161-68240 |
ZGE20..CBU ｳｪﾙｷｬﾌﾞ−助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ&手動車いす用収納装置&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-68110 |
ZGE20..18X..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82162-68110 |
ZGE20..18X..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82162-68091 |
ZGE20..CBU |
1 | ||
| 82162-68090 |
ZGE20..18X..CBU |
1 | ||
| 82162-68110 |
ZGE20..18X..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82162-68101 |
ZGE20..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82162-68111 |
ZGE20..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82162-68111 |
ZGE20,21,22..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82163B - WIRE, FLOOR NO.5 | ||||
| 82165-68020 |
ZGE20,25..CBU ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 82165-68010 |
ZGE20,25..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 82165-68030 |
ZGE20,25..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 82164C - WIRE, FLOOR, NO.4 | ||||
| 82164-68050 |
ZGE20..18X..CBU HID Selection *(A)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀ) |
1 | ||
| 82164-68050 |
ZGE20,21..(18S,20G)..CBU |
1 | ||
| 82164-68050 |
ZGE20..18X..CBU ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&ﾌﾞﾗｲﾝﾄﾞｺｰﾅｰﾓﾆﾀ) |
1 | ||
| 82164-68050 |
ZGE20..18X..CBU HID Selection *(A) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-68120 |
ZGE2#..CBU ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82171-68090 |
ZGE2#..CBU |
1 | ||
| 82171-68110 |
ZGE2#..CBU ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 82171-68100 |
ZGE2#..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ+*BGM+10ｽﾋﾟｰｶ |
1 | ||
| 82345A - DIODE | ||||
| 82345-12050 |
ZGE2#..CBU |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-12400 |
ZGE2#..CBU |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-68030 |
ZGE2#..CBU |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-12370 |
ZGE2#..CBU |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-68120 |
ZGE2#..CBU |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-68130 |
ZGE2#..CBU |
1 | ||
| 82819C - GROMMET, WIRING HARNESS | ||||
| 82819-32200 |
ZGE2#..CBU |
1 | ||
| 82824S - CONNECTOR, WIRING HARNESS | ||||
| 82824-30180 |
ZGE2#..CBU |
1 | ||
| 82824T - CONNECTOR, WIRING HARNESS | ||||
| 82824-12210 |
ZGE2#..CBU |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 8121 | ||||

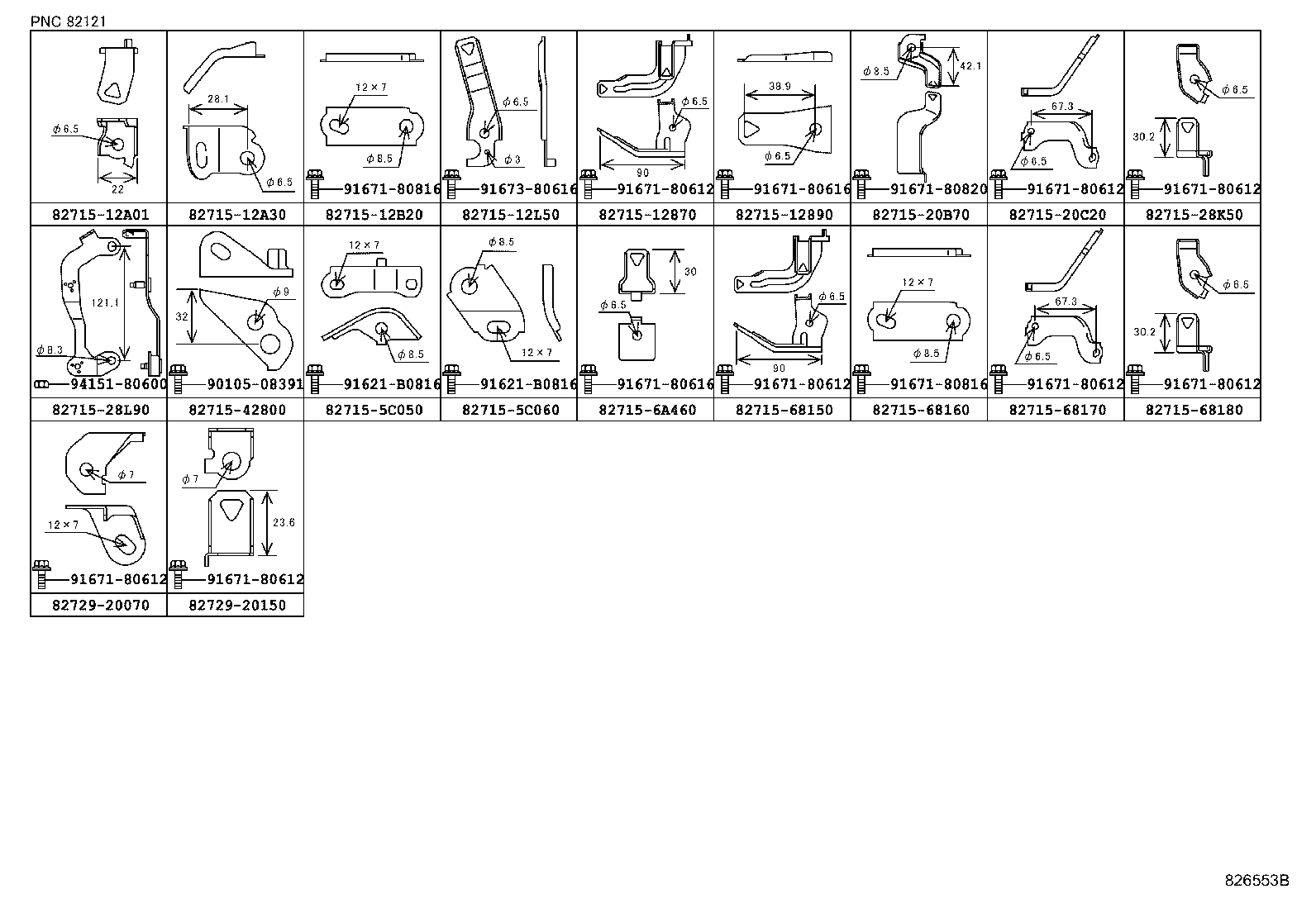

ILLUST NO. 7 OF11(0903- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-12870 | ||||
| 82715-12890 | ||||
| 82715-12A01 | ||||
| 82715-12A30 | ||||
| 82715-12B20 | ||||
| 82715-12L50 | ||||
| 82715-20B70 | ||||
| 82715-20C20 | ||||
| 82715-28K50 | ||||
| 82715-28L90 | ||||
| 82715-42800 | ||||
| 82715-5C050 | ||||
| 82715-5C060 | ||||
| 82715-68150 | ||||
| 82715-68160 | ||||
| 82715-68170 | ||||
| 82715-68180 | ||||
| 82715-6A460 | ||||
| 82729-20070 | ||||
| 82729-20150 | ||||
| 90105-08391 | ||||
| 91621-B0816 | ||||
| 91671-80612 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
| 91671-80820 | ||||
| 91673-80616 | ||||
| 94151-80600 | ||||

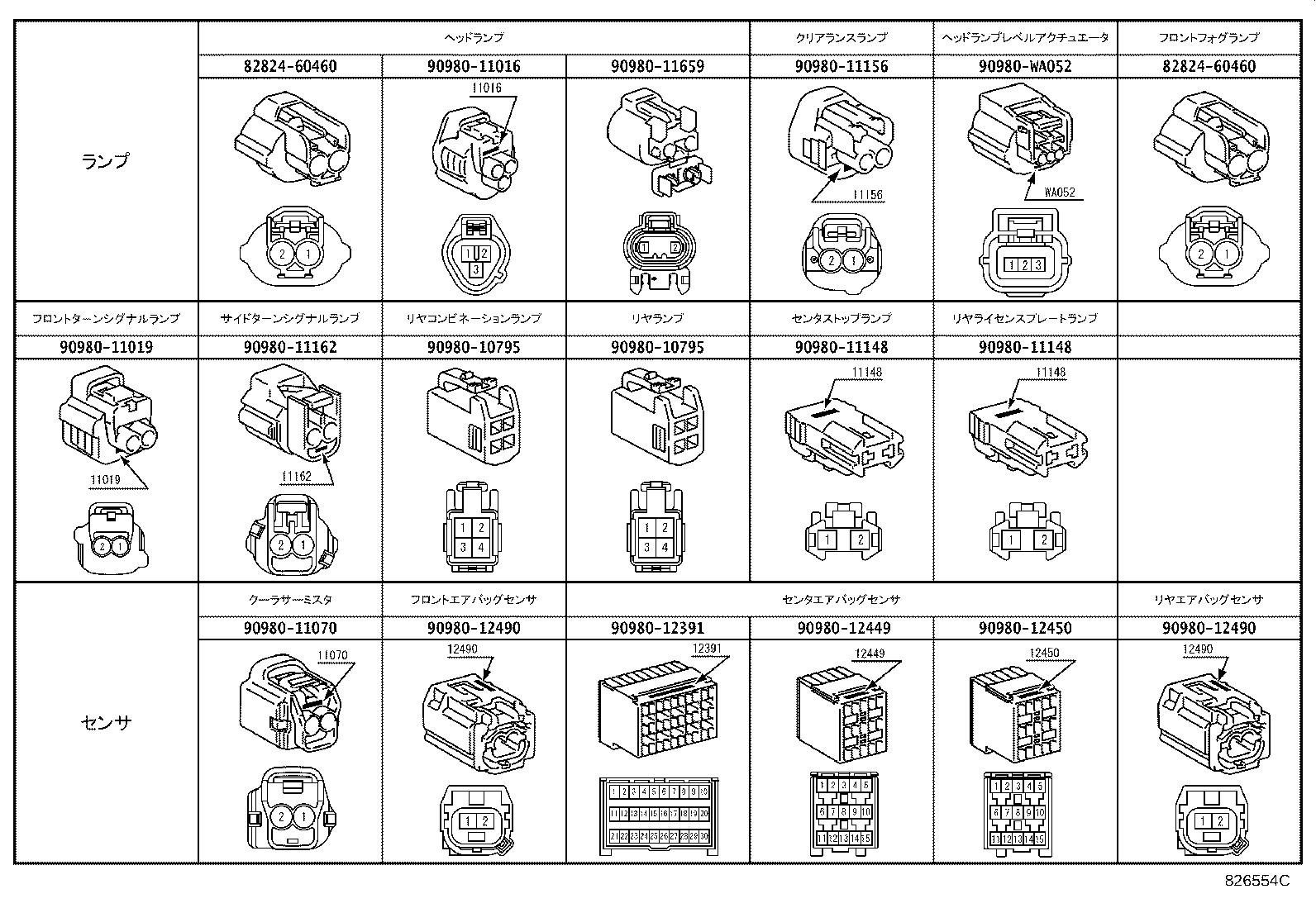

ILLUST NO. 9 OF11(0903- )
ｺﾈｸﾀ 1/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90980-10795 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11070 | ||||
| 90980-11148 | ||||
| 90980-11156 | ||||
| 90980-11162 | ||||
| 90980-11659 | ||||
| 90980-12391 | ||||
| 90980-12449 | ||||
| 90980-12450 | ||||
| 90980-12490 | ||||
| 90980-WA052 | ||||

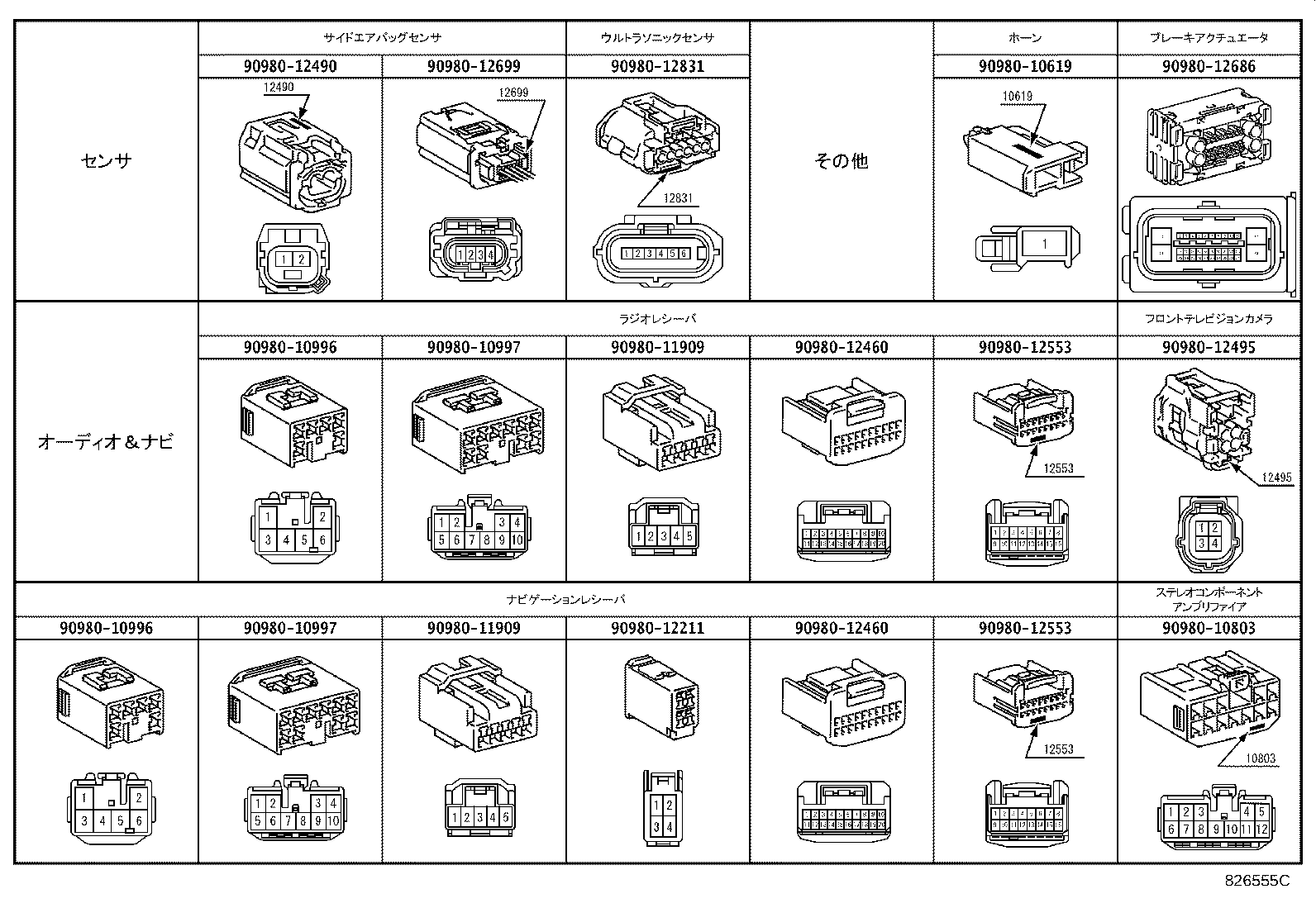

ILLUST NO.10 OF11(0903- )
ｺﾈｸﾀ 2/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-10803 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-11909 | ||||
| 90980-12211 | ||||
| 90980-12460 | ||||
| 90980-12490 | ||||
| 90980-12495 | ||||
| 90980-12553 | ||||
| 90980-12686 | ||||
| 90980-12699 | ||||
| 90980-12831 | ||||

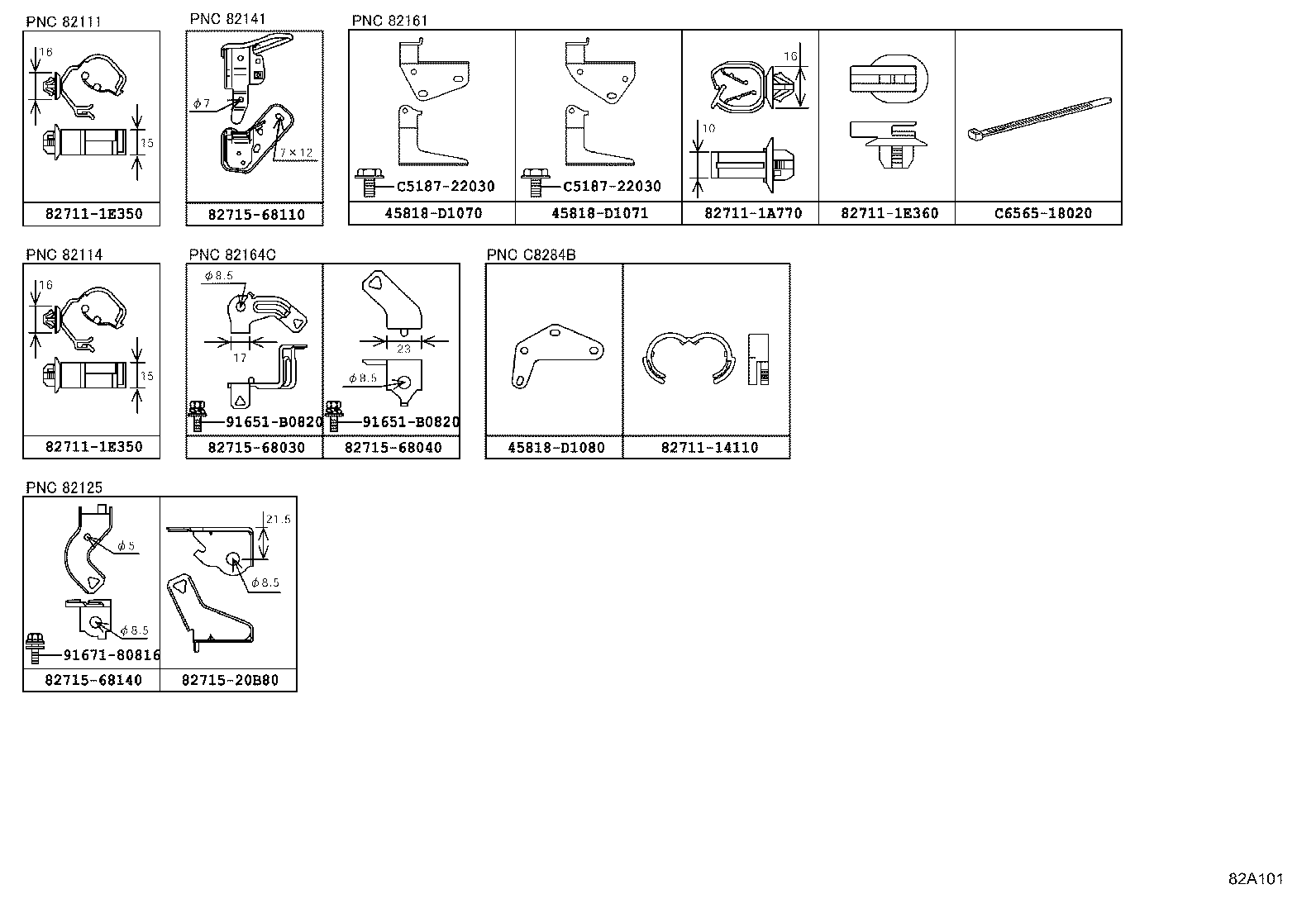

ILLUST NO. 8 OF11(0903- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 45818-D1070 | ||||
| 45818-D1071 | ||||
| 45818-D1080 | ||||
| 82711-14110 | ||||
| 82711-1A770 | ||||
| 82711-1E350 | ||||
| 82711-1E360 | ||||
| 82715-20B80 | ||||
| 82715-68030 | ||||
| 82715-68040 | ||||
| 82715-68110 | ||||
| 82715-68140 | ||||
| 91651-B0820 | ||||
| 91671-80816 | ||||
| C5187-22030 | ||||
| C6565-18020 | ||||

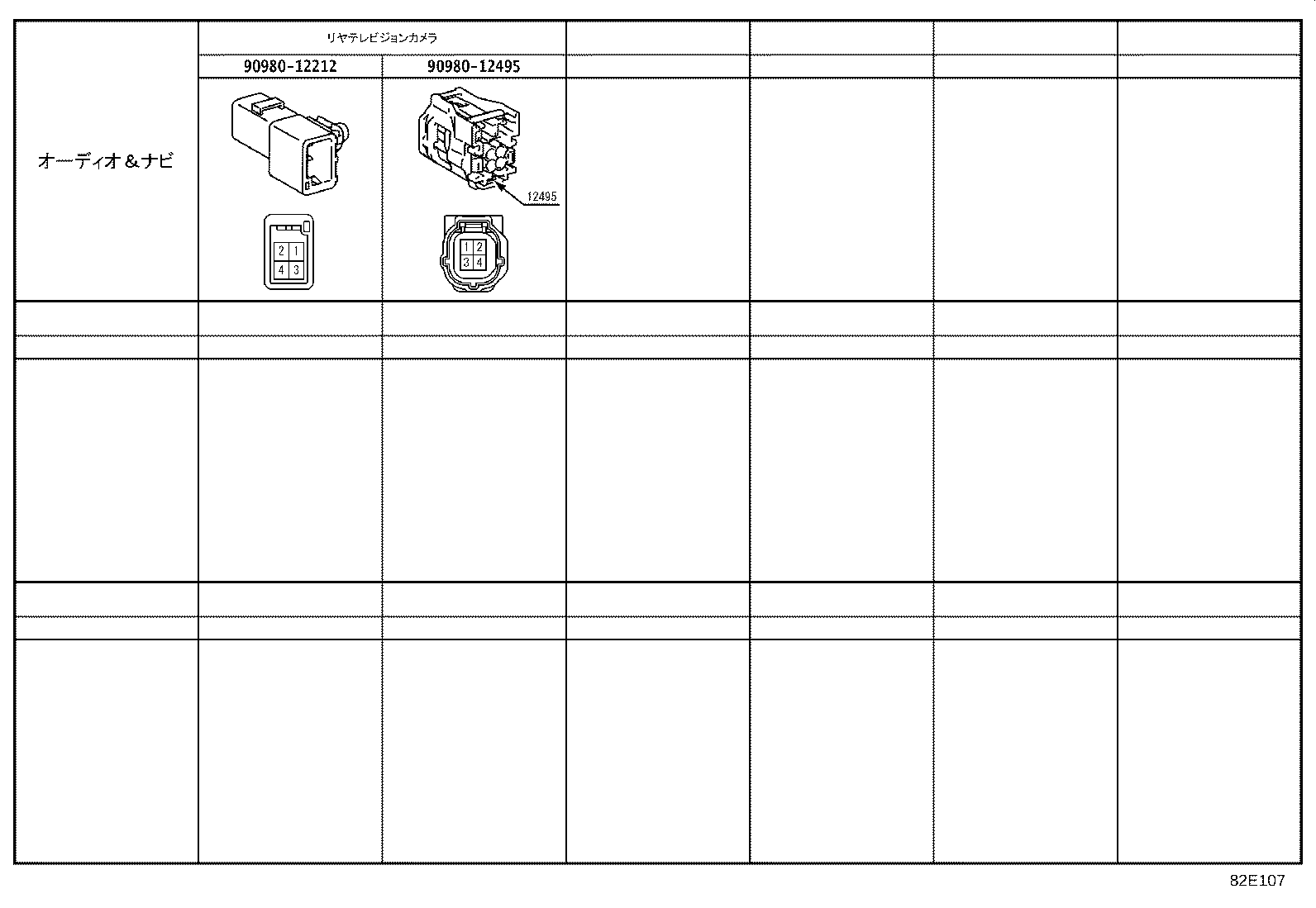

ILLUST NO.11 OF11(0903- )
ｺﾈｸﾀ 3/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-12212 | ||||
| 90980-12495 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
