ZGE20G-HPXNP (2009)
Toyota Wish

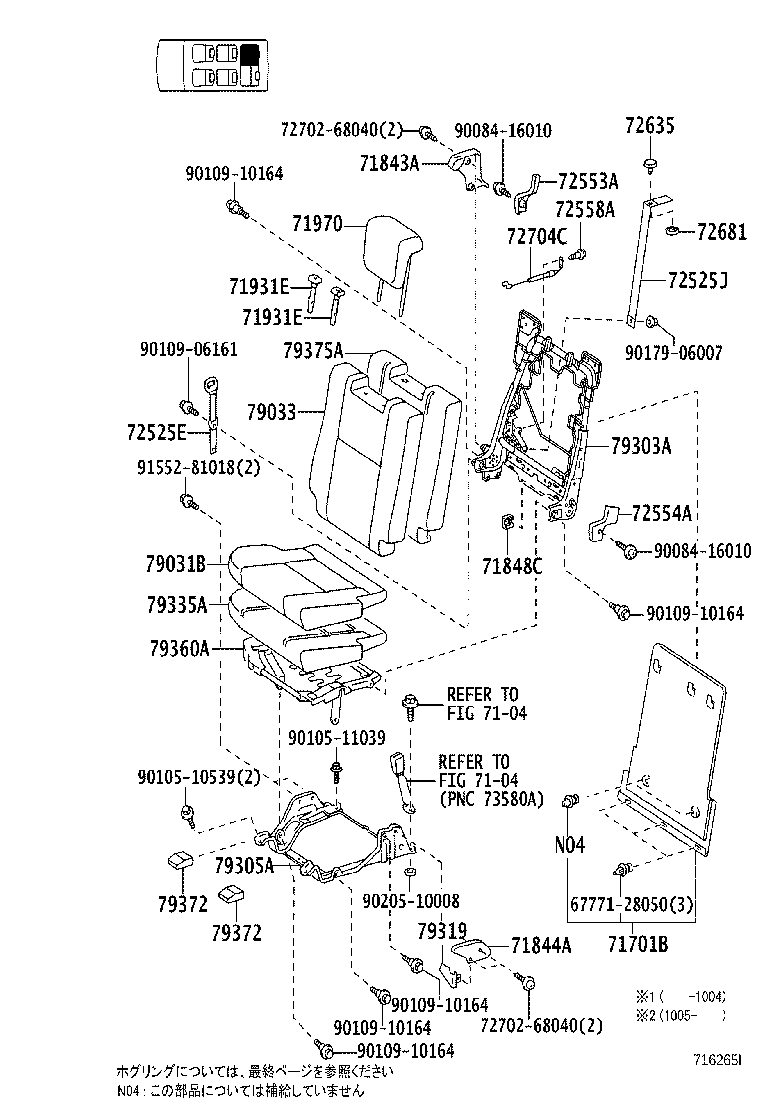

ILLUST NO. 3 OF 4(0903- )
ﾘﾔNO.2ｼｰﾄ(RH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71701B - BOARD SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71701-68010E0 |
ZGE20,21,25..CBU GREGE,TRIM4# |
1 | ||
| 71701-68010B0 |
ZGE20,22,25..CBU DARK GRAY,TRIM1# |
1 | ||
| 71843A - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71843-68010C0 |
ZGE20,22,25..CBU BLACK,TRIM1# |
1 | ||
| 71843-68030E0 |
ZGE20,21,25..CBU GREGE,TRIM4# |
1 | ||
| 71843-68030C0 |
ZGE20,22,25..CBU BLACK,TRIM1# |
1 | ||
| 71843-68010E0 |
ZGE20,21,25..CBU GREGE,TRIM4# |
1 | ||
| 71844A - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71844-68010C0 |
ZGE20,22,25..CBU BLACK,TRIM1# |
1 | ||
| 71844-68010E0 |
ZGE20,21,25..CBU GREGE,TRIM4# |
1 | ||
| 71848C - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-68020 |
ZGE2#..CBU |
1 | ||
| 71931E - SUPPORT ASSY, REAR NO.3 SEAT HEADREST | ||||
| 71930-52030E0 |
ZGE20,21,25..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
2 | ||
| 71930-52030B0 |
ZGE20,22,25..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
ZGE20,22,25..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020E1 |
ZGE20,21,25..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GREGE,TRIM4# |
2 | ||
| 71931E - SUPPORT ASSY, REAR NO.3 SEAT HEADREST | ||||
| 71930-52030E0 |
ZGE20,21,25..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
2 | ||
| 71930-52030B0 |
ZGE20,22,25..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
ZGE20,22,25..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020E1 |
ZGE20,21,25..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GREGE,TRIM4# |
2 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71970-68010B0 |
ZGE20,22,25..CBU DARK GRAY,TRIM1# |
2 | ||
| 71970-68010E0 |
ZGE20,25..CBU GREGE,TRIM4# |
2 | ||
| 72525E - HANDLE, RECLINING ADJUSTER RELEASE, NO.3 RH | ||||
| 72525-68010E0 |
ZGE20,21,25..CBU GREGE,TRIM4# |
1 | ||
| 72525-68010C0 |
ZGE20,22,25..CBU BLACK,TRIM1# |
1 | ||
| 72525J - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-68060C0 |
ZGE20,22,25..CBU BLACK,TRIM1# |
1 | ||
| 72525-68060E0 |
ZGE20,21,25..CBU GREGE,TRIM4# |
1 | ||
| 72553A - PROTECTOR, RECLINING COVER, RH | ||||
| 72553-68010C0 |
ZGE20,22,25..CBU BLACK,TRIM1# |
1 | ||
| 72553-68010E0 |
ZGE20,21,25..CBU GREGE,TRIM4# |
1 | ||
| 72554A - PROTECTOR, RECLINING COVER, LH | ||||
| 72554-68020E0 |
ZGE20,21,25..CBU GREGE,TRIM4# |
1 | ||
| 72554-68020C0 |
ZGE20,22,25..CBU BLACK,TRIM1# |
1 | ||
| 72558A - STOPPER, RECLINING | ||||
| 72558-44010 |
ZGE2#..CBU |
1 | ||
| 72635 - HOOK, REAR SEAT BACK LOCK | ||||
| 72635-13010B0 |
ZGE20,22,25..CBU DK.GRAY,TRIM1# |
1 | ||
| 72635-13010E2 |
ZGE20,21,25..CBU GREGE,TRIM4# |
1 | ||
| 72681 - HOOK, REAR SEAT BACK LOCK, LOWER | ||||
| 72635-13020E2 |
ZGE20,21,25..CBU GREGE,TRIM4# |
1 | ||
| 72635-13020B0 |
ZGE20,22,25..CBU DK.GRAY,TRIM1# |
1 | ||
| 72704C - CABLE, REAR NO.2 SEAT RECLINING CONTROL | ||||
| 72704-68050 |
ZGE2#..CBU |
1 | ||
| 79031B - COVER SUB-ASSY, NO.3 SEAT CUSHION, RH | ||||
| 79031-68080B0 |
ZGE20,22,25..CBU DARK GRAY,TRIM1# |
1 | ||
| 79031-68080E1 |
ZGE20,25..CBU GREGE,TRIM4# |
1 | ||
| 79031-68080E0 |
ZGE20,25..CBU GREGE,TRIM4# |
1 | ||
| 79031-68080B1 |
ZGE20,22,25..CBU DARK GRAY,TRIM1# |
1 | ||
| 79033 - COVER SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79033-68080B1 |
ZGE20,22,25..CBU DARK GRAY,TRIM1# |
1 | ||
| 79033-68080E1 |
ZGE20,25..CBU GREGE,TRIM4# |
1 | ||
| 79033-68080B0 |
ZGE20,22,25..CBU DARK GRAY,TRIM1# |
1 | ||
| 79033-68080E0 |
ZGE20,25..CBU GREGE,TRIM4# |
1 | ||
| 79303A - FRAME SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79303-68030 |
ZGE2#..CBU |
1 | ||
| 79305A - LEG SUB-ASSY, NO.3 SEAT, RH | ||||
| 79305-68020 |
ZGE2#..CBU |
1 | ||
| 79319 - BRACKET, NO.3 SEAT LEG, RR RH | ||||
| 79319-68010 |
ZGE2#..CBU |
1 | ||
| 79335A - PAD, NO.3 SEAT CUSHION, RH | ||||
| 79335-68020 |
ZGE2#..CBU |
1 | ||
| 79360A - SPRING ASSY, NO.3 SEAT CUSHION, RH | ||||
| 79360-68020 |
ZGE2#..CBU |
1 | ||
| 79372 - COVER, NO.3 SEAT FRONT BRACKET, RH | ||||
| 79372-68020B0 |
ZGE20,25..CBU DK.GRAY,TRIM1#,4# |
2 | ||
| 79372 - COVER, NO.3 SEAT FRONT BRACKET, RH | ||||
| 79372-68020B0 |
ZGE20,25..CBU DK.GRAY,TRIM1#,4# |
2 | ||
| 79375A - PAD, NO.3 SEAT BACK, RH | ||||
| 79375-68020 |
ZGE2#..CBU |
1 | ||
| Common parts | ||||
| 67771-28050 | ||||
| 72702-68040 | ||||
| 90084-16010 | ||||
| 90105-10539 | ||||
| 90105-11039 | ||||
| 90109-06161 | ||||
| 90109-10164 | ||||
| 90179-06007 | ||||
| 90205-10008 | ||||
| 91552-81018 | ||||
| Linked diagrams | ||||
| 7104 | ||||

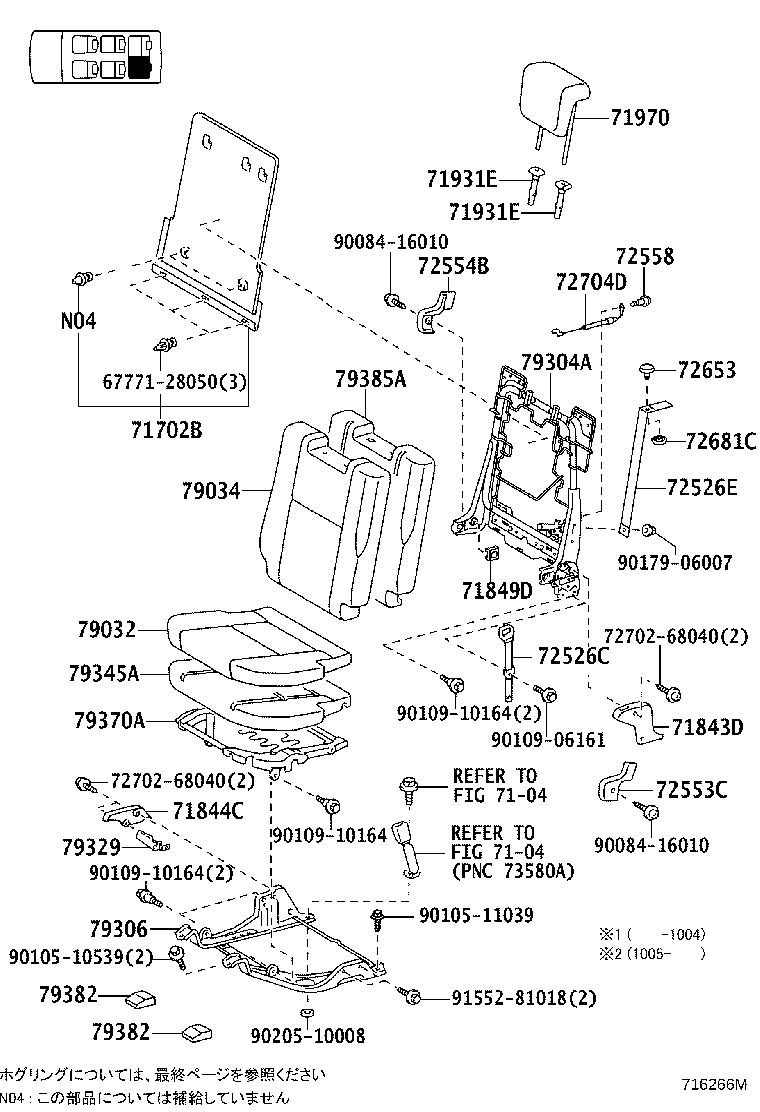

ILLUST NO. 4 OF 4(0903- )
ﾘﾔNO.2ｼｰﾄ(LH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71702B - BOARD SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71702-68010B0 |
ZGE20,22,25..CBU DARK GRAY,TRIM1# |
1 | ||
| 71702-68010E0 |
ZGE20,21,25..CBU GREGE,TRIM4# |
1 | ||
| 71843D - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71843-68040E0 |
ZGE20,21,25..CBU GREGE,TRIM4# |
1 | ||
| 71843-68040C0 |
ZGE20,22,25..CBU BLACK,TRIM1# |
1 | ||
| 71843-68020E0 |
ZGE20,21,25..CBU GREGE,TRIM4# |
1 | ||
| 71843-68020C0 |
ZGE20,22,25..CBU BLACK,TRIM1# |
1 | ||
| 71844C - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71844-68020C0 |
ZGE20,22,25..CBU BLACK,TRIM1# |
1 | ||
| 71844-68020E0 |
ZGE20,21,25..CBU GREGE,TRIM4# |
1 | ||
| 71849D - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-68020 |
ZGE2#..CBU |
1 | ||
| 71931E - SUPPORT ASSY, REAR NO.3 SEAT HEADREST | ||||
| 71930-52030E0 |
ZGE20,21,25..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
2 | ||
| 71930-52030B0 |
ZGE20,22,25..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
ZGE20,22,25..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020E1 |
ZGE20,21,25..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GREGE,TRIM4# |
2 | ||
| 71931E - SUPPORT ASSY, REAR NO.3 SEAT HEADREST | ||||
| 71930-52030E0 |
ZGE20,21,25..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
2 | ||
| 71930-52030B0 |
ZGE20,22,25..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
ZGE20,22,25..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020E1 |
ZGE20,21,25..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GREGE,TRIM4# |
2 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71970-68010B0 |
ZGE20,22,25..CBU DARK GRAY,TRIM1# |
2 | ||
| 71970-68010E0 |
ZGE20,25..CBU GREGE,TRIM4# |
2 | ||
| 72526C - HANDLE, RECLINING ADJUSTER RELEASE, NO.2 LH | ||||
| 72525-68010E0 |
ZGE20,21,25..CBU GREGE,TRIM4# |
1 | ||
| 72525-68010C0 |
ZGE20,22,25..CBU BLACK,TRIM1# |
1 | ||
| 72526E - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72525-68060E0 |
ZGE20,21,25..CBU GREGE,TRIM4# |
1 | ||
| 72525-68060C0 |
ZGE20,22,25..CBU BLACK,TRIM1# |
1 | ||
| 72553C - PROTECTOR, RECLINING COVER, RH | ||||
| 72553-68020E0 |
ZGE20,21,25..CBU GREGE,TRIM4# |
1 | ||
| 72553-68020C0 |
ZGE20,22,25..CBU BLACK,TRIM1# |
1 | ||
| 72554B - PROTECTOR, RECLINING COVER, LH | ||||
| 72554-68030C0 |
ZGE20,22,25..CBU BLACK,TRIM1# |
1 | ||
| 72554-68030E0 |
ZGE20,21,25..CBU GREGE,TRIM4# |
1 | ||
| 72558 - STOPPER, RECLINING | ||||
| 72558-44010 |
ZGE2#..CBU |
1 | ||
| 72653 - HOOK, REAR SEAT BACK REAR LOCK | ||||
| 72635-13010B0 |
ZGE20,22,25..CBU DK.GRAY,TRIM1# |
1 | ||
| 72635-13010E2 |
ZGE20,21,25..CBU GREGE,TRIM4# |
1 | ||
| 72681C - HOOK, REAR SEAT BACK LOCK, LOWER | ||||
| 72635-13020E2 |
ZGE20,21,25..CBU GREGE,TRIM4# |
1 | ||
| 72635-13020B0 |
ZGE20,22,25..CBU DK.GRAY,TRIM1# |
1 | ||
| 72704D - CABLE, REAR NO.2 SEAT RECLINING CONTROL | ||||
| 72704-68050 |
ZGE2#..CBU |
1 | ||
| 79032 - COVER SUB-ASSY, NO.3 SEAT CUSHION, LH | ||||
| 79032-68080B0 |
ZGE20,22,25..CBU DARK GRAY,TRIM1# |
1 | ||
| 79032-68080E1 |
ZGE20,25..CBU GREGE,TRIM4# |
1 | ||
| 79032-68080B1 |
ZGE20,22,25..CBU DARK GRAY,TRIM1# |
1 | ||
| 79032-68080E0 |
ZGE20,25..CBU GREGE,TRIM4# |
1 | ||
| 79034 - COVER SUB-ASSY, NO.3 SEAT BACK, LH | ||||
| 79034-68080B1 |
ZGE20,22,25..CBU DARK GRAY,TRIM1# |
1 | ||
| 79034-68080E1 |
ZGE20,25..CBU GREGE,TRIM4# |
1 | ||
| 79034-68080E0 |
ZGE20,25..CBU GREGE,TRIM4# |
1 | ||
| 79034-68080B0 |
ZGE20,22,25..CBU DARK GRAY,TRIM1# |
1 | ||
| 79304A - FRAME SUB-ASSY, NO.3 SEAT BACK, LH | ||||
| 79304-68030 |
ZGE2#..CBU |
1 | ||
| 79306 - LEG SUB ASSY, NO.3 SEAT, LH | ||||
| 79306-68020 |
ZGE2#..CBU |
1 | ||
| 79329 - BRACKET, NO.3 SEAT LEG, RR LH | ||||
| 79329-68010 |
ZGE2#..CBU |
1 | ||
| 79345A - PAD, NO.3 SEAT CUSHION, LH | ||||
| 79345-68020 |
ZGE2#..CBU |
1 | ||
| 79370A - SPRING ASSY, NO.3 SEAT CUSHION, LH | ||||
| 79370-68020 |
ZGE2#..CBU |
1 | ||
| 79382 - COVER, NO.3 SEAT FRONT BRACKET, LH | ||||
| 79372-68020B0 |
ZGE20,25..CBU DK.GRAY,TRIM1#,4# |
2 | ||
| 79382 - COVER, NO.3 SEAT FRONT BRACKET, LH | ||||
| 79372-68020B0 |
ZGE20,25..CBU DK.GRAY,TRIM1#,4# |
2 | ||
| 79385A - PAD, NO.3 SEAT BACK, LH | ||||
| 79385-68020 |
ZGE2#..CBU |
1 | ||
| Common parts | ||||
| 67771-28050 | ||||
| 72702-68040 | ||||
| 90084-16010 | ||||
| 90105-10539 | ||||
| 90105-11039 | ||||
| 90109-06161 | ||||
| 90109-10164 | ||||
| 90179-06007 | ||||
| 90205-10008 | ||||
| 91552-81018 | ||||
| Linked diagrams | ||||
| 7104 | ||||

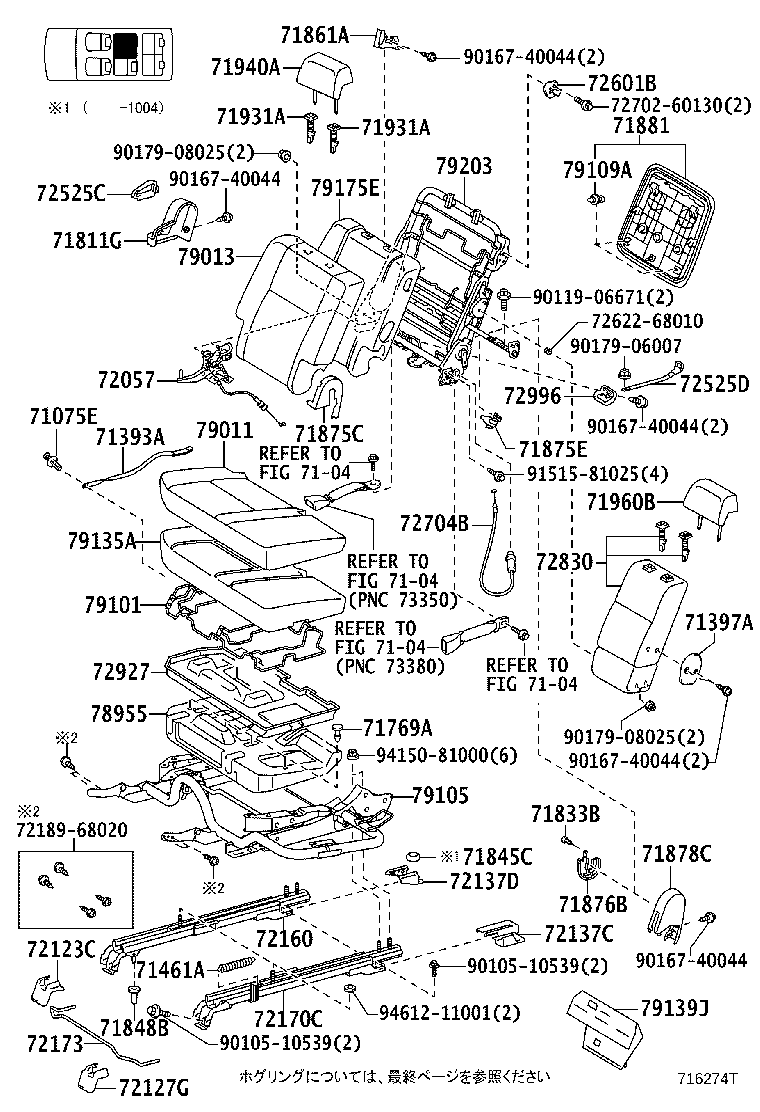

ILLUST NO. 1 OF 4(0903- )ZGE20,21,25
ﾘﾔNO.1ｼｰﾄ(RH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 90467-06151C0 |
ZGE2#..CBU BLACK |
2 | ||
| 90467-06153 |
ZGE2#..CBU |
2 | ||
| 71393A - BAND, REAR SEAT CUSHION, RH | ||||
| 71393-68020E0 |
ZGE20,21,25..CBU GREGE,TRIM4# |
1 | ||
| 71393-68020C0 |
ZGE20,22,25..CBU BLACK,TRIM1# |
1 | ||
| 71397A - COVER, CENTER SEAT HINGE | ||||
| 71397-68010C0 |
ZGE20,25..CBU BLACK,TRIM1# |
1 | ||
| 71397-68010E0 |
ZGE20,21,25..CBU GREGE,TRIM4# |
1 | ||
| 71461A - SPRING, REAR SEAT CUSHION, NO.1 | ||||
| 71461-68011 |
ZGE2#..CBU |
1 | ||
| 71769A - CLIP, REAR SEAT BACK BOARD | ||||
| 71769-60010E3 |
ZGE20,21,25..CBU GREGE,TRIM4# |
5 | ||
| 71769-60010C0 |
ZGE20,25..CBU BLACK,TRIM1# |
5 | ||
| 71811G - SHIELD, REAR SEAT CUSHION, RH | ||||
| 71811-68040E0 |
ZGE20,21,25..CBU GREGE,TRIM4# |
1 | ||
| 71811-68040C0 |
ZGE20,22,25..CBU BLACK,TRIM1# |
1 | ||
| 71833B - CLIP (FOR REAR SEAT RECLINING COVER) | ||||
| 90467-05164E2 |
ZGE20,21,25..CBU GREGE,TRIM4# |
1 | ||
| 90467-05164C0 |
ZGE20,25..CBU BLACK,TRIM1# |
1 | ||
| 71845C - CAP, REAR SEAT COVER | ||||
| 71845-68030 |
ZGE2#..CBU |
2 | ||
| 71848B - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-68010 |
ZGE2#..CBU |
2 | ||
| 71861A - SHIELD, REAR SEAT CUSHION, INNER RH | ||||
| 71861-68060C0 |
ZGE20,22,25..CBU BLACK,TRIM1# |
1 | ||
| 71861-68060E1 |
ZGE20,21,25..CBU GREGE,TRIM4# |
1 | ||
| 71875C - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-68050E0 |
ZGE20,21,25..CBU GREGE,TRIM4# |
1 | ||
| 71875-68050C0 |
ZGE20,22,25..CBU BLACK,TRIM1# |
1 | ||
| 71875E - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-68070 |
ZGE20,21,25..CBU |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-68010B0 |
ZGE20,25..CBU DK.GRAY,TRIM1#,4# |
1 | ||
| 71876-68010 |
ZGE20,21,25..CBU |
1 | ||
| 71878C - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-68010E0 |
ZGE20,21,25..CBU GREGE,TRIM4# |
1 | ||
| 71878-68010C0 |
ZGE20,25..CBU BLACK,TRIM1# |
1 | ||
| 71881 - BOARD, REAR SEAT BACK, RH | ||||
| 71881-68010E0 |
ZGE20,21,25..CBU GREGE,TRIM4# |
1 | ||
| 71881-68010C0 |
ZGE20,22,25..CBU BLACK,TRIM1# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-52030B0 |
ZGE20,22,25..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
ZGE20,22,25..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71930-52030E0 |
ZGE20,21,25..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
2 | ||
| 71931-42020E1 |
ZGE20,21,25..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GREGE,TRIM4# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-52030B0 |
ZGE20,22,25..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
ZGE20,22,25..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71930-52030E0 |
ZGE20,21,25..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
2 | ||
| 71931-42020E1 |
ZGE20,21,25..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GREGE,TRIM4# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-68120E0 |
ZGE20,25..CBU GREGE,TRIM4# |
2 | ||
| 71940-68120B0 |
ZGE20,22,25..CBU DARK GRAY,TRIM1# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-68080E0 |
ZGE20,25..CBU GREGE,TRIM4# |
1 | ||
| 71960-68080B0 |
ZGE20,25..CBU DARK GRAY,TRIM1# |
1 | ||
| 72057 - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH | ||||
| 72057-68030 |
ZGE2#..CBU |
1 | ||
| 72123C - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72137-68110B0 |
ZGE20,25..CBU DK.GRAY,TRIM1#,4# |
1 | ||
| 72127G - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72137-68080B0 |
ZGE20,25..CBU DK.GRAY,TRIM1#,4# |
1 | ||
| 72137C - COVER, SEAT TRACK INNER, RH | ||||
| 72137-68090B0 |
ZGE20,25..CBU DK.GRAY,TRIM1#,4# |
1 | ||
| 72137D - COVER, REAR SEAT TRACK, RH | ||||
| 72137-68120 |
ZGE2#..CBU |
1 | ||
| 72160 - TRACK ASSY, REAR SEAT, OUTER RH | ||||
| 72160-68050 |
ZGE2#..CBU |
1 | ||
| 72170C - TRACK ASSY, REAR NO.1 SEAT, INNER RH | ||||
| 72170-68050 |
ZGE20,21,25..CBU |
1 | ||
| 72173 - HANDLE, REAR SEAT TRACK ADJUSTING | ||||
| 72173-68030 |
ZGE2#..CBU |
1 | ||
| 72525C - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH | ||||
| 72525-47020C0 |
ZGE20,22,25..CBU BLACK,TRIM1# |
1 | ||
| 72525-47020E2 |
ZGE20,21,25..CBU GREGE,TRIM4# |
1 | ||
| 72525D - HANDLE, RECLINING ADJUSTER RELEASE, NO.2 RH | ||||
| 72525-68070E0 |
ZGE20,25..CBU GREGE,TRIM1#,4# |
1 | ||
| 72601B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK | ||||
| 72601-68020C0 |
ZGE20,25..CBU BLACK,TRIM1# |
1 | ||
| 72601-68020E0 |
ZGE20,21,25..CBU GREGE,TRIM4# |
1 | ||
| 72704B - CABLE, REAR SEAT RECLINING CONTROL, NO.2 | ||||
| 72704-68060 |
ZGE2#..CBU |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-68090C3 |
ZGE20,25..CBU BLACK,TRIM1# |
1 | ||
| 72830-68090E0 |
ZGE20,25..CBU GREGE,TRIM4# |
1 | ||
| 72830-68090C0 |
ZGE20,25..CBU BLACK,TRIM1# |
1 | ||
| 72830-68090E3 |
ZGE20,25..CBU GREGE,TRIM4# |
1 | ||
| 72927 - COVER, REAR SEAT CUSHION UNDER, RH | ||||
| 72927-68010E0 |
ZGE20,21,25..CBU GREGE,TRIM4# |
1 | ||
| 72927-68010C0 |
ZGE20,25..CBU BLACK,TRIM1# |
1 | ||
| 72996 - COVER, REAR SEAT BACK, RH | ||||
| 72996-68020C0 |
ZGE20,22,25..CBU BLACK,TRIM1# |
1 | ||
| 72996-68020E0 |
ZGE20,21,25..CBU GREGE,TRIM4# |
1 | ||
| 78955 - COVER, REAR SEAT UNDER TRAY RH | ||||
| 78955-68012E0 |
ZGE20,21,25..CBU GREGE,TRIM4# |
1 | ||
| 78955-68012C0 |
ZGE20,25..CBU BLACK,TRIM1# |
1 | ||
| 78955-68011E0 |
ZGE20,21,25..CBU GREGE,TRIM4# |
1 | ||
| 78955-68011C0 |
ZGE20,25..CBU BLACK,TRIM1# |
1 | ||
| 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79011-68080B0 |
ZGE20,25..18X..CBU DK.GRAY,TRIM1# |
1 | ||
| 79011-68080E0 |
ZGE20,25..18X..CBU GREGE,TRIM4# |
1 | ||
| 79011-68080E2 |
ZGE20,25..18X..CBU GREGE,TRIM4# |
1 | ||
| 79011-68080B2 |
ZGE20,25..18X..CBU DK.GRAY,TRIM1# |
1 | ||
| 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79013-68130E1 |
ZGE20,25..18X..CBU GREGE,TRIM4# |
1 | ||
| 79013-68130B1 |
ZGE20,25..18X..CBU DK.GRAY,TRIM1# |
1 | ||
| 79013-68130E3 |
ZGE20,25..18X..CBU GREGE,TRIM4# |
1 | ||
| 79013-68130E4 |
ZGE20,25..18X..CBU GREGE,TRIM4# |
1 | ||
| 79013-68130B3 |
ZGE20,25..18X..CBU DK.GRAY,TRIM1# |
1 | ||
| 79013-68130B4 |
ZGE20,25..18X..CBU DK.GRAY,TRIM1# |
1 | ||
| 79101 - FRAME SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79101-68030 |
ZGE20,21,25..CBU |
1 | ||
| 79105 - LEG SUB-ASSY, NO.1 SEAT, RH | ||||
| 79105-68040 |
ZGE20,21,25..CBU |
1 | ||
| 79109A - CLIP (FOR NO.1 SEAT BACK BOARD) | ||||
| 67771-12080 |
ZGE2#..CBU |
2 | ||
| 79135A - PAD, NO.1 SEAT CUSHION, RH | ||||
| 79135-68030 |
ZGE20,21,25..CBU |
1 | ||
| 79139J - CLOTH, NO.1 SEAT CUSHION RH | ||||
| 79139-68040 |
ZGE2#..CBU |
1 | ||
| 79175E - PAD, NO.1 SEAT BACK, RH | ||||
| 79175-68040 |
ZGE20,21,25..CBU |
1 | ||
| 79203 - FRAME SUB-ASSY, NO.2 SEAT BACK | ||||
| 79203-68070 |
ZGE20,21,25..CBU |
1 | ||
| Common parts | ||||
| 72189-68020 | ||||
| 72622-68010 | ||||
| 72702-60130 | ||||
| 90105-10539 | ||||
| 90119-06671 | ||||
| 90167-40044 | ||||
| 90179-06007 | ||||
| 90179-08025 | ||||
| 91515-81025 | ||||
| 94150-81000 | ||||
| 94612-11001 | ||||
| Linked diagrams | ||||
| 7104 | ||||

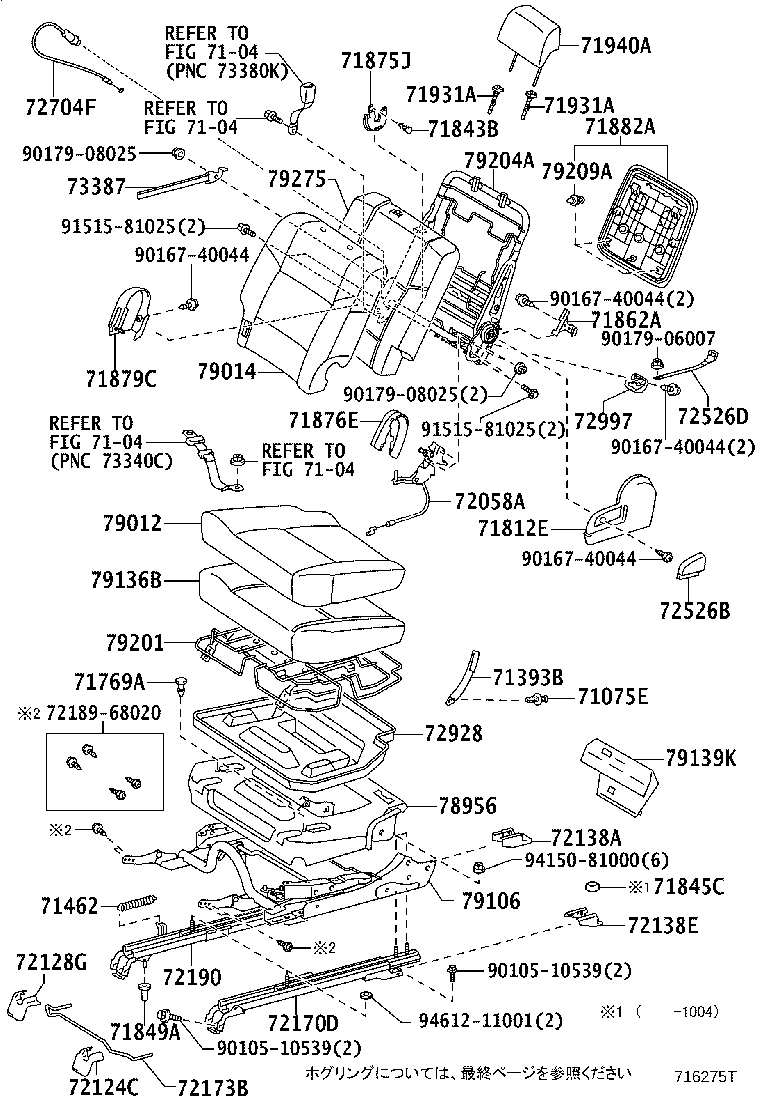

ILLUST NO. 2 OF 4(0903- )ZGE20,21,25
ﾘﾔNO.1ｼｰﾄ(LH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 90467-06151C0 |
ZGE2#..CBU BLACK |
2 | ||
| 90467-06153 |
ZGE2#..CBU |
2 | ||
| 71393B - BAND, REAR SEAT CUSHION, LH | ||||
| 71393-68020C0 |
ZGE20,22,25..CBU BLACK,TRIM1# |
1 | ||
| 71393-68020E0 |
ZGE20,21,25..CBU GREGE,TRIM4# |
1 | ||
| 71462 - SPRING, REAR SEAT CUSHION, NO.2 | ||||
| 71461-68011 |
ZGE2#..CBU |
1 | ||
| 71769A - CLIP, REAR SEAT BACK BOARD | ||||
| 71769-60010E3 |
ZGE20,21,25..CBU GREGE,TRIM4# |
5 | ||
| 71769-60010C0 |
ZGE20,25..CBU BLACK,TRIM1# |
5 | ||
| 71812E - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-68040C0 |
ZGE20,22,25..CBU BLACK,TRIM1# |
1 | ||
| 71812-68040E0 |
ZGE20,21,25..CBU GREGE,TRIM4# |
1 | ||
| 71843B - CLIP, REAR SEAT RECLINING COVER | ||||
| 90467-05164E2 |
ZGE20,21,25..CBU GREGE,TRIM4# |
1 | ||
| 90467-05164C0 |
ZGE20,25..CBU BLACK,TRIM1# |
1 | ||
| 71845C - CAP, REAR SEAT COVER | ||||
| 71845-68030 |
ZGE2#..CBU |
2 | ||
| 71849A - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-68010 |
ZGE2#..CBU |
2 | ||
| 71862A - SHIELD, REAR SEAT CUSHION, INNER LH | ||||
| 71862-68030C0 |
ZGE20,22,25..CBU BLACK,TRIM1# |
1 | ||
| 71862-68030E1 |
ZGE20,21,25..CBU GREGE,TRIM4# |
1 | ||
| 71875J - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-68020 |
ZGE20,21,25..CBU |
1 | ||
| 71875-68020B0 |
ZGE20,25..CBU DK.GRAY,TRIM1#,4# |
1 | ||
| 71876E - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-68060C0 |
ZGE20,22,25..CBU BLACK,TRIM1# |
1 | ||
| 71876-68060E0 |
ZGE20,21,25..CBU GREGE,TRIM4# |
1 | ||
| 71879C - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71879-68010C0 |
ZGE20,22,25..CBU BLACK,TRIM1# |
1 | ||
| 71879-68010E0 |
ZGE20,21,25..CBU GREGE,TRIM4# |
1 | ||
| 71882A - BOARD, REAR SEAT BACK, LH | ||||
| 71881-68010E0 |
ZGE20,21,25..CBU GREGE,TRIM4# |
1 | ||
| 71881-68010C0 |
ZGE20,22,25..CBU BLACK,TRIM1# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-52030B0 |
ZGE20,22,25..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
ZGE20,22,25..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71930-52030E0 |
ZGE20,21,25..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
2 | ||
| 71931-42020E1 |
ZGE20,21,25..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GREGE,TRIM4# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-52030B0 |
ZGE20,22,25..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
ZGE20,22,25..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
2 | ||
| 71930-52030E0 |
ZGE20,21,25..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
2 | ||
| 71931-42020E1 |
ZGE20,21,25..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GREGE,TRIM4# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-68120E0 |
ZGE20,25..CBU GREGE,TRIM4# |
2 | ||
| 71940-68120B0 |
ZGE20,22,25..CBU DARK GRAY,TRIM1# |
2 | ||
| 72058A - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH | ||||
| 72058-68030 |
ZGE2#..CBU |
1 | ||
| 72124C - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72137-68080B0 |
ZGE20,25..CBU DK.GRAY,TRIM1#,4# |
1 | ||
| 72128G - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72137-68110B0 |
ZGE20,25..CBU DK.GRAY,TRIM1#,4# |
1 | ||
| 72138A - COVER, REAR SEAT TRACK, LH | ||||
| 72138-68020B0 |
ZGE20,25..CBU DK.GRAY,TRIM1#,4# |
1 | ||
| 72138E - COVER, SEAT TRACK, INNER LH | ||||
| 72137-68120 |
ZGE2#..CBU |
1 | ||
| 72170D - TRACK ASSY, REAR SEAT, OUTER LH | ||||
| 72210-68010 |
ZGE2#..CBU |
1 | ||
| 72173B - HANDLE, REAR SEAT TRACK ADJUSTING, LH | ||||
| 72173-68030 |
ZGE2#..CBU |
1 | ||
| 72190 - TRACK ASSY, REAR SEAT INNER, LH | ||||
| 72220-68010 |
ZGE20,21,25..CBU |
1 | ||
| 72526B - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH | ||||
| 72526-47020E2 |
ZGE20,21,25..CBU GREGE,TRIM4# |
1 | ||
| 72526-47020C0 |
ZGE20,22,25..CBU BLACK,TRIM1# |
1 | ||
| 72526D - HANDLE, RECLINING ADJUSTER RELEASE, NO.3 LH | ||||
| 72525-68070E0 |
ZGE20,25..CBU GREGE,TRIM1#,4# |
1 | ||
| 72704F - CABLE, REAR SEAT RECLINING CONTROL, NO.3 | ||||
| 72704-68060 |
ZGE2#..CBU |
1 | ||
| 72928 - COVER, REAR SEAT CUSHION UNDER, LH | ||||
| 72928-68010E0 |
ZGE20,21,25..CBU GREGE,TRIM4# |
1 | ||
| 72928-68010C0 |
ZGE20,25..CBU BLACK,TRIM1# |
1 | ||
| 72997 - COVER, REAR SEAT BACK, LH | ||||
| 72996-68020E0 |
ZGE20,21,25..CBU GREGE,TRIM4# |
1 | ||
| 72996-68020C0 |
ZGE20,22,25..CBU BLACK,TRIM1# |
1 | ||
| 73387 - BAND, RR SEAT BELT GUIDE, NO.1 | ||||
| 73387-68020C0 |
ZGE20,25..CBU BLACK,TRIM1# |
1 | ||
| 73387-68020 |
ZGE20,21,25..CBU |
1 | ||
| 73387-68020E0 |
ZGE20,21,25..CBU GREGE,TRIM4# |
1 | ||
| 78956 - COVER, REAR SEAT UNDER TRAY LH | ||||
| 78955-68021E0 |
ZGE20,21,25..CBU GREGE,TRIM4# |
1 | ||
| 78955-68022C0 |
ZGE20,22,25..CBU BLACK,TRIM1# |
1 | ||
| 78955-68022E0 |
ZGE20,21,25..CBU GREGE,TRIM4# |
1 | ||
| 78955-68021C0 |
ZGE20,22,25..CBU BLACK,TRIM1# |
1 | ||
| 79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79021-68080B0 |
ZGE20,25..18X..CBU DK.GRAY,TRIM1# |
1 | ||
| 79021-68080E0 |
ZGE20,25..18X..CBU GREGE,TRIM4# |
1 | ||
| 79021-68080B2 |
ZGE20,25..18X..CBU DK.GRAY,TRIM1# |
1 | ||
| 79021-68080E2 |
ZGE20,25..18X..CBU GREGE,TRIM4# |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79023-68100E1 |
ZGE20,25..18X..CBU GREGE,TRIM4# |
1 | ||
| 79023-68100B1 |
ZGE20,25..18X..CBU DK.GRAY,TRIM1# |
1 | ||
| 79023-68100B3 |
ZGE20,25..18X..CBU DK.GRAY,TRIM1# |
1 | ||
| 79023-68100E4 |
ZGE20,25..18X..CBU GREGE,TRIM4# |
1 | ||
| 79023-68100B4 |
ZGE20,25..18X..CBU DK.GRAY,TRIM1# |
1 | ||
| 79023-68100E3 |
ZGE20,25..18X..CBU GREGE,TRIM4# |
1 | ||
| 79106 - LEG SUB ASSY, NO.1 SEAT, LH | ||||
| 79105-68060 |
ZGE2#..CBU |
1 | ||
| 79136B - PAD, NO.1 SEAT CUSHION, LH | ||||
| 79235-68030 |
ZGE20,21,25..CBU |
1 | ||
| 79139K - CLOTH, NO.1 SEAT CUSHION LH | ||||
| 79139-68040 |
ZGE2#..CBU |
1 | ||
| 79201 - FRAME SUB-ASSY, NO.2 SEAT CUSHION | ||||
| 79201-68030 |
ZGE20,21,25..CBU |
1 | ||
| 79204A - FRAME SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79204-68050 |
ZGE20,21,25..CBU |
1 | ||
| 79209A - CLIP (FOR NO.2 SEAT BACK BOARD) | ||||
| 67771-12080 |
ZGE2#..CBU |
2 | ||
| 79275 - PAD, NO.2 SEAT BACK | ||||
| 79275-68040 |
ZGE20,21,25..CBU |
1 | ||
| Common parts | ||||
| 72189-68020 | ||||
| 90105-10539 | ||||
| 90167-40044 | ||||
| 90179-06007 | ||||
| 90179-08025 | ||||
| 91515-81025 | ||||
| 94150-81000 | ||||
| 94612-11001 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(0903- )
ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
