ZGE20G-HPXNP (2009)

Toyota Wish

Production Mar 2009 - Apr 2012
Engine 2ZRFAE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0903-1204)

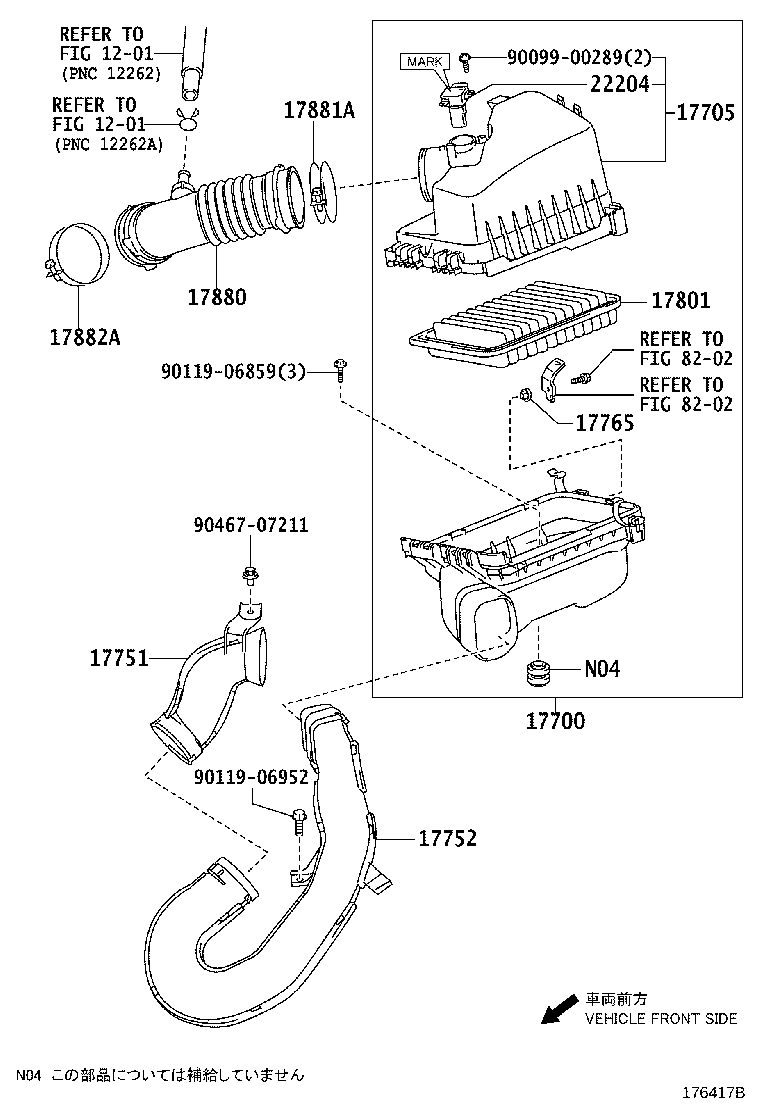

Click highlighted areas on diagram

diagram 1201 1201 17700 17705 17751 17752 17765 17801 17880 17881A 17882A 22204 8202 8202 9009900289 9011906859 9011906952 9046707211
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-37211

2ZRFAE,3ZRFAE..ZGE2#..CBU

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-37081

2ZRFAE,3ZRFAE..ZGE2#..CBU

 1
17705-37082

2ZRFAE,3ZRFAE..ZGE2#..CBU

 1
17751 - INLET, AIR CLEANER, NO.1
17751-37080

2ZRFAE,3ZRFAE..ZGE2#..CBU

 1
17752 - INLET, AIR CLEANER, NO.2
17752-37090

2ZRFAE,3ZRFAE..ZGE2#..CBU

 1
17765 - STAY, AIR CLEANER, NO.1
17706-22010

2ZRFAE,3ZRFAE..ZGE2#..CBU

 1
17706-21010

2ZRFAE,3ZRFAE..ZGE2#..CBU

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-21050

2ZRFAE,3ZRFAE..ZGE2#..CBU

 1
17880 - HOSE ASSY, AIR CLEANER
17880-37140

2ZRFAE..ZGE20,25..CBU

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10750

2ZRFAE,3ZRFAE..ZGE2#..CBU

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10780

2ZRFAE,3ZRFAE..ZGE2#..CBU

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-28010

2ZRFAE,3ZRFAE..ZGE2#..CBU

ﾏｰｸ 22204−28010

 1
22204-0T040

2ZRFAE,3ZRFAE..ZGE2#..CBU

ﾏｰｸ 22204−0T040

 1
22204-0V020

2ZRFAE,3ZRFAE..ZGE2#..CBU

ﾏｰｸ 22204−0V020

 1
22204-0V010

2ZRFAE,3ZRFAE..ZGE2#..CBU

ﾏｰｸ 22204−0V010

 1
22204-37010

2ZRFAE,3ZRFAE..ZGE2#..CBU

 1
Common parts
90099-00289
90119-06859
90119-06952
90467-07211
Linked diagrams
1201
8202
