ZGE20G-HPXNP (2012)

Toyota Wish

Production Apr 2012 - Nov 2017
Engine 2ZRFAE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

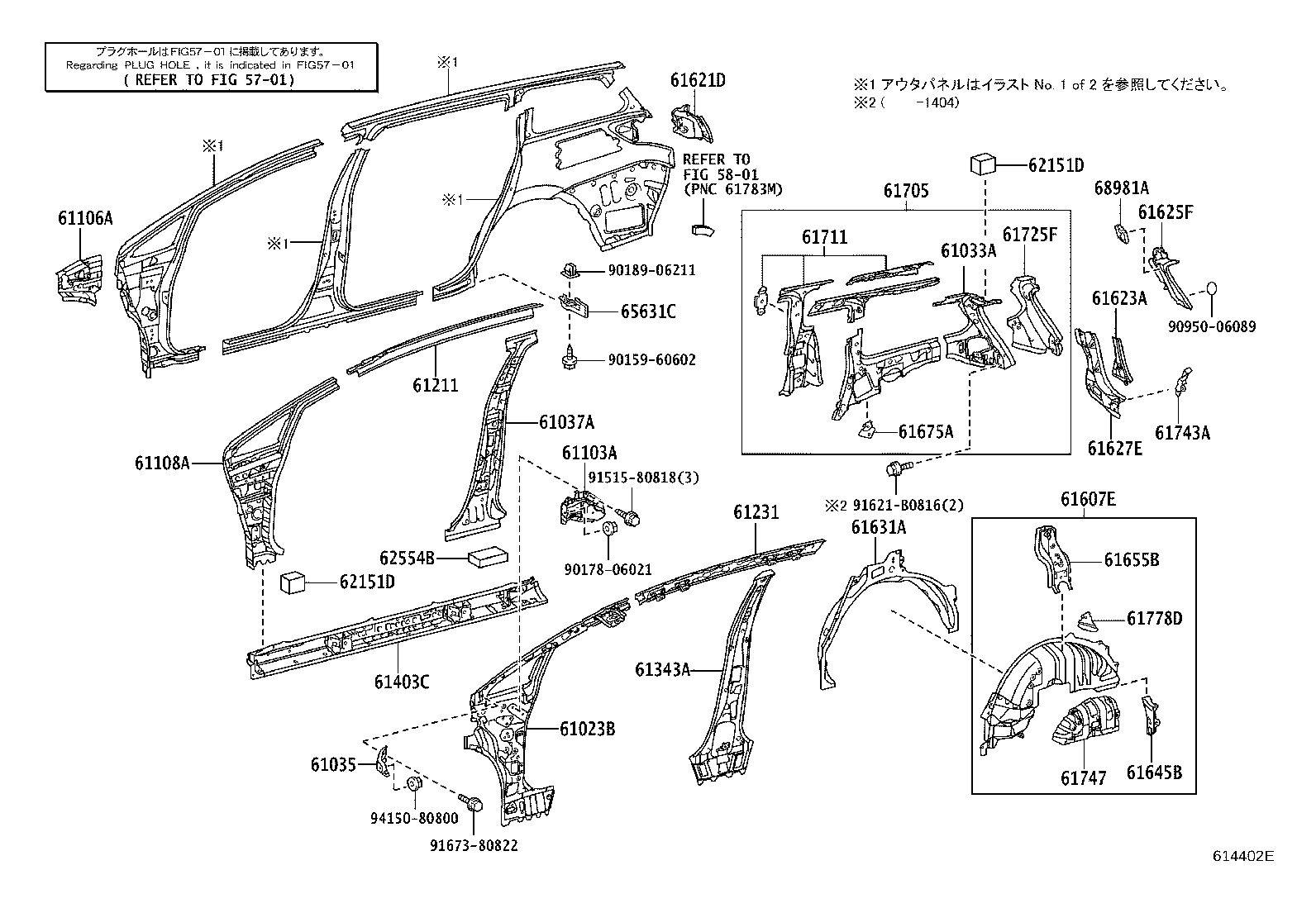

ILLUST NO. 2 OF 2(1204- )

Click highlighted areas on diagram

ｲﾝﾅﾊﾟﾈﾙ RH

diagram 5701 5801 61023B 61033A 61035 61037A 61103A 61106A 61108A 61211 61231 61343A 61403C 61607E 61621D 61623A 61625F 61627E 61631A 61645B 61655B 61675A 61705 61711 61725F 61743A 61747 61778D 62151D 62151D 62554B 65631C 68981A 9015960602 9017806021 9018906211 9095006089 9151580818 91621B0816 9167380822 9415080800
Part # Description Qty Price
61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH
61023-68020

ZGE2#..CBU

 1
61023-68020

ZGE2#..CBU

 1
61033A - REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE
61033-68900

ZGE2#..CBU

 1
61033-68900

ZGE2#..CBU

 1
61035 - BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH
61165-68010

ZGE2#..CBU

 1
61165-68010

ZGE2#..CBU

 1
61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61037-68900

ZGE2#..CBU

 1
61037-68900

ZGE2#..CBU

 1
61103A - REINFORCEMENT SUB-ASSY, COWL SIDE, RH
61103-68020

ZGE2#..CBU

 1
61103-68020

ZGE2#..CBU

 1
61106A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH
61106-68030

ZGE2#..CBU

 1
61106-68030

ZGE2#..CBU

 1
61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61108-68020

ZGE2#..CBU

 1
61108-68020

ZGE2#..CBU

 1
61211 - RAIL, ROOF SIDE, OUTER RH
61211-68020

ZGE2#..CBU

 1
61211-68020

ZGE2#..CBU

 1
61231 - RAIL, ROOF SIDE, INNER RH
61201-68010

ZGE2#..CBU

 1
61201-68010

ZGE2#..CBU

 1
61343A - PILLAR, CENTER BODY, INNER RH
61305-68010

ZGE2#..CBU

 1
61305-68010

ZGE2#..CBU

 1
61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH
61403-68020

ZGE2#..CBU

 1
61403-68020

ZGE2#..CBU

 1
61607E - PANEL, QUARTER WHEEL HOUSE, INNER RH
61607-68040

ZGE20,21..CBU

 1
61607-68060

ZGE20..CBU

 1
61621D - TROUGH, BACK DOOR OPENING, RH
61621-68020

ZGE2#..CBU

 1
61621-68020

ZGE2#..CBU

 1
61623A - EXTENSION, QUARTER PANEL, OUTER RH
61623-68010

ZGE2#..CBU

 1
61623-68010

ZGE2#..CBU

 1
61625F - EXTENSION, QUARTER PANEL, UPPER RH
61625-68020

ZGE2#..CBU

 1
61625-68020

ZGE2#..CBU

 1
61627E - EXTENSION, QUARTER PANEL, REAR LOWER RH
61627-68020

ZGE2#..CBU

 1
61627-68020

ZGE2#..CBU

 1
61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH
61631-68030

ZGE2#..CBU

 1
61631-68030

ZGE2#..CBU

 1
61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH
61645-68010

ZGE2#..CBU

 1
61645-68010

ZGE2#..CBU

 1
61655B - GUSSET, QUARTER WHEEL HOUSE, INNER RH
61655-68010

ZGE2#..CBU

 1
61655-68010

ZGE2#..CBU

 1
61675A - REINFORCE, SEAT BELT ANCHOR, NO.2 UPPER RH
61675-68020

ZGE2#..CBU

 1
61675-68020

ZGE2#..CBU

 1
61705 - PANEL SUB-ASSY, ROOF SIDE, INNER RH
61705-68902

ZGE2#..CBU

 1
61705-68905

ZGE2#..CBU

 1
61711 - PANEL, ROOF SIDE, OUTER RH
61711-68900

ZGE2#..CBU

 1
61711-68901

ZGE2#..CBU

 1
61725F - REINFORCEMENT, BACK DOOR OPENING SIDE, UPPER RH
61725-68020

ZGE2#..CBU

 1
61725-68020

ZGE2#..CBU

 1
61743A - REINFORCEMENT, BACK DOOR OPENING SIDE, RH
61743-68020

ZGE2#..CBU

 1
61743-68020

ZGE2#..CBU

 1
61747 - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH
61747-68010

ZGE2#..CBU

 1
61747-68010

ZGE2#..CBU

 1
61778D - BRACKET, BELT ANCHOR TO QUARTER REINFORCE, RH
61778-68010

ZGE2#..CBU

 1
62151D - PAD, COWL SIDE SILENCER
62151-68020

ZGE2#..CBU

 4
62151-68020

ZGE2#..CBU

 4
62151D - PAD, COWL SIDE SILENCER
62151-68020

ZGE2#..CBU

 4
62151-68020

ZGE2#..CBU

 4
62554B - PAD, PILLAR, NO.4
62554-52010

ZGE2#..CBU

 2
62554-42030

ZGE2#..CBU

 2
65631C - PLATE, REAR WHEEL HOUSE, FRONT RH
65631-68020

ZGE2#..CBU

 1
65631-68020

ZGE2#..CBU

 1
65631-68020

ZGE20..18X..CBU

ｱﾘ(E PKG)

 1
68981A - RETAINER, BACK DOOR STAY, RH
68981-68020

ZGE2#..CBU

 1
68981-68020

ZGE2#..CBU

 1
Common parts
90159-60602
90178-06021
90189-06211
90950-06089
91515-80818
91621-B0816
91673-80822
94150-80800
Linked diagrams
5701
5801
