ZGE20G-HPXGP (2012)

Toyota Wish

Production Apr 2012 - Nov 2017
Engine 2ZRFAE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1204- )

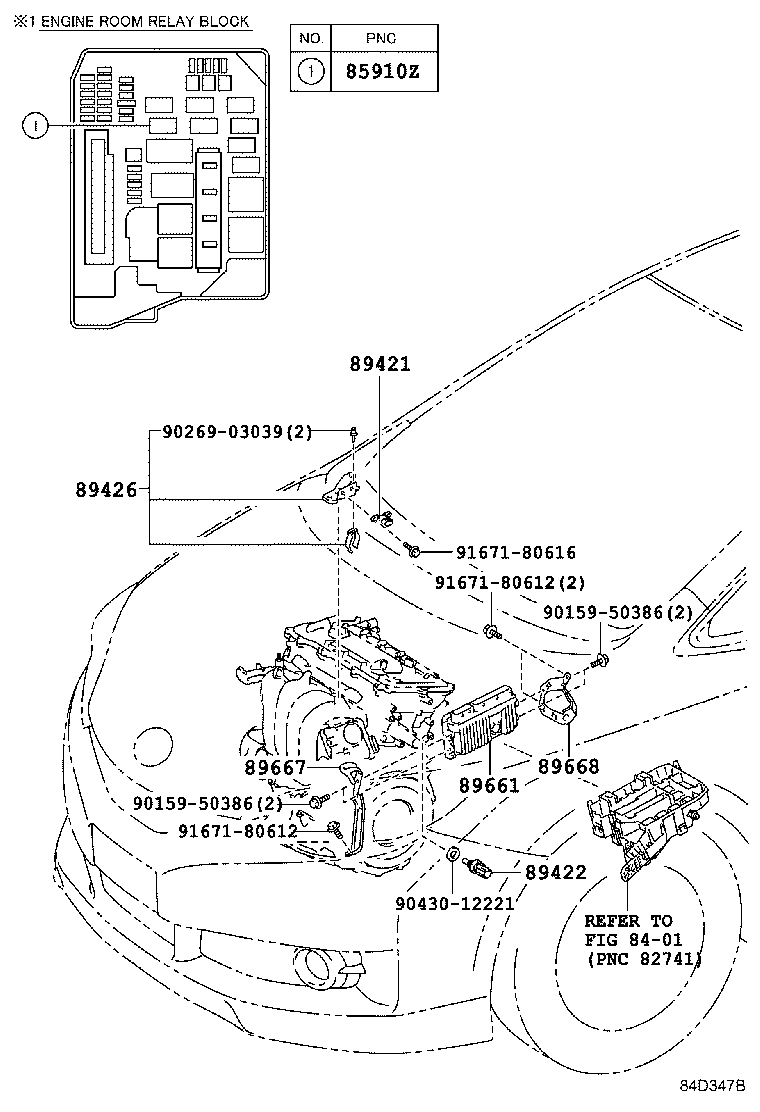

Click highlighted areas on diagram

diagram 8401 85910Z 89421 89422 89426 89661 89667 89668 9015950386 9015950386 9026903039 9043012221 9167180612 9167180612 9167180616
Part # Description Qty Price
85910Z - RELAY, INJECTION (FOR EFI)
90987-02027

ZGE2#..CBU

 1
90987-02027

ZGE2#..CBU

 1
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89421-26030

ZGE2#..CBU

 1
89421-26030

ZGE2#..CBU

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

ZGE2#..CBU

 1
89422-33030

ZGE2#..CBU

 1
89426 - BRACKET, VACUUM SENSOR
89426-13020

ZGE2#..CBU

 1
89426-28080

ZGE2#..CBU

 1
89661 - COMPUTER, ENGINE CONTROL
89661-68220

ZGE20..CBU

FUJITSU TEN

 1
89661-68240

ZGE20..CBU

FUJITSU TEN

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-12250

ZGE2#..CBU

 1
89667-68030

ZGE2#..CBU

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-12170

ZGE2#..CBU

 1
89668-68020

ZGE2#..CBU

 1
Common parts
90159-50386
90269-03039
90430-12221
91671-80612
91671-80616
Linked diagrams
8401
