ZGE20G-HPXGP (2012)

Toyota Wish

Production Apr 2012 - Nov 2017
Engine 2ZRFAE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1204- )2ZRFAE

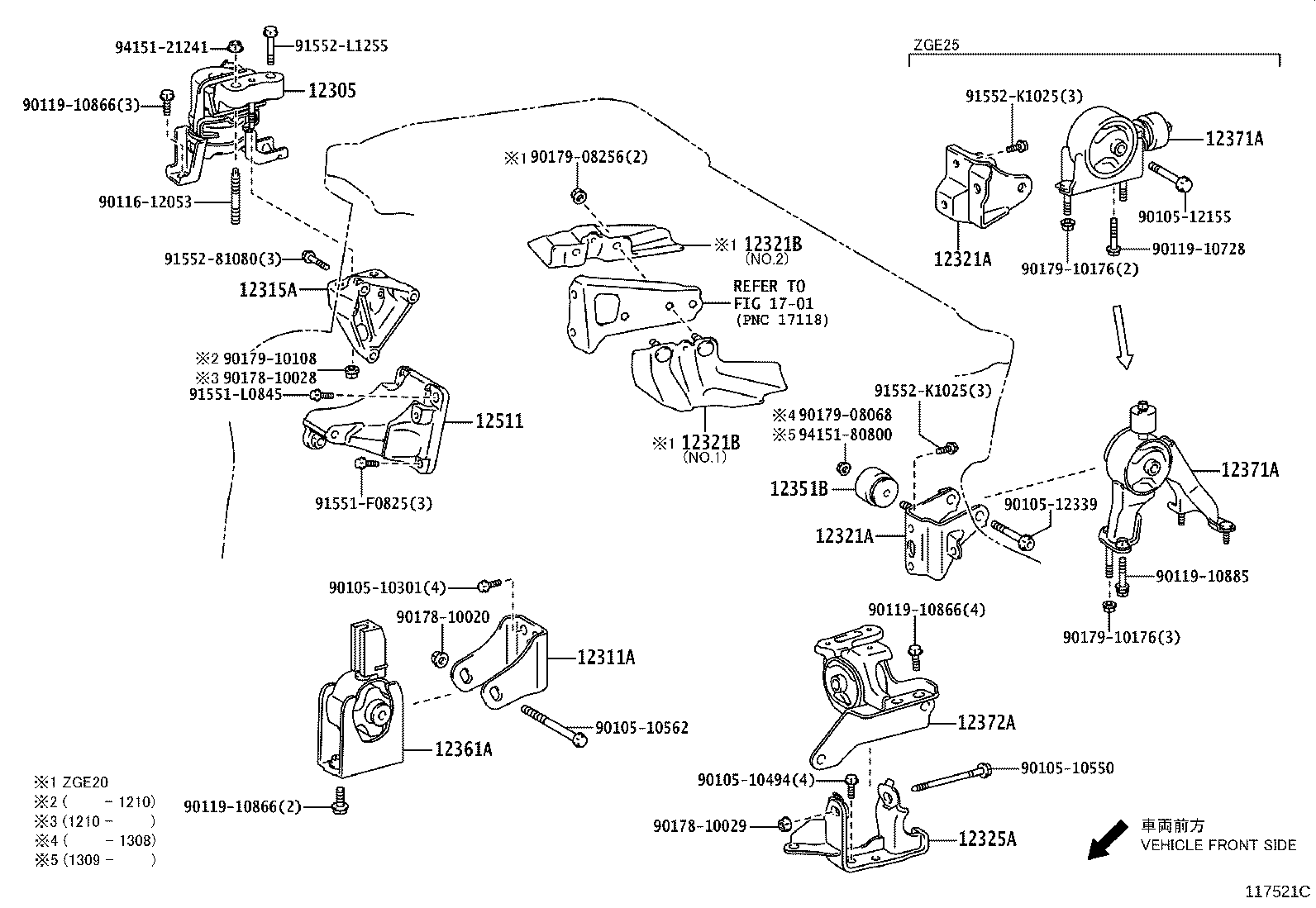

Click highlighted areas on diagram

diagram 12305 12311A 12315A 12321A 12321A 12321B 12321B 12325A 12351B 12361A 12371A 12371A 12372A 12511 1701 9010510301 9010510494 9010510550 9010510562 9010512155 9010512339 9011612053 9011910728 9011910866 9011910866 9011910866 9011910885 9017810020 9017810028 9017810029 9017908068 9017908256 9017910108 9017910176 9017910176 91551F0825 91551L0845 9155281080 91552K1025 91552K1025 91552L1255 9415121241 9415180800
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-37250

2ZRFAE..ZGE20..CBU

 1
12305-37250

2ZRFAE..ZGE20..CBU

 1
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-37070

2ZRFAE..ZGE20..CBU

 1
12311-37070

2ZRFAE..ZGE20..CBU

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-37030

2ZRFAE,3ZRFAE..ZGE2#..CBU

 1
12315-37030

2ZRFAE,3ZRFAE..ZGE2#..CBU

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-37120

2ZRFAE..ZGE20..CBU

 1
12321-37120

2ZRFAE..ZGE20..CBU

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-37120

2ZRFAE..ZGE20..CBU

 1
12321-37120

2ZRFAE..ZGE20..CBU

 1
12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT
43409-12060

2ZRFAE..ZGE20..CBU

NO.1

 1
43498-12051

2ZRFAE..ZGE20..CBU

NO.2

 1
12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT
43409-12060

2ZRFAE..ZGE20..CBU

NO.1

 1
43498-12051

2ZRFAE..ZGE20..CBU

NO.2

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-37010

2ZRFAE..ZGE20..CBU

 1
12325-37010

2ZRFAE..ZGE20..CBU

 1
12351B - DAMPER, ENGINE MOUNTING
12351-27050

2ZRFAE..ZGE20..CBU

 1
12351-37120

2ZRFAE..ZGE20..CBU

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-37060

2ZRFAE..ZGE20,25..CBU

 1
12361-37060

2ZRFAE..ZGE20,25..CBU

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-37100

2ZRFAE..ZGE20..CBU

 1
12371-37100

2ZRFAE..ZGE20..CBU

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-37100

2ZRFAE..ZGE20..CBU

 1
12371-37100

2ZRFAE..ZGE20..CBU

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-37010

2ZRFAE..ZGE20,25..CBU

 1
12372-37010

2ZRFAE..ZGE20,25..CBU

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-37010

2ZRFAE,3ZRFAE..ZGE2#..CBU

 1
12501-37010

2ZRFAE,3ZRFAE..ZGE2#..CBU

 1
Common parts
90105-10301
90105-10494
90105-10550
90105-10562
90105-12155
90105-12339
90116-12053
90119-10728
90119-10866
90119-10885
90178-10020
90178-10028
90178-10029
90179-08068
90179-08256
90179-10108
90179-10176
91551-F0825
91551-L0845
91552-81080
91552-K1025
91552-L1255
94151-21241
94151-80800
Linked diagrams
1701
