ZGE20G-HPXGP (2012)

Toyota Wish

Production Apr 2012 - Nov 2017
Engine 2ZRFAE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

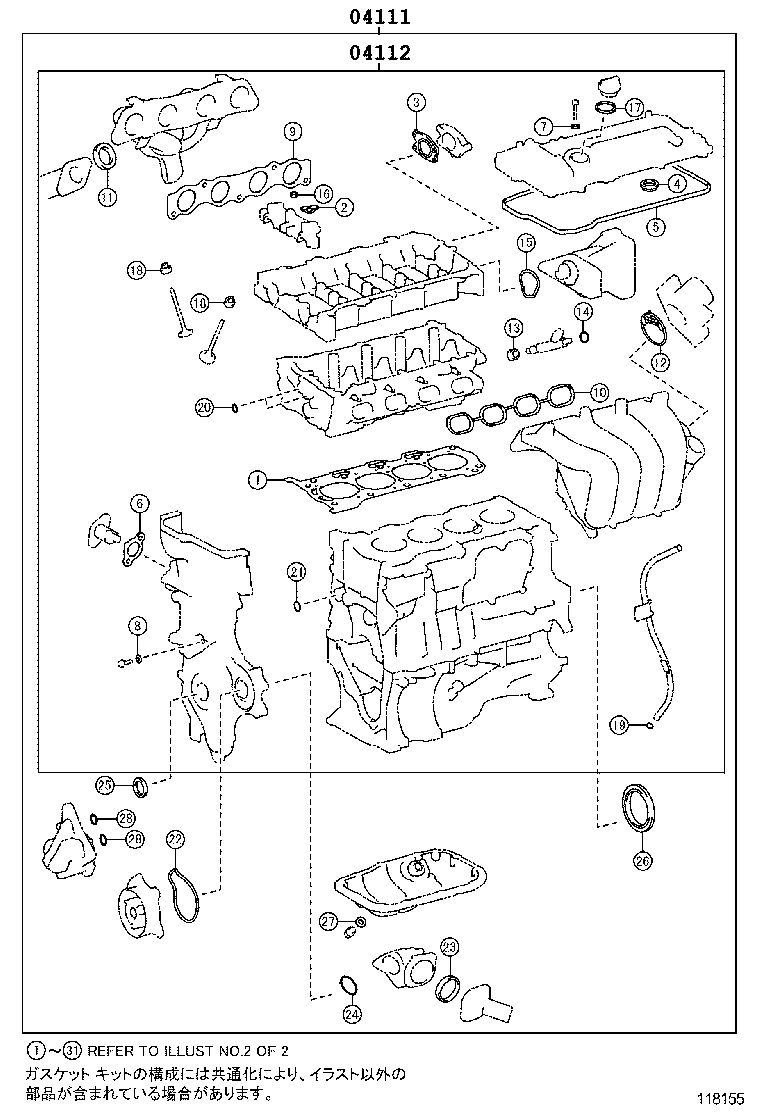

ILLUST NO. 1 OF 2(1204- )2ZRFAE

Click highlighted areas on diagram

diagram 04111 04112
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-37403

2ZRFAE..ZGE20..CBU

 1
04111-37402

2ZRFAE..ZGE20..CBU

 1
04111-37271

2ZRFAE..ZGE20..CBU

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-37221

2ZRFAE..ZGE20..CBU

 1
04112-37223

2ZRFAE,3ZRFAE..ZGE20,22..CBU

 1
04112-37224

2ZRFAE,3ZRFAE..ZGE20,22..CBU

 1
