ANE11W-HWXQH (2003)

Toyota Wish

Production Apr 2003 - Aug 2005
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0301-0903)

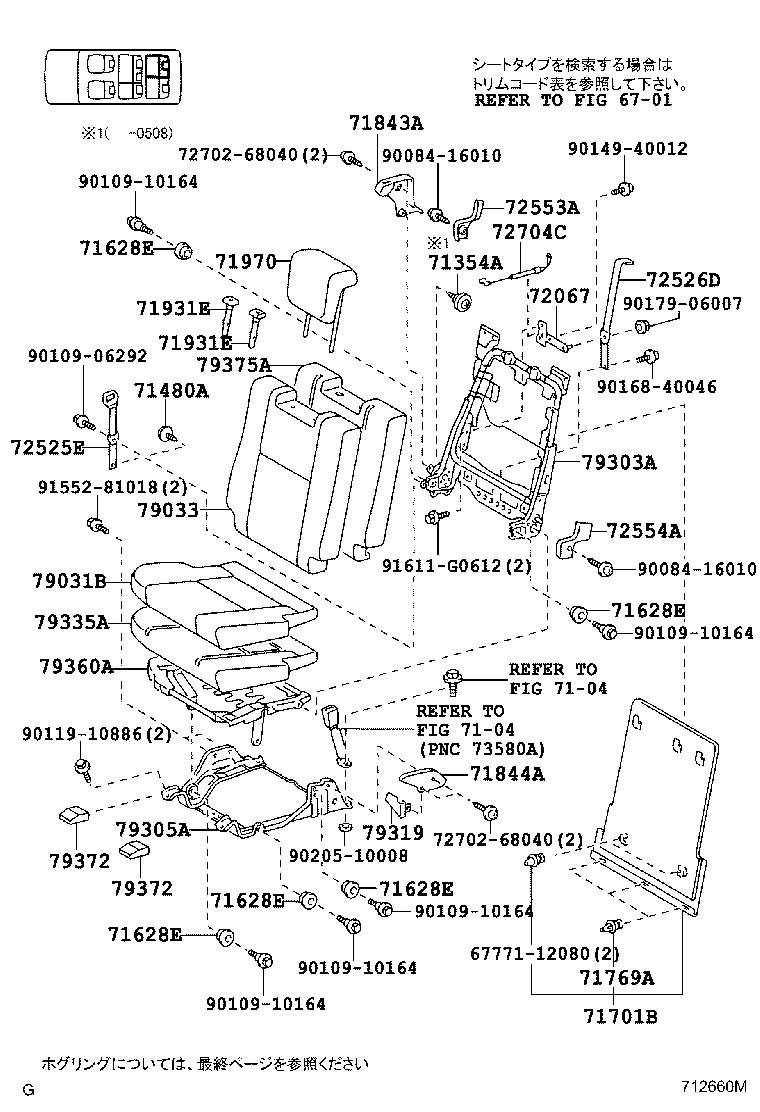

Click highlighted areas on diagram

ﾘﾔ NO.2ｼ-ﾄ(RH)

diagram 6701 6777112080 7104 7104 71354A 71480A 71628E 71628E 71628E 71628E 71628E 71701B 71769A 71843A 71844A 71931E 71931E 71970 72067 72525E 72526D 72553A 72554A 7270268040 7270268040 72704C 79031B 79033 79303A 79305A 79319 79335A 79360A 79372 79372 79375A 9008416010 9008416010 9010906292 9010910164 9010910164 9010910164 9010910164 9010910164 9011910886 9014940012 9016840046 9017906007 9020510008 9155281018 91611G0612
Part # Description Qty Price
71354A - PLATE, REAR SEAT BACK SET
71354-68010

ANE11

 2
71480A - CLIP (FOR REAR SEAT BACK)
90467-06048C0

ANE1#,ZNE1#

BLACK,TRIM1#

 2
71628E - SPACER, REAR SEAT CUSHION
71628-44010

ANE1#,ZNE1#

 10
71628E - SPACER, REAR SEAT CUSHION
71628-44010

ANE1#,ZNE1#

 10
71628E - SPACER, REAR SEAT CUSHION
71628-44010

ANE1#,ZNE1#

 10
71628E - SPACER, REAR SEAT CUSHION
71628-44010

ANE1#,ZNE1#

 10
71628E - SPACER, REAR SEAT CUSHION
71628-44010

ANE1#,ZNE1#

 10
71701B - BOARD SUB-ASSY, REAR SEAT BACK, RH
71701-68010B0

ANE1#,ZNE1#

DARK GRAY,TRIM1#

 1
71769A - CLIP, REAR SEAT BACK BOARD
67771-28050

ANE1#,ZNE1#

 6
71843A - COVER, REAR SEAT RECLINING, NO.2 RH
71843-68010C0

ANE1#,ZNE1#

BLACK,TRIM1#

 1
71844A - COVER, REAR SEAT RECLINING, NO.2 LH
71844-68010C0

ANE1#,ZNE1#

BLACK,TRIM1#

 1
71931E - SUPPORT ASSY, REAR NO.3 SEAT HEADREST
71931-47010C0

ANE1#,ZNE1#

ﾛｯｸ無,BLACK,TRIM1#

 2
71930-47010C0

ANE1#,ZNE1#

ﾛｯｸ付,BLACK,TRIM1#

 2
71931E - SUPPORT ASSY, REAR NO.3 SEAT HEADREST
71931-47010C0

ANE1#,ZNE1#

ﾛｯｸ無,BLACK,TRIM1#

 2
71930-47010C0

ANE1#,ZNE1#

ﾛｯｸ付,BLACK,TRIM1#

 2
71970 - HEADREST ASSY, REAR SEAT
71940-68030C1

ANE11

BLACK,TRIM1#

 2
71940-68030C0

ANE11

BLACK,TRIM1#

 2
72067 - LEVER SUB-ASSY, REAR BACK LOCK CONTROL, RH
72067-68010

ANE1#,ZNE1#

 1
72525E - HANDLE, RECLINING ADJUSTER RELEASE, NO.3 RH
72525-68020C1

ANE1#,ZNE1#

BLACK,TRIM1#,右側ｼｰﾄ

 1
72525-68040C0

ANE1#,ZNE1#

BLACK,TRIM1#,左側ｼｰﾄ

 1
72526D - HANDLE, RECLINING ADJUSTER RELEASE, NO.3 LH
72525-68030C1

ANE1#,ZNE1#

BLACK,TRIM1#

 2
72525-68030C2

ANE1#,ZNE1#

BLACK,TRIM1#

 2
72553A - PROTECTOR, RECLINING COVER, RH
72553-68010C0

ANE1#,ZNE1#

BLACK,TRIM1#

 1
72554A - PROTECTOR, RECLINING COVER, LH
72554-68020C0

ANE1#,ZNE1#

BLACK,TRIM1#

 1
72704C - CABLE, REAR NO.2 SEAT RECLINING CONTROL
72704-68020

ANE1#,ZNE1#

 1
79031B - COVER SUB-ASSY, NO.3 SEAT CUSHION, RH
79031-68010C2

ANE11

BLACK,TRIM1#,ｼｰﾄ=TYPE B−*104

 1
79031-68011C3

ANE11

BLACK,TRIM1#,ｼｰﾄ=TYPE B−*104

 1
79031-68011C2

ANE11

BLACK,TRIM1#,ｼｰﾄ=TYPE B−*104

 1
79031-68011C3

ANE11

BLACK,TRIM11,ｼｰﾄ=TYPE B−*104

 1
79033 - COVER SUB-ASSY, NO.3 SEAT BACK, RH
79033-68010C0

ANE11

BLACK,TRIM1#,ｼｰﾄ=TYPE B−*104

 1
79033-68011C0

ANE11

BLACK,TRIM1#,ｼｰﾄ=TYPE B−*104

 1
79033-68011C1

ANE11

BLACK,TRIM1#,ｼｰﾄ=TYPE B−*104

 1
79033-68012C1

ANE11

BLACK,TRIM11,ｼｰﾄ=TYPE B−*104

 1
79033-68011C1

ANE11

BLACK,TRIM1#,ｼｰﾄ=TYPE B−*104

 1
79303A - FRAME SUB-ASSY, NO.3 SEAT BACK, RH
79303-68010

ANE1#,ZNE1#

 1
79305A - LEG SUB-ASSY, NO.3 SEAT, RH
79305-68010

ANE1#,ZNE1#

 1
79319 - BRACKET, NO.3 SEAT LEG, RR RH
79319-68010

ANE1#,ZNE1#

 1
79335A - PAD, NO.3 SEAT CUSHION, RH
79335-68010

ANE1#,ZNE1#

 1
79360A - SPRING ASSY, NO.3 SEAT CUSHION, RH
79360-68010

ANE1#,ZNE1#

 1
79372 - COVER, NO.3 SEAT FRONT BRACKET, RH
79372-68010C0

ANE1#,ZNE1#

BLACK,TRIM1#

 4
79372 - COVER, NO.3 SEAT FRONT BRACKET, RH
79372-68010C0

ANE1#,ZNE1#

BLACK,TRIM1#

 4
79375A - PAD, NO.3 SEAT BACK, RH
79375-68010

ANE1#,ZNE1#

 1
Common parts
67771-12080
72702-68040
90084-16010
90109-06292
90109-10164
90119-10886
90149-40012
90168-40046
90179-06007
90205-10008
91552-81018
91611-G0612
Linked diagrams
6701
7104

(0301-0903)

Click highlighted areas on diagram

ﾘﾔ NO.2ｼ-ﾄ(LH)

diagram 6701 6777112080 7104 7104 71354A 71480A 71628E 71628E 71628E 71628E 71702B 71769A 71843D 71844C 71931E 71931E 71970 72068 72525E 72526D 72553C 72554B 7270268040 7270268040 72704D 79032 79034 79304A 79306 79329 79345A 79370A 79372 79372 79385A 9008416010 9008416010 9010906292 9010910164 9010910164 9010910164 9010910164 9011910886 9014940012 9016840046 9017906007 9020510008 9155281018 91611G0612
Part # Description Qty Price
71354A - PLATE, REAR SEAT BACK SET
71354-68010

ANE11

 2
71480A - CLIP (FOR REAR SEAT BACK)
90467-06048C0

ANE1#,ZNE1#

BLACK,TRIM1#

 2
71628E - SPACER, REAR SEAT CUSHION
71628-44010

ANE1#,ZNE1#

 10
71628E - SPACER, REAR SEAT CUSHION
71628-44010

ANE1#,ZNE1#

 10
71628E - SPACER, REAR SEAT CUSHION
71628-44010

ANE1#,ZNE1#

 10
71628E - SPACER, REAR SEAT CUSHION
71628-44010

ANE1#,ZNE1#

 10
71702B - BOARD SUB-ASSY, REAR SEAT BACK, LH
71702-68010B0

ANE1#,ZNE1#

DARK GRAY,TRIM1#

 1
71769A - CLIP, REAR SEAT BACK BOARD
67771-28050

ANE1#,ZNE1#

 6
71843D - COVER, REAR SEAT RECLINING, NO.2 RH
71843-68020C0

ANE1#,ZNE1#

BLACK,TRIM1#

 1
71844C - COVER, REAR SEAT RECLINING, NO.2 LH
71844-68020C0

ANE1#,ZNE1#

BLACK,TRIM1#

 1
71931E - SUPPORT ASSY, REAR NO.3 SEAT HEADREST
71931-47010C0

ANE1#,ZNE1#

ﾛｯｸ無,BLACK,TRIM1#

 2
71930-47010C0

ANE1#,ZNE1#

ﾛｯｸ付,BLACK,TRIM1#

 2
71931E - SUPPORT ASSY, REAR NO.3 SEAT HEADREST
71931-47010C0

ANE1#,ZNE1#

ﾛｯｸ無,BLACK,TRIM1#

 2
71930-47010C0

ANE1#,ZNE1#

ﾛｯｸ付,BLACK,TRIM1#

 2
71970 - HEADREST ASSY, REAR SEAT
71940-68030C1

ANE11

BLACK,TRIM1#

 2
71940-68030C0

ANE11

BLACK,TRIM1#

 2
72068 - LEVER SUB-ASSY, REAR BACK LOCK CONTROL, LH
72068-68010

ANE1#,ZNE1#

 1
72525E - HANDLE, RECLINING ADJUSTER RELEASE, NO.3 RH
72525-68020C1

ANE1#,ZNE1#

BLACK,TRIM1#,右側ｼｰﾄ

 1
72525-68040C0

ANE1#,ZNE1#

BLACK,TRIM1#,左側ｼｰﾄ

 1
72526D - HANDLE, RECLINING ADJUSTER RELEASE, NO.3 LH
72525-68030C1

ANE1#,ZNE1#

BLACK,TRIM1#

 2
72525-68030C2

ANE1#,ZNE1#

BLACK,TRIM1#

 2
72553C - PROTECTOR, RECLINING COVER, RH
72553-68020C0

ANE1#,ZNE1#

BLACK,TRIM1#

 1
72554B - PROTECTOR, RECLINING COVER, LH
72554-68030C0

ANE1#,ZNE1#

BLACK,TRIM1#

 1
72704D - CABLE, REAR NO.2 SEAT RECLINING CONTROL
72704-68030

ANE1#,ZNE1#

 1
72704-68020

ANE1#,ZNE1#

 1
79032 - COVER SUB-ASSY, NO.3 SEAT CUSHION, LH
79032-68011C2

ANE11

BLACK,TRIM1#,ｼｰﾄ=TYPE B−*104

 1
79032-68010C2

ANE11

BLACK,TRIM1#,ｼｰﾄ=TYPE B−*104

 1
79032-68011C3

ANE11

BLACK,TRIM1#,ｼｰﾄ=TYPE B−*104

 1
79032-68011C3

ANE11

BLACK,TRIM11,ｼｰﾄ=TYPE B−*104

 1
79034 - COVER SUB-ASSY, NO.3 SEAT BACK, LH
79034-68011C1

ANE11

BLACK,TRIM1#,ｼｰﾄ=TYPE B−*104

 1
79034-68011C0

ANE11

BLACK,TRIM1#,ｼｰﾄ=TYPE B−*104

 1
79034-68010C0

ANE11

BLACK,TRIM1#,ｼｰﾄ=TYPE B−*104

 1
79034-68011C1

ANE11

BLACK,TRIM11,ｼｰﾄ=TYPE B−*104

 1
79034-68012C1

ANE11

BLACK,TRIM11,ｼｰﾄ=TYPE B−*104

 1
79304A - FRAME SUB-ASSY, NO.3 SEAT BACK, LH
79304-68010

ANE1#,ZNE1#

 1
79306 - LEG SUB ASSY, NO.3 SEAT, LH
79306-68010

ANE1#,ZNE1#

 1
79329 - BRACKET, NO.3 SEAT LEG, RR LH
79329-68010

ANE1#,ZNE1#

 1
79345A - PAD, NO.3 SEAT CUSHION, LH
79345-68010

ANE1#,ZNE1#

 1
79370A - SPRING ASSY, NO.3 SEAT CUSHION, LH
79370-68010

ANE1#,ZNE1#

 1
79372 - COVER, NO.3 SEAT FRONT BRACKET, RH
79372-68010C0

ANE1#,ZNE1#

BLACK,TRIM1#

 4
79372 - COVER, NO.3 SEAT FRONT BRACKET, RH
79372-68010C0

ANE1#,ZNE1#

BLACK,TRIM1#

 4
79385A - PAD, NO.3 SEAT BACK, LH
79385-68010

ANE1#,ZNE1#

 1
Common parts
67771-12080
72702-68040
90084-16010
90109-06292
90109-10164
90119-10886
90149-40012
90168-40046
90179-06007
90205-10008
91552-81018
91611-G0612
Linked diagrams
6701
7104
