ANE11W-HWXQH (2003)

Toyota Wish

Production Apr 2003 - Aug 2005
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

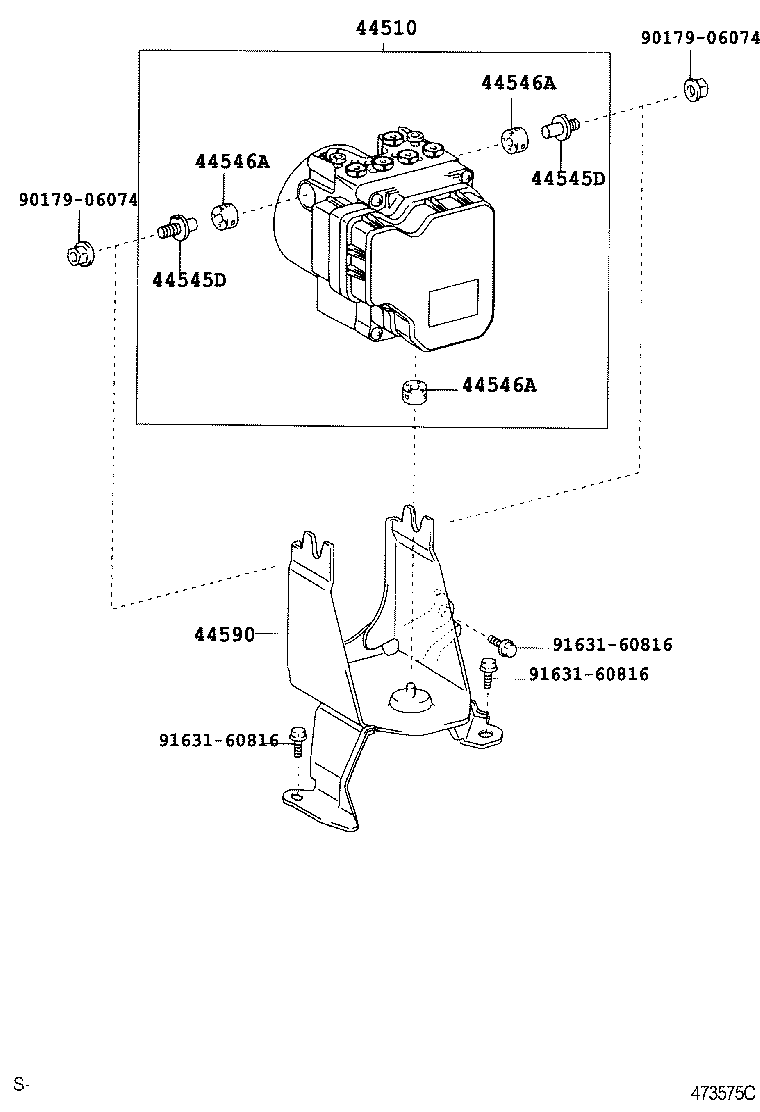

ILLUST NO. 2 OF 2(0304- )ANE11

Click highlighted areas on diagram

diagram 44510 44545D 44545D 44546A 44546A 44546A 44590 9017906074 9017906074 9163160816 9163160816 9163160816
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-68030

ANE11

 1
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-42090

ANE11,ZNE14

 2
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-42090

ANE11,ZNE14

 2
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42090

ANE11,ZNE14

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42090

ANE11,ZNE14

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42090

ANE11,ZNE14

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-68020

ANE11

 1
Common parts
90179-06074
91631-60816

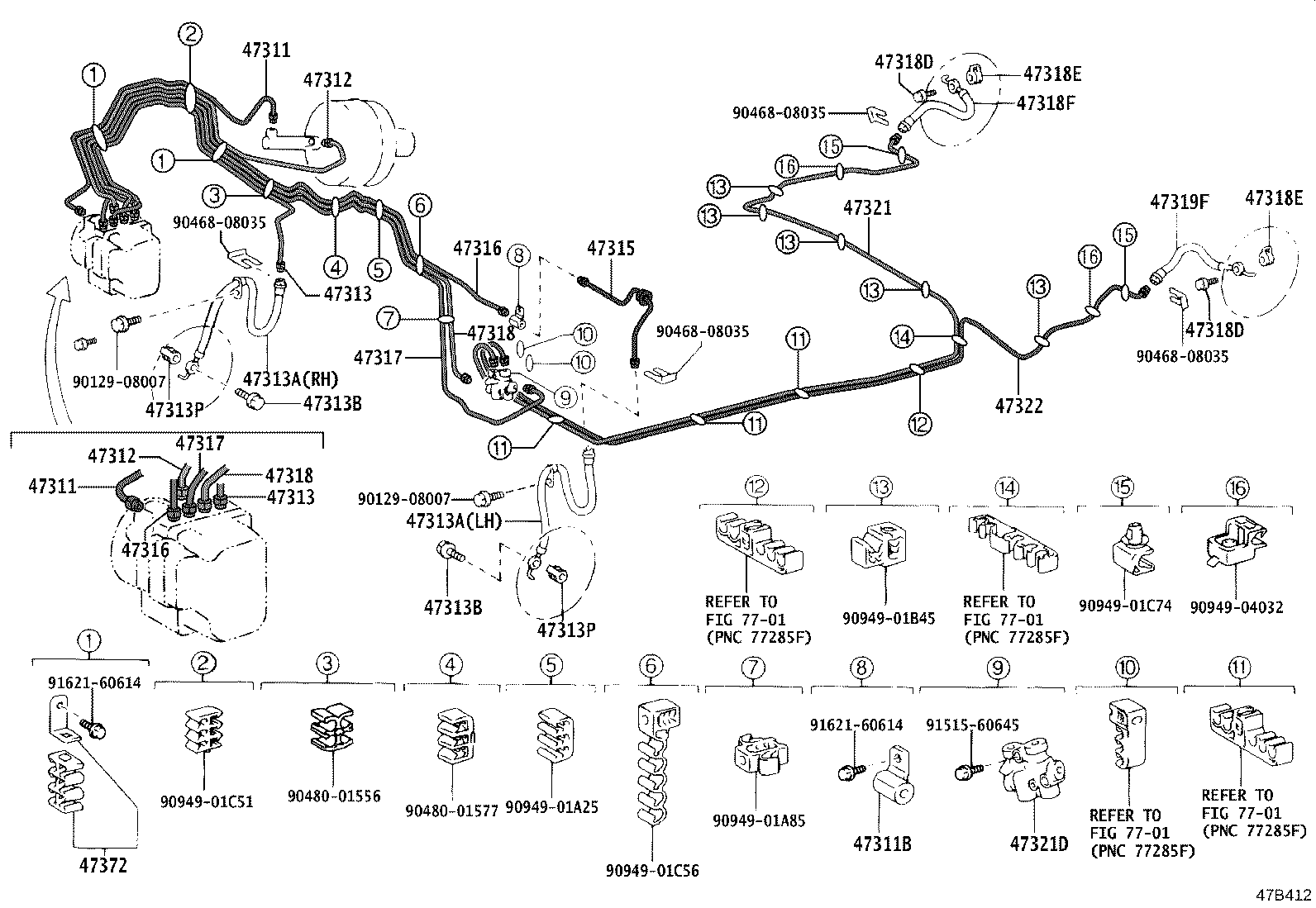

ILLUST NO. 1 OF 2(0304- )ANE11

Click highlighted areas on diagram

diagram 47311 47311 47311B 47312 47312 47313 47313 47313A 47313A 47313B 47313B 47313P 47313P 47315 47316 47316 47317 47317 47318 47318 47318D 47318D 47318E 47318E 47318F 47319F 47321 47321D 47322 47372 7701 7701 7701 7701 9012908007 9012908007 9046808035 9046808035 9046808035 9046808035 9048001556 9048001577 9094901A25 9094901A85 9094901B45 9094901C51 9094901C56 9094901C74 9094904032 9151560645 9162160614 9162160614
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-68030

ANE11

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-68030

ANE11

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10167

ANE1#,ZNE1#

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-68030

ANE11

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-68030

ANE11

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-68030

ANE11

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-68030

ANE11

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02D64

ANE11

左側

 1
90947-02D63

ANE11

右側

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02D64

ANE11

左側

 1
90947-02D63

ANE11

右側

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

ANE1#,ZNE1#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

ANE1#,ZNE1#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

ANE1#,ZNE1#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

ANE1#,ZNE1#

 2
47315 - TUBE, FRONT BRAKE, NO.5
47315-12490

ANE1#,ZNE1#

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-68030

ANE11

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-68030

ANE11

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-68030

ANE11

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-68030

ANE11

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-68030

ANE11

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-68030

ANE11

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

ANE1#,ZNE14

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

ANE1#,ZNE14

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

ANE1#,ZNE14

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

ANE1#,ZNE14

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02A37

ANE11,ZNE14

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02A37

ANE11,ZNE14

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-68020

ANE11

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10140

ANE1#,ZNE1#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-68020

ANE11,ZNE14

 1
47372 - CLAMP, BRAKE TUBE, NO.2
47374-12050

ANE1#,ZNE1#

 2
Common parts
90129-08007
90468-08035
90480-01556
90480-01577
90949-01A25
90949-01A85
90949-01B45
90949-01C51
90949-01C56
90949-01C74
90949-04032
91515-60645
91621-60614
Linked diagrams
7701
