ANE11W-HWXQH (2003)
Toyota Wish

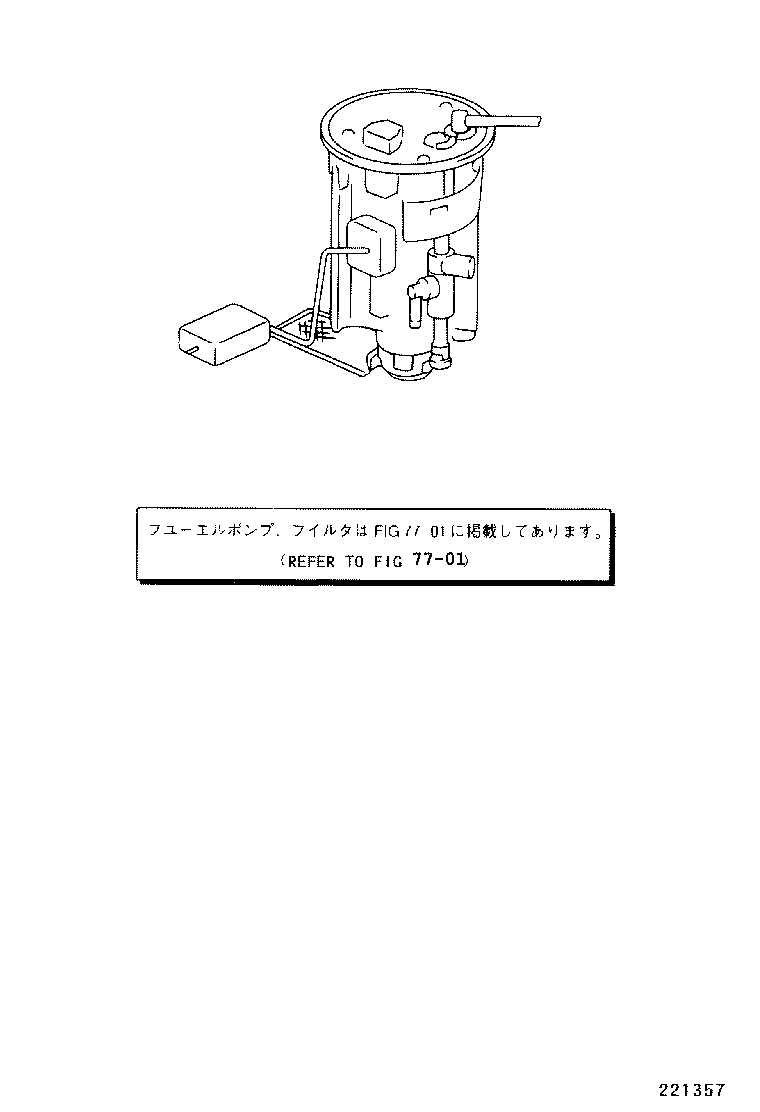

ILLUST NO. 2 OF 2(0304- )1AZFSE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 7701 | ||||

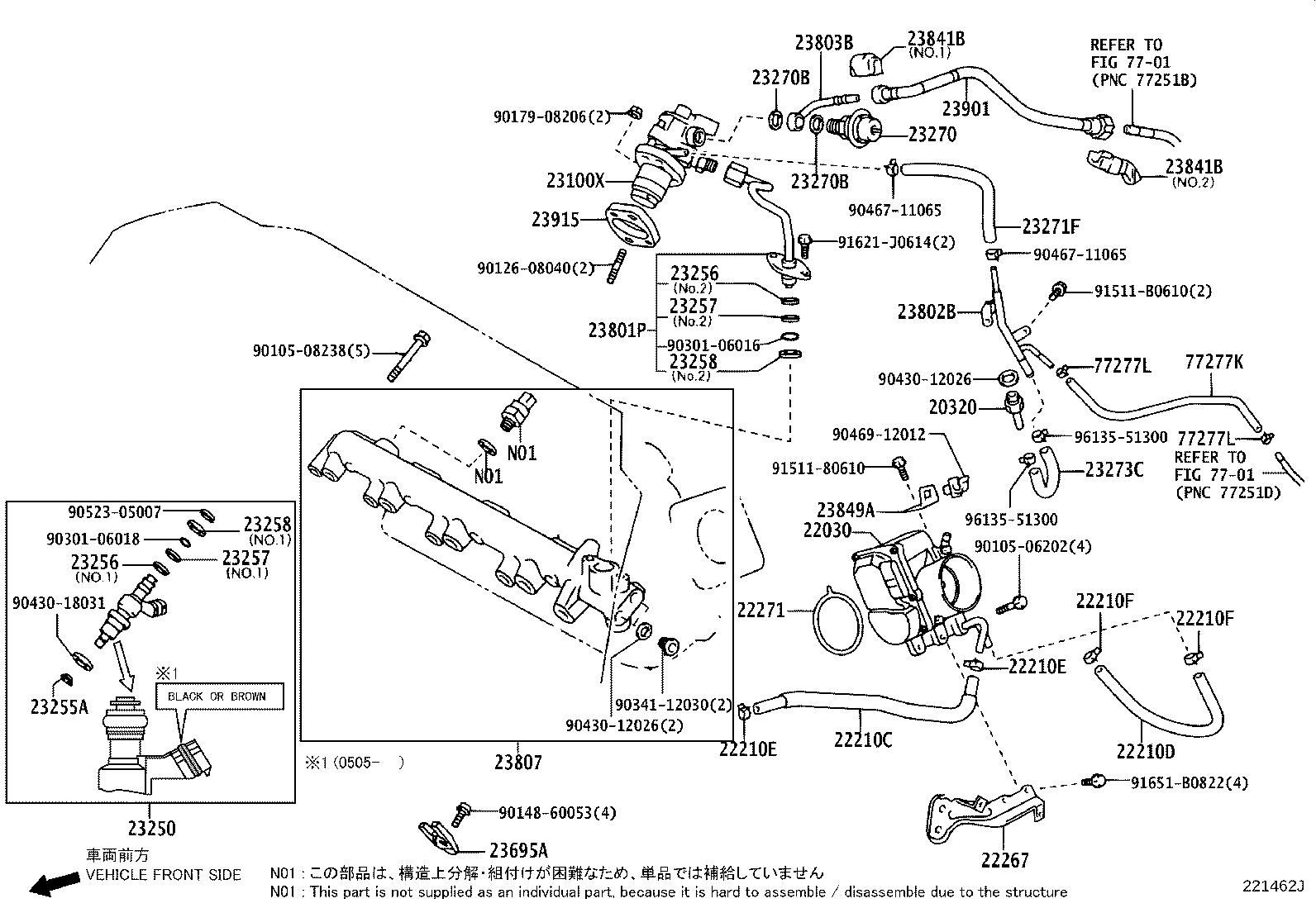

ILLUST NO. 1 OF 2(0304- )1AZFSE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 20320 - VALVE ASSY, FUEL RELIEF | ||||
| 20320-28011 |
1AZFSE..ANE1# |
1 | ||
| 22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR | ||||
| 22030-28050 |
1AZFSE..ANE1# |
1 | ||
| 22210C - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-28030 |
1AZFSE..ANE1# |
1 | ||
| 22210D - HOSE, WATER BY-PASS, NO.2 | ||||
| 99555-10500 |
1AZFSE..ANE1# *H,L=220 |
1 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 96135-51300 |
1AZFSE..ANE1# |
2 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 96135-51300 |
1AZFSE..ANE1# |
2 | ||
| 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) | ||||
| 96135-51300 |
1AZFSE..ANE1# |
2 | ||
| 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) | ||||
| 96135-51300 |
1AZFSE..ANE1# |
2 | ||
| 22267 - BRACKET, THROTTLE BODY | ||||
| 22267-28010 |
1AZFSE..ANE1# |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-28030 |
1AZFSE..ANE1# |
1 | ||
| 23100X - PUMP ASSY, FUEL (ENGINE ROOM SIDE) | ||||
| 23100-28042 |
1AZFSE..ANE1# |
1 | ||
| 23100-28041 |
1AZFSE..ANE1# |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-29036A0 |
1AZFSE..ANE1# MARK BLACK |
4 | ||
| 23209-29035 |
1AZFSE..ANE1# |
4 | ||
| 23209-29036B0 |
1AZFSE..ANE1# MARK BROWN |
4 | ||
| 23255A - SEAL, FUEL INJECTOR | ||||
| 23255-28010 |
1AZFSE..ANE1# |
4 | ||
| 23256 - RING, FUEL INJECTOR BACK-UP, NO.1 | ||||
| 23256-74010 |
1AZFSE..ANE1# NO.1 |
4 | ||
| 23256-74010 |
1AZFSE..ANE1# NO.2 |
1 | ||
| 23256 - RING, FUEL INJECTOR BACK-UP, NO.1 | ||||
| 23256-74010 |
1AZFSE..ANE1# NO.1 |
4 | ||
| 23256-74010 |
1AZFSE..ANE1# NO.2 |
1 | ||
| 23257 - RING, FUEL INJECTOR BACK-UP, NO.2 | ||||
| 23257-74010 |
1AZFSE..ANE1# NO.2 |
1 | ||
| 23257-74010 |
1AZFSE..ANE1# NO.1 |
4 | ||
| 23257 - RING, FUEL INJECTOR BACK-UP, NO.2 | ||||
| 23257-74010 |
1AZFSE..ANE1# NO.2 |
1 | ||
| 23257-74010 |
1AZFSE..ANE1# NO.1 |
4 | ||
| 23258 - RING, FUEL INJECTOR BACK-UP, NO.3 | ||||
| 23258-28010 |
1AZFSE..ANE1# NO.1 |
4 | ||
| 23258-74010 |
1AZFSE..ANE1# NO.2 |
1 | ||
| 23258-28011 |
1AZFSE..ANE1# NO.1 |
4 | ||
| 23258 - RING, FUEL INJECTOR BACK-UP, NO.3 | ||||
| 23258-28010 |
1AZFSE..ANE1# NO.1 |
4 | ||
| 23258-74010 |
1AZFSE..ANE1# NO.2 |
1 | ||
| 23258-28011 |
1AZFSE..ANE1# NO.1 |
4 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23270-28040 |
1AZFSE..ANE1# |
1 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 23279-74010 |
1AZFSE..ANE1# |
2 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 23279-74010 |
1AZFSE..ANE1# |
2 | ||
| 23271F - HOSE, FUEL | ||||
| 23271-28050 |
1AZFSE..ANE1# |
1 | ||
| 23273C - HOSE, FUEL, NO.2 | ||||
| 23273-28010 |
1AZFSE..ANE1# |
1 | ||
| 23695A - CLAMP, NOZZLE HOLDER | ||||
| 23695-28010 |
1AZFSE..ANE1# |
4 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-28043 |
1AZFSE..ANE1# |
1 | ||
| 23802B - PIPE SUB-ASSY, FUEL, NO.2 | ||||
| 23802-28020 |
1AZFSE..ANE1# |
1 | ||
| 23803B - PIPE SUB-ASSY, FUEL, NO.3 | ||||
| 23803-28010 |
1AZFSE..ANE1# |
1 | ||
| 23803-28011 |
1AZFSE..ANE1# |
1 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-28023 |
1AZFSE..ANE1# |
1 | ||
| 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) | ||||
| 23842-28010 |
1AZFSE..ANE1# NO.1 |
1 | ||
| 23841-21030 |
1AZFSE..ANE1# NO.2 |
1 | ||
| 23842-22020 |
1AZFSE..ANE1# NO.1 |
1 | ||
| 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) | ||||
| 23842-28010 |
1AZFSE..ANE1# NO.1 |
1 | ||
| 23841-21030 |
1AZFSE..ANE1# NO.2 |
1 | ||
| 23842-22020 |
1AZFSE..ANE1# NO.1 |
1 | ||
| 23849A - SUPPORT, FUEL PIPE | ||||
| 23849-28060 |
1AZFSE..ANE1# |
1 | ||
| 23901 - TUBE SUB-ASSY, FUEL | ||||
| 23901-28230 |
1AZFSE..ANE1# |
1 | ||
| 23915 - INSULATOR, FUEL PUMP | ||||
| 23915-46011 |
1AZFSE..ANE1# |
1 | ||
| 77277K - HOSE, FUEL(FOR RETURN HOSE) | ||||
| 95337-06030 |
ANE1# |
1 | ||
| 77277L - CLIP, HOSE(FOR RETURN HOSE) | ||||
| 96135-51100 |
ANE1# |
2 | ||
| 77277L - CLIP, HOSE(FOR RETURN HOSE) | ||||
| 96135-51100 |
ANE1# |
2 | ||
| Common parts | ||||
| 90105-06202 | ||||
| 90105-08238 | ||||
| 90126-08040 | ||||
| 90148-60053 | ||||
| 90179-08206 | ||||
| 90301-06016 | ||||
| 90301-06018 | ||||
| 90341-12030 | ||||
| 90430-12026 | ||||
| 90430-18031 | ||||
| 90467-11065 | ||||
| 90469-12012 | ||||
| 90523-05007 | ||||
| 91511-80610 | ||||
| 91511-B0610 | ||||
| 91621-J0614 | ||||
| 91651-B0822 | ||||
| 96135-51300 | ||||
| Linked diagrams | ||||
| 7701 | ||||
