ANE10G-HPXGH (2003)

Toyota Wish

Production Apr 2003 - Aug 2005
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 7(0304- )ANE1#

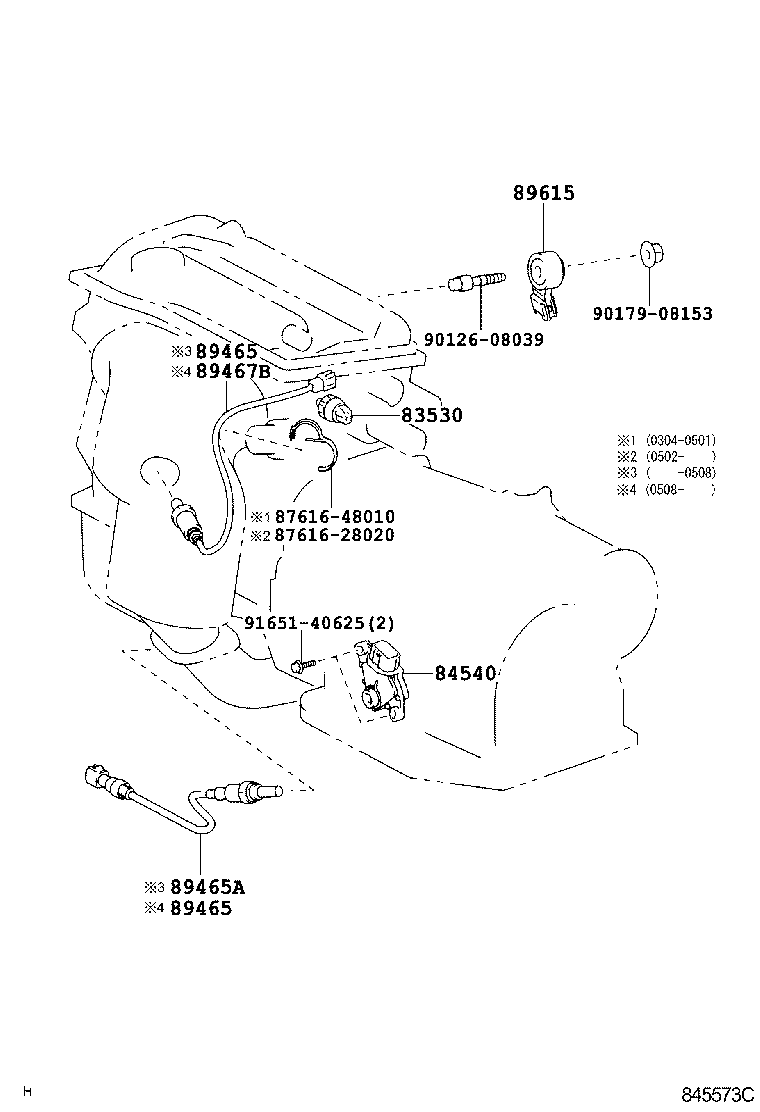

Click highlighted areas on diagram

ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ

diagram 83530 84540 8761628020 8761648010 89465 89465 89465A 89467B 89615 9012608039 9017908153 9165140625
Part # Description Qty Price
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-28020

ANE1#

DENSO

 1
83530-60020

ANE1#,ZNE1#

YAZAKI

 1
84540 - SWITCH ASSY, NEUTRAL START
84540-63010

ANE1#

 1
89465 - SENSOR, OXYGEN
89465-68010

ANE1#

 1
89465 - SENSOR, OXYGEN
89465-68010

ANE1#

 1
89465A - SENSOR, OXYGEN NO.2
89465-68020

ANE1#

 1
89615 - SENSOR, KNOCK CONTROL
89615-20090

ANE1#,ZNE1#

 1
Common parts
87616-28020
87616-48010
90126-08039
90179-08153
91651-40625
