ANE10G-HPXGH (2003)
Toyota Wish

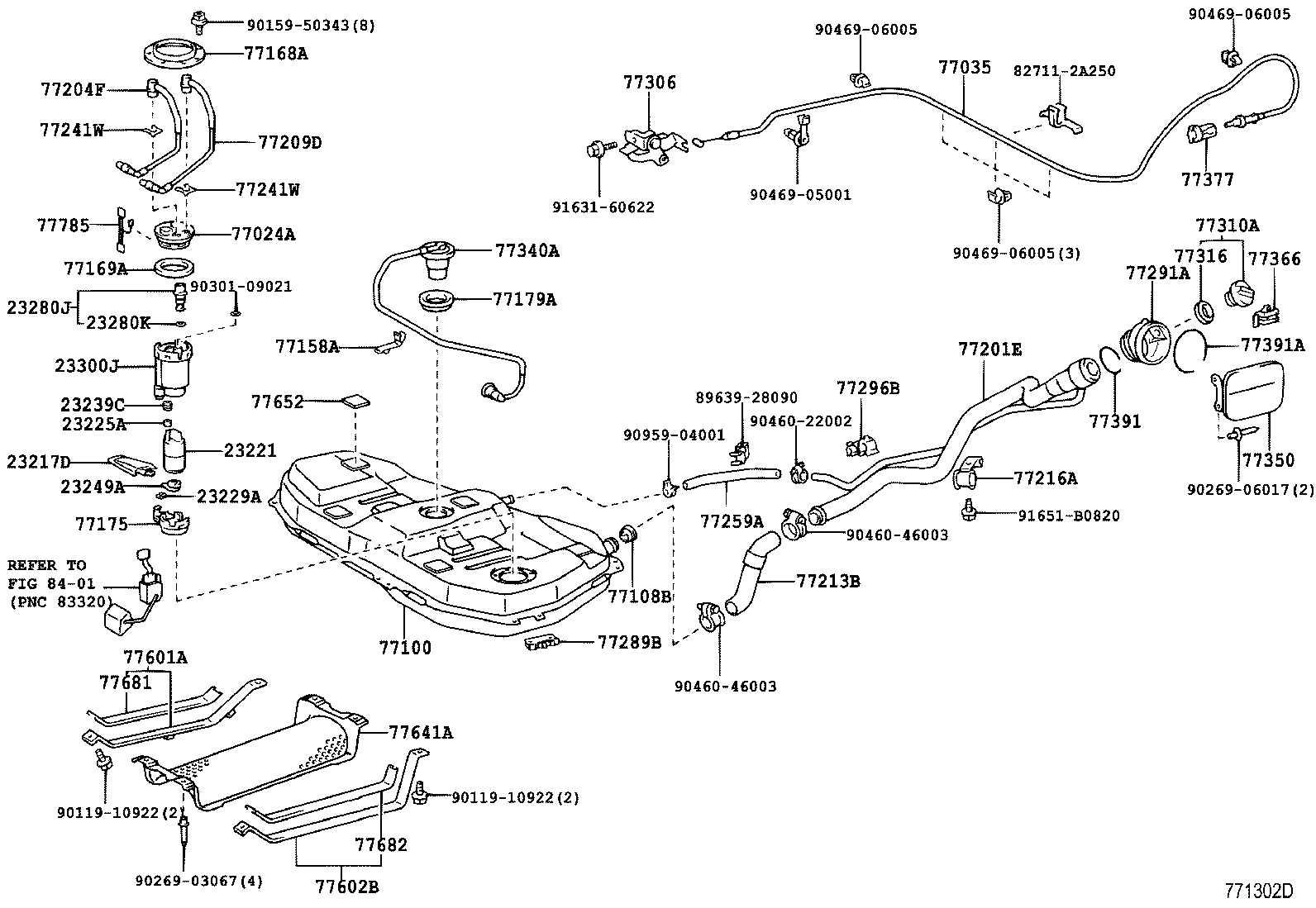

ILLUST NO. 1 OF 2(0304- )ANE1#
ﾌｭｰｴﾙﾀﾝｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23217D - FILTER, FUEL PUMP | ||||
| 23217-28250 |
1AZFSE..ANE1# |
1 | ||
| 23221 - PUMP, FUEL | ||||
| 23221-28040 |
1AZFSE..ANE1# |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-21010 |
1AZFSE,1ZZFE..ANE1#,ZNE1# |
1 | ||
| 23229A - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
1AZFSE,1ZZFE..ANE1#,ZNE1# |
1 | ||
| 23239C - SEAL, FUEL PUMP FILTER | ||||
| 23239-21010 |
1AZFSE,1ZZFE..ANE1#,ZNE1# |
1 | ||
| 23249A - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-74610 |
1AZFSE,1ZZFE..ANE1#,ZNE1# |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-28060 |
1AZFSE..ANE1# |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07020 |
1AZFSE,1ZZFE..ANE1#,ZNE10 |
1 | ||
| 23300J - FILTER ASSY, FUEL | ||||
| 23300-28040 |
1AZFSE,1ZZFE..ANE1#,ZNE1# |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-68020 |
ANE1# |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-68010 |
ANE1#,ZNE1# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-68010 |
ANE1#,ZNE10 |
1 | ||
| 77108B - VALVE SUB-ASSY, FUEL TANK FILLER CHECK | ||||
| 77108-12020 |
ANE1#,ZNE10 |
1 | ||
| 77158A - SUPPORT, TANK SUCTION TUBE | ||||
| 77158-68010 |
ANE1#,ZNE1# |
1 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-52010 |
ANE1#,ZNE14 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-33020 |
ANE1#,ZNE1# |
1 | ||
| 77175 - SUPPORT, FUEL SUCTION, NO.2 | ||||
| 77175-52020 |
ANE1#,ZNE1# |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-33010 |
ANE1#,ZNE10 |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-68010 |
ANE1#,ZNE1# |
1 | ||
| 77204F - STAY SUB-ASSY, FUEL TANK FILLER UPR PIPE | ||||
| 77204-68010 |
ANE1# |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-68010 |
ANE1#,ZNE10 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-68010 |
ANE1#,ZNE10 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-68010 |
ANE1#,ZNE1# |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-32060 |
ANE1# |
2 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-32060 |
ANE1# |
2 | ||
| 77259A - HOSE, FUEL(FOR BREATHER TUBE) | ||||
| 77259-68010 |
ANE1#,ZNE10 |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-68010 |
ANE1#,ZNE1# |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-68010 |
ANE1#,ZNE1# |
1 | ||
| 77296B - SUPPORT, FUEL TUBE PROTECTOR, NO.1 | ||||
| 77296-68012 |
ANE1#,ZNE1# |
1 | ||
| 77296-68011 |
ANE1#,ZNE1# |
1 | ||
| 77296-68010 |
ANE1#,ZNE1# |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-13020 |
ANE1#,ZNE1# |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-48010 |
ANE1#,ZNE1# |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
ANE1#,ZNE1# |
1 | ||
| 77340A - VALVE ASSY, FUEL CUT OFF W/TUBE | ||||
| 77340-68010 |
ANE1#,ZNE10 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-68010 |
ANE1#,ZNE1# |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-21010 |
ANE1#,ZNE1# |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12050 |
ANE1#,ZNE1# |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
ANE1#,ZNE1# |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-63010 |
ANE1#,ZNE1# |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-68010 |
ANE1#,ZNE10 |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-68010 |
ANE1#,ZNE10 |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-68010 |
ANE1#,ZNE10 |
1 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20090 |
ANE1#,ZNE10 |
9 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77616-68010 |
ANE1#,ZNE10 |
1 | ||
| 77616-36010 |
ANE1#,ZNE10 |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77682-16010 |
ANE1#,ZNE10 |
1 | ||
| 77616-68020 |
ANE1#,ZNE10 |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-32010 |
ANE1#,ZNE1# |
1 | ||
| Common parts | ||||
| 82711-2A250 | ||||
| 89639-28090 | ||||
| 90119-10922 | ||||
| 90159-50343 | ||||
| 90269-03067 | ||||
| 90269-06017 | ||||
| 90301-09021 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 90469-05001 | ||||
| 90469-06005 | ||||
| 90959-04001 | ||||
| 91631-60622 | ||||
| 91651-B0820 | ||||
| Linked diagrams | ||||
| 8401 | ||||

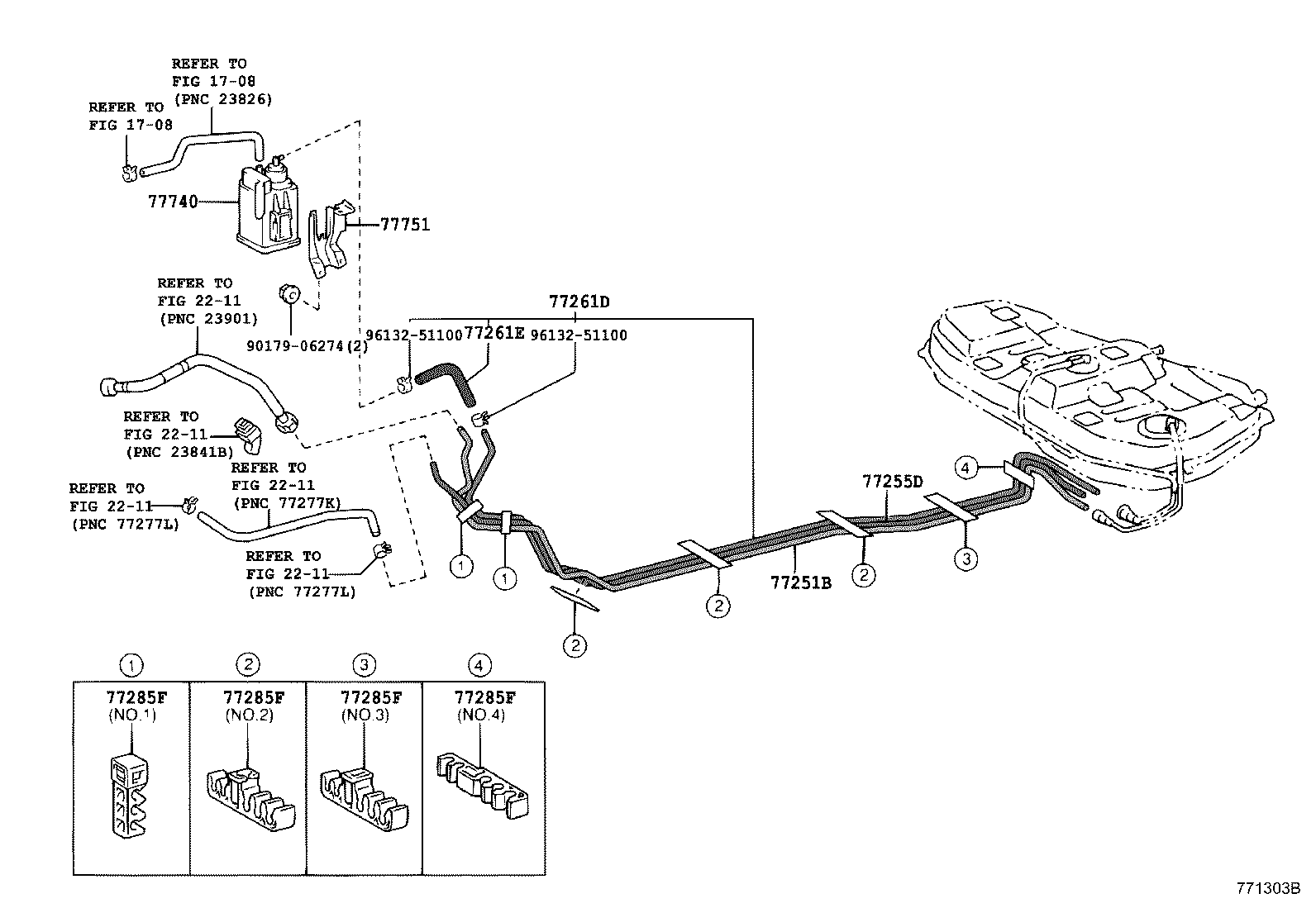

ILLUST NO. 2 OF 2(0304- )ANE1#
ﾌｭｰｴﾙﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-68010 |
ANE1#,ZNE1# |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-68010 |
ANE1# |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77019-68010 |
ANE1#,ZNE1# |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95337-06014 |
ANE1#,ZNE1# 長さ=140 |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77289-68020 |
ANE1#,ZNE1# NO.1 |
2 | ||
| 77298-68030 |
ANE1#,ZNE1# NO.4 |
1 | ||
| 77298-68020 |
ANE1#,ZNE1# NO.3 |
1 | ||
| 77298-68010 |
ANE1#,ZNE1# NO.2 |
3 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77289-68020 |
ANE1#,ZNE1# NO.1 |
2 | ||
| 77298-68030 |
ANE1#,ZNE1# NO.4 |
1 | ||
| 77298-68020 |
ANE1#,ZNE1# NO.3 |
1 | ||
| 77298-68010 |
ANE1#,ZNE1# NO.2 |
3 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77289-68020 |
ANE1#,ZNE1# NO.1 |
2 | ||
| 77298-68030 |
ANE1#,ZNE1# NO.4 |
1 | ||
| 77298-68020 |
ANE1#,ZNE1# NO.3 |
1 | ||
| 77298-68010 |
ANE1#,ZNE1# NO.2 |
3 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77289-68020 |
ANE1#,ZNE1# NO.1 |
2 | ||
| 77298-68030 |
ANE1#,ZNE1# NO.4 |
1 | ||
| 77298-68020 |
ANE1#,ZNE1# NO.3 |
1 | ||
| 77298-68010 |
ANE1#,ZNE1# NO.2 |
3 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-12690 |
ANE1#,ZNE1# |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-20390 |
ANE1#,ZNE1# |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
