VCV11-ATPGK (1993)
Toyota Windom

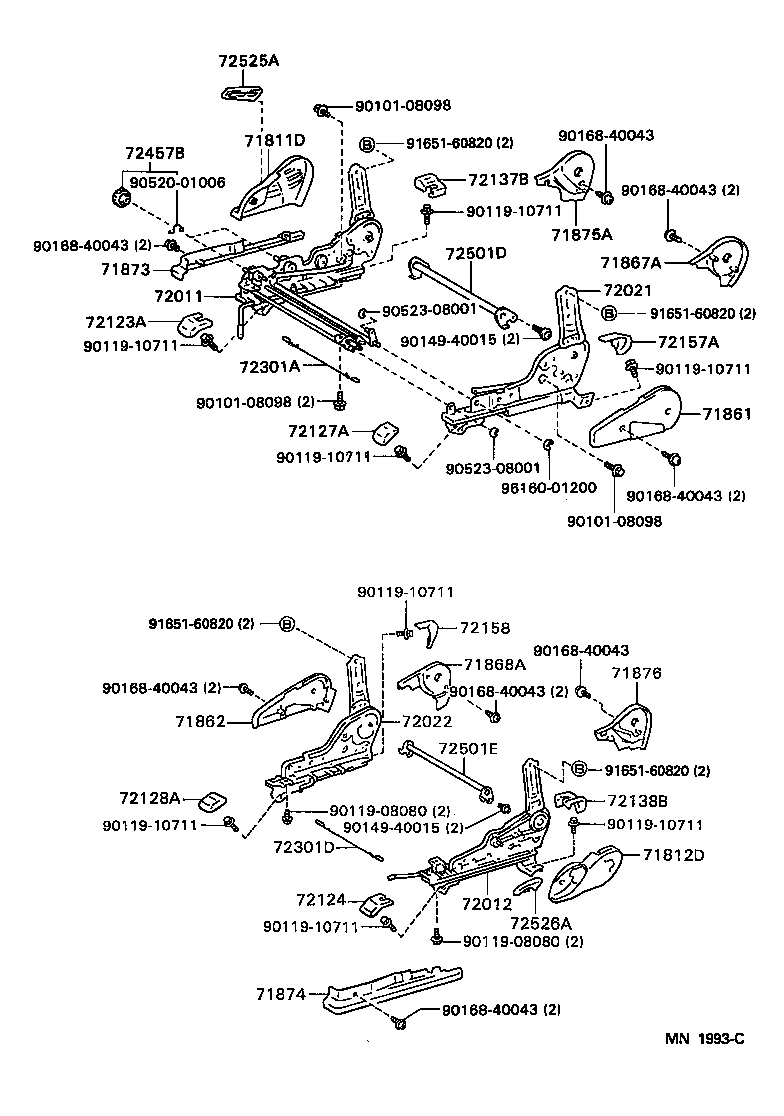

ILLUST NO. 2 OF 2(9308- )VCV11
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-33020E1 |
VCV11 OAK,TRIM4# |
1 | ||
| 71811-32100K2 |
VCV11 2.5G OR 3.0G,MD.TAUPE,TRIM9# |
1 | ||
| 71811-33020K1 |
VCV11 MEDIUM TAUPE,TRIM9# |
1 | ||
| 71811-33020C0 |
VCV11 BLACK,TRIM2# |
1 | ||
| 71811-3210022 |
VCV11 2.5G OR 3.0G,BLACK,TRIM2# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-33020K1 |
VCV1# MEDIUM TAUPE,TRIM9# |
1 | ||
| 71812-33020E1 |
VCV1# OAK,TRIM4# |
1 | ||
| 71812-33020C0 |
VCV1# BLACK,TRIM2# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-33010K1 |
VCV11 MEDIUM TAUPE,TRIM9# |
1 | ||
| 71861-3207022 |
VCV11 2.5G OR 3.0G,BLACK,TRIM2# |
1 | ||
| 71861-33010C0 |
VCV11 BLACK,TRIM2# |
1 | ||
| 71861-33010E1 |
VCV11 OAK,TRIM4# |
1 | ||
| 71861-32070K2 |
VCV11 2.5G OR 3.0G,MD.TAUPE,TRIM9# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-33010K1 |
VCV1# MEDIUM TAUPE,TRIM9# |
1 | ||
| 71862-33010C0 |
VCV1# BLACK,TRIM2# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-33020C0 |
VCV11 BLACK,TRIM2# |
1 | ||
| 71867-33020E1 |
VCV11 OAK,TRIM4# |
1 | ||
| 71867-33020K1 |
VCV11 MEDIUM TAUPE,TRIM9# |
1 | ||
| 71867-3201022 |
VCV11 2.5G OR 3.0G,BLACK,TRIM2# |
1 | ||
| 71867-32010K2 |
VCV11 2.5G OR 3.0G,MD.TAUPE,TRIM9# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-33020C0 |
VCV1# BLACK,TRIM2# |
1 | ||
| 71868-33020E1 |
VCV1# OAK,TRIM4# |
1 | ||
| 71868-33020K1 |
VCV1# MEDIUM TAUPE,TRIM9# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-33020K1 |
VCV11 MEDIUM TAUPE,TRIM9# |
1 | ||
| 71873-32031K2 |
VCV11 2.5G OR 3.0G,MD.TAUPE,TRIM9# |
1 | ||
| 71873-33020C0 |
VCV11 BLACK,TRIM2# |
1 | ||
| 71873-3203122 |
VCV11 2.5G OR 3.0G,BLACK,TRIM2# |
1 | ||
| 71873-33020E1 |
VCV11 OAK,TRIM4# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-33020C0 |
VCV1# BLACK,TRIM2# |
1 | ||
| 71874-33020K1 |
VCV1# MEDIUM TAUPE,TRIM9# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-33020E1 |
VCV11 OAK,TRIM4# |
1 | ||
| 71875-33020K1 |
VCV11 MEDIUM TAUPE,TRIM9# |
1 | ||
| 71875-33020C0 |
VCV11 BLACK,TRIM2# |
1 | ||
| 71875-3202022 |
VCV11 2.5G OR 3.0G,BLACK,TRIM2# |
1 | ||
| 71875-32020K2 |
VCV11 2.5G OR 3.0G,MD.TAUPE,TRIM9# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-33020C0 |
VCV1# BLACK,TRIM2# |
1 | ||
| 71876-33020K1 |
VCV1# MEDIUM TAUPE,TRIM9# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-33110 |
VCV11 |
1 | ||
| 72011-33041 |
VCV11 |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-33100 |
VCV1# |
1 | ||
| 72012-33031 |
VCV1# |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-33041 |
VCV11 |
1 | ||
| 72021-33110 |
VCV11 |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-33100 |
VCV1# |
1 | ||
| 72022-33031 |
VCV1# |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-3204012 |
VCV1# MEDIUM TAUPE,TRIM9# |
1 | ||
| 72123-3204001 |
VCV1# BLACK,TRIM2# |
1 | ||
| 72123-32040K2 |
VCV1# MD.TAUPE,TRIM9# |
1 | ||
| 72123-32040E1 |
VCV1# OAK,TRIM4# |
1 | ||
| 72123-3204022 |
VCV1# BLACK,TRIM2# |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72123-3204012 |
VCV1# MEDIUM TAUPE,TRIM9# |
1 | ||
| 72123-32040E1 |
VCV1# OAK,TRIM4# |
1 | ||
| 72123-3204001 |
VCV1# BLACK,TRIM2# |
1 | ||
| 72123-32040K2 |
VCV1# MD.TAUPE,TRIM9# |
1 | ||
| 72123-3204022 |
VCV1# BLACK,TRIM2# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-32020K2 |
VCV1# MD.TAUPE,TRIM9# |
1 | ||
| 72127-32020E1 |
VCV1# OAK,TRIM4# |
1 | ||
| 72127-3202022 |
VCV1# BLACK,TRIM2# |
1 | ||
| 72127-3202001 |
VCV1# BLACK,TRIM2# |
1 | ||
| 72127-3202012 |
VCV1# MEDIUM TAUPE,TRIM9# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72127-32020K2 |
VCV1# MD.TAUPE,TRIM9# |
1 | ||
| 72127-32020E1 |
VCV1# OAK,TRIM4# |
1 | ||
| 72127-3202001 |
VCV1# BLACK,TRIM2# |
1 | ||
| 72127-3202012 |
VCV1# MEDIUM TAUPE,TRIM9# |
1 | ||
| 72127-3202022 |
VCV1# BLACK,TRIM2# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-3301002 |
VCV1# MEDIUM TAUPE,TRIM9# |
1 | ||
| 72137-3301001 |
VCV1# BLACK,TRIM2# |
1 | ||
| 72137-33010K2 |
VCV1# MD.TAUPE,TRIM9# |
1 | ||
| 72137-3301022 |
VCV1# BLACK,TRIM2# |
1 | ||
| 72137-33010E1 |
VCV1# OAK,TRIM4# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-3301001 |
VCV1# BLACK,TRIM2# |
1 | ||
| 72138-3301002 |
VCV1# MEDIUM TAUPE,TRIM9# |
1 | ||
| 72138-3301022 |
VCV1# BLACK,TRIM2# |
1 | ||
| 72138-33010K2 |
VCV1# MD.TAUPE,TRIM9# |
1 | ||
| 72138-33010E1 |
VCV1# OAK,TRIM4# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-3301002 |
VCV1# MEDIUM TAUPE,TRIM9# |
1 | ||
| 72157-33010E1 |
VCV1# OAK,TRIM4# |
1 | ||
| 72157-3301001 |
VCV1# BLACK,TRIM2# |
1 | ||
| 72157-3301022 |
VCV1# BLACK,TRIM2# |
1 | ||
| 72157-33010K2 |
VCV1# MD.TAUPE,TRIM9# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-33010K2 |
VCV1# MD.TAUPE,TRIM9# |
1 | ||
| 72158-3301001 |
VCV1# BLACK,TRIM2# |
1 | ||
| 72158-3301022 |
VCV1# BLACK,TRIM2# |
1 | ||
| 72158-33010E1 |
VCV1# OAK,TRIM4# |
1 | ||
| 72158-3301002 |
VCV1# MEDIUM TAUPE,TRIM9# |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-33010 |
VCV11 |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-33010 |
VCV1# |
1 | ||
| 72457B - KNOB, VERTICAL SEAT ADJUSTER, RH | ||||
| 72457-2202001 |
VCV11 BLACK,TRIM2# |
2 | ||
| 72457-22020C0 |
VCV11 BLACK,TRIM2# |
2 | ||
| 72457-22020K1 |
VCV11 MEDIUM TAUPE,TRIM9# |
2 | ||
| 72457-22020E2 |
VCV11 OAK,TRIM4# |
2 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72345-33020 |
VCV11 |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72345-33020 |
VCV1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-33010K1 |
VCV11 MEDIUM TAUPE,TRIM9# |
1 | ||
| 72525-33010C0 |
VCV11 BLACK,TRIM2# |
1 | ||
| 72525-33010E1 |
VCV11 OAK,TRIM4# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-33010K1 |
VCV1# MEDIUM TAUPE,TRIM9# |
1 | ||
| 72526-33010C0 |
VCV1# BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90101-08098 | ||||
| 90119-08080 | ||||
| 90119-10711 | ||||
| 90149-40015 | ||||
| 90168-40043 | ||||
| 90520-01006 | ||||
| 90523-08001 | ||||
| 91651-60820 | ||||
| 96160-01200 | ||||

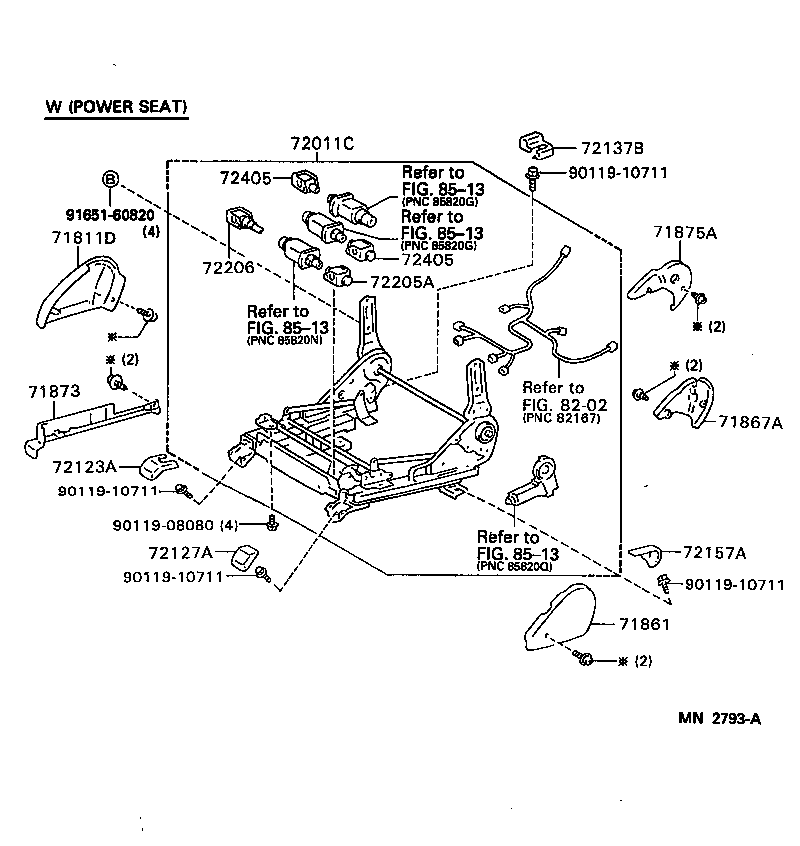

ILLUST NO. 2 OF 2(9408- )VCV11
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-33020E1 |
VCV11 OAK,TRIM4# |
1 | ||
| 71811-32100K2 |
VCV11 2.5G OR 3.0G,MD.TAUPE,TRIM9# |
1 | ||
| 71811-33020K1 |
VCV11 MEDIUM TAUPE,TRIM9# |
1 | ||
| 71811-33020C0 |
VCV11 BLACK,TRIM2# |
1 | ||
| 71811-3210022 |
VCV11 2.5G OR 3.0G,BLACK,TRIM2# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-33010K1 |
VCV11 MEDIUM TAUPE,TRIM9# |
1 | ||
| 71861-3207022 |
VCV11 2.5G OR 3.0G,BLACK,TRIM2# |
1 | ||
| 71861-33010C0 |
VCV11 BLACK,TRIM2# |
1 | ||
| 71861-33010E1 |
VCV11 OAK,TRIM4# |
1 | ||
| 71861-32070K2 |
VCV11 2.5G OR 3.0G,MD.TAUPE,TRIM9# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-33020C0 |
VCV11 BLACK,TRIM2# |
1 | ||
| 71867-33020E1 |
VCV11 OAK,TRIM4# |
1 | ||
| 71867-33020K1 |
VCV11 MEDIUM TAUPE,TRIM9# |
1 | ||
| 71867-3201022 |
VCV11 2.5G OR 3.0G,BLACK,TRIM2# |
1 | ||
| 71867-32010K2 |
VCV11 2.5G OR 3.0G,MD.TAUPE,TRIM9# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-33020K1 |
VCV11 MEDIUM TAUPE,TRIM9# |
1 | ||
| 71873-32031K2 |
VCV11 2.5G OR 3.0G,MD.TAUPE,TRIM9# |
1 | ||
| 71873-33020C0 |
VCV11 BLACK,TRIM2# |
1 | ||
| 71873-3203122 |
VCV11 2.5G OR 3.0G,BLACK,TRIM2# |
1 | ||
| 71873-33020E1 |
VCV11 OAK,TRIM4# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-33020E1 |
VCV11 OAK,TRIM4# |
1 | ||
| 71875-33020K1 |
VCV11 MEDIUM TAUPE,TRIM9# |
1 | ||
| 71875-33020C0 |
VCV11 BLACK,TRIM2# |
1 | ||
| 71875-3202022 |
VCV11 2.5G OR 3.0G,BLACK,TRIM2# |
1 | ||
| 71875-32020K2 |
VCV11 2.5G OR 3.0G,MD.TAUPE,TRIM9# |
1 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 72010-33130 |
VCV11 2.5G OR 3.0G |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-3204012 |
VCV1# MEDIUM TAUPE,TRIM9# |
1 | ||
| 72123-3204001 |
VCV1# BLACK,TRIM2# |
1 | ||
| 72123-32040K2 |
VCV1# MD.TAUPE,TRIM9# |
1 | ||
| 72123-32040E1 |
VCV1# OAK,TRIM4# |
1 | ||
| 72123-3204022 |
VCV1# BLACK,TRIM2# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-32020K2 |
VCV1# MD.TAUPE,TRIM9# |
1 | ||
| 72127-32020E1 |
VCV1# OAK,TRIM4# |
1 | ||
| 72127-3202022 |
VCV1# BLACK,TRIM2# |
1 | ||
| 72127-3202001 |
VCV1# BLACK,TRIM2# |
1 | ||
| 72127-3202012 |
VCV1# MEDIUM TAUPE,TRIM9# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-3301002 |
VCV1# MEDIUM TAUPE,TRIM9# |
1 | ||
| 72137-3301001 |
VCV1# BLACK,TRIM2# |
1 | ||
| 72137-33010K2 |
VCV1# MD.TAUPE,TRIM9# |
1 | ||
| 72137-3301022 |
VCV1# BLACK,TRIM2# |
1 | ||
| 72137-33010E1 |
VCV1# OAK,TRIM4# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-3301002 |
VCV1# MEDIUM TAUPE,TRIM9# |
1 | ||
| 72157-33010E1 |
VCV1# OAK,TRIM4# |
1 | ||
| 72157-3301001 |
VCV1# BLACK,TRIM2# |
1 | ||
| 72157-3301022 |
VCV1# BLACK,TRIM2# |
1 | ||
| 72157-33010K2 |
VCV1# MD.TAUPE,TRIM9# |
1 | ||
| 72205A - HOUSING SUB-ASSY, POWER SEAT, NO.1 | ||||
| 72205-50020 |
VCV11 |
1 | ||
| 72206 - HOUSING SUB-ASSY, POWER SEAT, NO.2 | ||||
| 72206-22020 |
VCV11 |
1 | ||
| 72405 - HOUSING SUB-ASSY, FRONT SEAT VERTICAL | ||||
| 72405-24020 |
VCV11 |
2 | ||
| 72405 - HOUSING SUB-ASSY, FRONT SEAT VERTICAL | ||||
| 72405-24020 |
VCV11 |
2 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-10711 | ||||
| 91651-60820 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8513 | ||||
