VCV10-ATPGK (1991)

Toyota Windom

Production Oct 1991 - Aug 1996
Engine 3VZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9308-9608)

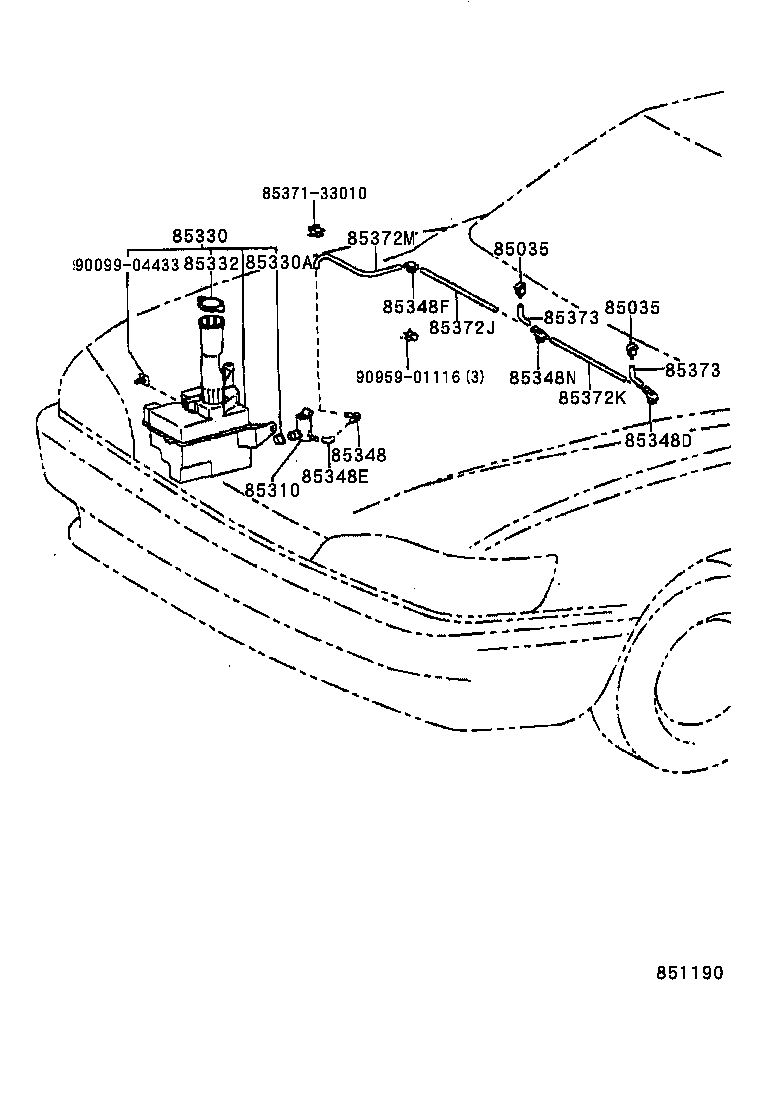

Click highlighted areas on diagram

diagram 85035 85035 85310 85330 85330A 85332 85348 85348D 85348E 85348F 85348N 8537133010 85372J 85372K 85372M 85373 85373 9009904433 9095901116
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85385-33040C0

VCV10

BLACK,202

 2
85385-33040D0

VCV10

DK.MAUVE MC.ME,3K1

 2
85385-33040G0

VCV10

DK.GREEN MC.,6M1

 2
85385-33040A0

VCV10

ｴｸﾞｾﾞｸﾃｲﾌﾞ ﾊﾟﾂｹ-ｼﾞ,SUPER WHITE PEARL MC,051

 2
85385-33070

VCV1#

BLK(202,6M1,3K1,8K0)

 2
85385-33040D1

VCV10

RED MC.,3K3

 2
85385-33040E0

VCV10

BEIGE MC.ME.,4J1

 2
85385-33010G0

VCV10

DARK GREEN MICA,6M1

 2
85385-33010D2

VCV1#

LT GRAYISH ROSE M OP,3K7

 2
85385-33010D0

VCV10

DARK MAUVE MICA M.,3K1

 2
85385-33040D2

VCV10

LT GRAYISH ROSE M.OP,3K7

 2
85385-33010C0

VCV10

BLACK,202

 2
85385-33010C0

VCV1#

BLACK,202 ,6M1 ,8K0

 2
85385-33010C0

VCV1#

BLACK,202 ,8K0

 2
85385-33040A0

VCV10

ﾎﾜｲﾄﾊﾟ-ﾙﾏｲｶ ｾﾚｸｼﾖﾝ,SUPER WHITE PEARL MC,051

 2
85385-33010A0

VCV1#

SUPER WHITE PEARL M.,051

 2
85385-33040E1

VCV1#

BEIGE ME,4M9

 2
85385-33070

VCV1#

ﾌﾞﾗｯｸ

 2
85035 - NOZZLE SUB-ASSY, WASHER
85385-33040C0

VCV10

BLACK,202

 2
85385-33040D0

VCV10

DK.MAUVE MC.ME,3K1

 2
85385-33040G0

VCV10

DK.GREEN MC.,6M1

 2
85385-33040A0

VCV10

ｴｸﾞｾﾞｸﾃｲﾌﾞ ﾊﾟﾂｹ-ｼﾞ,SUPER WHITE PEARL MC,051

 2
85385-33070

VCV1#

BLK(202,6M1,3K1,8K0)

 2
85385-33040D1

VCV10

RED MC.,3K3

 2
85385-33040E0

VCV10

BEIGE MC.ME.,4J1

 2
85385-33010G0

VCV10

DARK GREEN MICA,6M1

 2
85385-33010D2

VCV1#

LT GRAYISH ROSE M OP,3K7

 2
85385-33010D0

VCV10

DARK MAUVE MICA M.,3K1

 2
85385-33040D2

VCV10

LT GRAYISH ROSE M.OP,3K7

 2
85385-33010C0

VCV10

BLACK,202

 2
85385-33010C0

VCV1#

BLACK,202 ,6M1 ,8K0

 2
85385-33010C0

VCV1#

BLACK,202 ,8K0

 2
85385-33040A0

VCV10

ﾎﾜｲﾄﾊﾟ-ﾙﾏｲｶ ｾﾚｸｼﾖﾝ,SUPER WHITE PEARL MC,051

 2
85385-33010A0

VCV1#

SUPER WHITE PEARL M.,051

 2
85385-33040E1

VCV1#

BEIGE ME,4M9

 2
85385-33070

VCV1#

ﾌﾞﾗｯｸ

 2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-20170

VCV10

ｱﾘ(ﾘﾔ ﾜｲﾊﾟ)

 1
85330-12280

VCV1#

ｱﾘ(ﾘﾔ ﾜｲﾊﾟ)

 1
85310-20210

VCV1#

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-33120

VCV1#

 1
85315-33010

VCV10

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

VCV1#

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-22190

VCV10

 1
85316-33120

VCV1#

 1
85316-33020

VCV10

 1
85316-33010

VCV10

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85378-33030

VCV10

3-WAY

 1
85349-89122

VCV10

2-WAY

 2
85349-89122

VCV1#

 1
85355-20200

VCV1#

 1
85355-20200

VCV1#

ｱﾘ(*RW)

 1
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85377-33030

VCV10

左側

 1
85375-33070

VCV10

右側

 1
85377-33030

VCV1#

 1
85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2
85375-33040

VCV1#

 1
85355-14481

VCV1#

ｱﾘ(*RW)

 1
85355-14481

VCV1#

 1
85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3
85375-33070

VCV1#

 1
85348N - JOINT, WINDSHIELD WASHER HOSE, NO.4
85378-33030

VCV1#

 1
85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
90099-33080

VCV1#

L=1450

 1
85372K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5
90099-33080

VCV1#

L=1450

 1
85372M - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7
90099-33889

VCV1#

長さ=1540

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

VCV1#

L=1450

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

VCV1#

L=1450

 2
Common parts
85371-33010
90099-04433
90959-01116

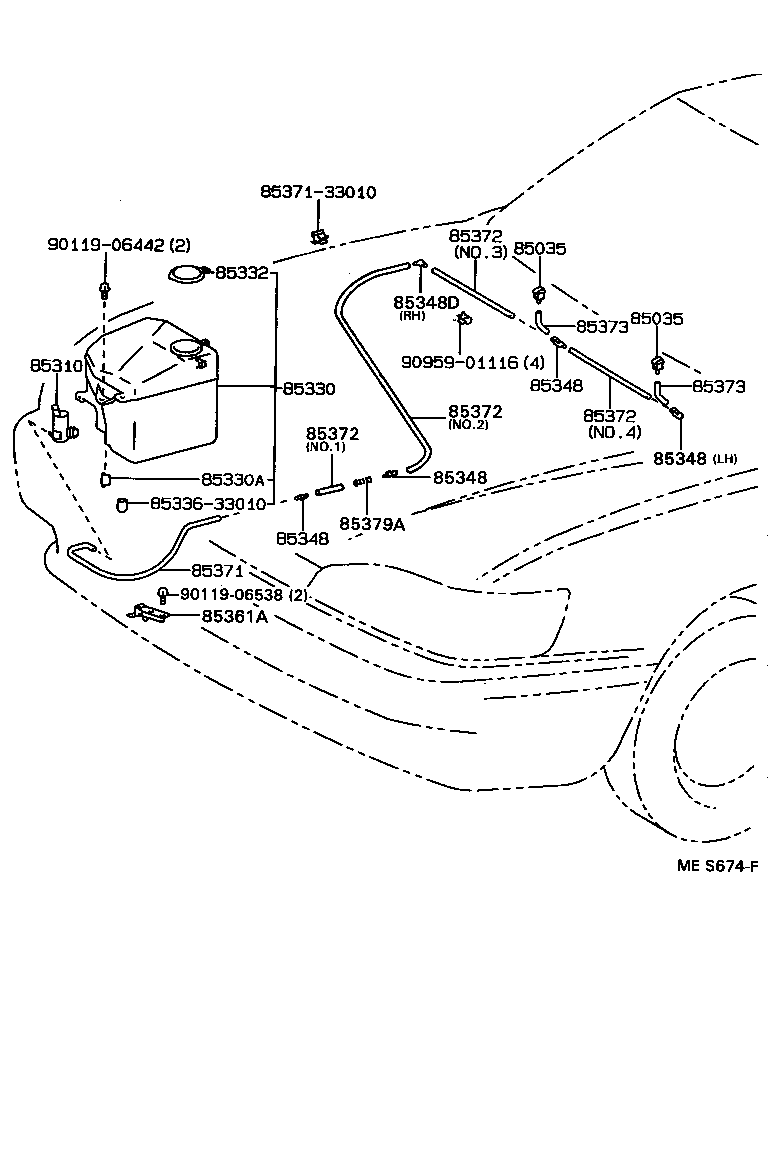

(9110-9308)

Click highlighted areas on diagram

diagram 85035 85035 85310 85330 85330A 85332 8533633010 85348 85348 85348 85348 85348D 85361A 85371 8537133010 85372 85372 85372 85372 85373 85373 85379A 9011906442 9011906538 9095901116
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85385-33040C0

VCV10

BLACK,202

 2
85385-33040D0

VCV10

DK.MAUVE MC.ME,3K1

 2
85385-33040G0

VCV10

DK.GREEN MC.,6M1

 2
85385-33040A0

VCV10

ｴｸﾞｾﾞｸﾃｲﾌﾞ ﾊﾟﾂｹ-ｼﾞ,SUPER WHITE PEARL MC,051

 2
85385-33070

VCV1#

BLK(202,6M1,3K1,8K0)

 2
85385-33040D1

VCV10

RED MC.,3K3

 2
85385-33040E0

VCV10

BEIGE MC.ME.,4J1

 2
85385-33010G0

VCV10

DARK GREEN MICA,6M1

 2
85385-33010D2

VCV1#

LT GRAYISH ROSE M OP,3K7

 2
85385-33010D0

VCV10

DARK MAUVE MICA M.,3K1

 2
85385-33040D2

VCV10

LT GRAYISH ROSE M.OP,3K7

 2
85385-33010C0

VCV10

BLACK,202

 2
85385-33010C0

VCV1#

BLACK,202 ,6M1 ,8K0

 2
85385-33010C0

VCV1#

BLACK,202 ,8K0

 2
85385-33040A0

VCV10

ﾎﾜｲﾄﾊﾟ-ﾙﾏｲｶ ｾﾚｸｼﾖﾝ,SUPER WHITE PEARL MC,051

 2
85385-33010A0

VCV1#

SUPER WHITE PEARL M.,051

 2
85385-33040E1

VCV1#

BEIGE ME,4M9

 2
85385-33070

VCV1#

ﾌﾞﾗｯｸ

 2
85035 - NOZZLE SUB-ASSY, WASHER
85385-33040C0

VCV10

BLACK,202

 2
85385-33040D0

VCV10

DK.MAUVE MC.ME,3K1

 2
85385-33040G0

VCV10

DK.GREEN MC.,6M1

 2
85385-33040A0

VCV10

ｴｸﾞｾﾞｸﾃｲﾌﾞ ﾊﾟﾂｹ-ｼﾞ,SUPER WHITE PEARL MC,051

 2
85385-33070

VCV1#

BLK(202,6M1,3K1,8K0)

 2
85385-33040D1

VCV10

RED MC.,3K3

 2
85385-33040E0

VCV10

BEIGE MC.ME.,4J1

 2
85385-33010G0

VCV10

DARK GREEN MICA,6M1

 2
85385-33010D2

VCV1#

LT GRAYISH ROSE M OP,3K7

 2
85385-33010D0

VCV10

DARK MAUVE MICA M.,3K1

 2
85385-33040D2

VCV10

LT GRAYISH ROSE M.OP,3K7

 2
85385-33010C0

VCV10

BLACK,202

 2
85385-33010C0

VCV1#

BLACK,202 ,6M1 ,8K0

 2
85385-33010C0

VCV1#

BLACK,202 ,8K0

 2
85385-33040A0

VCV10

ﾎﾜｲﾄﾊﾟ-ﾙﾏｲｶ ｾﾚｸｼﾖﾝ,SUPER WHITE PEARL MC,051

 2
85385-33010A0

VCV1#

SUPER WHITE PEARL M.,051

 2
85385-33040E1

VCV1#

BEIGE ME,4M9

 2
85385-33070

VCV1#

ﾌﾞﾗｯｸ

 2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-20170

VCV10

ｱﾘ(ﾘﾔ ﾜｲﾊﾟ)

 1
85330-12280

VCV1#

ｱﾘ(ﾘﾔ ﾜｲﾊﾟ)

 1
85310-20210

VCV1#

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-33120

VCV1#

 1
85315-33010

VCV10

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

VCV1#

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-22190

VCV10

 1
85316-33120

VCV1#

 1
85316-33020

VCV10

 1
85316-33010

VCV10

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85378-33030

VCV10

3-WAY

 1
85349-89122

VCV10

2-WAY

 2
85349-89122

VCV1#

 1
85355-20200

VCV1#

 1
85355-20200

VCV1#

ｱﾘ(*RW)

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85378-33030

VCV10

3-WAY

 1
85349-89122

VCV10

2-WAY

 2
85349-89122

VCV1#

 1
85355-20200

VCV1#

 1
85355-20200

VCV1#

ｱﾘ(*RW)

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85378-33030

VCV10

3-WAY

 1
85349-89122

VCV10

2-WAY

 2
85349-89122

VCV1#

 1
85355-20200

VCV1#

 1
85355-20200

VCV1#

ｱﾘ(*RW)

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85378-33030

VCV10

3-WAY

 1
85349-89122

VCV10

2-WAY

 2
85349-89122

VCV1#

 1
85355-20200

VCV1#

 1
85355-20200

VCV1#

ｱﾘ(*RW)

 1
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85377-33030

VCV10

左側

 1
85375-33070

VCV10

右側

 1
85377-33030

VCV1#

 1
85361A - BRACKET, WINDSHIELD WASHER, NO.1
85361-33010

VCV10

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33080

VCV10

L=1450

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33868

VCV10

*H,L=1530,NO.2

 1
90099-33080

VCV10

L=1450,NO.3,NO.4

 1
90099-33723

VCV10

*H,L=180,NO.1

 1
90099-33080

VCV10

L=1450,NO.1

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33868

VCV10

*H,L=1530,NO.2

 1
90099-33080

VCV10

L=1450,NO.3,NO.4

 1
90099-33723

VCV10

*H,L=180,NO.1

 1
90099-33080

VCV10

L=1450,NO.1

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33868

VCV10

*H,L=1530,NO.2

 1
90099-33080

VCV10

L=1450,NO.3,NO.4

 1
90099-33723

VCV10

*H,L=180,NO.1

 1
90099-33080

VCV10

L=1450,NO.1

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33868

VCV10

*H,L=1530,NO.2

 1
90099-33080

VCV10

L=1450,NO.3,NO.4

 1
90099-33723

VCV10

*H,L=180,NO.1

 1
90099-33080

VCV10

L=1450,NO.1

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

VCV1#

L=1450

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

VCV1#

L=1450

 2
85379A - SPRING, WINDSHIELD WASHER HOSE
85376-33070

VCV10

 1
Common parts
85336-33010
85371-33010
90119-06442
90119-06538
90959-01116
