VCV10-ATPGK (1991)

Toyota Windom

Production Oct 1991 - Aug 1996
Engine 3VZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9110-9608)

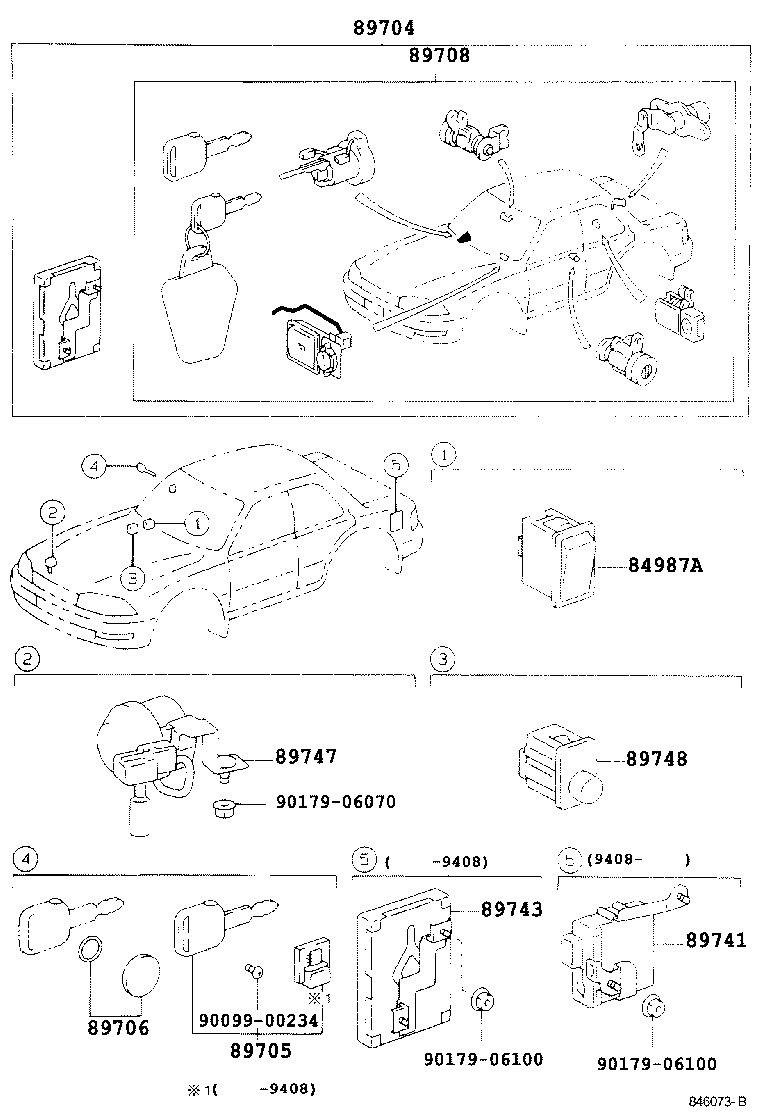

Click highlighted areas on diagram

diagram 84987A 89704 89705 89706 89708 89741 89743 89747 89748 9009900234 9017906070 9017906100 9017906100
Part # Description Qty Price
84987A - SWITCH, KEYLESS ENTRY CANCEL
84987-33010A0

VCV10

IVORY,TRIM0#

 1
84987-33010K0

VCV10

MEDIUM TAUPE,TRIM9#

 1
84987-33010C0

VCV10

BLACK,TRIM2#

 1
89704 - CONTROL SET, WIRELESS DOOR LOCK
89704-33030K0

VCV10

MEDIUM TAUPE,TRIM9#

 1
89704-33090C0

VCV1#

BLACK,TRIM2#

 1
89704-33030A0

VCV10

IVORY,TRIM0#

 1
89704-33150A0

VCV10

IVORY,TRIM4#

 1
89704-33090E0

VCV1#

OAK,TRIM4#

 1
89704-33030C0

VCV10

BLACK,TRIM2#

 1
89704-33150C0

VCV1#

BLACK,TRIM2#

 1
89704-33150K0

VCV1#

MD.TAUPE,TRIM9#

 1
89704-33090K0

VCV1#

TAUPE,TRIM9#

 1
89705 - TRANSMITTER, DOOR CONTROL
89705-12010

VCV10

 1
89742-12060

VCV1#

 1
89705-20070

VCV1#

 1
89706 - BATTERY SET, TRANSMITTER
89706-50010

VCV1#

 1
89708 - CYLINDER SET, WIRELESS DOOR LOCK
89708-33040A0

VCV10

IVORY,TRIM4#

 1
89708-33040C0

VCV1#

BLACK,TRIM2#

 1
89708-33040K0

VCV1#

MD.TAUPE,TRIM9#

 1
89741 - RECEIVER, DOOR CONTROL
89741-33120

VCV1#

 1
89743 - RECEIVER, DOOR CONTROL
89743-33070

VCV1#

 1
89743-33030

VCV10

 1
89747 - BUZZER, WIRELESS DOOR LOCK
89747-33010

VCV1#

 1
89748 - CONTROLLER, WIRELESS DOOR LOCK BUZZER
89748-33010E0

VCV1#

OAK,TRIM4#

 1
89748-33010K0

VCV1#

TAUPE,TRIM9#

 1
89748-33010C0

VCV1#

BLACK,TRIM2#

 1
89748-33010E0

VCV10

OAK,TRIM4#

 1
Common parts
90099-00234
90179-06070
90179-06100
