VCV10-ATPGK (1991)

Toyota Windom

Production Oct 1991 - Aug 1996
Engine 3VZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9110-9408)

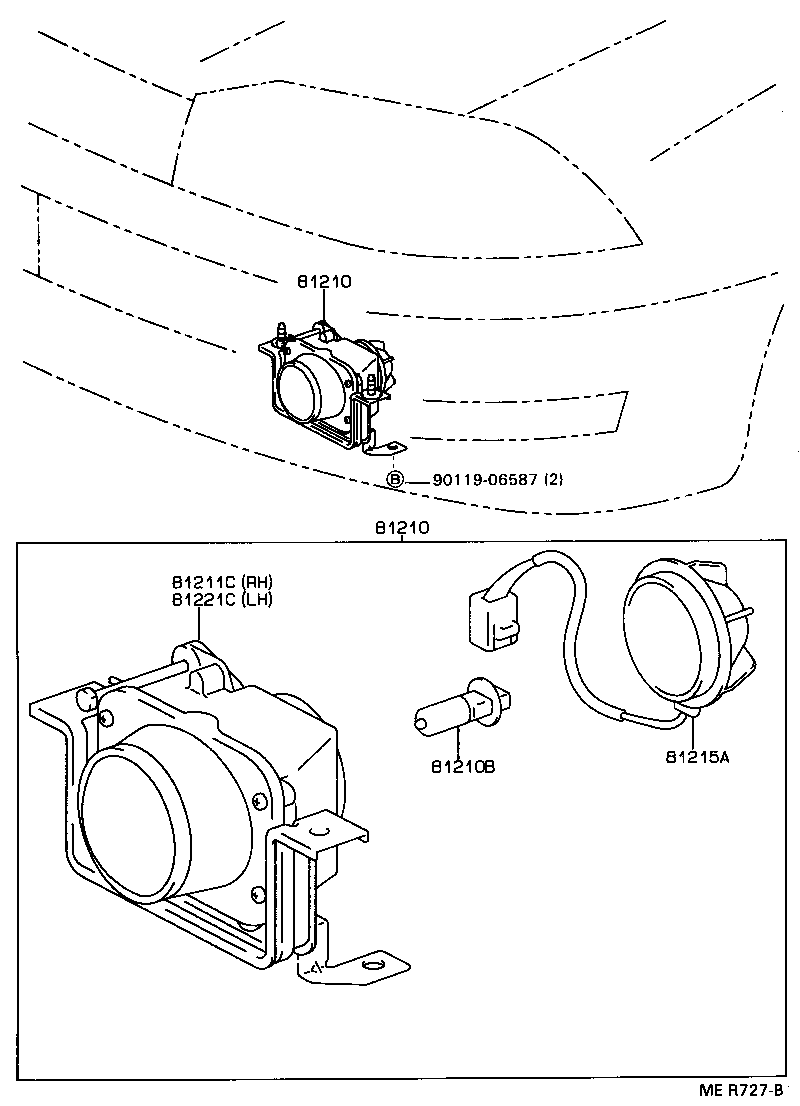

Click highlighted areas on diagram

diagram 81210 81210 81210B 81211C 81215A 81221C 9011906587
Part # Description Qty Price
81210 - LAMP ASSY, FOG
81210-33040

VCV1#

 1
81210-33010

VCV1#

右側

 1
81220-33010

VCV1#

左側

 1
81210 - LAMP ASSY, FOG
81210-33040

VCV1#

 1
81210-33010

VCV1#

右側

 1
81220-33010

VCV1#

左側

 1
81210B - BULB, FOG LAMP
90981-13018

VCV10

12V 55W,ﾊﾛｹﾞﾝ

 2
90981-13048

VCV1#

12V 55W,ﾊﾛｹﾞﾝ

 2
90981-13071

VCV1#

12V 55W,ﾊﾛｹﾞﾝ

 2
81211C - LAMP UNIT, FOG LAMP, RH
81211-33040

VCV1#

 1
81211-33010

VCV1#

 1
81215A - SOCKET & WIRE, FOG LAMP
81215-33010

VCV1#

 2
81215-33040

VCV1#

 2
81221C - LAMP UNIT, FOG LAMP, LH
81221-33040

VCV1#

 1
81221-33010

VCV1#

 1
Common parts
90119-06587

(9408-9608)

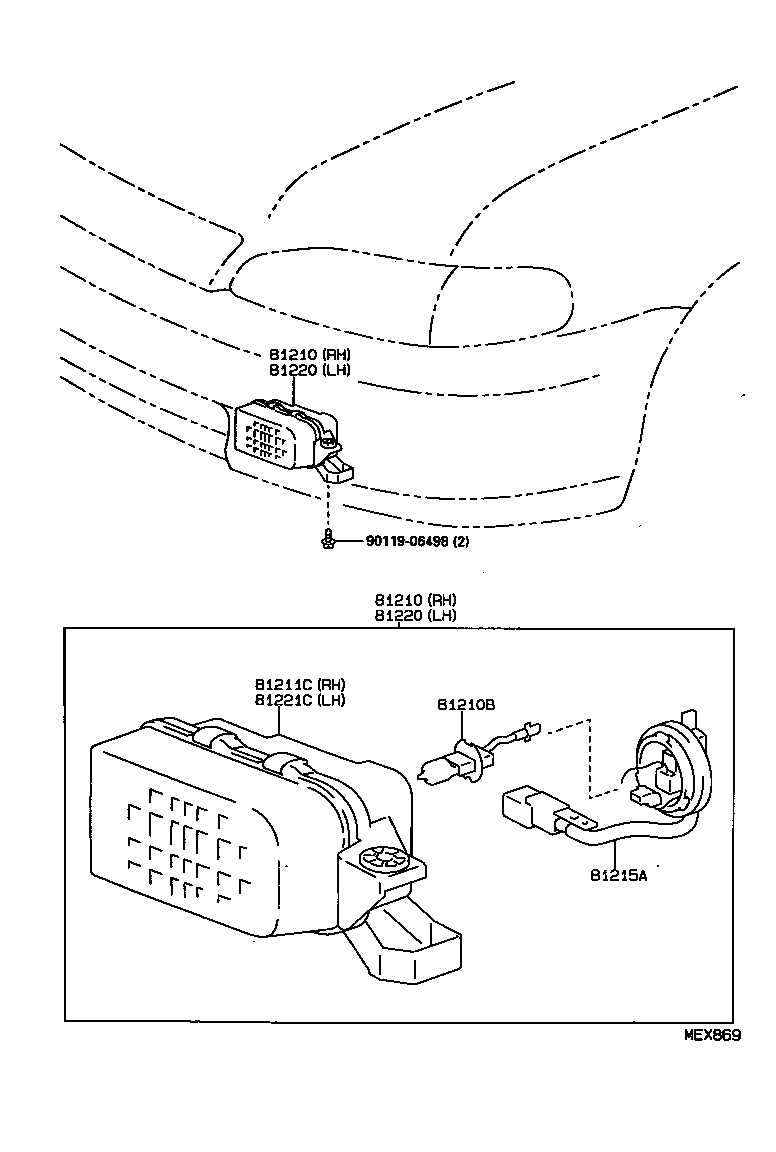

Click highlighted areas on diagram

diagram 81210 81210 81210B 81211C 81215A 81220 81220 81221C 9011906498
Part # Description Qty Price
81210 - LAMP ASSY, FOG
81210-33040

VCV1#

 1
81210-33010

VCV1#

右側

 1
81220-33010

VCV1#

左側

 1
81210 - LAMP ASSY, FOG
81210-33040

VCV1#

 1
81210-33010

VCV1#

右側

 1
81220-33010

VCV1#

左側

 1
81210B - BULB, FOG LAMP
90981-13018

VCV10

12V 55W,ﾊﾛｹﾞﾝ

 2
90981-13048

VCV1#

12V 55W,ﾊﾛｹﾞﾝ

 2
90981-13071

VCV1#

12V 55W,ﾊﾛｹﾞﾝ

 2
81211C - LAMP UNIT, FOG LAMP, RH
81211-33040

VCV1#

 1
81211-33010

VCV1#

 1
81215A - SOCKET & WIRE, FOG LAMP
81215-33010

VCV1#

 2
81215-33040

VCV1#

 2
81220 - LAMP ASSY, FOG, LH
81220-33040

VCV1#

 1
81220 - LAMP ASSY, FOG, LH
81220-33040

VCV1#

 1
81221C - LAMP UNIT, FOG LAMP, LH
81221-33040

VCV1#

 1
81221-33010

VCV1#

 1
Common parts
90119-06498
