VCV10-ATPGK (1991)

Toyota Windom

Production Oct 1991 - Aug 1996
Engine 3VZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )

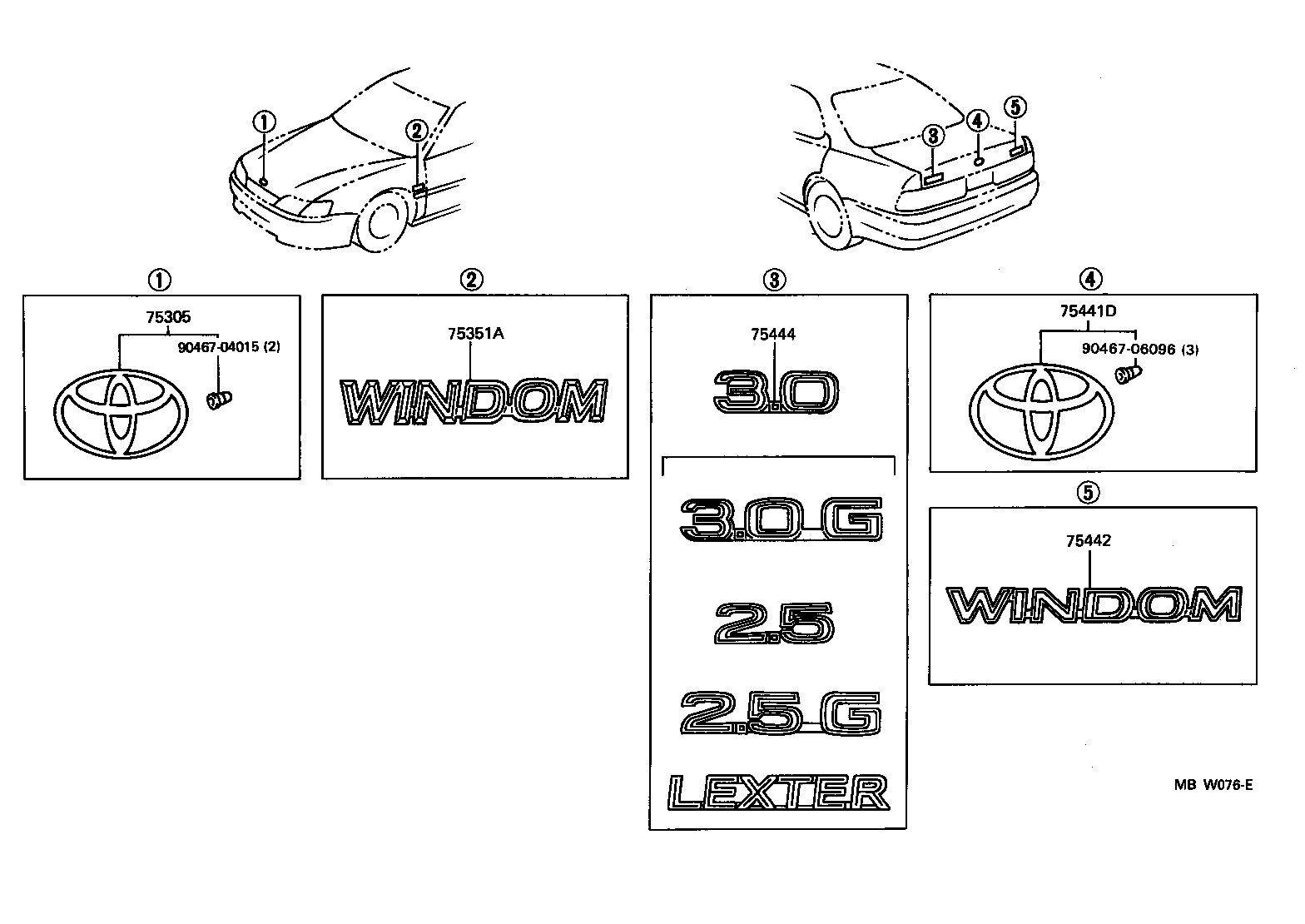

Click highlighted areas on diagram

diagram 75305 75351A 75441D 75442 75444 9046704015 9046706096
Part # Description Qty Price
75305 - EMBLEM, HOOD
75331-33020

VCV1#

 1
75351A - EMBLEM, FRONT FENDER
75351-33010

VCV1#

 2
75441D - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1
75441-33030

VCV1#

 1
75442 - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2
75442-33030

VCV1#

WINDOM

 1
75444 - PLATE, LUGGAGE COMPARTMENT DOOR, NO.4
75444-33030

VCV10

3.0G

 1
75444-33030

VCV10

3.0G,3.0G

 1
75444-33040

VCV10

3.0

 1
Common parts
90467-04015
90467-06096
