VCV10-ATPGK (1991)

Toyota Windom

Production Oct 1991 - Aug 1996
Engine 3VZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )

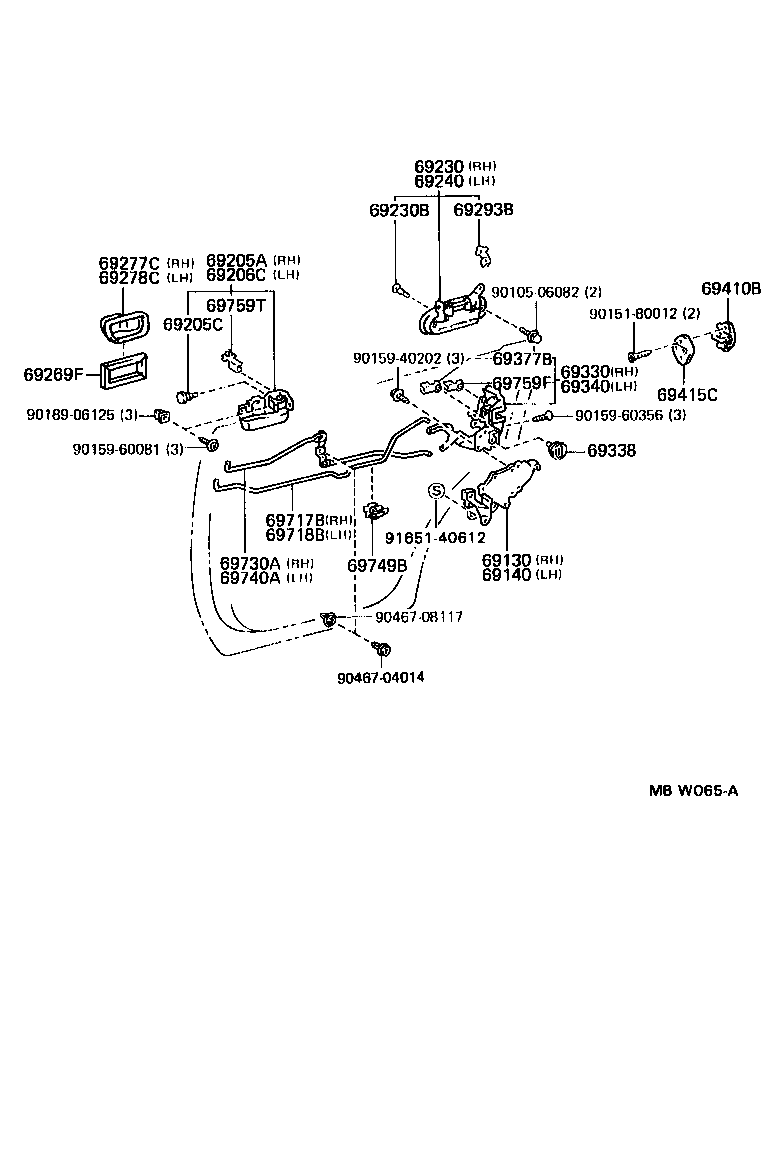

Click highlighted areas on diagram

diagram 69130 69140 69205A 69205C 69206C 69230 69230B 69240 69269F 69277C 69278C 69293B 69330 69338 69340 69377B 69410B 69415C 69717B 69718B 69730A 69740A 69749B 69759F 69759T 9010506082 9015180012 9015940202 9015960081 9015960356 9018906125 9046704014 9046708117 9165140612
Part # Description Qty Price
69130 - ACTUATOR ASSY, REAR DOOR LOCK, RH
69130-32030

VCV1#

 1
69140 - ACTUATOR ASSY, REAR DOOR LOCK, LH
69140-32030

VCV1#

 1
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69207-33020E1

VCV10

OAK,TRIM4#

 1
69207-3301008

VCV10

IVORY,TRIM0#

 1
69207-33020C0

VCV1#

BLACK,TRIM2#

 1
69207-33010K0

VCV10

TAUPE,TRIM9#

 1
69207-33020K0

VCV1#

TAUPE,TRIM9#

 1
69207-33020E1

VCV1#

OAK,TRIM4#

 1
69207-3301001

VCV10

BLACK,TRIM2#

 1
69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE)
90541-04014

VCV1#

 2
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69208-33020E1

VCV1#

OAK,TRIM4#

 1
69208-3301008

VCV10

IVORY,TRIM0#

 1
69208-33010K0

VCV10

TAUPE,TRIM9#

 1
69208-3301001

VCV10

BLACK,TRIM2#

 1
69208-33020C0

VCV1#

BLACK,TRIM2#

 1
69208-33020E1

VCV10

OAK,TRIM4#

 1
69208-33020K0

VCV1#

TAUPE,TRIM9#

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69230-3205028

VCV10

ｴｸﾞｾﾞｸﾃｲﾌﾞ ﾊﾟﾂｹ-ｼﾞ,SUPER WHITE PEARL MC,051

 1
69230-3205032

VCV10

RED MICA,3K3

 1
69230-3205027

VCV10

DARK GREEN MICA,6M1

 1
69230-3205022

VCV10

DARK MAUVE MICA M,3K1

 1
69230-32050G1

VCV1#

DK GREEN MICA,6M1

 1
69230-3205001

VCV1#

BLACK,202

 1
69230-3205042

VCV1#

LT GRAYISH ROSE M OP,3K7

 1
69230-3205005

VCV10

BEIGE MICA,4J1

 1
69230-3205028

VCV10

ﾎﾜｲﾄﾊﾟ-ﾙﾏｲｶ ｾﾚｸｼﾖﾝ,SUPER WHITE PEARL MC,051

 1
69230-32050E1

VCV1#

BEIGE ME,4M9

 1
69230-3205028

VCV1#

SUPER WHITE PEARL MC,051

 1
69230-3205037

VCV1#

LT.GRAISH ROSE OP,3K7

 1
69230-32050J0

VCV1#

DARK BLUE M.M,8K0

 1
69230-32050G3

VCV1#

DK.GREEN M.M.,6P2

 1
69230B - CUSHION(FOR REAR DOOR OUTSIDE HANDLE)
90541-04018

VCV1#

 4
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69240-3205005

VCV10

BEIGE MICA,4J1

 1
69240-3205022

VCV10

DARK MAUVE MICA M,3K1

 1
69240-3205028

VCV10

ｴｸﾞｾﾞｸﾃｲﾌﾞ ﾊﾟﾂｹ-ｼﾞ,SUPER WHITE PEARL MC,051

 1
69240-32050G1

VCV1#

DK GREEN MICA,6M1

 1
69240-32050J0

VCV1#

DARK BLUE M.M,8K0

 1
69240-3205027

VCV10

DARK GREEN MICA,6M1

 1
69240-3205028

VCV1#

SUPER WHITE PEARL MC,051

 1
69240-3205042

VCV1#

LT GRAYISH ROSE M OP,3K7

 1
69240-3205028

VCV10

ﾎﾜｲﾄﾊﾟ-ﾙﾏｲｶ ｾﾚｸｼﾖﾝ,SUPER WHITE PEARL MC,051

 1
69240-3205037

VCV1#

LT.GRAISH ROSE OP,3K7

 1
69240-32050G3

VCV1#

DK.GREEN M.M.,6P2

 1
69240-3205032

VCV10

RED MICA,3K3

 1
69240-32050E1

VCV1#

BEIGE ME,4M9

 1
69240-3205001

VCV1#

BLACK,202

 1
69269F - SEAL, REAR DOOR INSIDE HANDLE
69269-33010

VCV10

 2
69277C - BEZEL, REAR DOOR INSIDE HANDLE, RH
69297-3301008

VCV10

IVORY,TRIM0#

 1
69297-33010E1

VCV1#

OAK,TRIM4#

 1
69297-3301022

VCV1#

BLACK,TRIM2#

 1
69297-33010K0

VCV1#

TAUPE,TRIM9#

 1
69297-3301001

VCV1#

BLACK,TRIM2#

 1
69297-33010E1

VCV10

OAK,TRIM4#

 1
69278C - BEZEL, REAR DOOR INSIDE HANDLE, LH
69298-3301008

VCV10

IVORY,TRIM0#

 1
69298-33010E1

VCV10

OAK,TRIM4#

 1
69298-33010K0

VCV1#

TAUPE,TRIM9#

 1
69298-3301001

VCV1#

BLACK,TRIM2#

 1
69298-33010E1

VCV1#

OAK,TRIM4#

 1
69298-3301022

VCV1#

BLACK,TRIM2#

 1
69293B - SNAP, REAR DOOR OUTSIDE HANDLE
69293-12050

VCV1#

 2
69330 - LOCK ASSY, REAR DOOR, RH
69330-32300

VCV1#

 1
69338 - KNOB, CHILD PROTECTOR LOCK LEVER
69338-32010

VCV1#

 2
69340 - LOCK ASSY, REAR DOOR, LH
69340-32300

VCV1#

 1
69377B - SNAP, REAR DOOR LOCK CONTROL ROD
69759-24010

VCV1#

右側

 1
69759-24010

VCV1#

左側

 1
69759-24020

VCV1#

右側

 1
69759-24020

VCV1#

左側

 1
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-50010

VCV1#

 2
69410-87001

VCV1#

 2
69415C - COVER, DOOR LOCK STRIKER, REAR
69415-50010

VCV1#

 2
69717B - LINK, REAR DOOR LOCK REMOTE CONTROL, RH
69713-33010

VCV1#

 1
69718B - LINK, REAR DOOR LOCK REMOTE CONTROL, LH
69714-33010

VCV1#

 1
69730A - LINK ASSY, REAR DOOR LOCK CONTROL, RH
69730-33010

VCV1#

 1
69740A - LINK ASSY, REAR DOOR LOCK CONTROL, LH
69740-33010

VCV1#

 1
69749B - CLAMP, REAR DOOR LOCK LINK
69749-50010

VCV1#

 2
69759F - SNAP, REAR DOOR LOCK CONTROL LINK
69759-24050

VCV1#

左側

 1
69759-24060

VCV1#

右側

 1
69759T - SNAP, REAR DOOR INSIDE HANDLE
69759-24070

VCV1#

右側

 2
69759-14050

VCV1#

左側

 2
69759-24070

VCV1#

 2
69759-14050

VCV10

左側

 2
69759-24070

VCV10

右側

 2
Common parts
90105-06082
90151-80012
90159-40202
90159-60081
90159-60356
90189-06125
90467-04014
90467-08117
91651-40612
