VCV10-ATPGK (1991)

Toyota Windom

Production Oct 1991 - Aug 1996
Engine 3VZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )

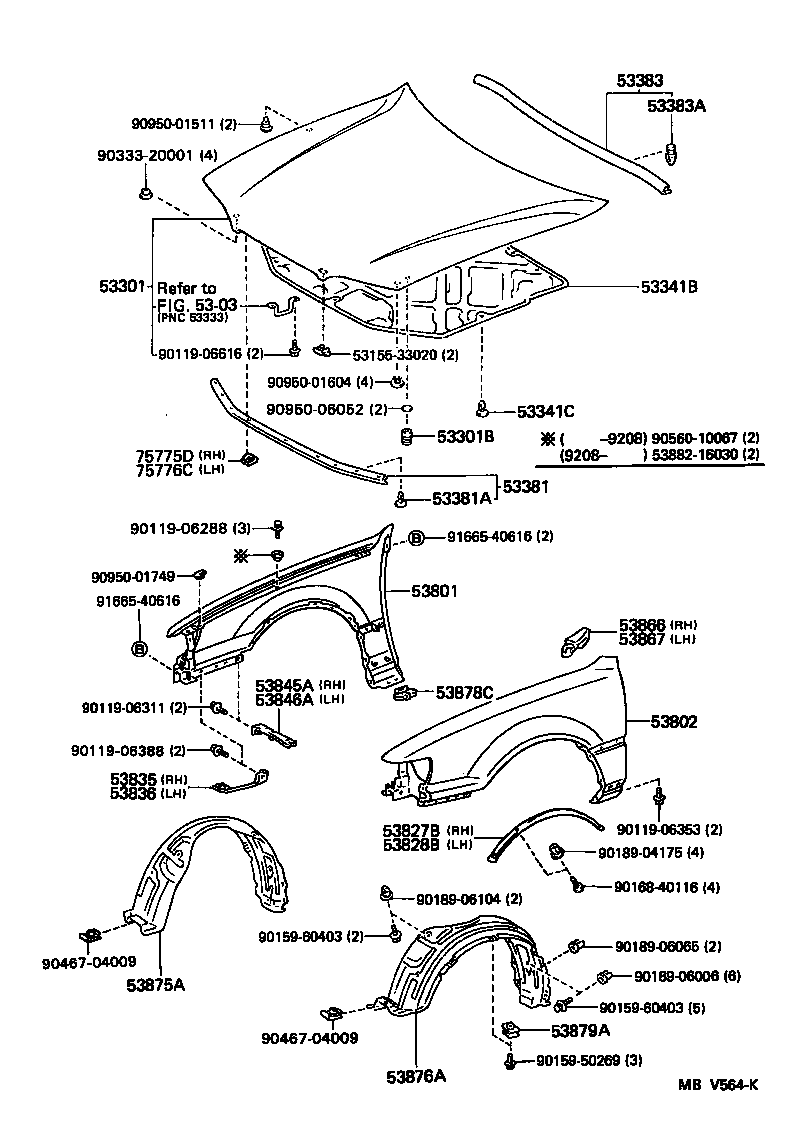

Click highlighted areas on diagram

diagram 5303 5315533020 53301 53301B 53341B 53341C 53381 53381A 53383 53383A 53801 53802 53827B 53828B 53835 53836 53845A 53846A 53866 53867 53875A 53876A 53878C 53879A 5388216030 75775D 75776C 9011906288 9011906311 9011906353 9011906388 9011906616 9015950269 9015960403 9015960403 9016840116 9018904175 9018906006 9018906065 9018906104 9033320001 9046704009 9046704009 9056010067 9095001511 9095001604 9095001749 9095006052 9166540616 9166540616
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-33901

VCV1#

 1
53301B - CUSHION, HOOD BUMPER
90541-15004

VCV1#

 2
53341B - INSULATOR, HOOD
53341-33010

VCV1#

 1
53341C - CLIP(FOR HOOD INSULATOR)
90467-09006

VCV1#

 12
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-33010

VCV1#

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011

VCV1#

 9
53383 - SEAL, HOOD TO COWL TOP
53383-33010

VCV1#

 1
53383A - CLIP(FOR HOOD TO COWL TOP SEAL)
90467-06138

VCV1#

CENTER

 9
90467-09152

VCV1#

左側

 1
90467-09151

VCV1#

右側

 1
53801 - FENDER SUB-ASSY, FRONT RH
53801-33050

VCV1#

ｱﾘ(*FM)

 1
53801-33040

VCV1#

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-33050

VCV1#

ｱﾘ(*FM)

 1
53802-33040

VCV1#

 1
53827B - PROTECTOR, FRONT FENDER SIDE PANEL
53827-33020

VCV1#

 1
53828B - PROTECTOR, FRONT FENDER SIDE PANEL, LH
53828-33020

VCV1#

 1
53835 - BRACE, FRONT FENDER TO EXTENSION, RH
53835-33030

VCV1#

 1
53836 - BRACE, FRONT FENDER TO EXTENSION, LH
53836-33030

VCV1#

 1
53845A - BRACE, FRONT WHEEL OPENING APRON, RH
53845-33020

VCV10

 1
53845-33030

VCV1#

 1
53846A - BRACE, FRONT WHEEL OPENING APRON, LH
53846-33020

VCV1#

 1
53866 - SEAL, FRONT FENDER TO COWL SIDE, RH
53866-33020

VCV1#

 1
53867 - SEAL, FRONT FENDER TO COWL SIDE, LH
53867-33020

VCV1#

 1
53875A - LINER, FRONT FENDER, RH
53875-33060

VCV1#

 1
53875-33020

VCV10

 1
53876A - LINER, FRONT FENDER, LH
53876-33060

VCV1#

 1
53876-33020

VCV10

 1
53878C - SPACER, FRONT FENDER
53878-20040

VCV1#

 2
53879A - RETAINER, FRONT FENDER LINER
53879-14010

VCV1#

 6
75775D - COVER, HOOD FRONT MOULDING END, RH
75775-33010

VCV1#

 1
75776C - COVER, HOOD FRONT MOULDING END, LH
75776-33010

VCV1#

 1
Common parts
53155-33020
53882-16030
90119-06288
90119-06311
90119-06353
90119-06388
90119-06616
90159-50269
90159-60403
90168-40116
90189-04175
90189-06006
90189-06065
90189-06104
90333-20001
90467-04009
90560-10067
90950-01511
90950-01604
90950-01749
90950-06052
91665-40616
Linked diagrams
5303
