VCV10-ATPGK (1991)
Toyota Windom
Production
Oct 1991
-
Aug 1996
Engine
3VZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9110- )

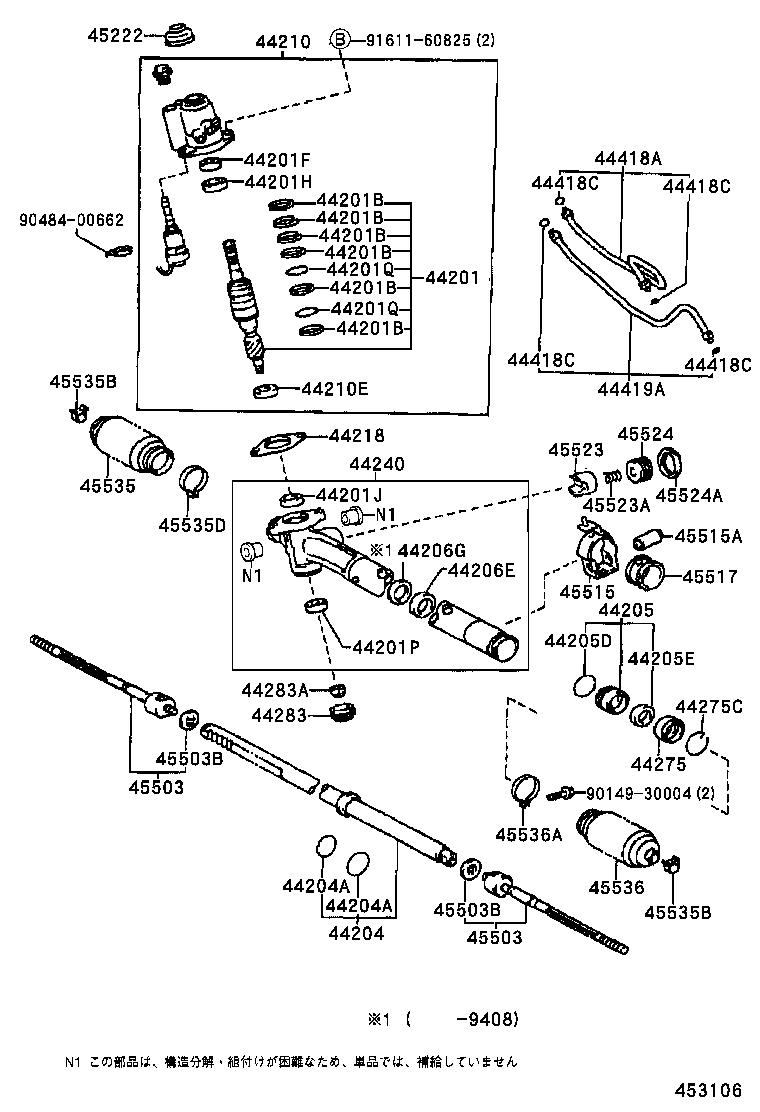

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-33111 |
VCV10 |
1 | ||
| 44201B - SPACER(FOR POWER STEERING CONTROL VALVE) | ||||
| 90560-35011 |
VCV10 下側 |
2 | ||
| 90560-33005 |
VCV10 上側 |
4 | ||
| 90560-33003 |
VCV10 上側 |
4 | ||
| 44201B - SPACER(FOR POWER STEERING CONTROL VALVE) | ||||
| 90560-35011 |
VCV10 下側 |
2 | ||
| 90560-33005 |
VCV10 上側 |
4 | ||
| 90560-33003 |
VCV10 上側 |
4 | ||
| 44201B - SPACER(FOR POWER STEERING CONTROL VALVE) | ||||
| 90560-35011 |
VCV10 下側 |
2 | ||
| 90560-33005 |
VCV10 上側 |
4 | ||
| 90560-33003 |
VCV10 上側 |
4 | ||
| 44201B - SPACER(FOR POWER STEERING CONTROL VALVE) | ||||
| 90560-35011 |
VCV10 下側 |
2 | ||
| 90560-33005 |
VCV10 上側 |
4 | ||
| 90560-33003 |
VCV10 上側 |
4 | ||
| 44201B - SPACER(FOR POWER STEERING CONTROL VALVE) | ||||
| 90560-35011 |
VCV10 下側 |
2 | ||
| 90560-33005 |
VCV10 上側 |
4 | ||
| 90560-33003 |
VCV10 上側 |
4 | ||
| 44201B - SPACER(FOR POWER STEERING CONTROL VALVE) | ||||
| 90560-35011 |
VCV10 下側 |
2 | ||
| 90560-33005 |
VCV10 上側 |
4 | ||
| 90560-33003 |
VCV10 上側 |
4 | ||
| 44201F - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-19010 |
VCV1# |
1 | ||
| 44201H - BEARING(FOR POWER STEERING CONTROL VALVE UPPER) | ||||
| 90365-19001 |
VCV1# |
1 | ||
| 44201J - BEARING(FOR POWER STEERING CONTROL VALVE CENTER) | ||||
| 90364-25014 |
VCV1# |
1 | ||
| 44201P - BEARING(FOR POWER STEERING CONTROL VALVE LOWER) | ||||
| 90363-12013 |
VCV1# |
1 | ||
| 44201Q - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-32004 |
VCV10 |
2 | ||
| 44201Q - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-32004 |
VCV10 |
2 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-33050 |
VCV1# |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-36008 |
VCV1# 内側 |
1 | ||
| 90080-56013 |
VCV1# (L)､外側 |
1 | ||
| 90562-40003 |
VCV1# (J)､外側 |
1 | ||
| 90562-39002 |
VCV10 外側 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-36008 |
VCV1# 内側 |
1 | ||
| 90080-56013 |
VCV1# (L)､外側 |
1 | ||
| 90562-40003 |
VCV1# (J)､外側 |
1 | ||
| 90562-39002 |
VCV10 外側 |
1 | ||
| 44205 - STOPPER SUB-ASSY, CYLINDER END | ||||
| 44205-33010 |
VCV1# |
1 | ||
| 44205D - RING, O(FOR POWER STEERING RACK BUSH) | ||||
| 90301-36009 |
VCV1# |
1 | ||
| 44205E - SEAL, OIL(FOR POWER STEERING RACK BUSH) | ||||
| 90080-31010 |
VCV1# (L) |
1 | ||
| 90311-27001 |
VCV1# (J) |
1 | ||
| 44206E - SEAL, OIL, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90311-27002 |
VCV10 |
1 | ||
| 90311-27006 |
VCV1# |
1 | ||
| 90311-27005 |
VCV1# |
1 | ||
| 44206G - SPACER, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90561-28003 |
VCV1# |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-33101 |
VCV10 |
1 | ||
| 44210-33100 |
VCV10 |
1 | ||
| 44210E - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-26003 |
VCV1# |
1 | ||
| 44218 - GASKET, VALVE HOUSING | ||||
| 44218-12020 |
VCV1# |
1 | ||
| 44240 - HOUSING ASSY, POWER STEERING RACK | ||||
| 44240-33020 |
VCV1# |
1 | ||
| 44240-33021 |
VCV1# |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-33010 |
VCV1# |
1 | ||
| 44275-33011 |
VCV1# |
1 | ||
| 44275-33010 |
VCV1# |
1 | ||
| 44275C - WIRE(FOR CYLINDER END STOPPER) | ||||
| 90580-20238 |
VCV1# |
1 | ||
| 44283 - CAP, RACK HOUSING | ||||
| 44283-33010 |
VCV1# |
1 | ||
| 44283A - NUT(FOR RACK HOUSING CAP) | ||||
| 90179-10048 |
VCV1# |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-33040 |
VCV10 |
1 | ||
| 44418C - RING, O(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90301-03001 |
VCV1# |
4 | ||
| 44418C - RING, O(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90301-03001 |
VCV1# |
4 | ||
| 44418C - RING, O(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90301-03001 |
VCV1# |
4 | ||
| 44418C - RING, O(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90301-03001 |
VCV1# |
4 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-33040 |
VCV10 |
1 | ||
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-33010 |
VCV1# |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-39055 |
VCV1# |
2 | ||
| 45503-39135 |
VCV1# |
2 | ||
| 45503-29355 |
VCV1# |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-39055 |
VCV1# |
2 | ||
| 45503-39135 |
VCV1# |
2 | ||
| 45503-29355 |
VCV1# |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14007 |
VCV1# 外径=38 |
2 | ||
| 90214-14002 |
VCV1# 外径=37 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14007 |
VCV1# 外径=38 |
2 | ||
| 90214-14002 |
VCV1# 外径=37 |
2 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-33011 |
VCV1# |
1 | ||
| 45515A - COLLAR, STEERING RACK HOUSING BRACKET | ||||
| 90080-38062 |
VCV1# (L) |
1 | ||
| 90386-15004 |
VCV1# (J) |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-33021 |
VCV1# |
1 | ||
| 45517-33010 |
VCV1# |
1 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45504-33010 |
VCV1# (J) |
1 | ||
| 45504-06010 |
VCV1# (L) |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-26042 |
VCV10 |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-33010 |
VCV1# |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-36002 |
VCV1# |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-33020 |
VCV1# (J) |
1 | ||
| 45535-33010 |
VCV1# (J) |
1 | ||
| 45535-06020 |
VCV1# (L) |
1 | ||
| 45535-06010 |
VCV1# (L) |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19017 |
VCV1# (J) |
2 | ||
| 90080-46153 |
VCV1# (L) |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19017 |
VCV1# (J) |
2 | ||
| 90080-46153 |
VCV1# (L) |
2 | ||
| 45535D - CLAMP(FOR STEERING RACK BOOT NO.1) | ||||
| 90461-08688 |
VCV1# |
1 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-06010 |
VCV1# (L) |
1 | ||
| 45535-33010 |
VCV1# (J) |
1 | ||
| 45535-33020 |
VCV1# (J) |
1 | ||
| 45535-06020 |
VCV1# (L) |
1 | ||
| 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) | ||||
| 90461-08688 |
VCV1# |
1 | ||
| Common parts | ||||
| 90149-30004 | ||||
| 90484-00662 | ||||
| 91611-60825 | ||||
(9110- )

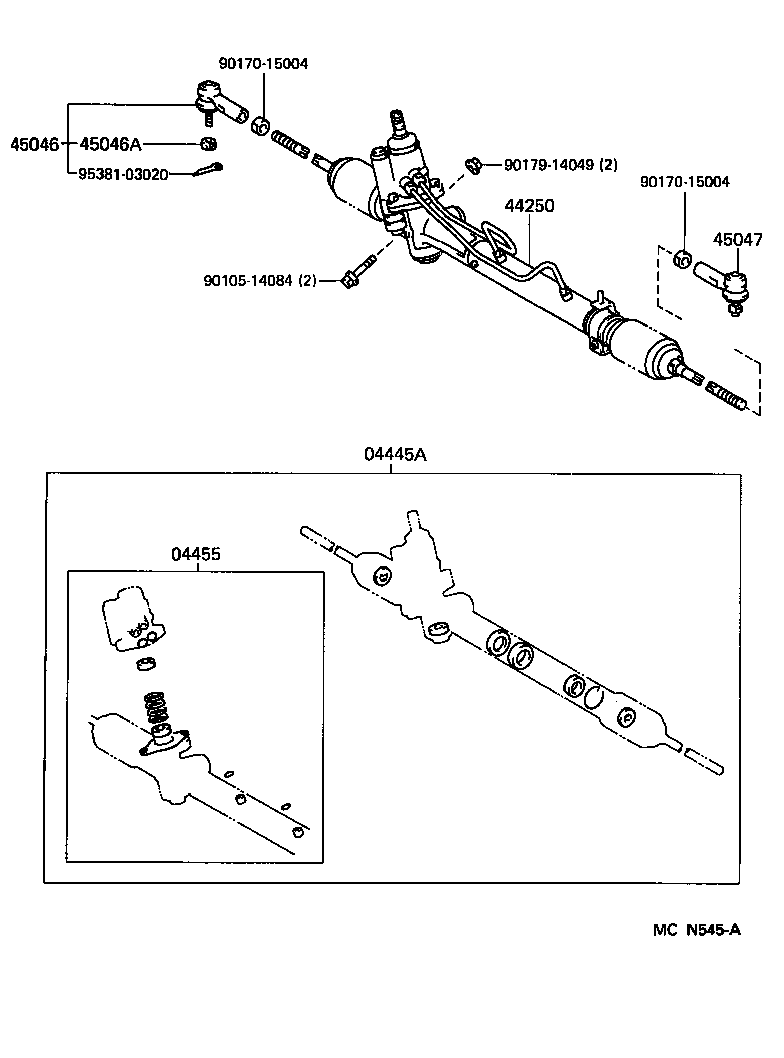

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-33022 |
VCV10 |
1 | ||
| 04445-33023 |
VCV10 |
1 | ||
| 04445-33021 |
VCV10 |
1 | ||
| 04445-33040 |
VCV10 |
1 | ||
| 04445-33060 |
VCV10 |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-33010 |
VCV10 |
1 | ||
| 04455-10040 |
VCV10 |
1 | ||
| 04455-10050 |
VCV10 |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-33090 |
VCV10 |
1 | ||
| 44250-33092 |
VCV10 |
1 | ||
| 44250-33091 |
VCV10 |
1 | ||
| 44250-33093 |
VCV10 |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-29255 |
VCV1# |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
VCV1# |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-29255 |
VCV1# |
1 | ||
| Common parts | ||||
| 90105-14084 | ||||
| 90170-15004 | ||||
| 90179-14049 | ||||
| 95381-03020 | ||||
